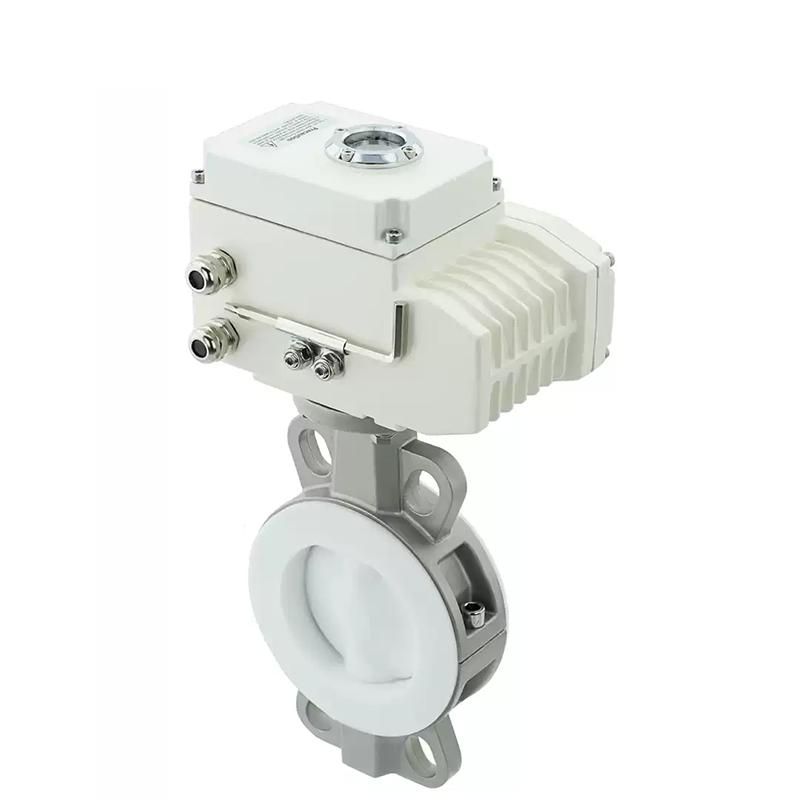

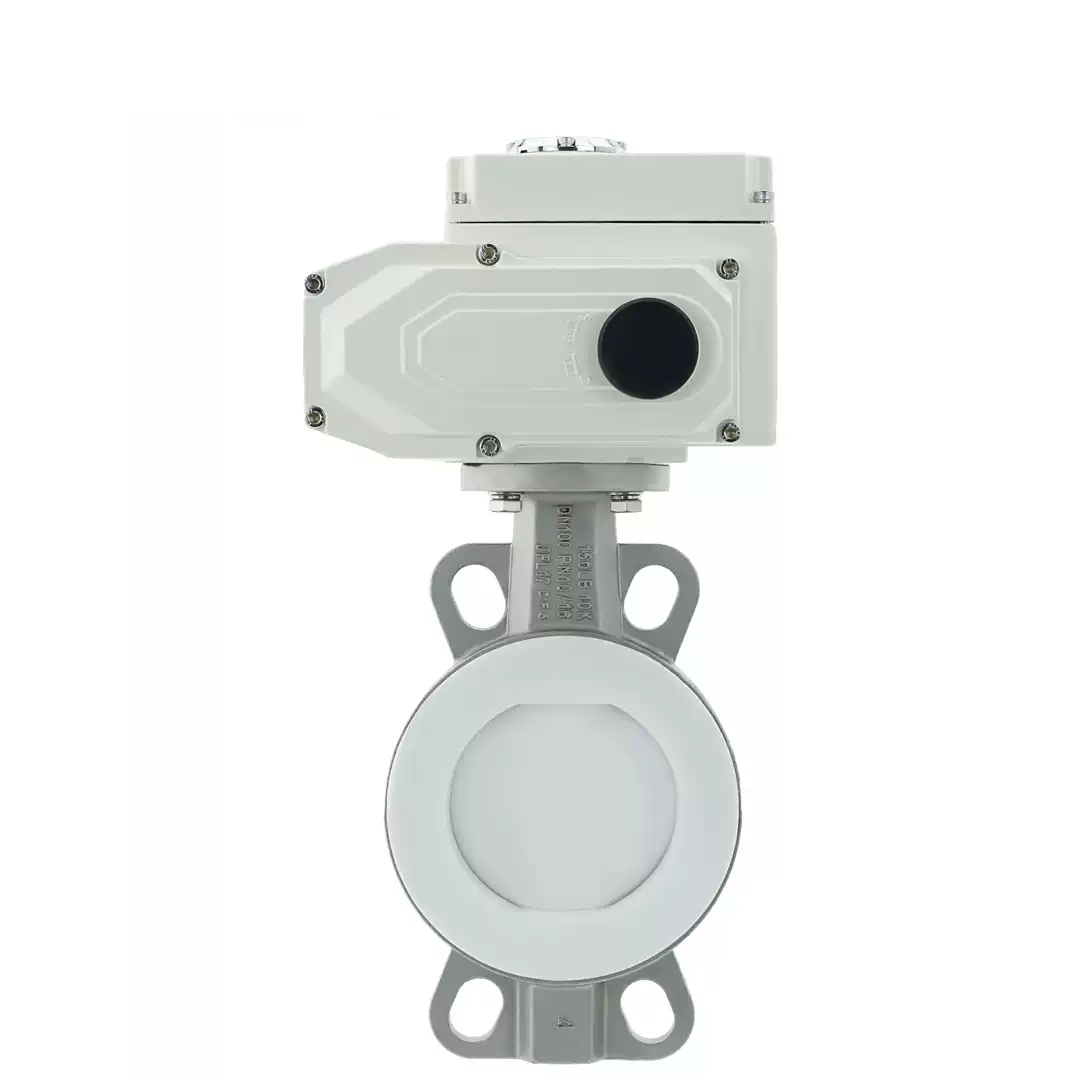

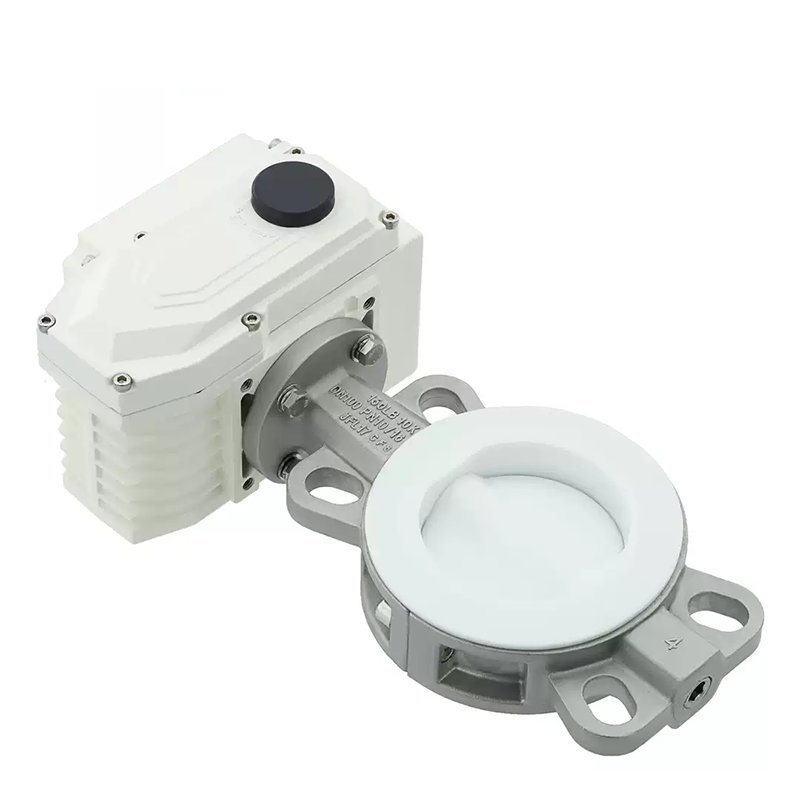

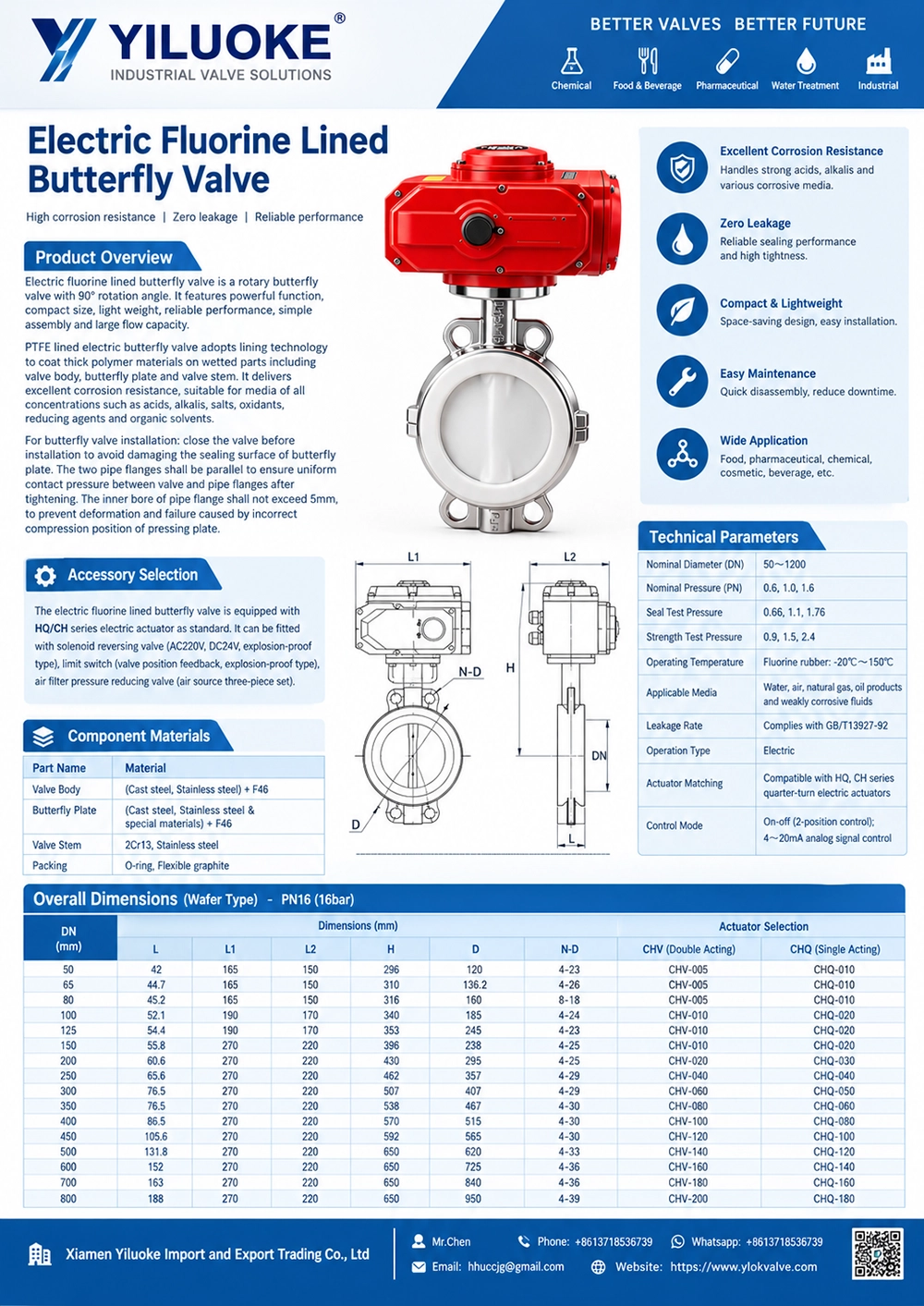

Electric PTFE Lined Butterfly Valve

Short Description:

Product Name: Electric Fluorine Lined Butterfly Valve
Valve Category: Butterfly Valve
Brand: Yiluoke
Technical Data: DN15-DN2000
Made In: China
Supplier: Xiamen Yiluoke Import and Export Trading Co., Ltd

Product Detail

Electric PTFE Lined Butterfly Valve (also known as corrosion resistant electric butterfly valve / electric PTFE lined butterfly valve) consists of an electric actuator and PTFE lined butterfly valve body. The butterfly valve uses a disc rotating together with the valve stem as the closure member to realize valve opening, closing and regulation. The electric PTFE lined butterfly valve adopts lining technology to coat thick polymer materials on wetted parts including valve body, disc and valve stem, featuring excellent anti-corrosion performance. The corrosion resistant electric butterfly valve can be applied to media of any concentration of acid, alkali, salt, oxidizing agent, reducing agent and organic solvent. It is an ideal product for shut-off and regulation equipment on pipelines and containers for gas, liquid and semi-fluid in chemical, petroleum, pharmaceutical, food, steel smelting, paper making, hydropower and other systems. It can replace gate valves, globe valves and other types of shut-off and regulating valves.

Electric PTFE Lined Butterfly Valve has the advantages of corrosion resistance, zero leakage and long service life. Electric PTFE lined butterfly valve is suitable for concentrated sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid, various organic acids, strong acid, oxidizing media, high temperature dilute sulfuric acid, high temperature concentrated acetic acid, alternating acid and alkali, various organic solvents and other highly corrosive media.

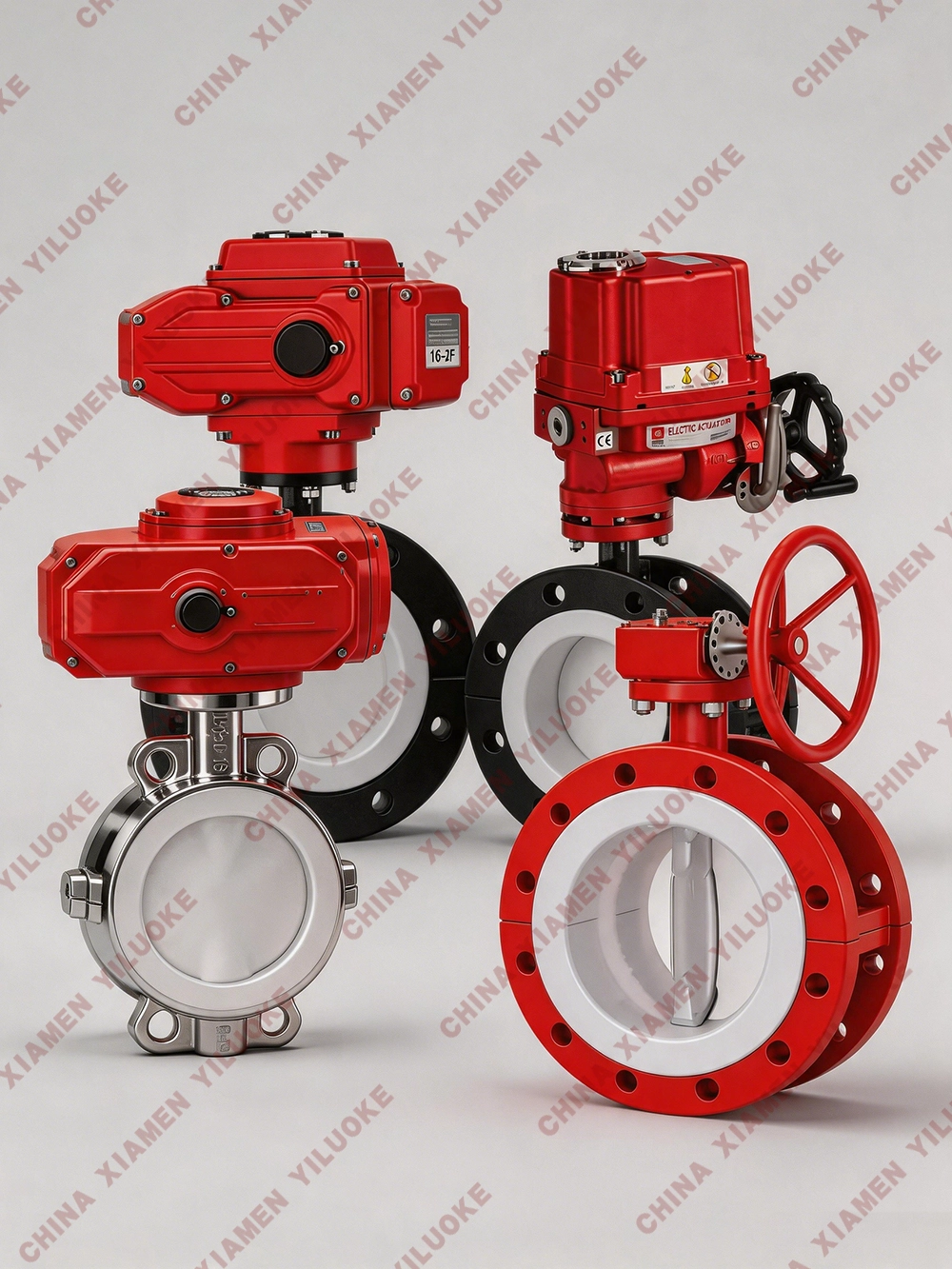

PTFE Lined Butterfly Valves

Main Technical Parameters

Valve Body
Valve Body Type	Straight through cast valve
Nominal Diameter	DN50～1000mm
Nominal Pressure	PN1.0, 1.6 MPa
Flange Standard	JIS B220, JB/T79, ANSI B16.5-1981, GB/T9113, HG20594-97, HG20618-97, etc.
Connection Type	Flanged, Wafer
Bonnet Type	Integrated
Gland Type	Plate compression type
Sealing Packing	V-type PTFE packing, flexible graphite packing
Valve Trim
Disc Type	Butterfly shape
Flow Characteristic	Linear
Actuator
Power Supply	AC220/380V, 50/60Hz
Output Torque	50N·M～2000N·M
Stroke Range	0～90°, 0～360°
Operating Time	15s / 30s / 60s
Protection Device	Overheat protection
Ambient Temperature	-30°～60°
Manual Operation	With attached handwheel
Limit	Dual limit: electrical and mechanical
Protection Class	IP-65
Explosion Proof Class	ExdII BT4; Custom ExdII BT6 for special requirements
Position Measurement	Optional limit switch or potentiometer
Drive Motor	8W/E
Cable Entry	PE1/2〞 cable gland

Note: For detailed actuator parameters, please visit the electric actuator page.

Main Parts Material

Part Name	Material
Valve Body & Base	Ductile cast steel, cast steel, stainless steel, full PTFE lined
Disc	Grey cast iron, ductile cast steel, cast steel, stainless steel, special materials, full PTFE lined
Sealing Ring	Various rubber, PTFE
Valve Stem	2Cr13, stainless steel, full PTFE lined
Packing	V-type PTFE packing, flexible graphite packing

Main Performance Index

Nominal Diameter DN(mm)	50～1000
Allowable Pressure Difference(MPa)	≤ Nominal Pressure
Stroke Range	0～90°
Leakage Rate	Zero leakage
Basic Error	±2.5%
Hysteresis	±2.5%
Dead Zone	1% (adjustable)

Main Performance Specification

Nominal Diameter DN(mm)	50-1800
Nominal Pressure PN(MPa)	0.6	1.0	1.6
Test Pressure	Strength Test	0.9	1.5	2.4
	Seal Test	0.66	1.1	1.76
	Low Pressure Air Tightness Test	0.6	0.6	0.6
Applicable Media	Air, water, sewage, steam, gas, oil, etc.
