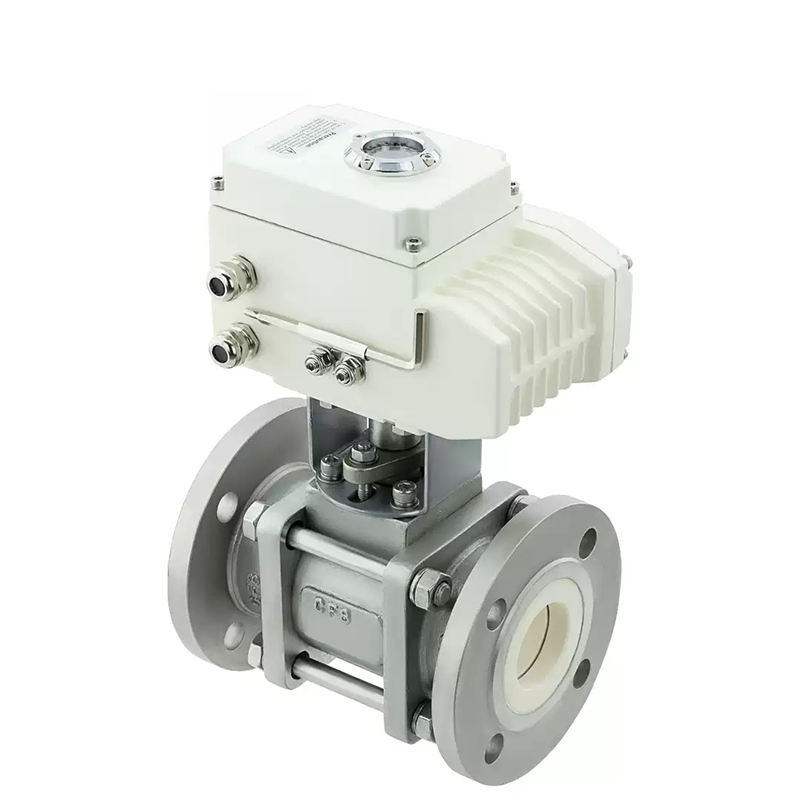

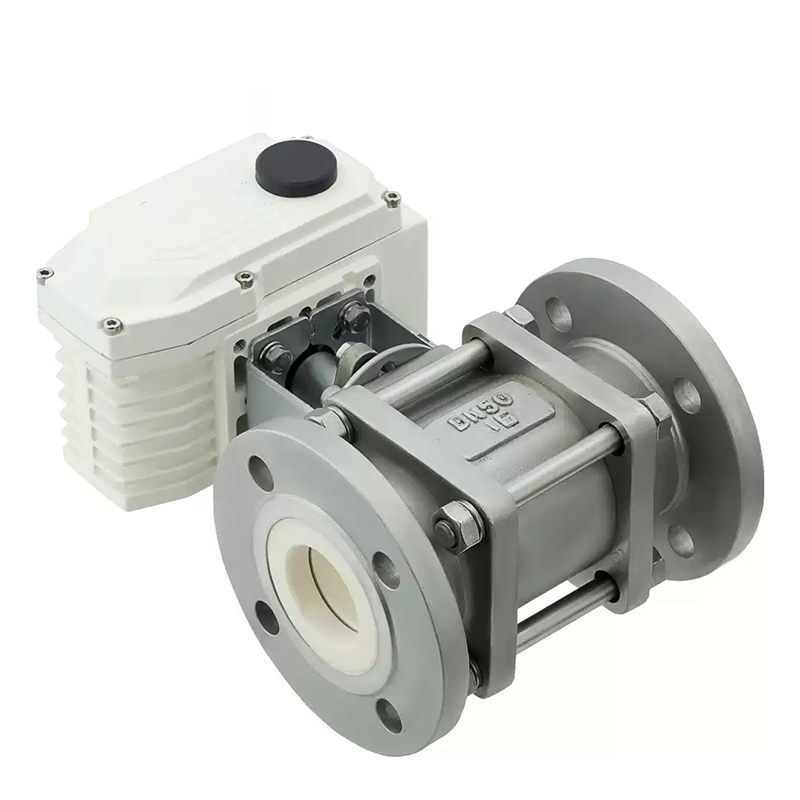

Electric Actuated Ceramic Lined Ball Valve

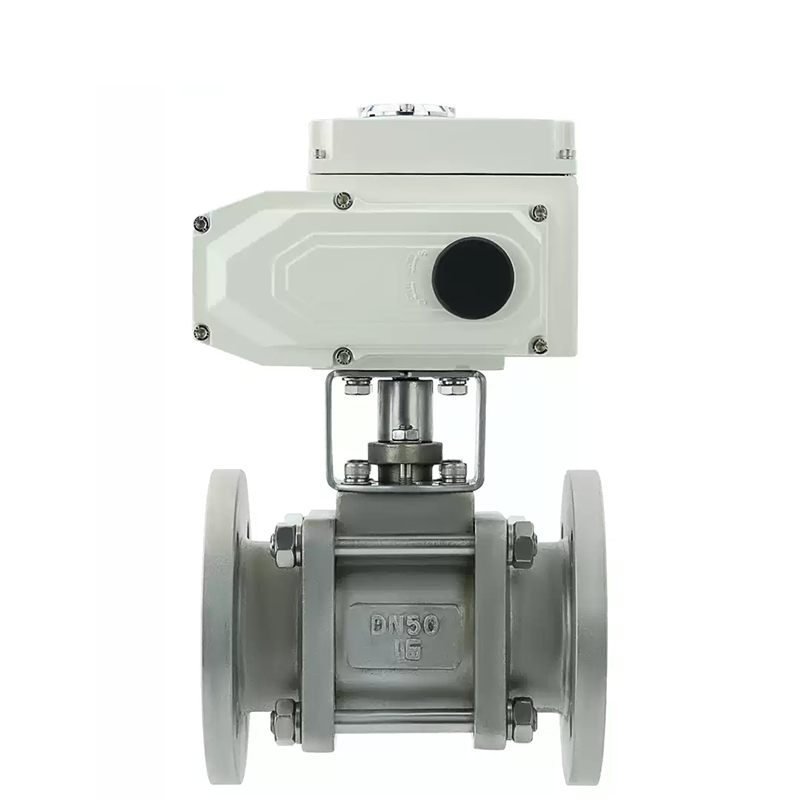

stainless steel Electric ceramic ball valve

Short Description:

Product Name: Electric Ceramic Ball Valve
Valve Category: Ball Valve
Brand: Yiluoke
Technical Data: DN15-DN600
Made In: China
Supplier: Xiamen Yiluoke Import and Export Trading Co., Ltd

Product Detail

Electric actuated ceramic lined ball valve is used for opening and closing on pipelines carrying high‑hardness particulate media or corrosive media with soft particles. Its nominal pressure is 1.6MPa and operating temperature is below 200℃. All media‑wetted parts are made of structural ceramic material with excellent chemical stability and extremely high hardness (HRC88), second only to diamond. Therefore, electric actuated ceramic lined ball valve delivers outstanding wear resistance, corrosion resistance, erosion resistance, good thermal insulation and low thermal expansion.

Electric Actuated Ceramic Lined Ball Valves

Main Component Materials

Name	Material
Bonnet	WCB
Middle Body	WCB
Middle Body Sleeve	Engineering Ceramic
Valve Seat	Engineering Ceramic
Flange Sleeve	Engineering Ceramic
Ball	Engineering Ceramic
O‑Ring	FKM
Spring	17‑4PH
Valve Stem	35
Packing	PTFE
Stud Bolt	WCB

Actuator Parameters

Actuator Type	CH Series Actuator	HQ Series Actuator
Power Supply	Standard: 220V AC Single‑phase; Optional: 110V AC Single‑phase, 380/440V AC Three‑phase, 24V/110V/220V AC
Output Torque	50N·M～2000N·M	50N·M～3000N·M
Rotation Range	0～90°, 0～360°	0～90°, optional 0°～270°
Control Mode	On‑off indicator light, dry contact signal, 1/5K potentiometer, intelligent modulation (4‑20mA analog signal control)
Action Time	15s/30s/60s	18S～112S
Protection Device	Overheat protection	Built‑in overheat and overload protection
Ambient Temperature	-30°～60°	-20℃～+70℃
Manual Operation	Attached handle	Mechanical clutch with handwheel
Mechanical Limit	Electrical & mechanical double limit	2 external adjusting bolts
Protection Class	IP65	IP65, IP67, customizable IP68
Explosion‑proof Grade	Non‑explosion‑proof	ExdⅡ BT4,ExdⅡ CT6
Position Feedback	Optional switch or potentiometer	Potentiometer, proportional control unit
Drive Motor	8W/E	Squirrel‑cage asynchronous motor
Cable Entry	PE1/2〞 cable gland	2 x PF 3/4"
Housing Material	Aluminum Alloy	Steel, Aluminum Alloy, Aluminum Bronze, Polycarbonate
Coating	Dry powder epoxy‑polyester with superior anti‑corrosion performance

Adopting unique electric braking circuit, the actuator features high positioning accuracy, sensitive response, fast start‑stop and stable operation. It also has strong performance of anti‑interference, anti‑surge voltage and anti‑breakdown.

Technical Parameters

Ball Valve Nominal Size	DN15～DN200（0.5"～8"）
Pressure Class	PN6～PN40, ANSI 150～300LB
Valve Body Material	Carbon steel WCB, A105; Stainless steel 304, 316, 304L, 316L
Valve Trim Material	Structural Ceramic
Face‑to‑Face Standard	GB/T 12221‑2005, ASME B16.10‑2000
Connection Type	Flange
Actuation	Electric
Voltage	AC220V,AC110V,DC24V etc.
Test Pressure	Hydrostatic shell test: 1.5 x nominal pressure; Seat leakage test: 1.1 x nominal pressure; Ash‑slag test: 1 x nominal pressure
Operating Temperature	-20～300℃

Application Fields

Electric actuated ceramic lined ball valve is widely used in power, petroleum, chemical, metallurgy, mining, wastewater treatment and other industrial sectors. It delivers exceptional performance under harsh working conditions of heavy wear, strong corrosion, high temperature and high pressure. It adapts well to heavy‑wear and strong‑corrosion environments and features ultra‑long service life. Ceramic valves own far better cost‑performance than other similar metal valves.

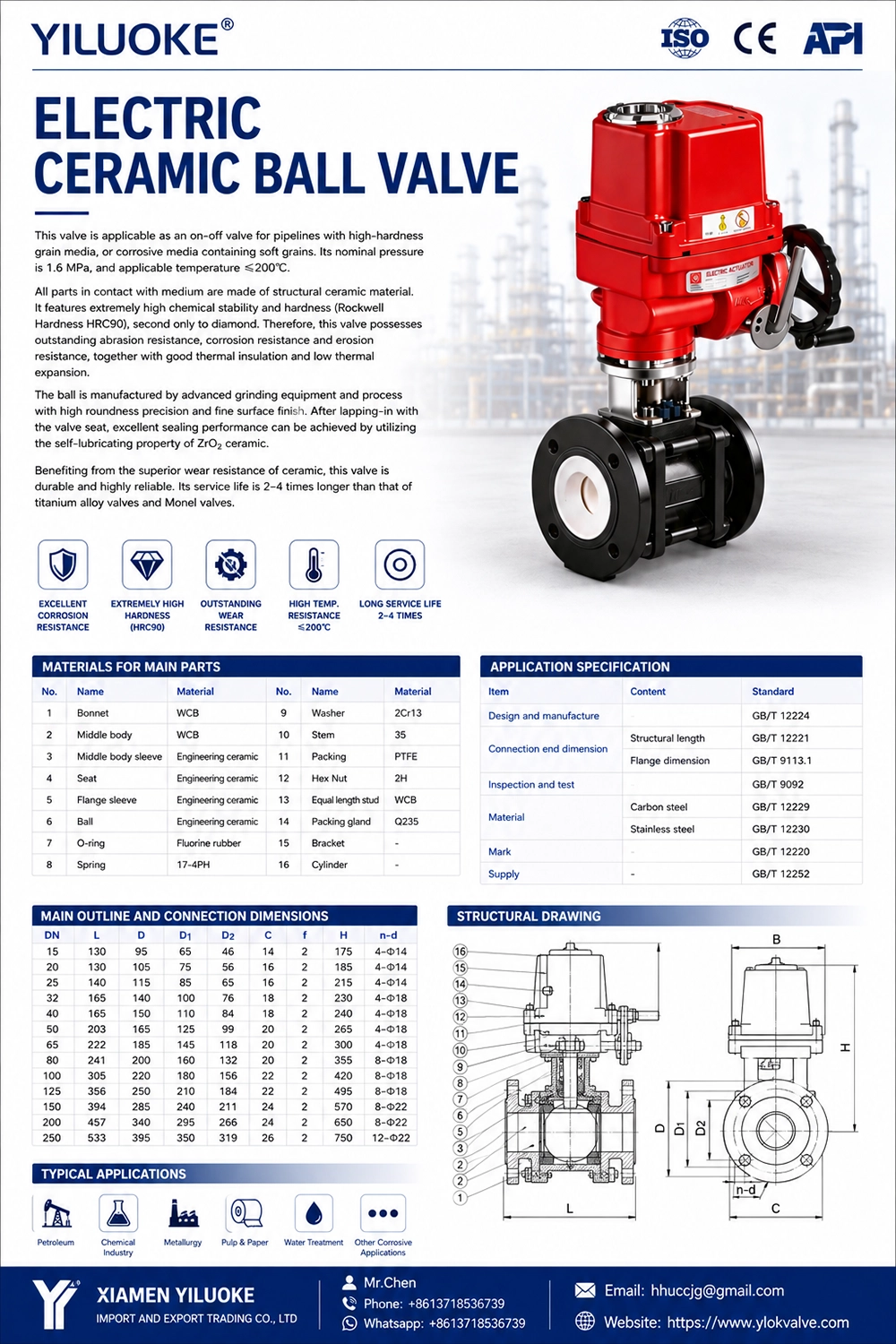

Data Sheet of Electric Actuated Ceramic Lined Ball Valves
