Electric Actuated Wafer Ball Valves

Short Description:

Product Name: Motorized Wafer Ball Valve
Valve Category: Ball Valve
Brand: Yiluoke
Technical Data: DN15-DN300
Made In: China
Supplier: Xiamen Yiluoke Import and Export Trading Co., Ltd

Product Detail

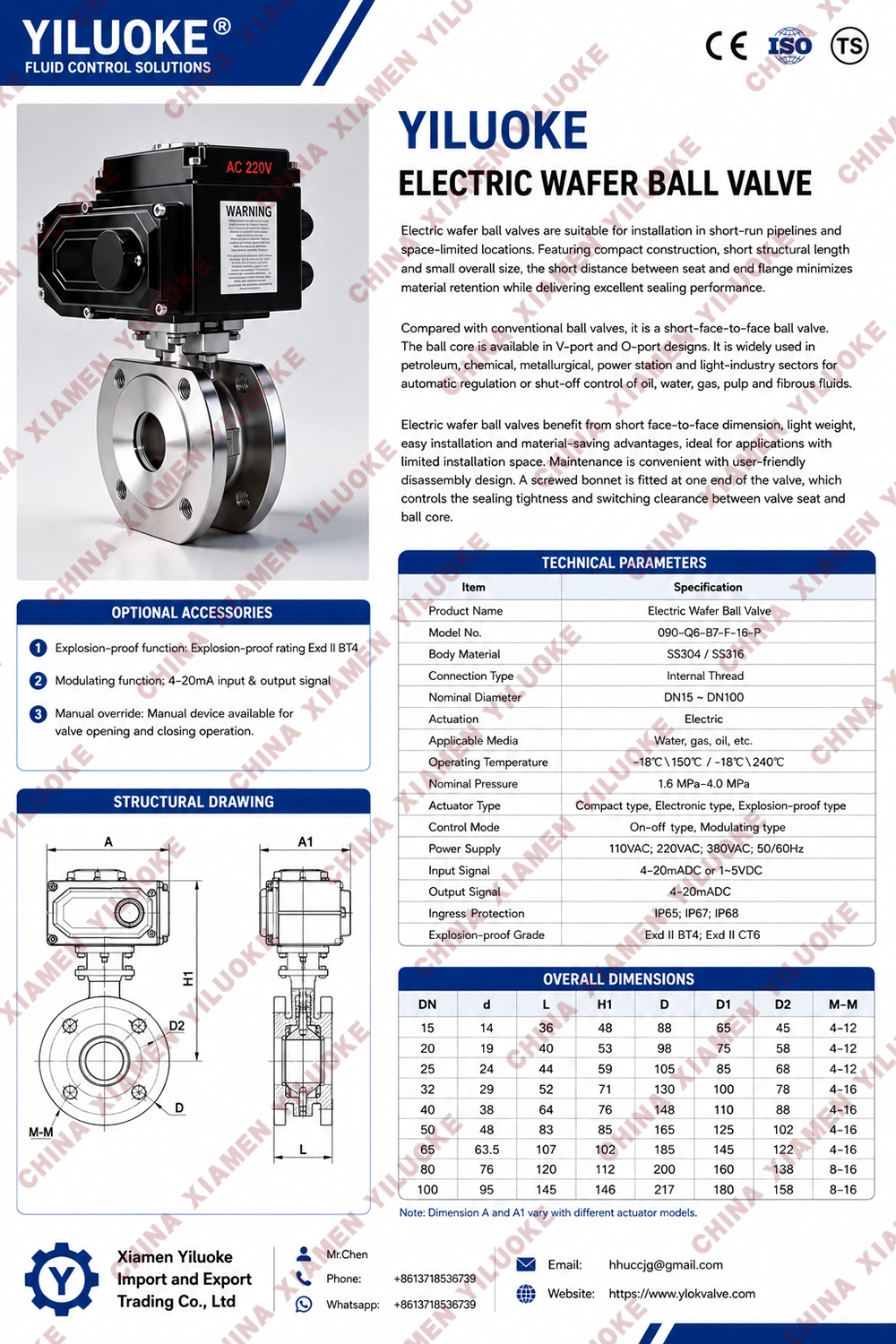

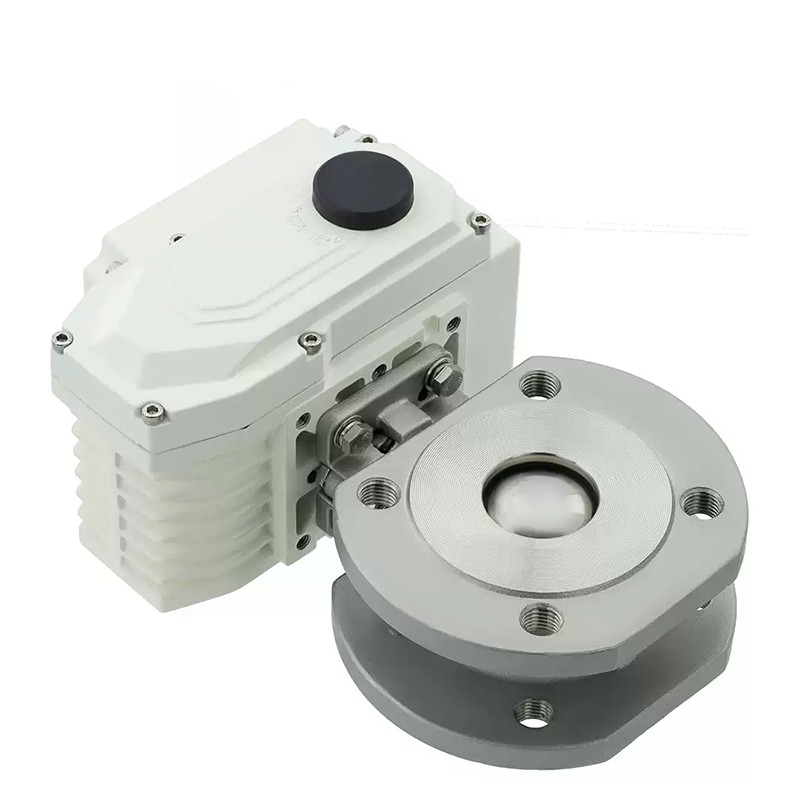

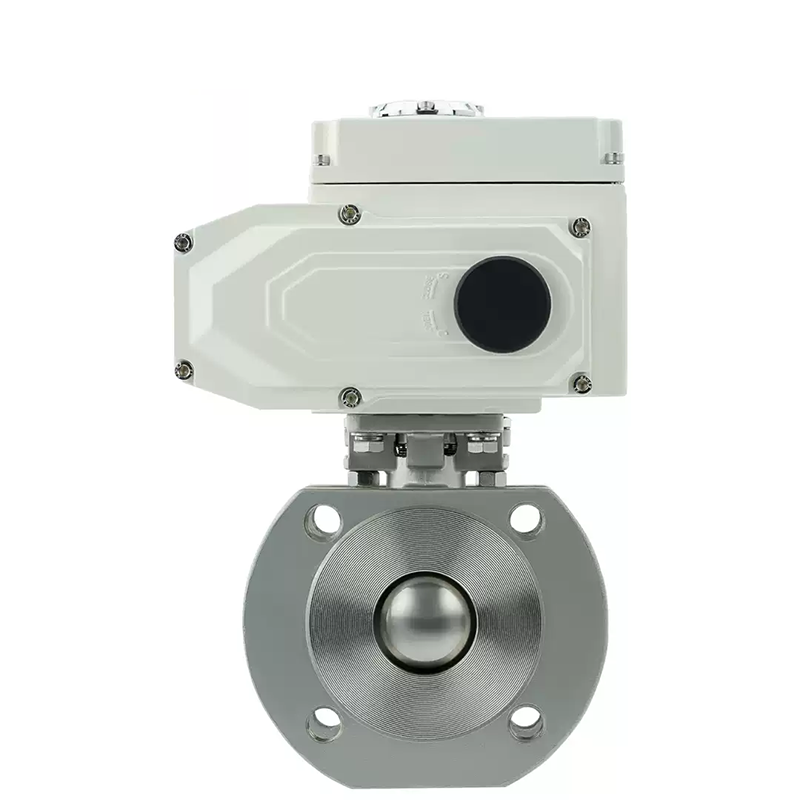

Electric wafer‑type ball valve, also known as electric thin‑type ball valve, is an ultra‑short flange ball valve. Its ball core channel is available in V‑shape and O‑shape. This series features compact structure, small size, light weight and easy installation. It is widely applied in petroleum, chemical industry, metallurgy, power station, light industry and other fields for automatic regulation or shut‑off control of oil, water, gas, pulp or fibrous fluids.

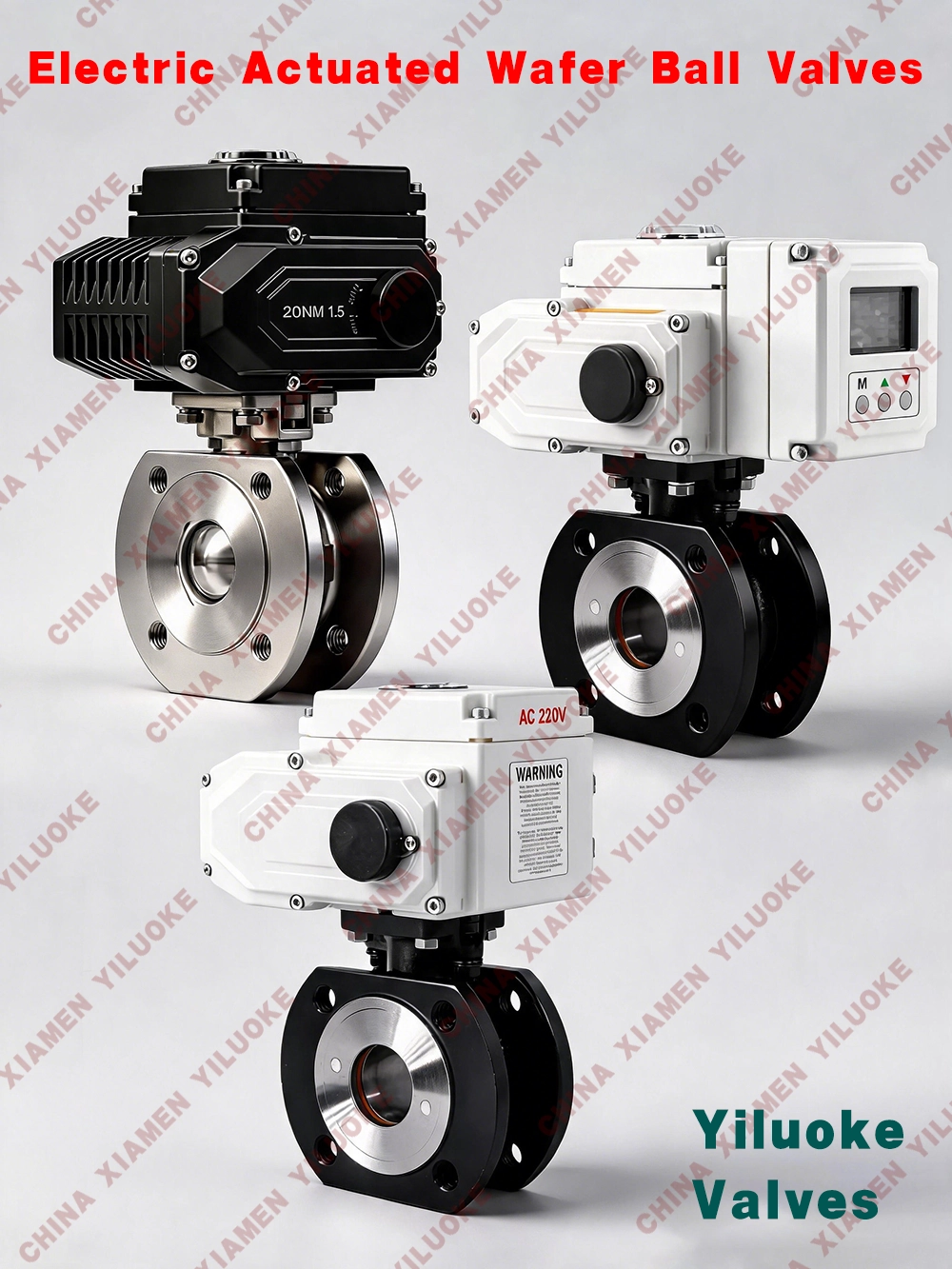

Electric Actuated Wafer Ball Valves

Technical Parameters

Nominal Diameter DN (mm)	15～150
Nominal Pressure PN (MPa)	1.6～6.4
Nominal Test Pressure Ps (MPa)	Body Strength Test: 2.4～9.6
Nominal Test Pressure Ps (MPa)	Seal Test: 1.76～7.0
Material Code	C	P	R
Valve Body	WCB	ZG1Cr18Ni9Ti	ZG0Cr18Ni12Mo2Ti
Ball Stem	2Cr13	ZG1Cr18Ni9Ti	ZG0Cr18Ni12Mo2Ti
Valve Stem	2Cr13	1Cr18Ni9Ti	0Cr18Ni12Mo2Ti
Sealing Ring	PTFE, Stainless Steel, Hard Alloy
Packing	PTFE, Flexible Graphite
Applicable Medium	Water, Steam, Oil Products	Nitric Acid Media	Acetic Acid Media
Applicable Temperature	-28～400℃	-28～500℃	-28～500℃
Actuator Model	CH / QT Series Electronic Electric Actuator
Connection Type	Wafer‑type, Flanged, Flange in accordance with JB79‑59

Material Description of Electric Wafer‑Type Ball Valve

Part Name	Material
Valve Body	WCB	304(CF8)	316(CF8M)	316L(CF3M)
Ball	2Cr13+Nitriding Treatment	304	316	316L
Valve Stem	2Cr13	304	316	316L
Sealing Ring	PTFE, Reinforced PTFE(PPL), Paraphenylene Polyphenyl, Flexible Graphite
Applicable Medium	Water, Gas, Steam, Oil Products	Nitric Acid and other Corrosive Media	Acetic Acid and other Corrosive Media	Urea and other Corrosive Media

Actuator Technical Parameters for Electric Wafer‑Type Ball Valve

Actuator Type	Imported OV‑TORK Series	Imported 3610R Series	Imported BHV‑TORK Series
Power Supply	Standard: 220V AC Single‑phase; Optional: 110V AC Single‑phase, 380/440V AC Three‑phase, 24V/110V/220V AC
Output Torque	50N·M～2000N·M	50N·M～1500N·M	50N·M～3000N·M
Action Range	0～90°, 0～360°	0～90°	0～90°, 0°～270° optional
Control Mode	On‑off indicator light(two‑position control), passive contact signal, 1/5K potentiometer, intelligent regulation(4‑20mA analog signal control)
Action Time	15s/30s/60s	10s/15s/30s	18S～112S
Protection Device	Overheat Protection	Overload Protection	Built‑in overheat & overload protection
Ambient Temperature	-30°～60°	-30°～60°	-20℃～+70℃
Manual Operation	Attached handle	Attached handle	Mechanical clutch with handwheel
Mechanical Limit	Electric & mechanical double limit	Electric & mechanical double limit	2 external adjusting bolts
Protection Class	IP65	IP55	IP65, IP67, customizable IP68
Explosion‑proof Grade	Non‑explosion‑proof	ExdⅡ BT4	ExdⅡ BT4, ExdⅡ CT6
Position Measurement	Optional switch or potentiometer	Proportional control unit	Potentiometer, proportional control unit
Drive Motor	8W/E	AC reversible motor	Squirrel‑cage asynchronous motor
Cable Entry	PE1/2〞 cable gland	2‑PF 1/2〞 cable gland	2 × PF 3/4”
Housing Material	Aluminum Alloy	Steel, Aluminum Alloy	Steel, Aluminum Alloy, Aluminum Bronze, Polycarbonate
Surface Coating	Dry powder, epoxy polyester with strong anti‑corrosion performance

Adopting high‑quality electric braking circuit, the actuator features high positioning accuracy, sensitive response, fast start‑stop and stable operation. It also has excellent anti‑interference, anti‑surge voltage and anti‑breakdown performance.

Suitable for frequently‑operated regulating loops. When the duty cycle is 25%, the action frequency can reach 630‑1200 cycles per hour.

Main Design Standards of Electric Wafer‑Type Ball Valve

Design & Manufacturing	GB12237‑89, API608, API 6D, JPI 7S‑48, BS5351, DIN3357
Flange Dimension	JB/T74～90, GB9112～9131, HGJ44～76, SH3406, ANSI B16.5, JIS B2212～2214, DIN2543
Face‑to‑Face Dimension	GB12221‑89, ANSI B16.10, JIS B2002, NF E29‑305, DIN3202
Inspection & Test	JB/T 9092, API 598, GB/T13927
