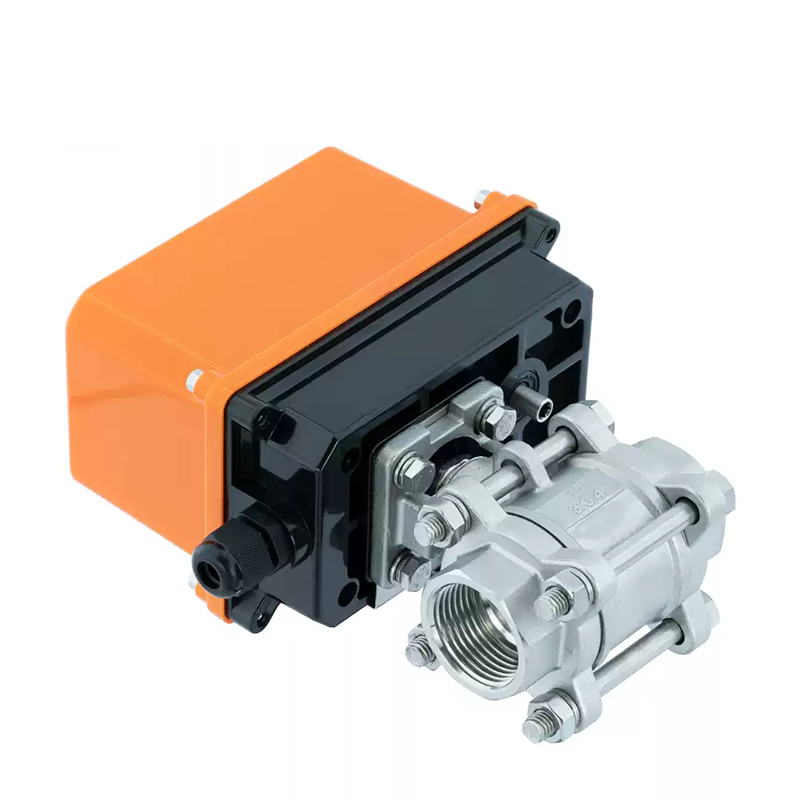

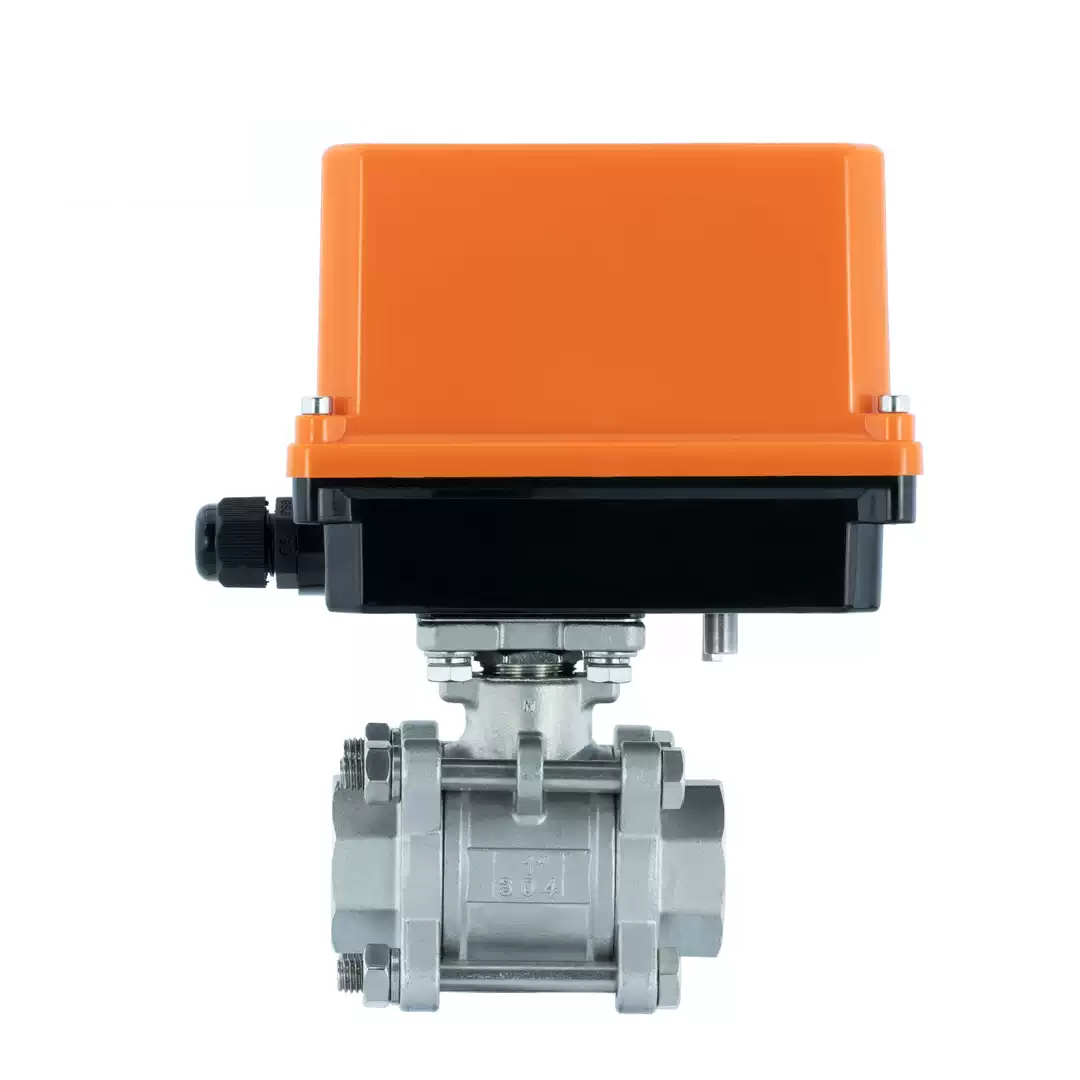

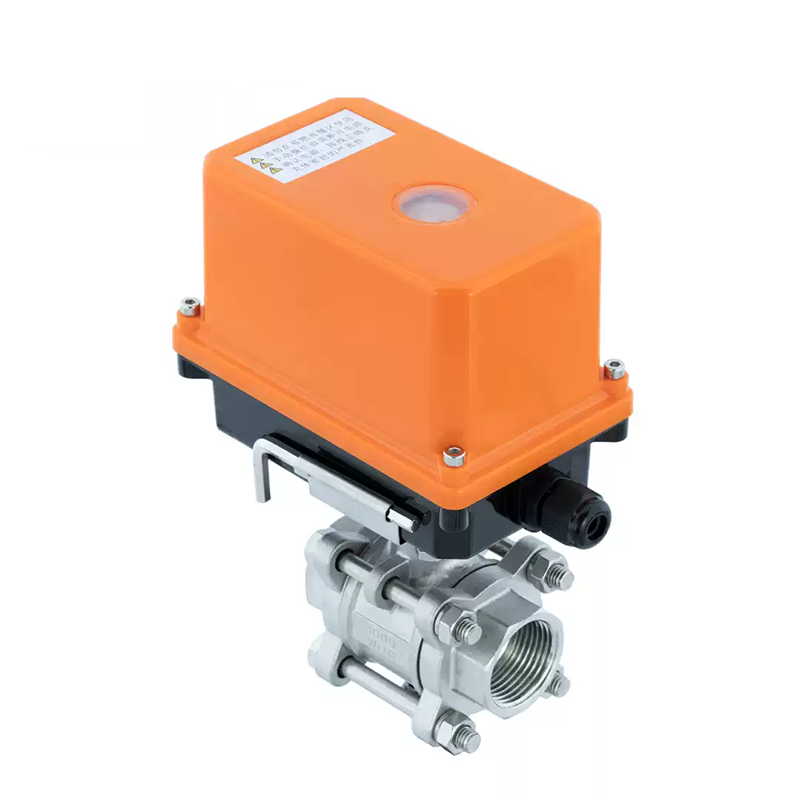

Mini Electric Actuated 3-Piece Ball Valves
Mini Electric Actuated 3-Piece Ball Valves
The Mini Electric Actuated 3-Piece Ball Valves adopt an integrated compact design, featuring a lightweight structure, elegant appearance and small product size. They are particularly suitable for automatic control systems with limited installation space.
Technical Parameters
Parameter | Specifications |
|---|---|
Valve Size | NPT/BSP 1/2"-2" |
Maximum Working Pressure | 1.6 MPa - 6.4 MPa |
Circulation Medium | Fluid, Air |
Rated Voltage | DC12V, DC24V, AC24V, DC12-24V, AC110-230V |
Working Current | ≤1.5A |
Open/Close Time | ≤12S |
Service Life | 70,000 times (testing pressure: 0.4MPa, testing medium: water) |
Valve Body Material | SS304, SS316 (optional) |
Actuator Material | PPO |
Sealing Material | FKM & PTFE |
Actuator Rotation Angle | 90° |
Torque | 15 N·m |
Cable Length | 0.5m, 1.5m |
Environment Temperature | -15℃~50℃ |
Liquid Temperature | 2℃~90℃ |
Manual Operation | Yes |
Open/Close Indicator | Yes |
Protection Class | IP67 |
