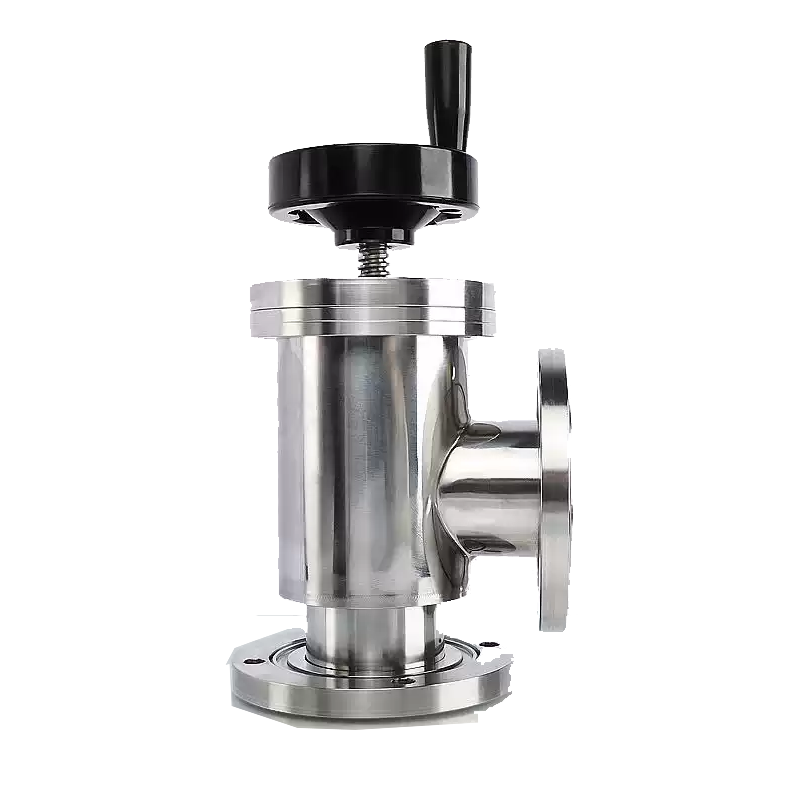

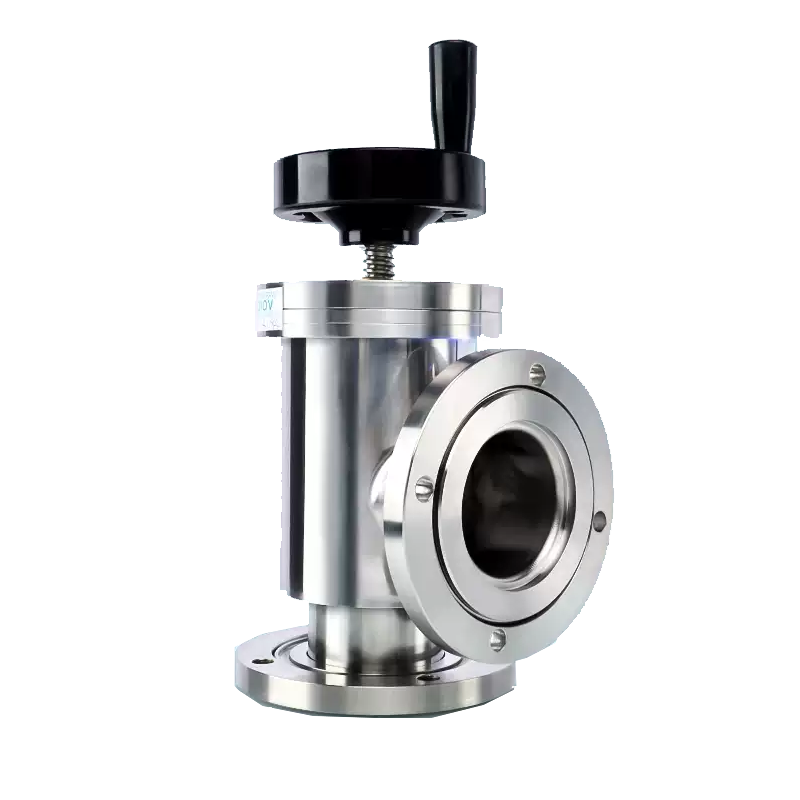

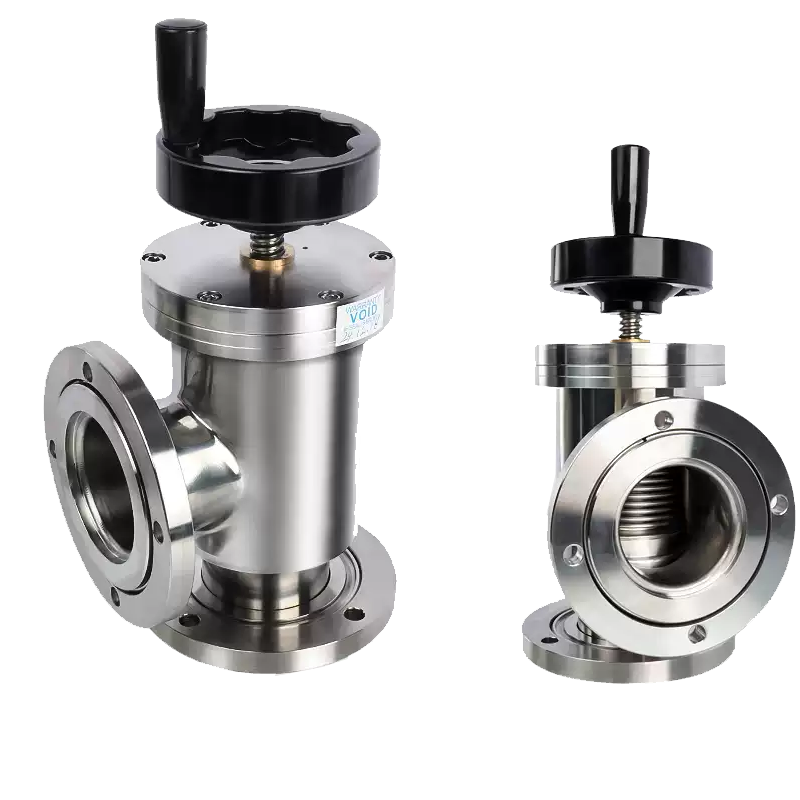

CF Flange High Vacuum Angle Valves (Manual Drive): Overview, Features & Technical Parameters

The CF Flange High Vacuum Angle Valve is suitable for opening and closing pipelines in ultra-high vacuum systems and adopts a manual drive mode. It has the advantages of stable operation, reliable use, excellent sealing performance and long service life, making it one of the preferred valves for ultra-high vacuum equipment. The manual valve uses manual rotation of the handle as power to realize the opening and closing of the valve plate through threaded transmission; the direction of opening and closing is subject to the mark on the handle. The valve medium is air and a few corrosive gases.

Structural Features

• Standardized and modular design, easy to replace and maintain;

• Easy-to-clean design;

• Shaft seal is bellows seal, other sealing elements are fluororubber, lubricant-free design;

• The valve body adopts internal stainless steel welding with low leak rate;

Technical Parameters

• Valve Body: Stainless Steel

• Valve Body Sealing Element: Fluororubber or Metal (Optional)

• Valve Plate Sealing Element: Fluororubber

• Shaft Seal Element: Stainless Steel Bellows

• Valve Body Leak Rate: ＜1×10⁻⁸Pa·L/s

• Applicable Vacuum Range: 1.2×10⁵Pa to 1×10⁻⁶Pa

• Medium Temperature: -30℃ to +150℃

• Installation Mode: Arbitrary
