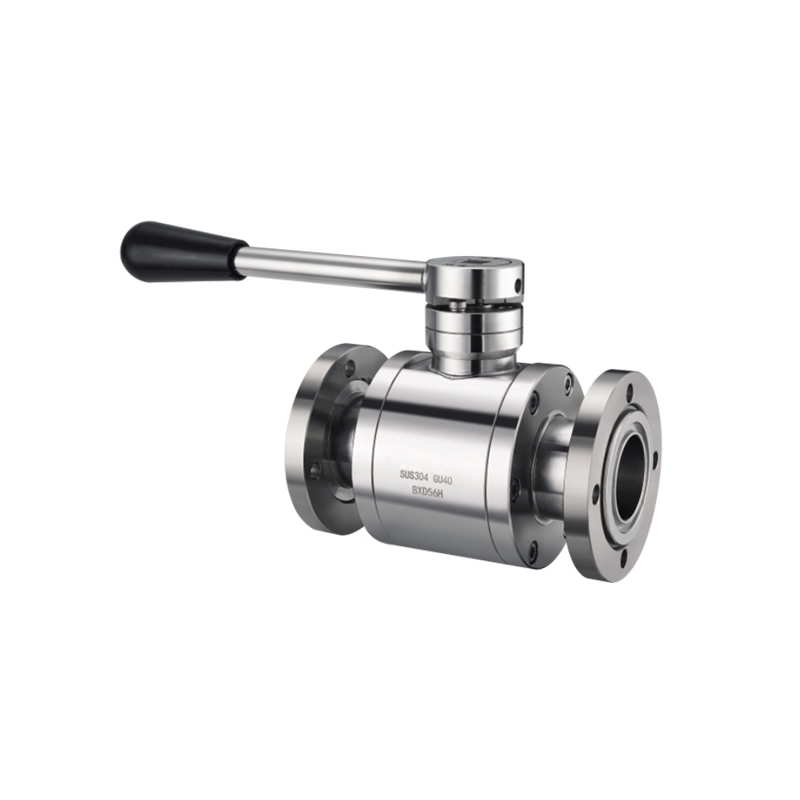

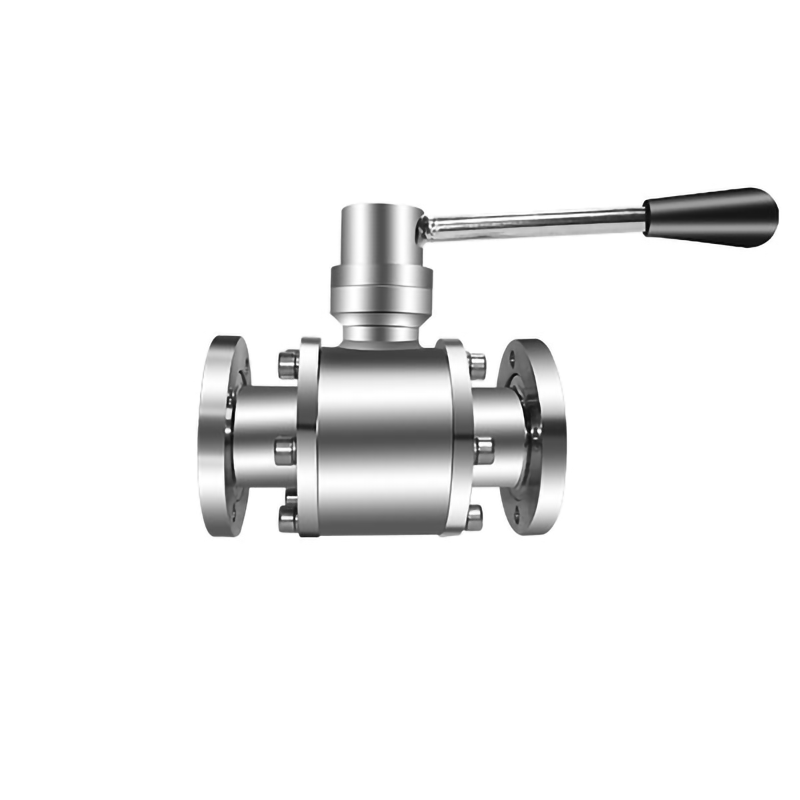

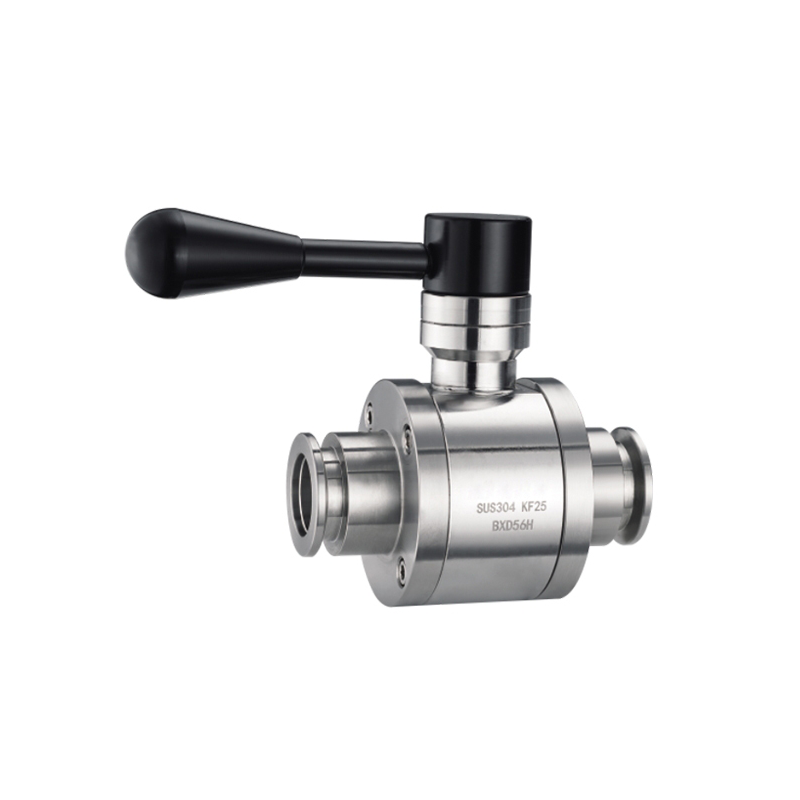

High Vacuum Ball Valves

Short Description:

High vacuum ball valve is used to connect or cut off the medium flow in vacuum (pressure) system pipelines. It is widely applied in vacuum technology, dairy, wine industry, bioengineering, food, pharm...

Product Name: Vacuum Ball Valve
Valve Category: Ball Valve
Brand: Yiluoke
Technical Data: DN15-DN600
Made In: China
Supplier: Xiamen Yiluoke Import and Export Trading Co., Ltd

Send email to us Download

Product Detail

1. Product Overview

GU manual high vacuum ball valve is used to connect or cut off the medium flow in vacuum (pressure) system pipelines. It is widely applied in vacuum technology, dairy, wine industry, bioengineering, food, pharmaceutical, beverage, cosmetics and chemical industries.

The GU series high vacuum ball valve is a straight-through manual ball valve with spherical sealing structure. It can operate stably under both vacuum and low-pressure conditions and allows installation at any position. It is suitable for acidic and alkaline gas and liquid media.

Optional medium temperature ranges for different seals: standard seal for -25～+120℃; high-temperature resistant seal for -25～+230℃.

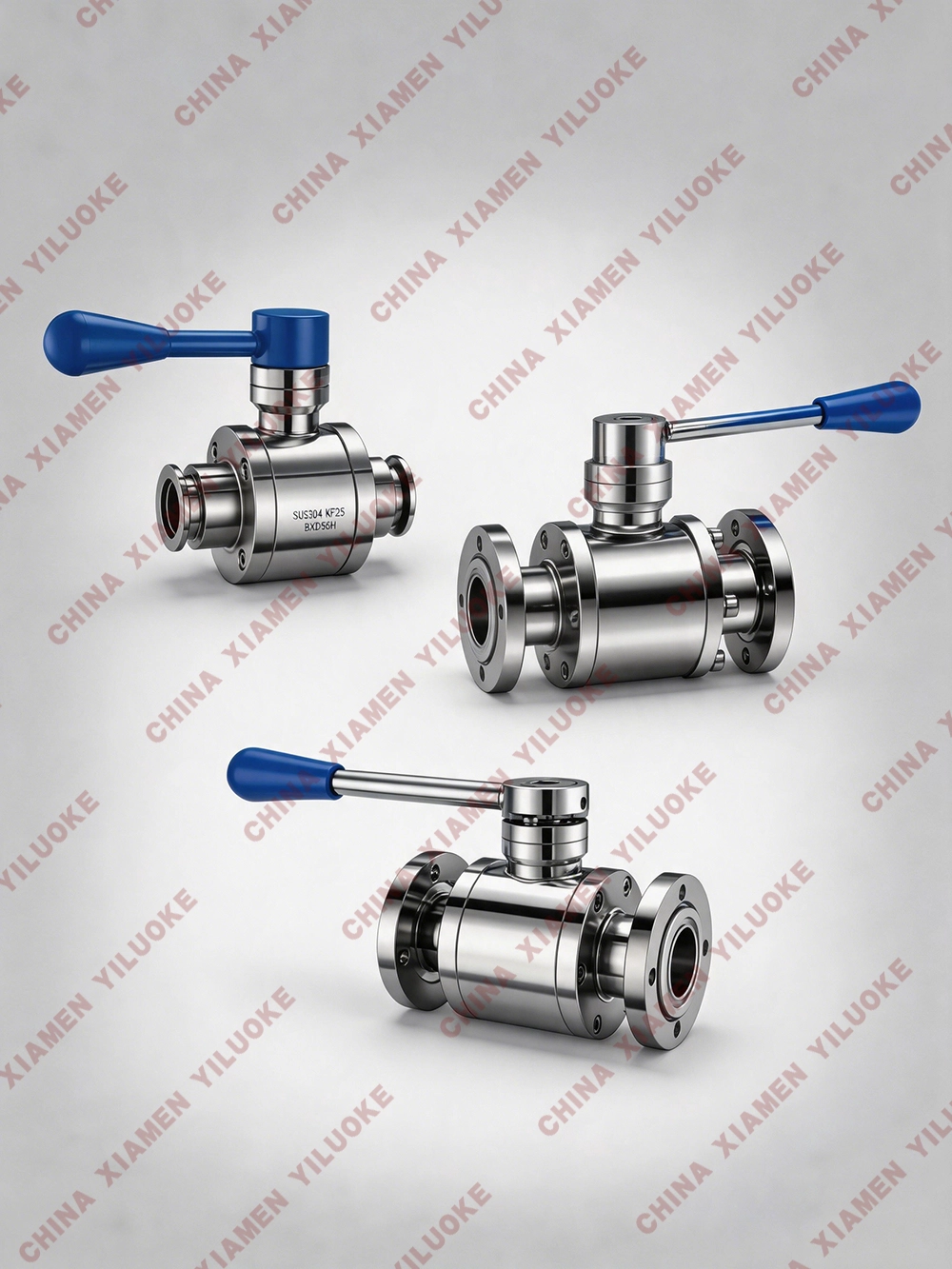

High Vacuum Ball Valves

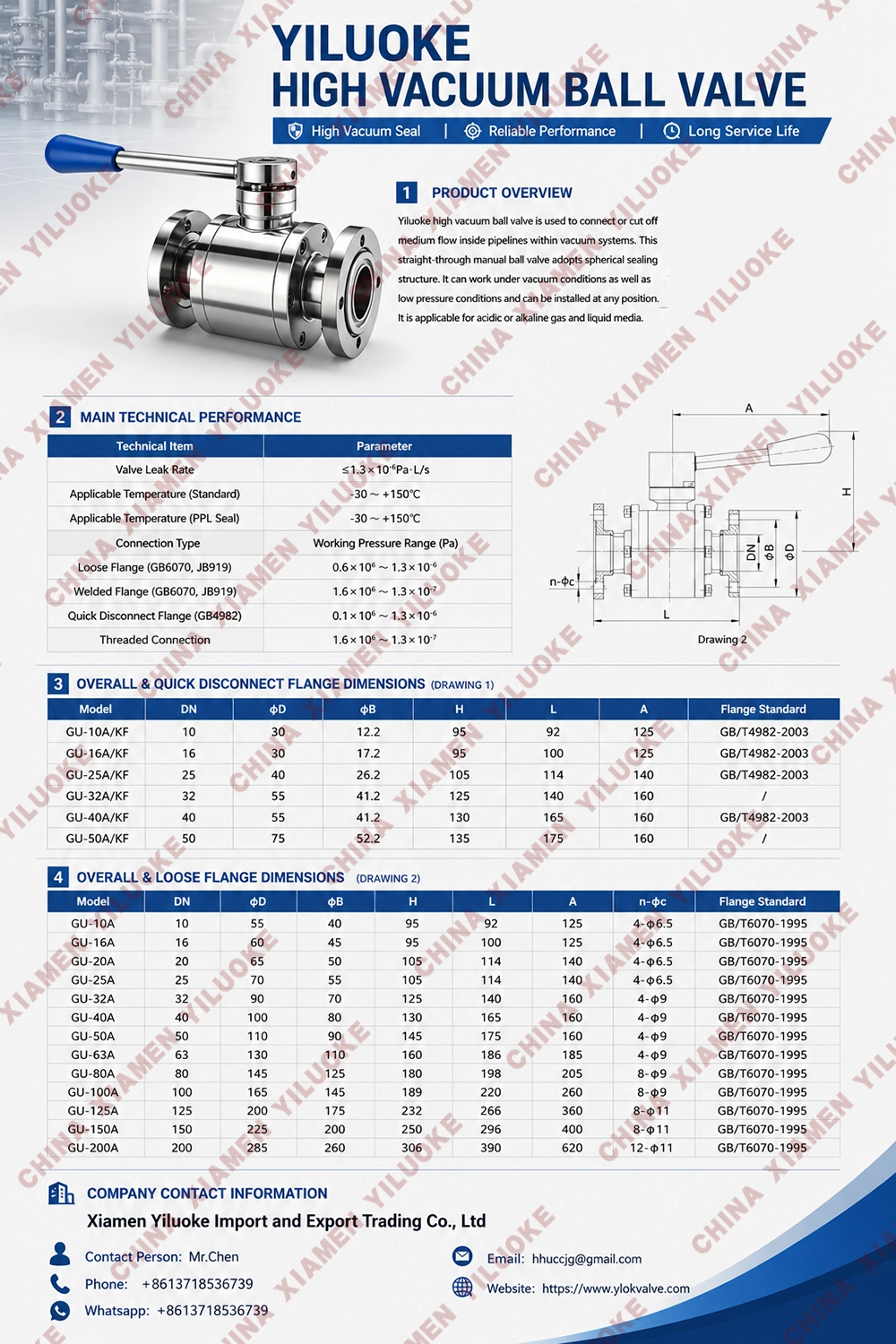

2. Main Technical Performance

Technical Item	Parameter
Valve Leak Rate	≤1.3×10⁻⁴Pa·L/s
Applicable Temperature (Standard)	-30～+150℃
Applicable Temperature (PPL Seal)	-30～+150℃

Connection Type	Working Pressure Range (Pa)
Loose Flange (GB6070, JB919)	0.6×10⁶～1.3×10⁻⁴
Welded Flange (GB6070, JB919)	1.6×10⁶～1.3×10⁻⁴
Quick Disconnect Flange (GB4982)	0.1×10⁶～1.3×10⁻⁴
Threaded Connection	1.6×10⁶～1.3×10⁻⁴

3. Main Parts Material

Valve body, valve cover and valve stem: Stainless steel Sealing material: PTFE, NBR, fluororubber, PPL

4. Overall & Quick Disconnect Flange Dimensions (Drawing 1)

Model	DN	φD	φB	H	L	A	Flange Standard
GU-10A/KF	10	30	12.2	95	92	125	GB/T4982-2003
GU-16A/KF	16	30	17.2	95	100	125	GB/T4982-2003
GU-25A/KF	25	40	26.2	105	114	140	GB/T4982-2003
GU-32A/KF	32	55	41.2	125	140	160	/
GU-40A/KF	40	55	41.2	130	165	160	GB/T4982-2003
GU-50A/KF	50	75	52.2	135	175	160	/

5. Overall & Loose Flange Dimensions (Drawing 2)

Model	DN	φD	φB	H	L	A	n-φc	Flange Standard
GU-10A	10	55	40	95	92	125	4-φ6.5	GB/T6070-1995
GU-16A	16	60	45	95	100	125	4-φ6.5	GB/T6070-1995
GU-20A	20	65	50	105	114	140	4-φ6.5	GB/T6070-1995
GU-25A	25	70	55	105	114	140	4-φ6.5	GB/T6070-1995
GU-32A	32	90	70	125	140	160	4-φ9	GB/T6070-1995
GU-40A	40	100	80	130	165	160	4-φ9	GB/T6070-1995
GU-50A	50	110	90	145	175	160	4-φ9	GB/T6070-1995
GU-63A	63	130	110	160	186	185	4-φ9	GB/T6070-1995
GU-80A	80	145	125	180	198	205	8-φ9	GB/T6070-1995
GU-100A	100	165	145	189	220	260	8-φ9	GB/T6070-1995
GU-125A	125	200	175	232	266	360	8-φ11	GB/T6070-1995
GU-150A	150	225	200	250	296	400	8-φ11	GB/T6070-1995
GU-200A	200	285	260	306	390	620	12-φ11	GB/T6070-1995
