Electric Actuated High Vacuum Ball Valves: Overview & Technical Parameters

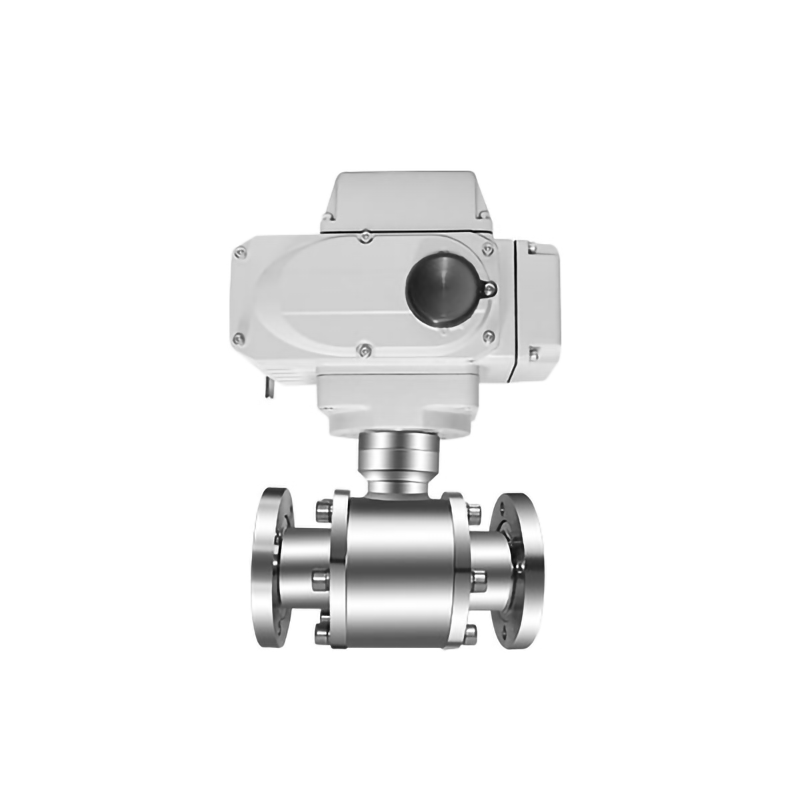

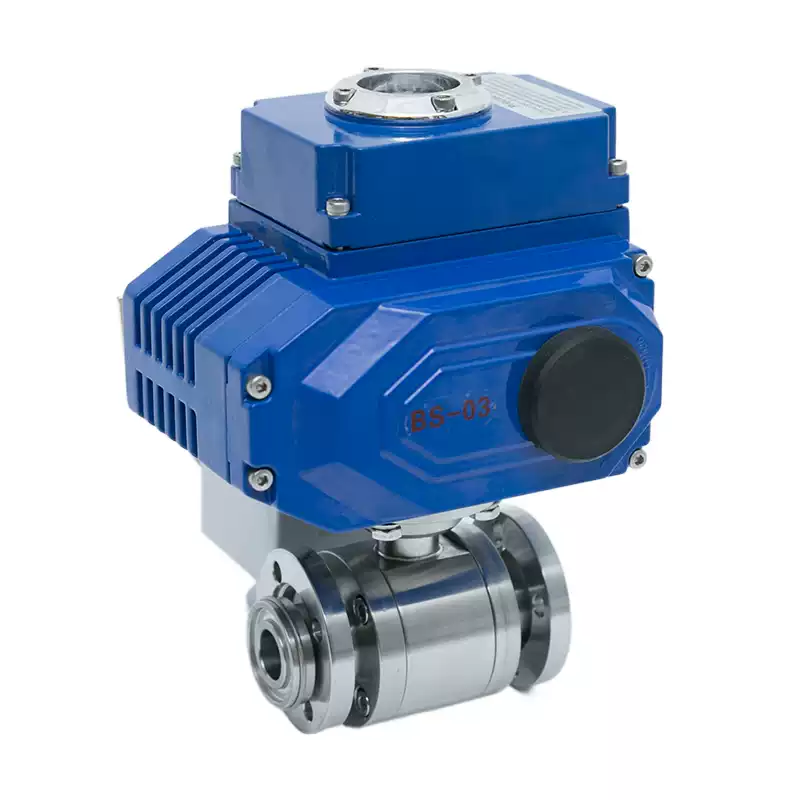

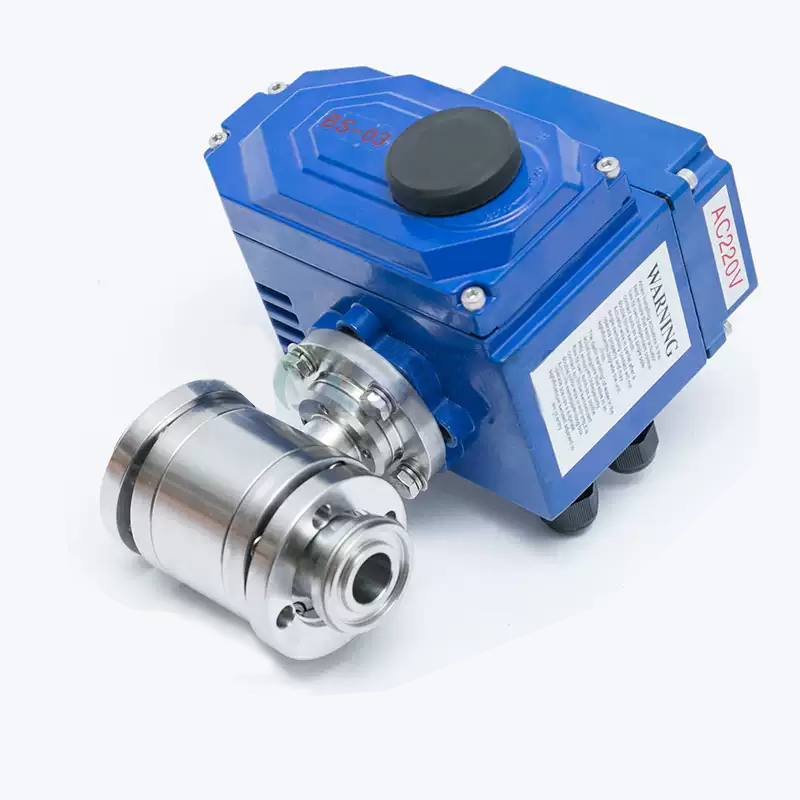

The Electric Actuated High Vacuum Ball Valve is a high vacuum ball valve applied in high vacuum systems (also applicable under a certain pressure) to open or cut off gas flow. The actuator adopts a rotary electric and electronic regulating drive device, which realizes the control of valve opening, closing or intermediate position through external power supply cut-off or external input signals. This valve features a compact and aesthetic appearance structure and a compensating design of the sealing seat. It has the advantages of automatic compensation for sealing seat wear, reliable sealing and long service life. The applicable working media are various gases or liquids with acidity and alkalinity.

Technical Parameters of Electric Actuated High Vacuum Ball Valve

• Nominal Diameter: Quick-Disconnect: DN10-DN50; Loose Flange: DN10-DN200; Thread: DN10-DN100

• Applicable Range (Pa): Quick-Disconnect Flange (KF) 2×10⁵~1.3×10⁻⁶; Loose Flange 6×10⁵~1.3×10⁻⁶

• Valve Leak Rate (Pa·L/S): ≤1.3×10⁻⁶

• Applicable Temperature: -30℃~150℃ (Standard); -30℃~240℃ (Special)

• Valve Body Material: 304 or 316L Stainless Steel

• Sealing Element Material: Reinforced Polytetrafluoroethylene (PTFE)

• Installation Position: Arbitrary

• Control Circuit: Standard: AC220V/50Hz On-Off Type; Special: AC380V; DC24V On-Off Type, 4-20mA DC Regulating Type; 1-5V DC Regulating Type

• Signal Feedback: Standard: With Passive Contact Type; Special: Regulating Type 4-20mA DC, Regulating Type 1-5V DC
