High Vacuum Angle Valves

Short Description:

Product Name: Vacuum Angle Valves
Valve Category: Angle Valve
Brand: Yiluoke
Technical Data: DN15-DN100
Made In: China
Supplier: Xiamen Yiluoke Import and Export Trading Co., Ltd

Product Detail

High vacuum angle valves are used to connect or cut off the air flow in ultra‑high vacuum system pipelines, with two driving modes: pneumatic and manual. The pneumatic valve controls cylinder movement through the electromagnetic directional valve to switch air flow direction, realizing valve opening and closing. The manual valve is opened and closed by manual handle rotation via thread transmission. It is applicable for working media of air and non‑corrosive gases.

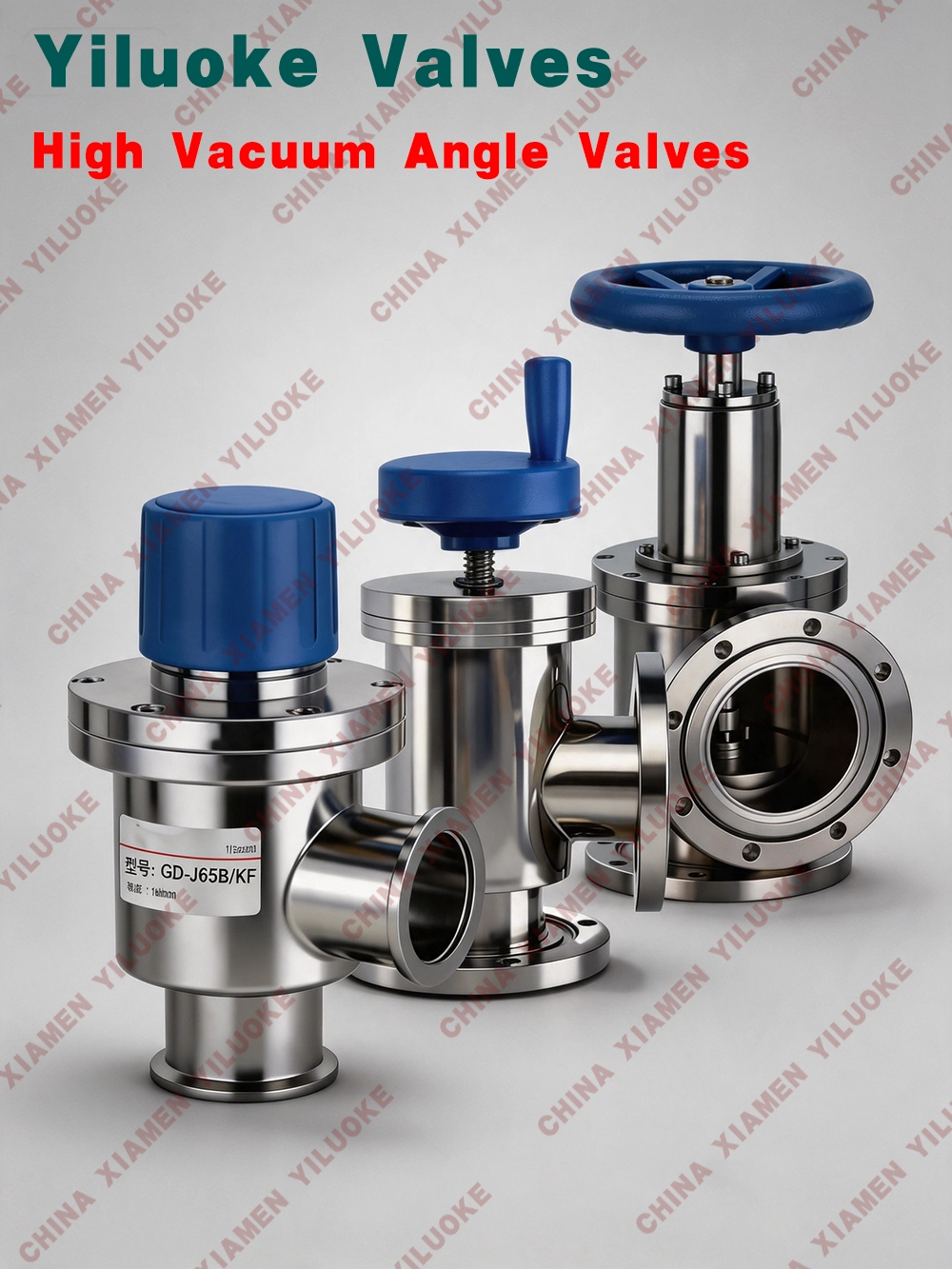

High Vacuum Angle Valves

Structural Design

The high vacuum baffle valve adopts a normally closed single‑acting design to achieve constant‑pressure sealing, enabling stable application in complex customer system structures without leakage.

‑ The integrated high‑extrusion molded valve body made of aluminum alloy or stainless steel features high strength, high hardness and excellent corrosion resistance, greatly extending the service life of the valve.

‑ Adopting a long‑life stainless steel bellows structure, it isolates the outgassing of the internal O‑ring in a vacuum environment, meeting ultra‑high vacuum degree requirements.

‑ Equipped with high‑performance fluororubber sealing rings to satisfy high‑quality and long‑service‑life design standards.

‑ The full series adopts copper and zinc‑free design, which can meet the high‑standard application requirements of lithium battery, semiconductor and other industries.

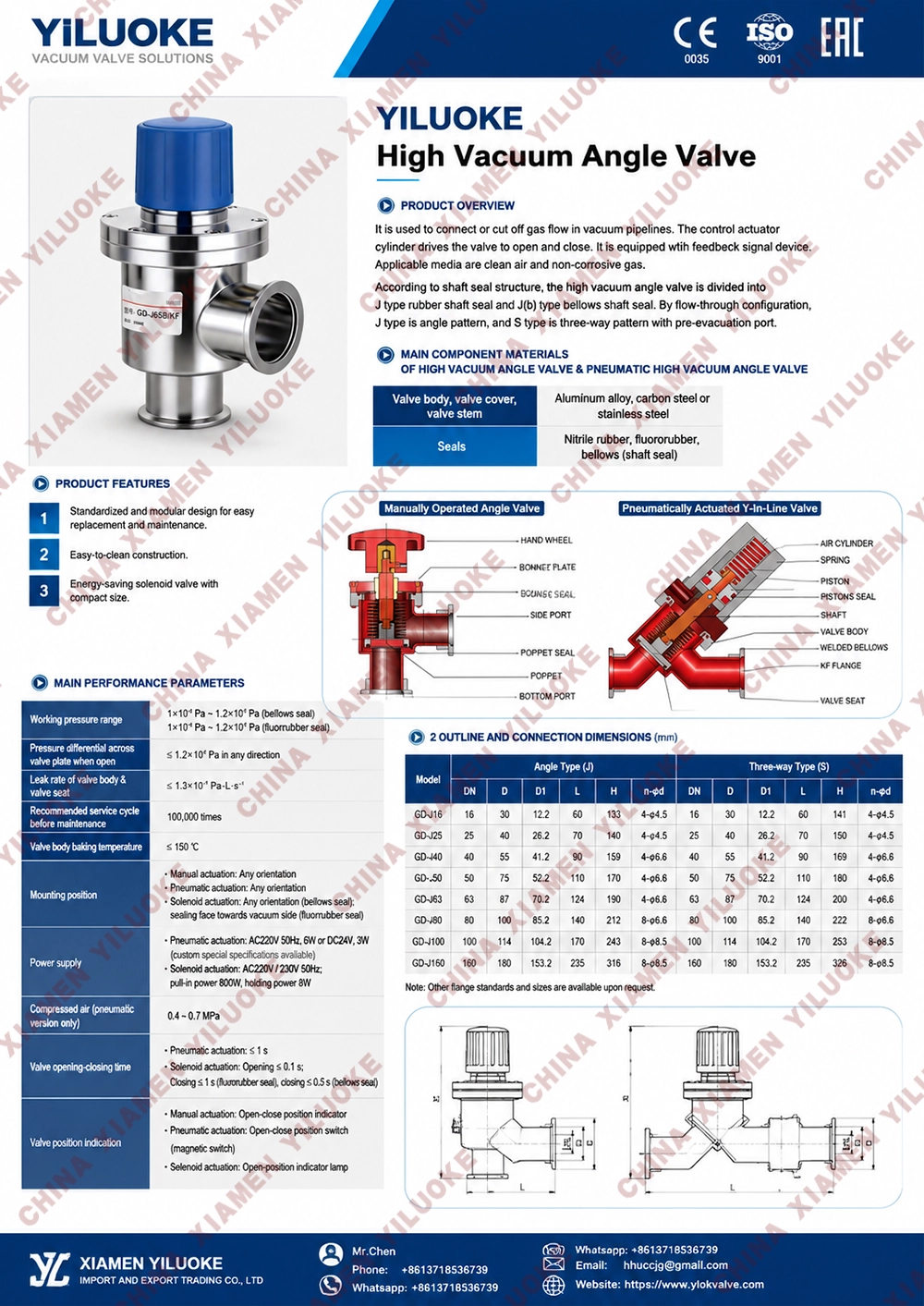

SPECIFICATIONS

Item	Parameter
Application Range	10‑5 Pa ~ 10‑6 Pa
Leak Rate	≤1.3×10‑10 Pa·m³/s
Working Media	Air, Vapor, Non‑corrosive gases
Baking Temperature	On state: ≤200℃; Off state: ≤150℃
Compressed Air Pressure	0.4 ~ 0.7MPa
Power Supply	AC220V 50Hz, 6W or DC24V, 3W (Optional)
Mounting Position	Arbitrary
Valve Position Indication	Manual type: Equipped with stroke control pin Pneumatic type: Equipped with magnetic switch for opening and closing position indication
Note	Valves for 10‑7 Pa vacuum environment can be customized.

Main Component Materials

Component	Material
Valve Body, Valve Rod	Stainless Steel 304
Valve Deck	Aluminum Alloy, Stainless Steel 304
Seals	Viton, Welded Bellows (316L)

Ultrahigh Vacuum Manual Angle Valve

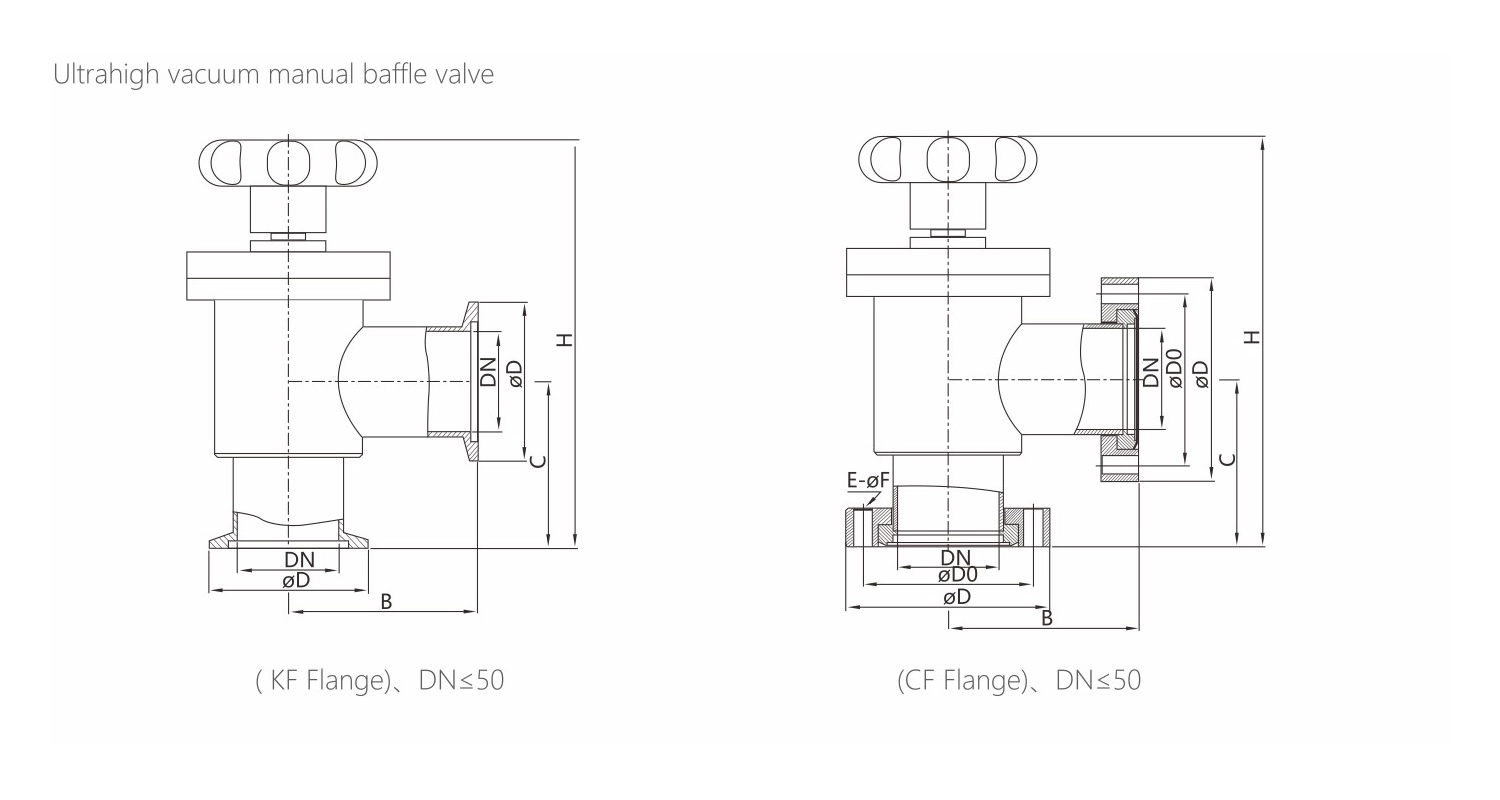

Dimensions of High Vacuum Angle Valves

Connection Type: KF Flange (DN≤50), CF Flange (DN≤50)

Overall Dimensions of Ultrahigh Vacuum Manual Angle Valve (KF Flange, Unit: mm)

Model	DN	H	B	C	D
CD‑JB16KF	16	103	35	35	30
CD‑JB25KF	25	119	45	45	40
CD‑JB40KF	40	139	55	55	55
CD‑JB50KF	50	180.5	65	65	75

Overall Dimensions of Ultrahigh Vacuum Manual Angle Valve (CF Flange, Unit: mm)

Flange Standard: GB 6071

Model	DN	H	B	C	D	D0	E‑∅F	Flange Standard
CD‑JB16CF	16	108	40	40	34	27	6‑∅4.3	GB 6071
CD‑JB25CF	25	129	55	55	54	43	6‑∅6.6	GB 6071
CD‑JB35CF	35	147	63	63	70	58.7	6‑∅6.6	GB 6071
CD‑JB50CF	50	195.5	80	80	86	72.4	8‑∅8.5	GB 6071
