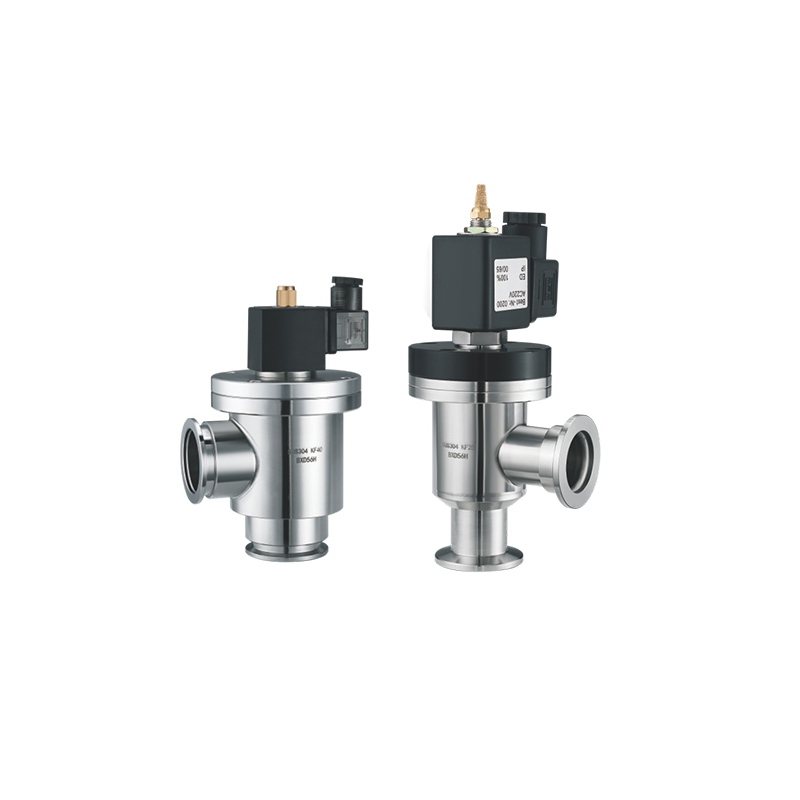

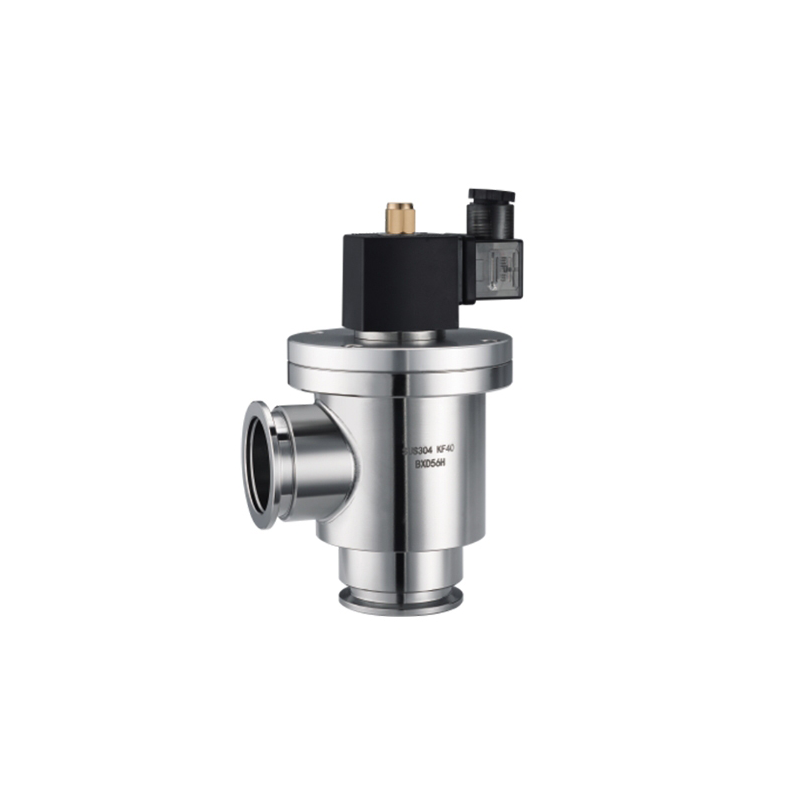

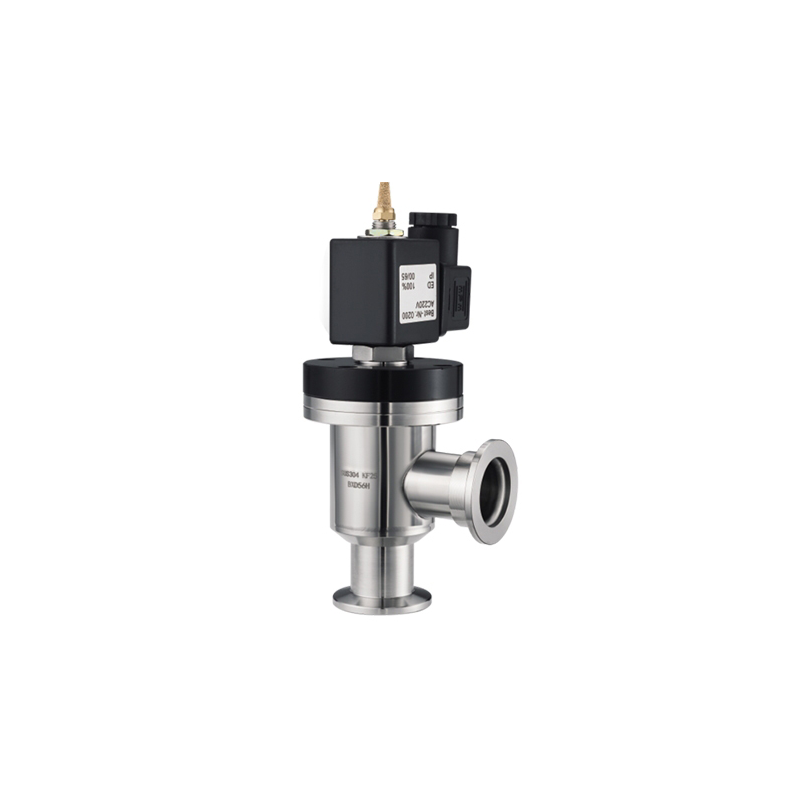

KF Electromagnetic High Vacuum Angle Valves: Overview & Technical Parameters

The KF Electromagnetic High Vacuum Angle Valve is connected to vacuum pipelines, used to connect or cut off gas flow in vacuum, or serve as an inflation valve. It is applicable to pure air and non-corrosive gases as media.

The KF Electromagnetic High Vacuum Angle Valve is powered by electromagnetic force to open or close the valve. It is suitable for vacuum systems to cut off or connect gas flow. When the valve is closed, the upper side of the valve plate sealing surface is allowed to bear atmospheric pressure, and the lower side is vacuum, which can achieve sealing effect. In this state, when the power supply of the electrical box is turned on, the valve should be able to open normally. The applicable working medium of the GDC-J type high vacuum electromagnetic angle valve is air and non-corrosive gases.

Technical Parameters

• Nominal Diameter: 5mm

• Applicable Range: 10⁵~1.3×10⁻⁴Pa

• Valve Leak Rate: ≤1.3×10⁻⁴Pa·L/S

• Applicable Temperature: -30~+50℃

• Coil Temperature Rise: ≤65℃ (corrected from the original "线围温升" for accuracy)

• Power Supply Voltage: 220V/50Hz

• Installation Direction: Vertical or Horizontal
