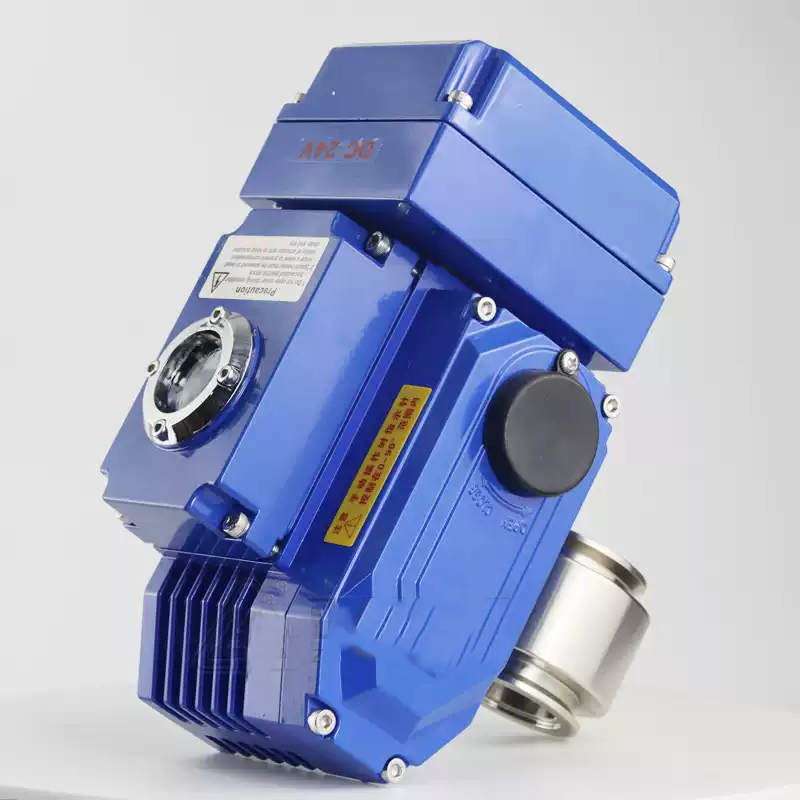

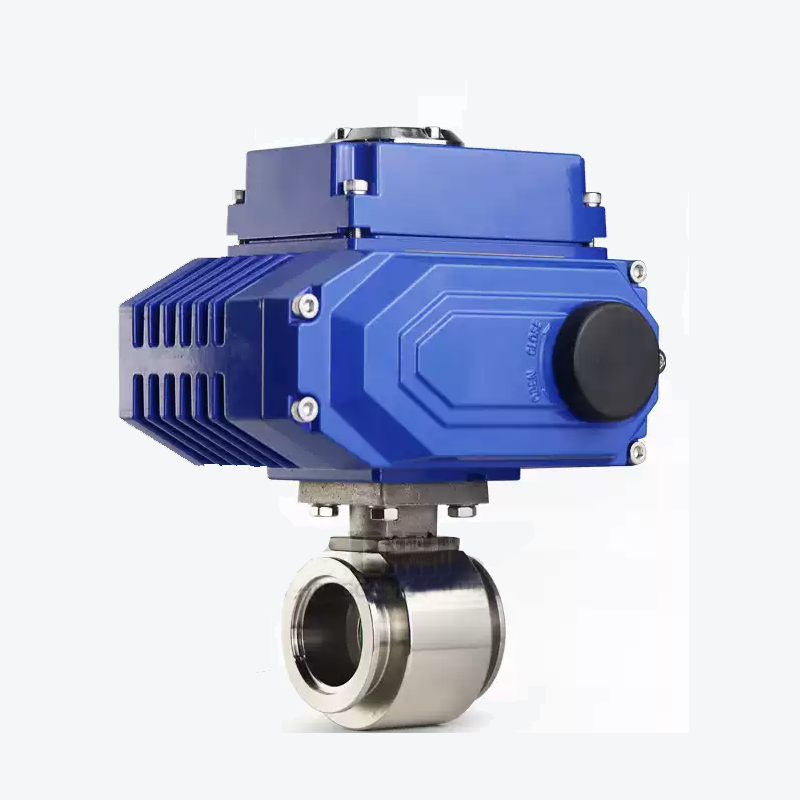

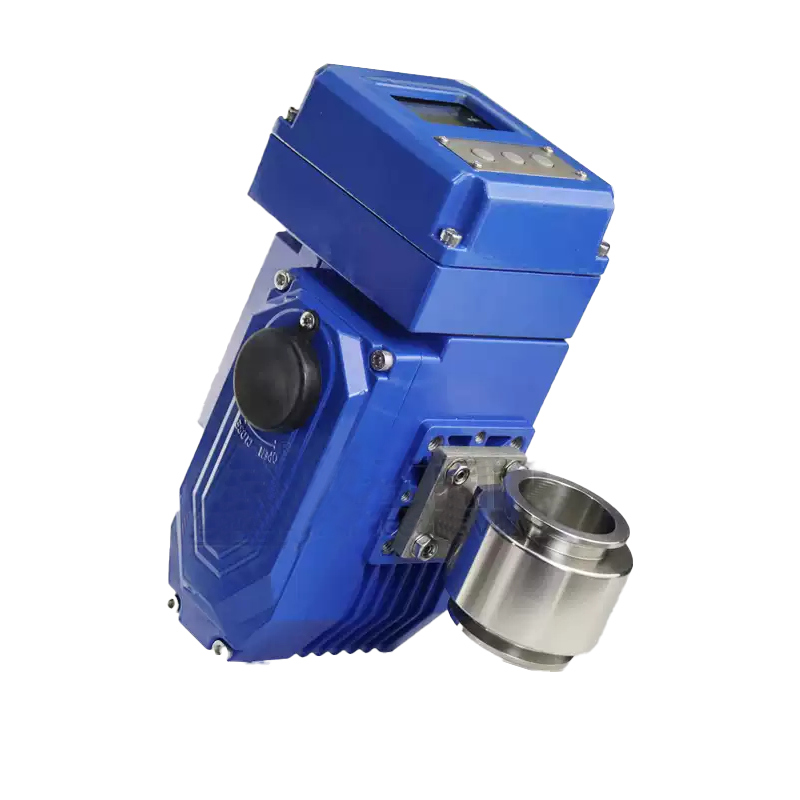

KF Flange Electric Actuated High Vacuum Butterfly Valves: Overview & Technical Parameters

The KF Flange Electric Actuated High Vacuum Butterfly Valve adopts a rotary electric and electronic regulating valve drive device. It can realize the control of the valve's opening, closing or intermediate position through the switching of external power supply (using a manual indexing switch or computer control) or external input signals, thereby achieving the purpose of connecting or cutting off the gas flow in the vacuum pipeline. The applicable working medium of the valve is air and non-corrosive gases.

Technical Parameters of Electric Actuated High Vacuum Butterfly Valve

• Nominal Diameter: DN25-DN400

• Applicable Range (Pa): 10⁵~1.3×10⁻⁶

• Valve Leak Rate (Pa·L/S): ≤1.3×10⁻⁷

• Applicable Temperature: -25℃~80℃ (Nitrile Rubber, NBR); -30℃~150℃ (Fluororubber, FKM)

• Valve Body Material: Stainless Steel or Carbon Steel

• Opening and Closing Time (S): 20 (DN≤63); 30 (80≤DN≤200); 48 (DN≥250)

• Installation Position: Arbitrary

• Power Supply Voltage: Standard: AC220V/50Hz; Special: DC24V

• Control Circuit: Standard: AC220V/50Hz On-Off Type; Special: DC24V On-Off Type / 4-20mA DC Regulating Type / 1-5V DC Regulating Type

• Signal Feedback: Optional
