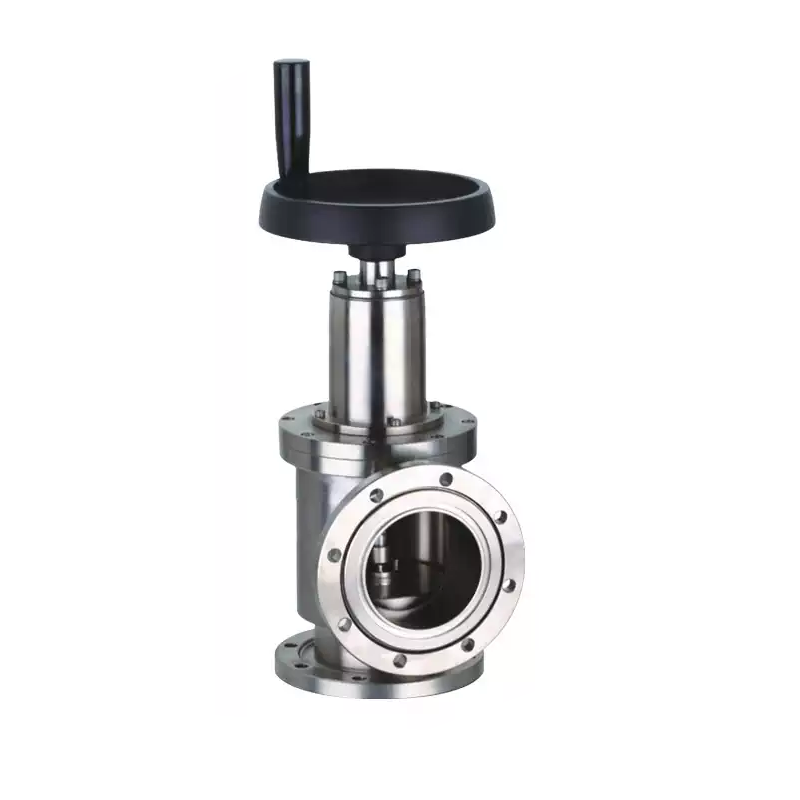

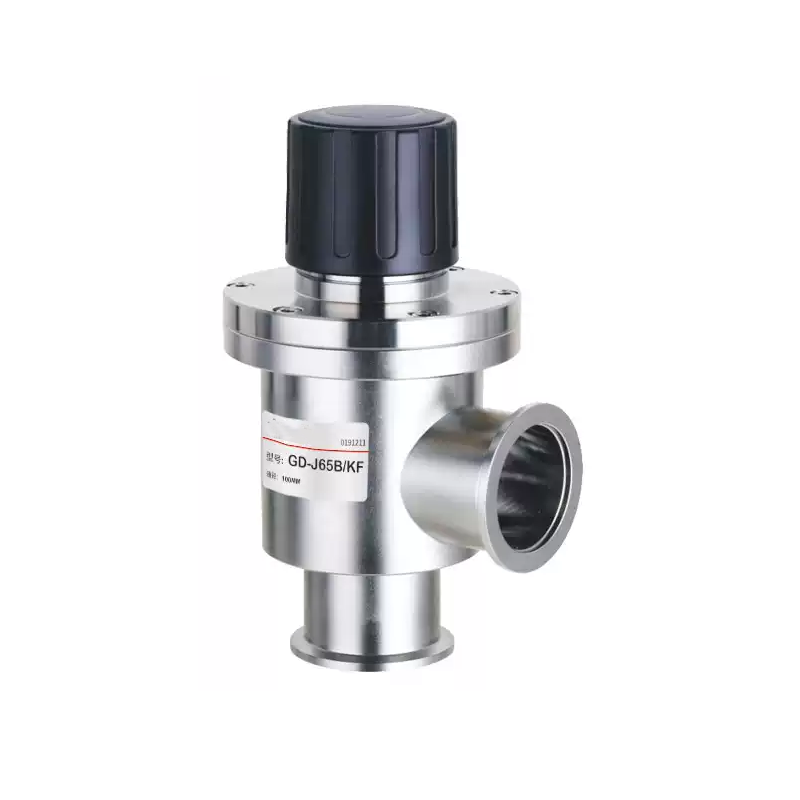

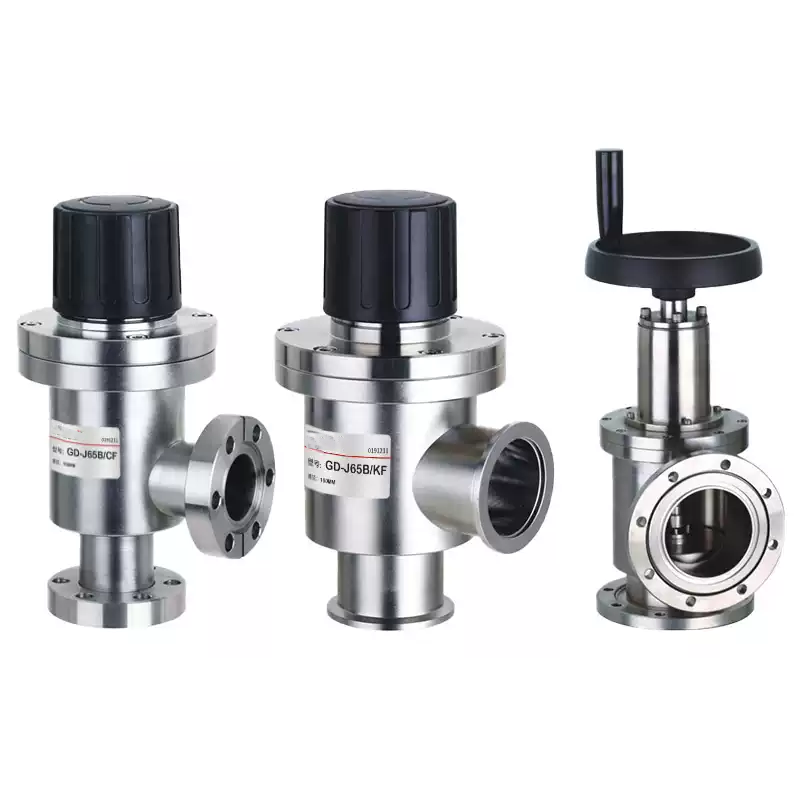

KF Flange High Vacuum Angle Valves (Manual Drive): Overview, Features & Technical Parameters

The KF Flange High Vacuum Angle Valve adopts a manual drive mode. It features reasonable structural design, aesthetic appearance, stable operation, small volume, reliable use, good sealing performance and long service life, making it one of the preferred valves for vacuum equipment. The valve takes manual rotation of the handle as power, which is connected to the valve plate through a mechanism and drives the valve plate to open and close. The valve medium is non-corrosive gas.

Structural Features

• Standardized and modular design, easy to replace and maintain;

• Easy-to-clean design;

• The solenoid valve adopts an energy-saving design with small volume.

Technical Parameters

• Applicable Range: 1×10⁻⁶Pa～1.2×10⁵Pa (Bellows Seal); 1×10⁻⁵Pa～1.2×10⁵Pa (Fluororubber O-ring Seal)

• Pressure Difference on Valve Plate When Open: ≤1.2×10⁵Pa in Any Direction

• Leak Rate of Valve Body and Valve Seat: ≤1.3×10⁻⁷Pa·L·s⁻¹

• Recommended Cycle Times Before Maintenance: (Note: No specific value provided in the original text)

• Valve Body Baking Temperature: ≤150℃
