Electric 3-Way Control Valve

Short Description:

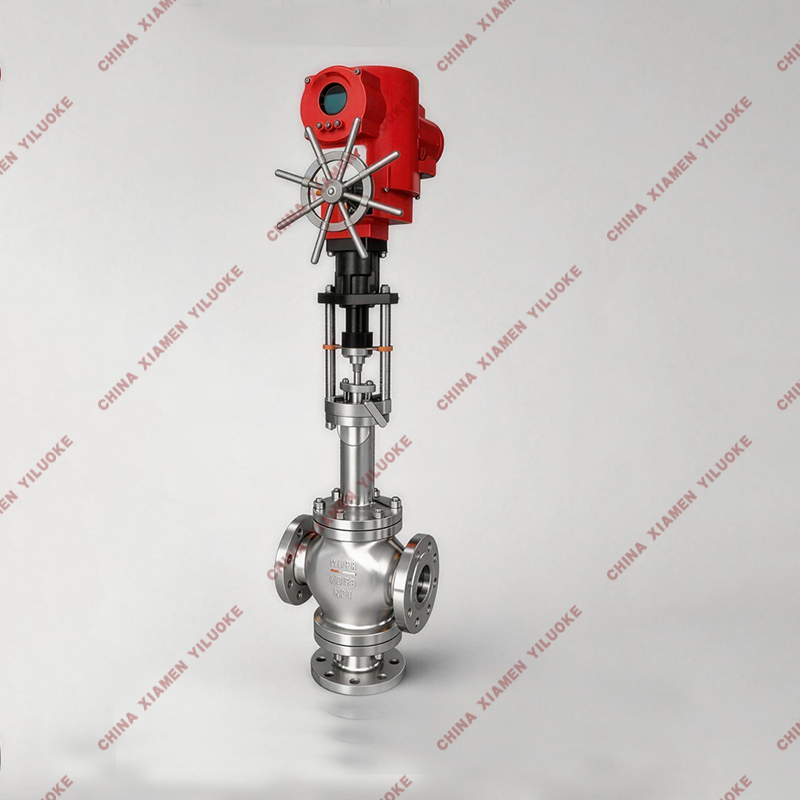

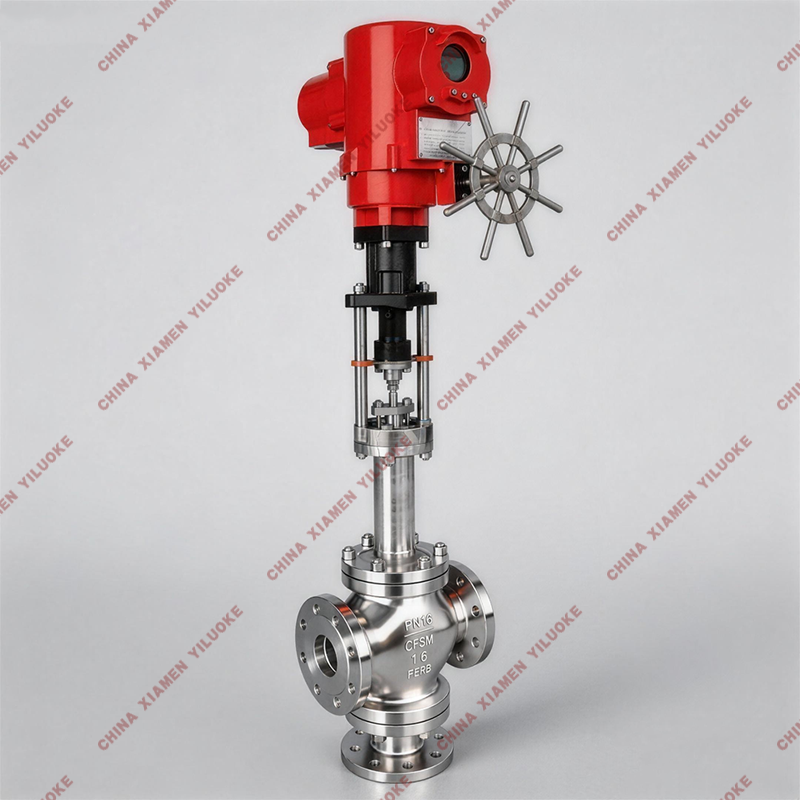

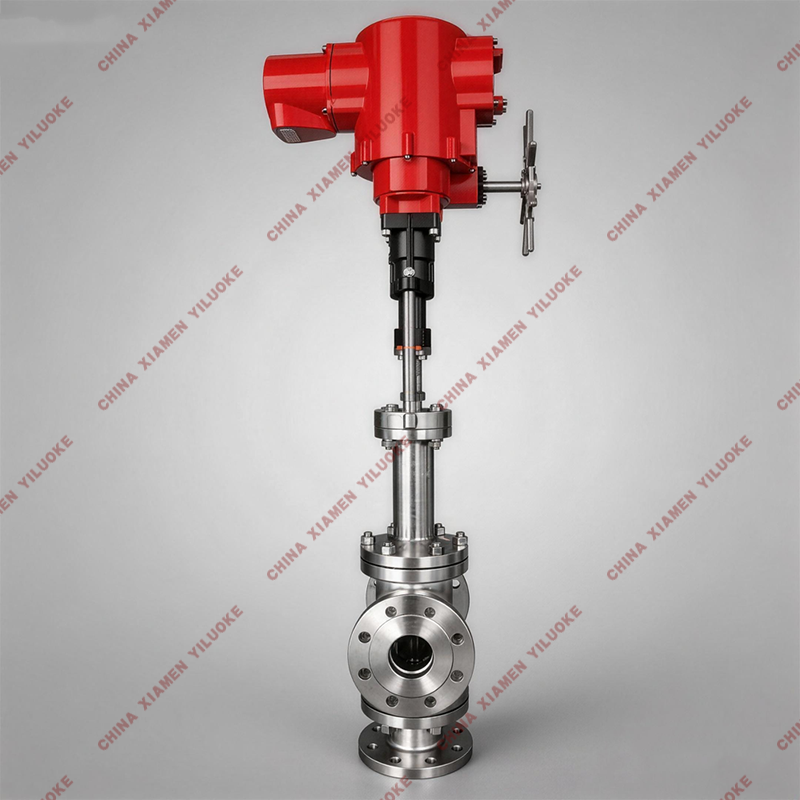

Product Name: Electric Actuated 3-Way Control Valve
Valve Category: Control Valve
Brand: Yiluoke
Technical Data: DN15-DN600
Made In: China
Supplier: Xiamen Yiluoke Import and Export Trading Co., Ltd

Product Detail

Valve Description

The electric 3-way control valve is composed of an electric actuator and a 3-way control valve body. It has two structural types: 3-way diverging valve and 3-way converging valve. It is suitable for proportioning regulation or bypass regulation. For example, it is used for fluid temperature regulation on heat exchangers, dividing one inlet fluid into two outlet fluids, or combining two inlet fluids into one outlet fluid. The control system composed of electric 3-way control valves features simple structure, economy, stable and reliable performance.

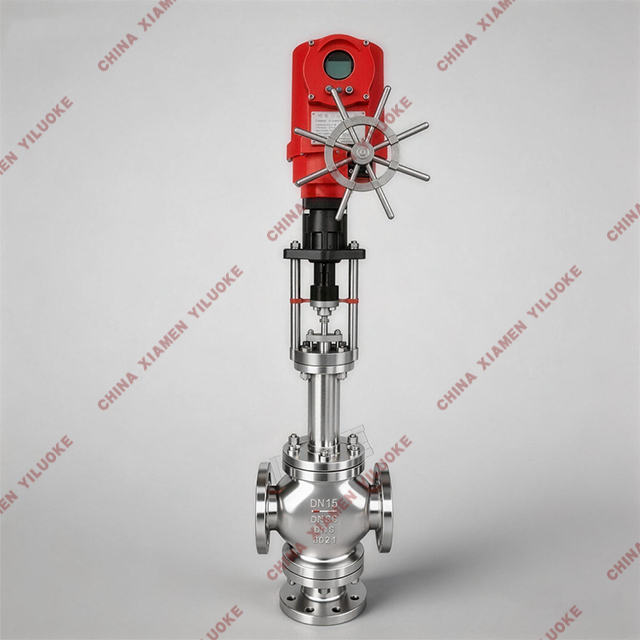

Stainless Steel Electric 3-Way Control Valve

Valve Selection Guide

Valve Body Material: WCB, 304 stainless steel, 316 stainless steel, chromium-molybdenum steel, duplex stainless steel

Nominal Diameter: DN15-350mm

Pressure Rating: GB standard (PN1.6, 4.0, 6.4, 10.0, 16.0, 20.0Mpa), ANSI standard (Class150, 300, 600), JIS standard (JIS 10K, 20K)

Bonnet Type: Standard type (-40~250℃), low temperature type (-196~0℃), high temperature type (0~560℃), bellows type (-100~400℃)

Flow Characteristic: Equal percentage, linear, quick opening

Actuator Type: Standard type, explosion-proof type (ExdII BT4, CT6), intelligent type (with local operation)

Industry Application: Medical equipment, solar energy, cleaning equipment, food machinery, burners, welding and cutting, fire safety, biopharmaceuticals, mechanical manufacturing and other industries

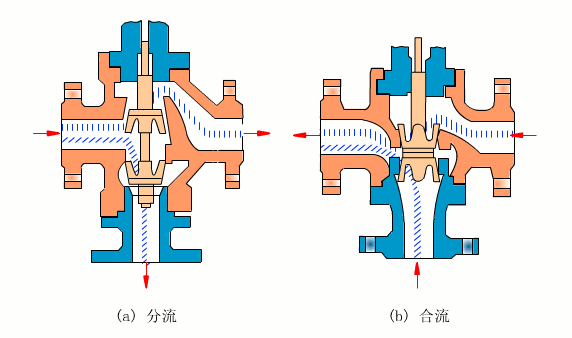

Working Principle of Electric 3 way Control Valve

Valve Basic Parameters

Nominal Diameter(DN)	20	25	32	40	50	65	80	100	125	150	200	250	300
Seat Diameter(dn)	20	25	32	40	50	65	80	100	125	150	200	250	300
Rated Flow Coefficient(KV) (Diverging Valve)	6.3	8.5	13	21	34	53	85	135	210	340	535	800	1360
Rated Flow Coefficient(KV) (Converging Valve)	-	-	-	-	-	-	85	135	210	340	535	800	1360
Allowable Differential Pressure(MPa)	3.5	3.2	2.2	2.2	1.4	1.38	0.94	0.61	0.51	0.36	0.2	0.19	0.13

Flow Characteristic: Linear, Equal Percentage

Nominal Pressure(MPa): PN1.6, 2.5, 4.0, 6.4

Rated Stroke(mm):16, 25, 40, 60, 100

Bonnet Type: Standard type (-17～+250℃), High temperature type (+250～+450℃), Low temperature type (-40～-196℃), Bellows seal type (-40～+350℃)

Gland Type: Bolt compression type

Sealing Packing: V-type PTFE packing, V-type flexible graphite packing

Plug Type: Double guided sleeve plug

Matching Actuator: 381L series electric actuator, PSL series electric actuator, other brands are optional

Actuator Parameters:

Power supply: 220V/50Hz; Input signal: 4-20mA or 1-5V·DC; Output signal: 4-20mA·DC

Protection class: IP55; Explosion-proof mark: ExdⅡBT4 (ExdⅡBT6 for customized); Manual operation: With handle

Ambient temperature: -25～+70℃; Ambient humidity: ≤95%

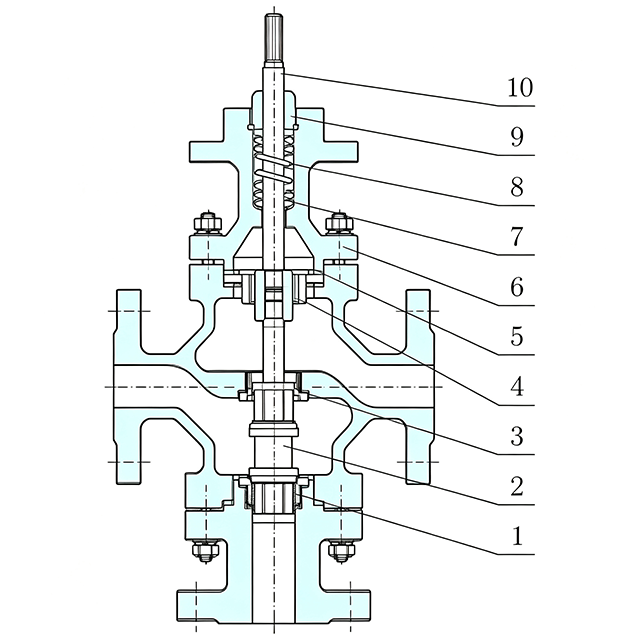

Main Component Materials & Structure Drawing

Structure of Electric 3 way Control Valve

NO.	Part Name	Material 1	Material 2	Material 3	Material 4
1	Valve Body	WCB	CF8	CF8M	CF3M
2	Valve Seat	304	304	316	316L
3	Gasket	PTFE / Metal Graphite Gasket	—	—	—
4	Valve Cage	304	304	316	316L
5	Guide Sleeve	304	304	316	316L
6	Bonnet	WCB	CF8	CF8M	CF3M
7	Valve Stem	304	304	316	316L
8	Packing	PTFE / Flexible Graphite	—	—	—
9	Spring	65Mn	304	316	316L
10	Nut	304	304	316	316L

Valve Performance Parameters

Item	Index Value
Basic Error (%)	±2.5 (with 3810L); ±1.0 (with PSL)
Hysteresis (%)	±2.0 (with 381L); ±1.0 (with PSL)
Dead Band (%)	1.0
Start & End Deviation (%) (Electric Open)	Start point ±2.5; End point ±2.5
Start & End Deviation (%) (Electric Close)	Start point ±2.5; End point ±2.5
Rated Stroke Deviation (%)	≤2.5
Leakage (L/h)	0.01% × valve rated capacity
Rangeability (R)	30：1
