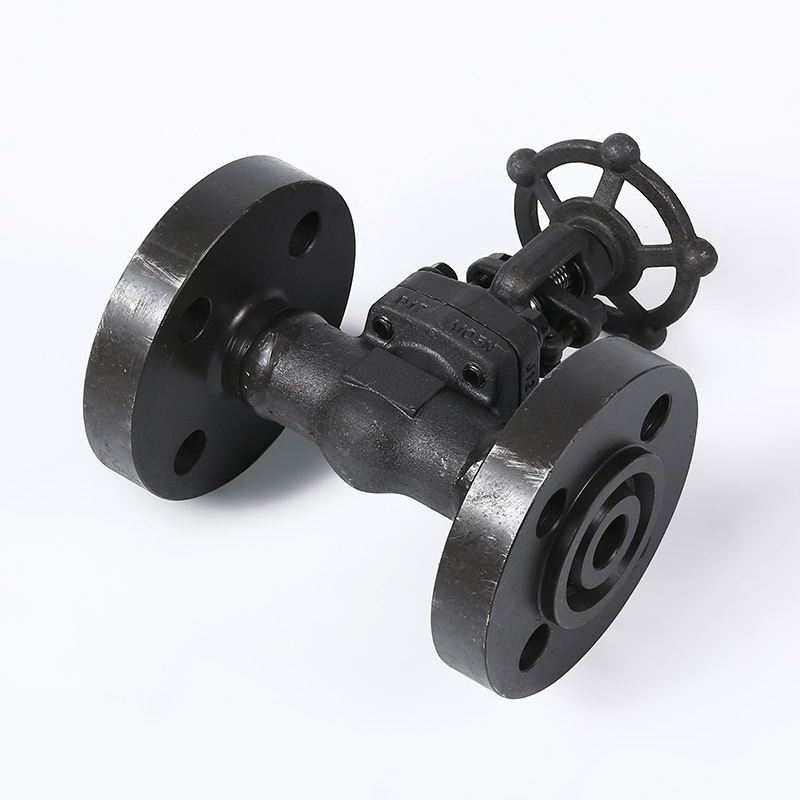

Flanged Forged Steel Gate Valve - Product Description & Technical Parameters

The flanged forged steel gate valve is a common valve used to cut off or connect the medium in the pipeline. This valve is mainly composed of important components such as valve body, valve cover, gate plate and handwheel. Its opening and closing part is the gate plate, and the movement direction of the gate plate is perpendicular to the fluid direction. Therefore, the gate valve can only be fully opened and fully closed, and is not suitable for regulation and throttling.

Technical Parameters of Flanged Forged Steel Gate Valve

1. Designed and manufactured in accordance with GB12234-2007;

2. Structural length in accordance with GB12221;

3. Connecting flange in accordance with JB/T79;

4. Valve inspection and test in accordance with API598;

5. Structural features: B.B; OS&Y;

6. Main materials: A105, F5, F11, F22, 304, 304L, 316, 316L, LF2.
