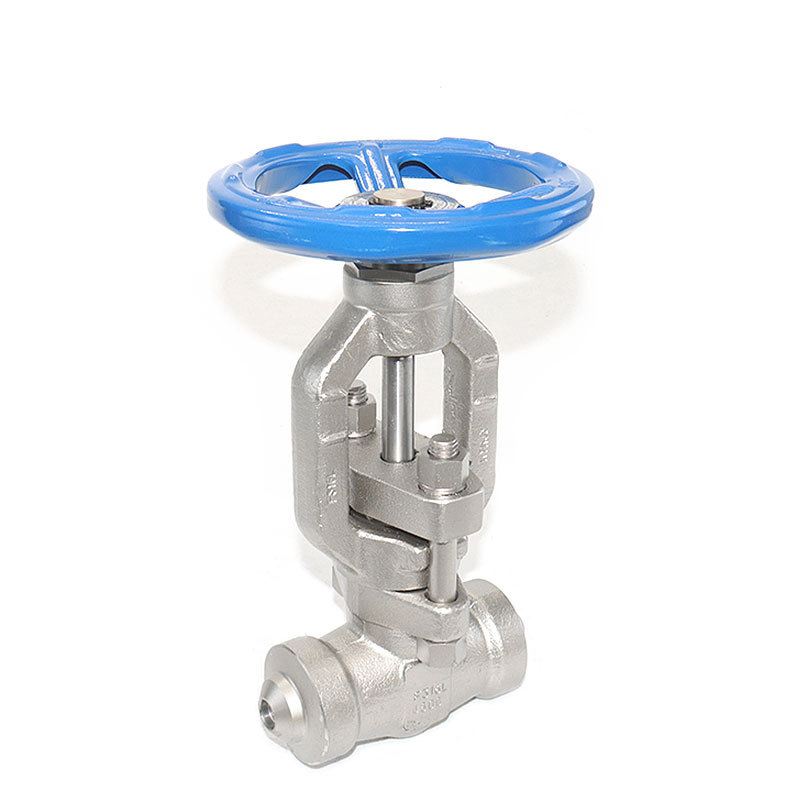

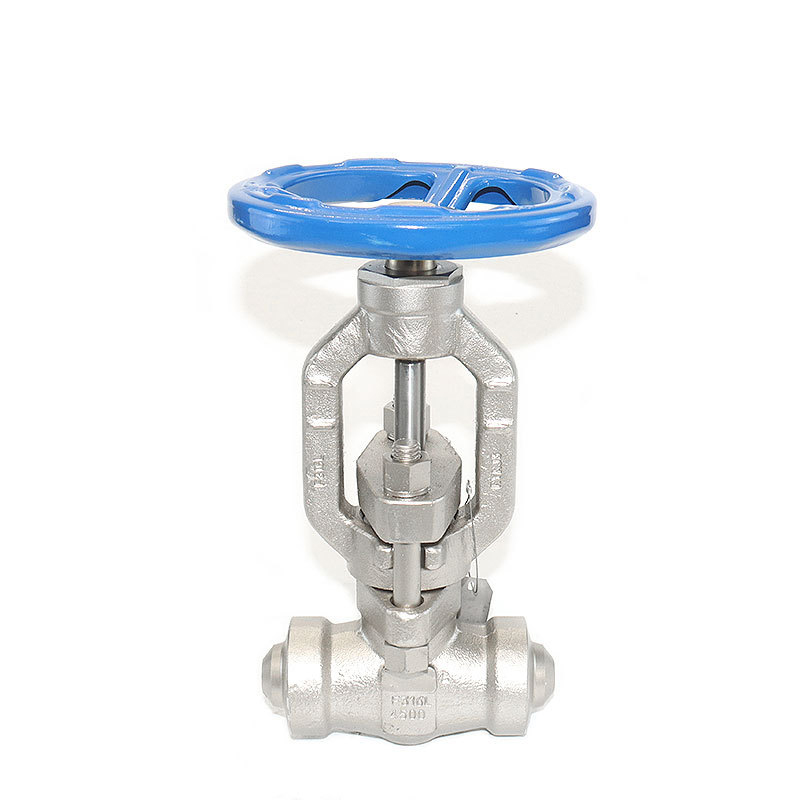

High Temperature and High Pressure Globe Valve - Application, Features & Technical Parameters

The high temperature and high pressure globe valve is suitable for pipelines of various systems in petroleum, chemical, hydropower and thermal power stations with a nominal pressure of PN20～32MPa and an operating temperature of ≤540℃. It is used to cut off or connect the pipeline medium. Applicable media: water, oil products, steam, etc. Operation methods include: manual, gear transmission, electric, etc.

Main Features & Uses

1. The connection between the valve and the pipeline adopts a welded structure;

2. The sealing surface is not easy to wear or scratch, with good sealing performance and long service life;

3. Compact structure, excellent opening and closing performance, small height, and convenient maintenance;

4. Suitable for water, steam and oil pipelines, featuring high temperature and high pressure resistance.

Technical Parameters

• Product Name: High Temperature and High Pressure Globe Valve

• Nominal Diameter: DN15～DN300

• Structural Form: Globe Type

• Nominal Pressure: 1.6MPa～32.0MPa

• Connection Mode: Welding, Flange

• Applicable Temperature: -29ºC～+570ºC

• Drive Mode: Handwheel, Bevel Gear, Electric

• Valve Body Material: WCB, Carbon Steel, Chrome-Molybdenum-Vanadium Steel, Stainless Steel

• Manufacturing Standards: National Standard GB, German DIN, American API, ANSI

• Applicable Media: Water, Oil, Steam, Gas
