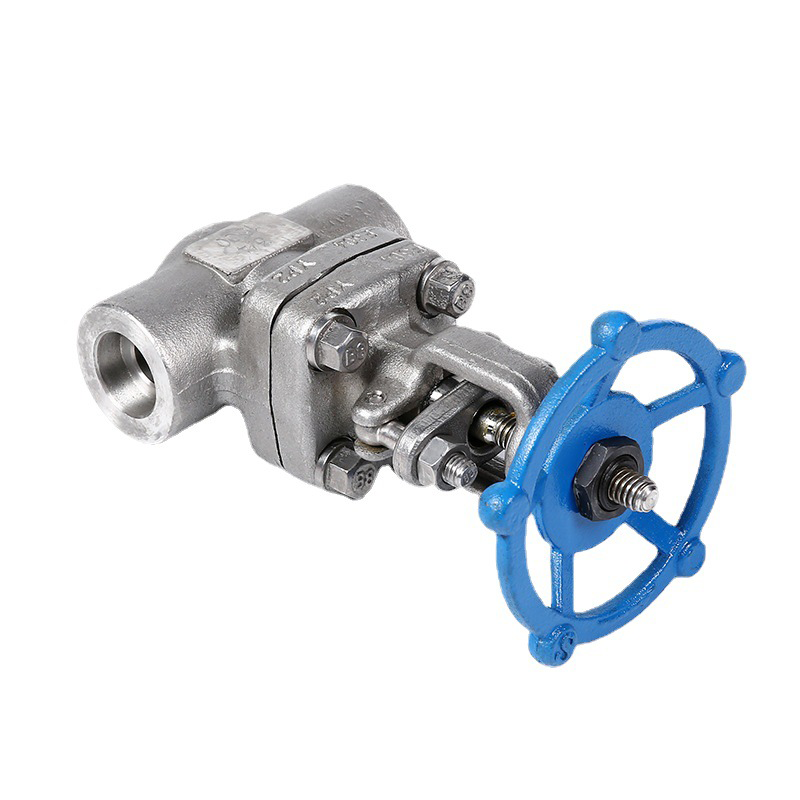

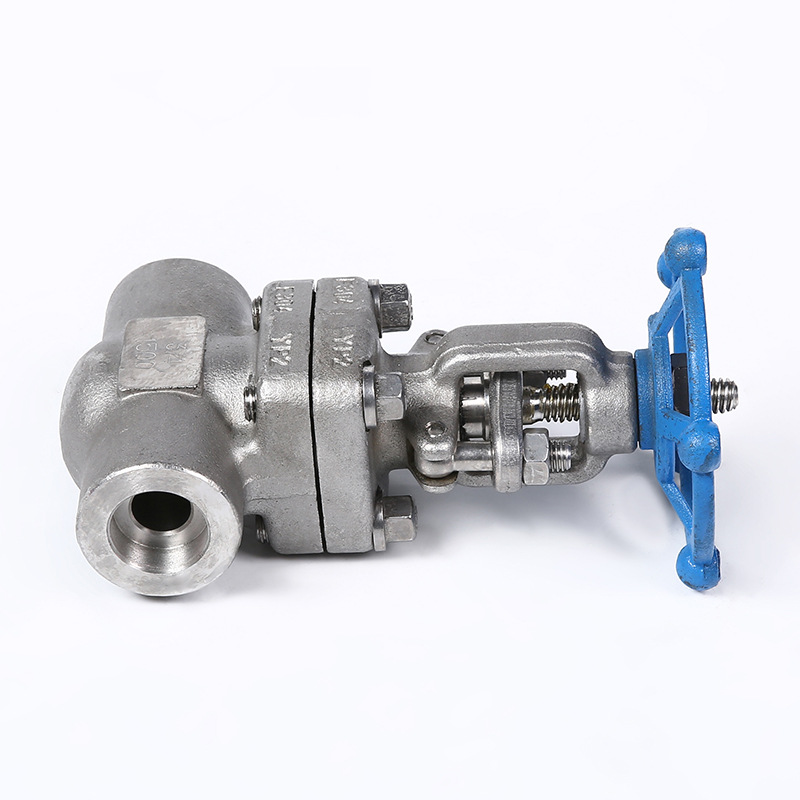

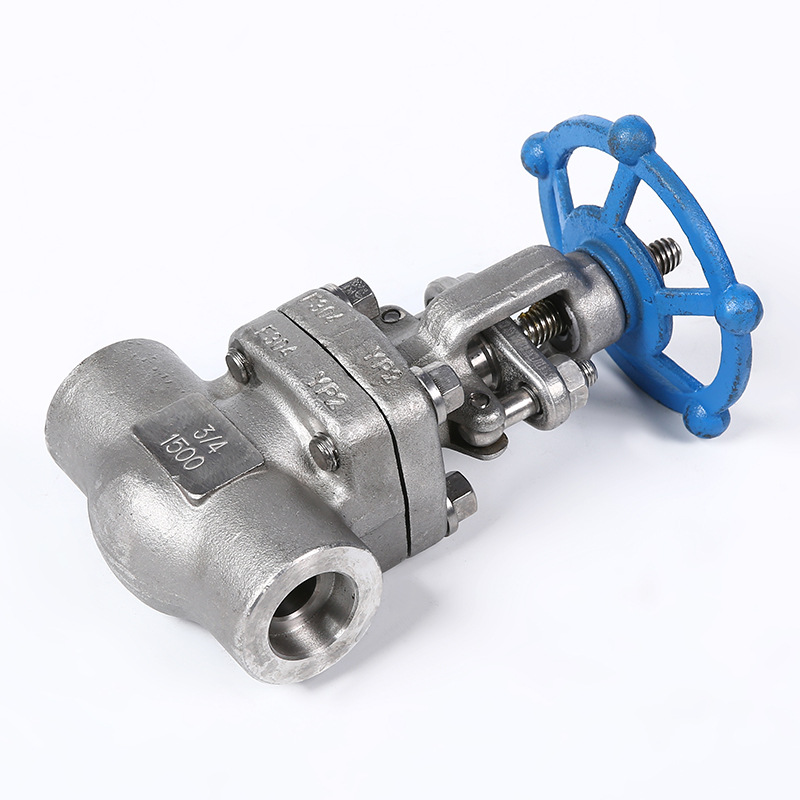

Forged Stainless Steel Gate Valve - Product Description, Applications & Technical Parameters

The forged stainless steel gate valve is entirely forged from stainless steel materials. Its mechanical properties are much better than those of cast gate valves. Therefore, some important pipeline fittings and machine components should adopt forged stainless steel gate valves.

Applications of Forged Stainless Steel Gate Valve

It is mainly suitable for pipelines of various systems in thermal power stations to cut off or connect pipeline media. Applicable media: non-corrosive media such as water and steam. Compared with other valve products, the forged stainless steel gate valve is characterized by being used in high-temperature and high-pressure pipelines. Due to its performance, process characteristics and working conditions, the product also forms unique features that cannot be replaced by other products.

Technical Parameters of Forged Stainless Steel Gate Valve

• Drive Mode: Handwheel

• Valve Body Structure: Bolted Bonnet or Welded Bonnet

• Connection Mode: Thread, Welding

• Pressure Rating: 150LB～2500LB

• Sealing Material: Alloy Steel + Cemented Carbide

• Operating Temperature: -29℃～550℃

• Manufacturing Caliber: DN15～50(mm)

• Valve Body Material: A105, LF2, F11, F22, 304(L), F316(L), etc.

• Applicable Media: Water, Steam, Oil Products, etc.
