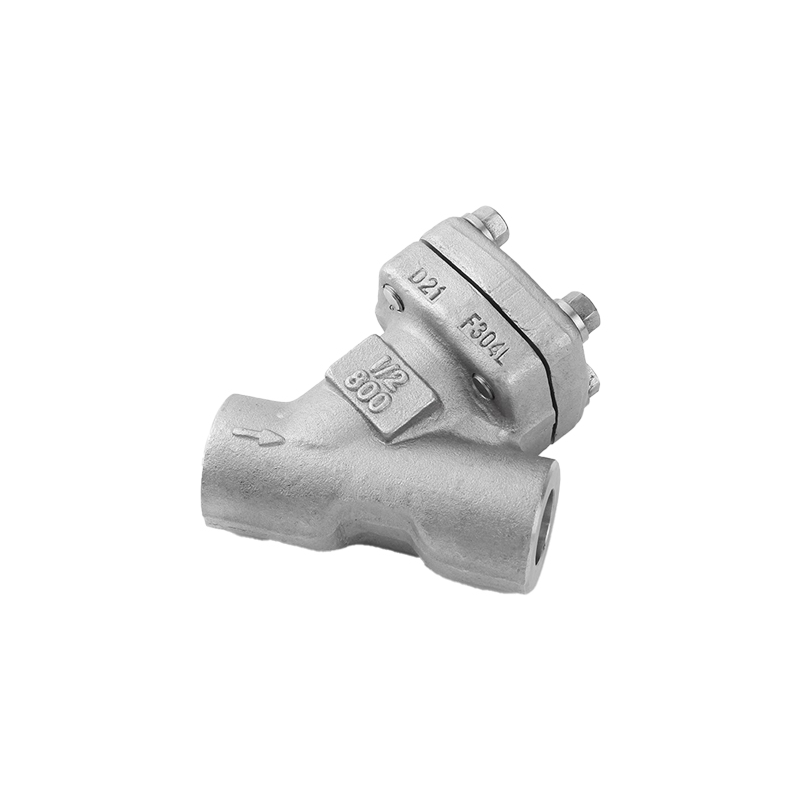

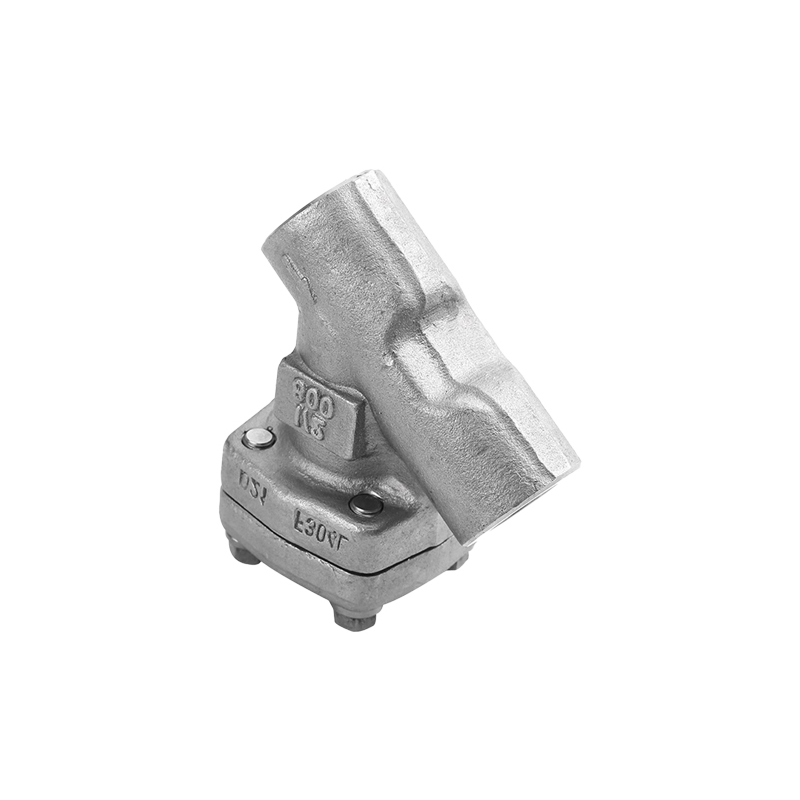

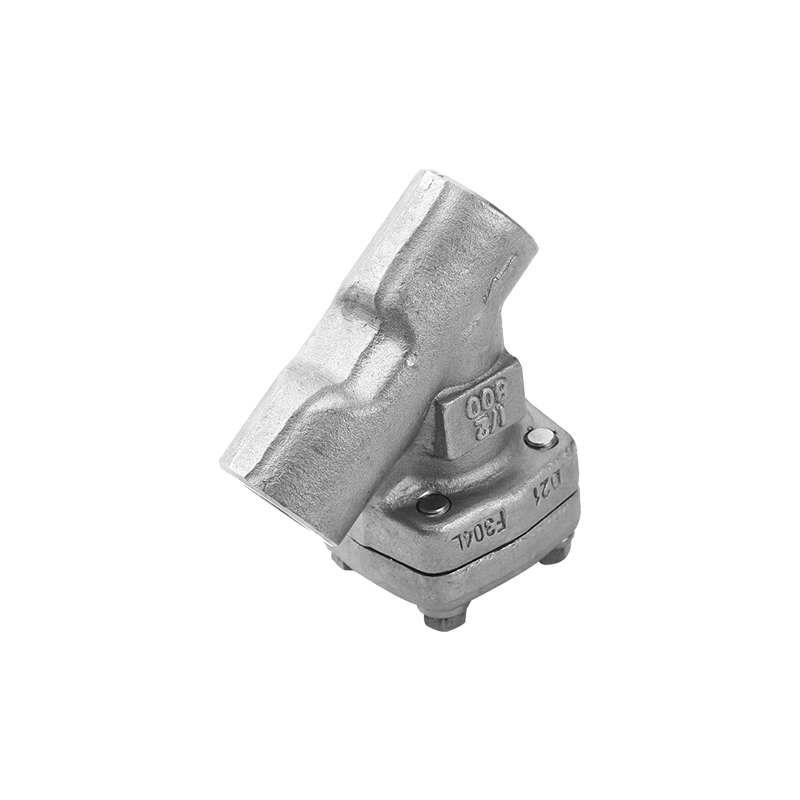

Forged Stainless Steel Y-Strainer

Short Description:

Product Name:
DN:
Pressure:
Temperature:
Connection:
Material:

Product Detail

The Forged Stainless Steel Y-Strainer is a type of Forged Steel Y-Strainer where main components such as the valve body and bonnet are all made of forged materials or forgings produced through die forging process. It is suitable for installation at the inlet of high-pressure pumps or on pipelines before fluid flows into equipment to filter out impurities in the medium, thereby purifying the materials.

Structural Features

The connection between the valve body and bonnet of the Forged Stainless Steel Y-Strainer can be designed into forms such as bolted type, screw cap type, welded type, pressure self-sealing type or welded self-sealing type. Since the quality of forgings is higher than that of castings, they can withstand greater impact forces and high temperatures, and their plasticity, toughness and other mechanical properties are also higher than those of castings. Therefore, Forged Y-Strainers are used as filtering equipment in all high-temperature and high-pressure places, important machinery and equipment, and complex working condition fields. The shell of this product is forged, which overcomes inherent defects such as looseness, shrinkage cavities, air holes and sand holes existing in casting forming, as well as external leakage caused by transportation collisions. Thus, it can meet the filtering requirements of high-pressure or ultra-high-pressure pipeline transportation systems. It can also be equipped with a drain plug or blowdown valve on the cover according to user requirements, facilitating the discharge of residual materials and impurities.

Product Advantages

The Forged Y-Strainer is manufactured by forging process, with no defects in the valve body and high pressure resistance;
The filter is simple to install and maintain, and the filter screen is easy to clean;
The valve body of the Y-Strainer is subjected to sand rolling treatment; the appearance of carbon steel material is blackened or painted;
The packaging uniformly adopts standard wooden cases.
