Product Description

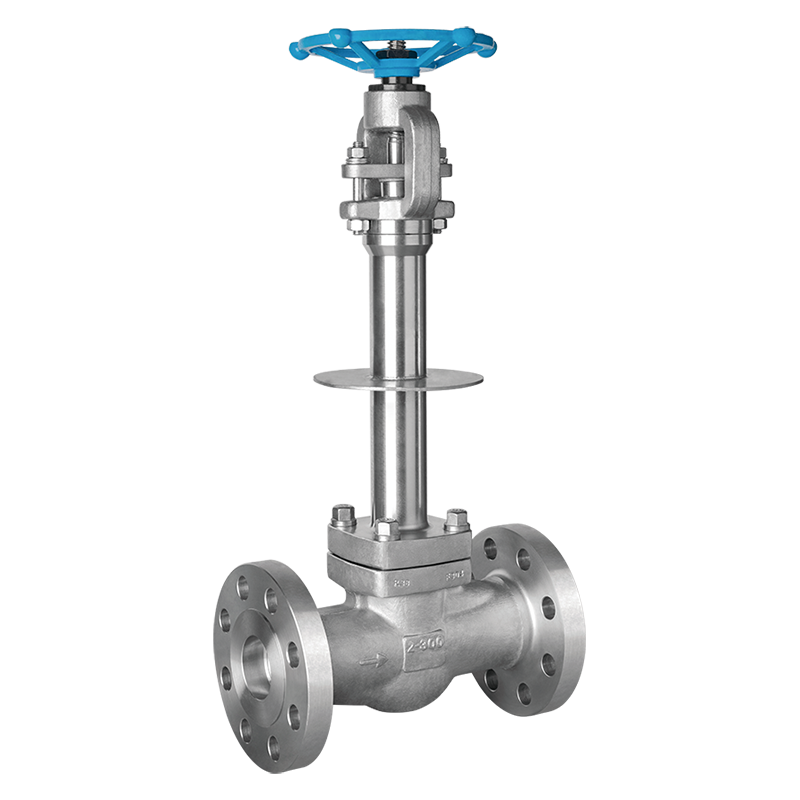

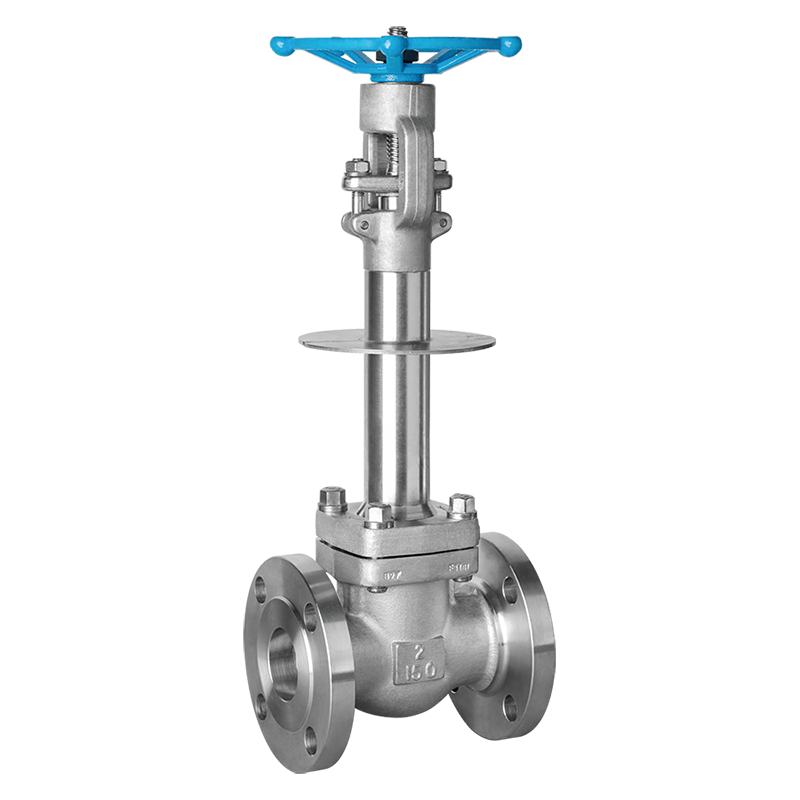

The forged steel cryogenic gate valve is suitable for low-temperature media such as methane, liquefied natural gas (LNG), ethylene, carbon dioxide, liquid ammonia, liquid oxygen, liquid nitrogen, and liquid hydrogen. The valve bonnet is designed as a long neck structure convenient for cold insulation, ensuring that the temperature at the bottom of the stuffing box remains above 0℃. A pressure relief hole is arranged on the inlet side of the gate plate to prevent abnormal pressure rise in the valve cavity. The valve material undergoes low-temperature impact test to ensure that the material will not suffer brittle damage at low temperatures. For cryogenic gate valves used below -101℃, the valve components undergo cryogenic treatment before precision machining.

Technical Parameters

• Product Name: Forged Steel Cryogenic Gate Valve

• Product Model: DZ61H, DZ11H

• Nominal Diameter: DN15 ～ DN50

• Structure Form: Gate Plate Type

• Nominal Pressure: 1.6Mpa ～ 14.0Mpa / 150LB - 800LB

• Connection Mode: Internal Thread, Socket Weld, Flange

• Applicable Temperature: -20ºC ～ -101ºC ～ -196ºC

• Drive Mode: Manual, Bevel Gear, Electric, Pneumatic, Hydraulic

• Valve Body Material: Forged Steel, Cast Steel, Stainless Steel

• Standards: GB (National Standard), DIN (Germany), API (USA), ANSI (USA)

• Applicable Media: Liquid Nitrogen, Ethylene, Methane, Liquefied Natural Gas (LNG), Carbon Dioxide, etc.
