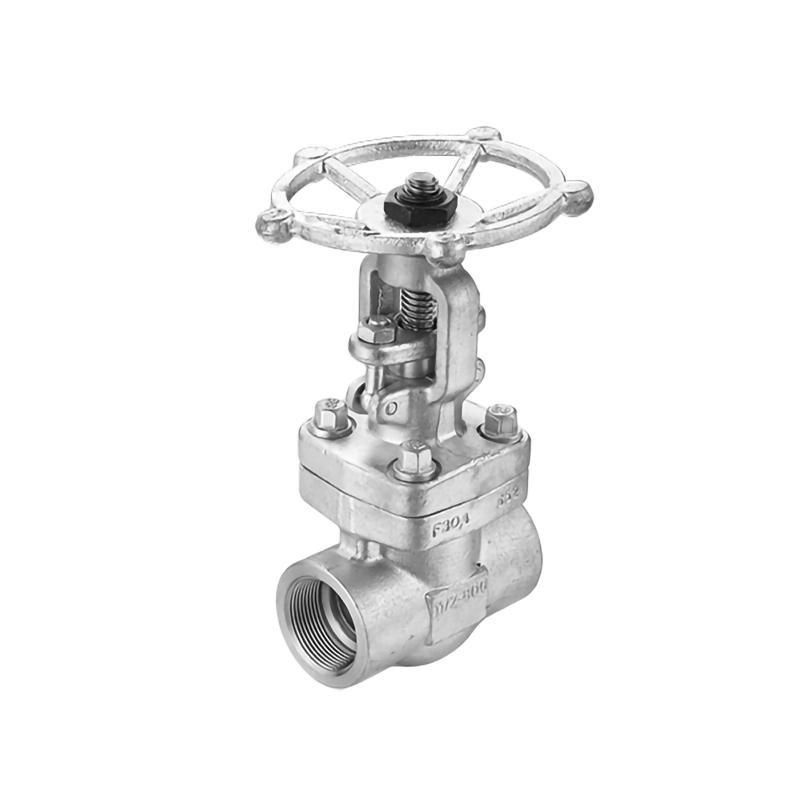

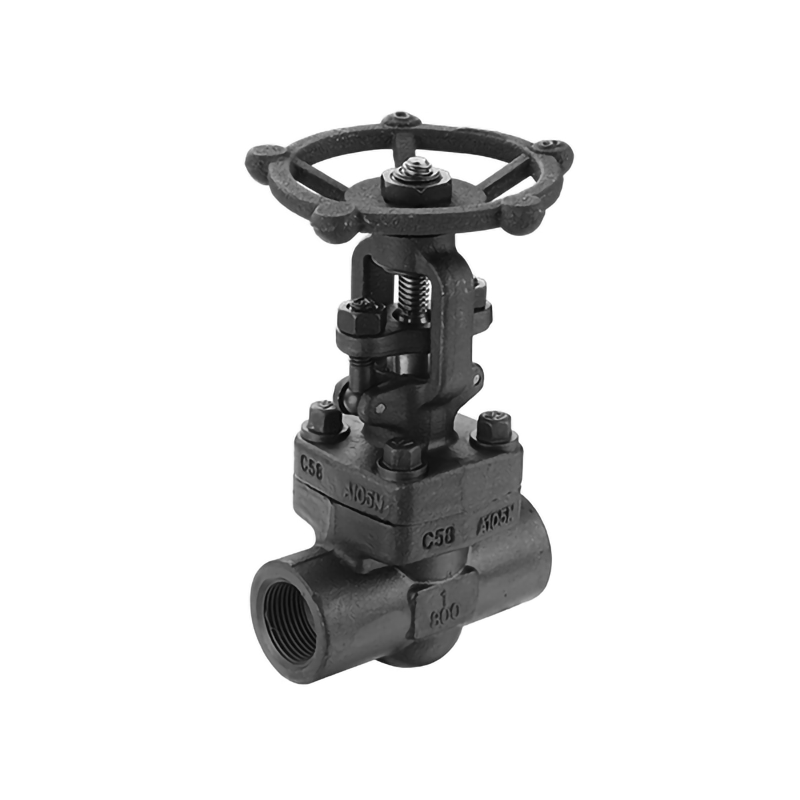

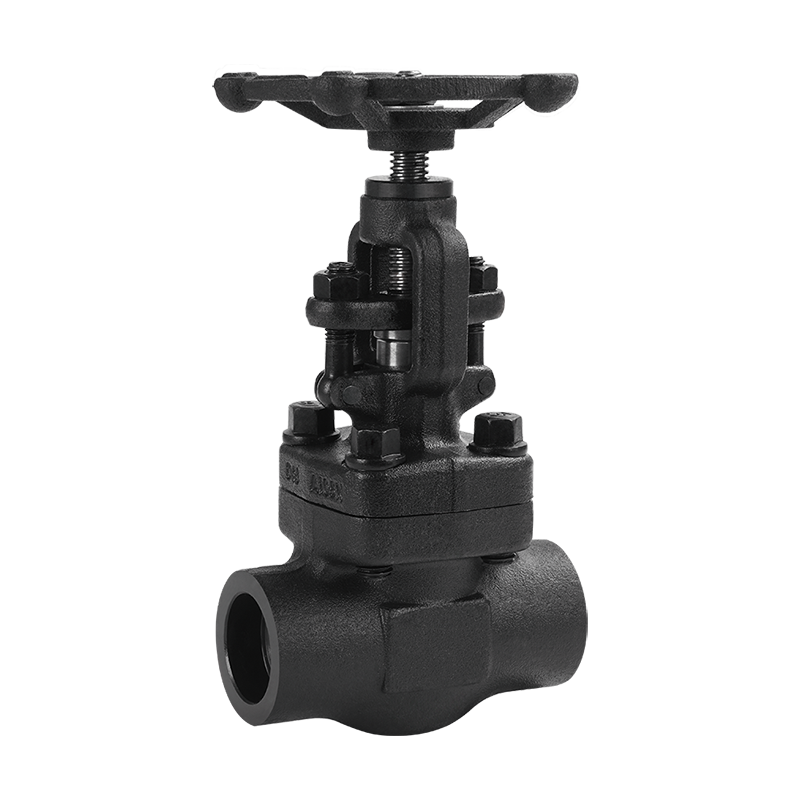

Internal Thread Forged Steel Gate Valve - Product Description & Technical Parameters

The internal thread forged steel gate valve is an industrial valve made of forged steel and connected by internal threads. It is suitable for high-pressure working conditions (such as chemical and petroleum pipelines) and has the characteristics of high strength and corrosion resistance.

Technical Parameters

1. Designed and manufactured in accordance with ANSI B16.34; API 600; API 602;

2. Connection end dimensions:

1. Socket hole dimensions in accordance with ANSI B16.11, JIS B2306;

2. Threaded end dimensions in accordance with ANSI B1.20, ISO 7/1, JIS B0203;

3. Valve inspection and test in accordance with API 598;

4. Structural features: B.B; OS&Y or W.B; OS&Y;

5. Materials: In accordance with ANSI/ASTM regulations;

6. Main materials: A105, F5, F11, F22, 304, 304L, 316, 316L, LF2, etc.
