Pneumatic 3-piece Ball Valve with Clamp Ends

Short Description:

Product Name:
Valve Category:
Brand:
Technical Data:
Made In:
Supplier:

Product Detail

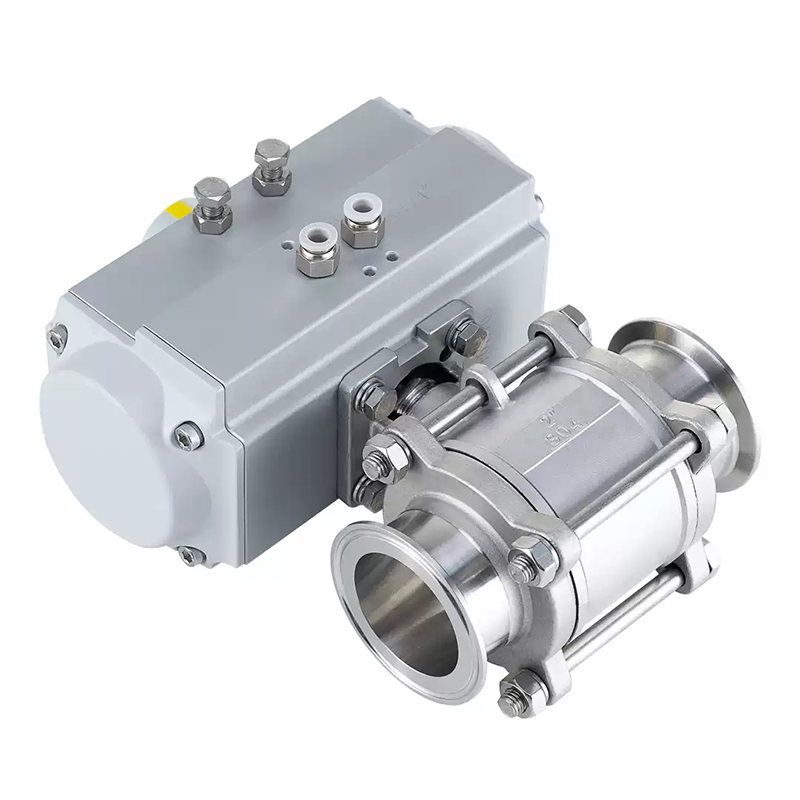

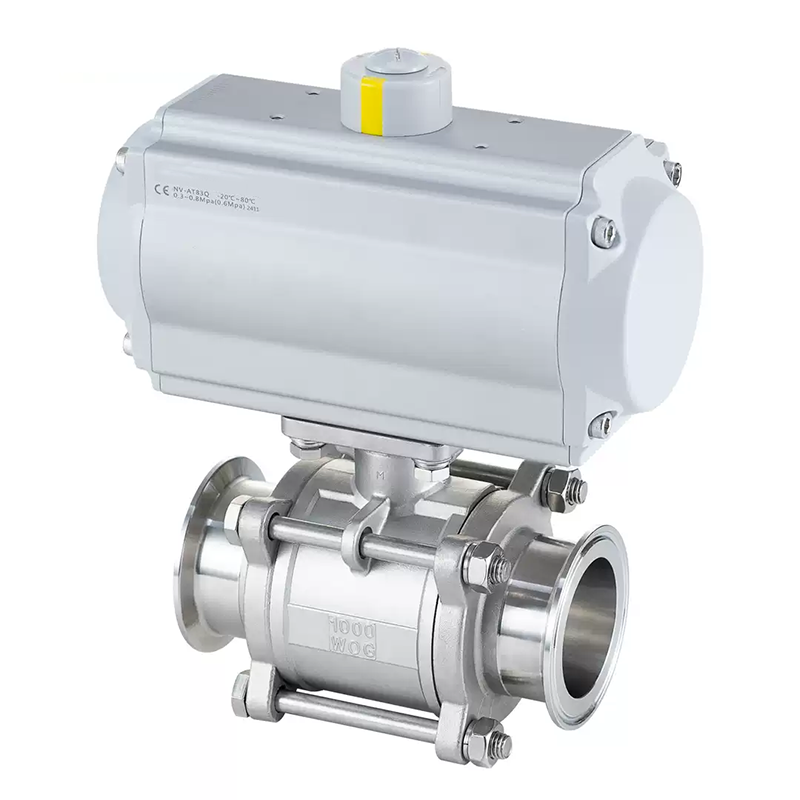

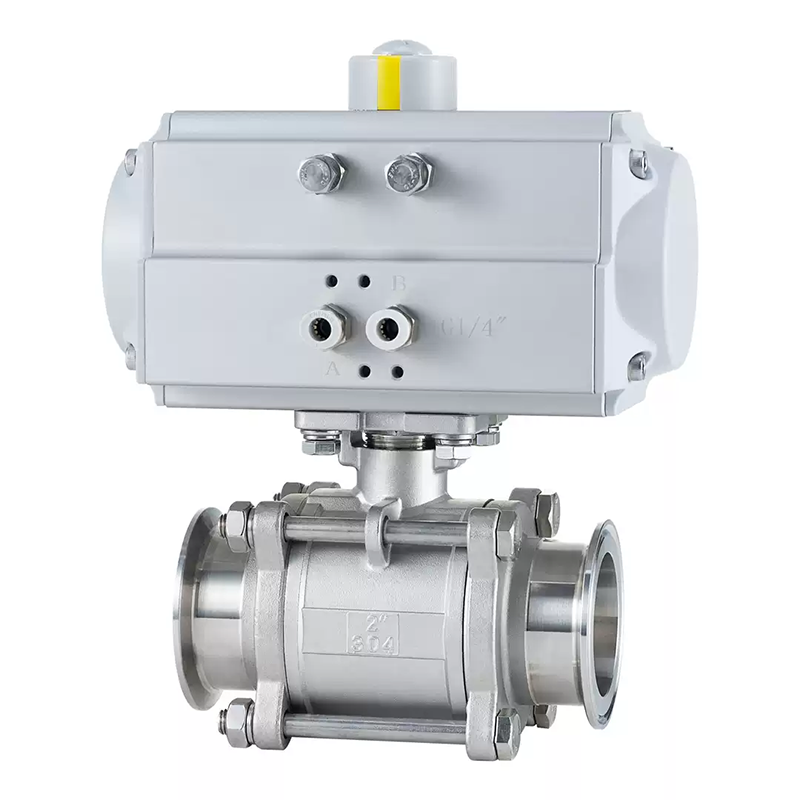

The pneumatic 3-piece ball valve with clamp ends is assembled by an angular stroke pneumatic actuator and a sanitary ball valve. Also known as the pneumatic clamp ball valve, it has undergone precise inspection procedures and strict quality management. The flow channel is precision polished, adopting a full-wrap F4 seal, with no dead corners and easy cleaning. The valve body is made of high-quality stainless steel or carbon steel, and the inner wall of the flow channel is electronically polished to 0.5um (240Grit) to ensure unobstructed fluid flow and sanitation. It is suitable for water, gas, oil products and other media, with reliable sealing performance and long service life.

Features

Adopts fixed valve core design, small opening and closing torque, and long service life.
European-style exquisite assembly, reliable technology and reliable sealing.
Ball valve with high platform structure, ISO5211 connection standard, professional and convenient installation.
Two-way sealing, arbitrary medium flow direction, automatic compensation, self-cleaning function, applicable to suspensions of fibers and tiny particles as well as viscous media.

Technical Parameters

Parameter	Specification
Nominal Diameter	DN10～100mm
Action Range	0～90°
Connection Type	Internal Thread, Clamp Type, Welded Type
Cylinder Selection	AT Series Pneumatic Actuator
Cylinder Type	Double-Acting, Single-Acting (Spring Return)
Control Mode	On-Off Type, Regulating Type, Three-Stage Type (Opening Optional)
Air Supply Pressure	Double-Acting: 4～8bar, Single-Acting: 5～8bar
Nominal Pressure	16, 25, 40, 64bar (Please contact IKNOW technical personnel if higher pressure is required)
Applicable Medium	Water, Gas, Oil Products, etc.
Medium Temperature	Polytetrafluoroethylene: -40～180℃ Para-polyphenylene: -40～300℃ Metal Hard Seal: -30～425℃ Cemented Carbide: -40～425℃
Ambient Temperature	Standard Type: -20～80℃
Valve Body Material	Carbon Steel, Stainless Steel (304, 316, 316L)
Ball Material	Stainless Steel (304, 304L, 316, 316L)
Sealing Material	Polytetrafluoroethylene, Para-polyphenylene, Metal Hard Seal, Cemented Carbide
Packing	Polytetrafluoroethylene
Optional Accessories	Solenoid Valve, Air Filter Regulator, Valve Position Transmitter, Valve Positioner, Retainer Valve, Handwheel Mechanism
