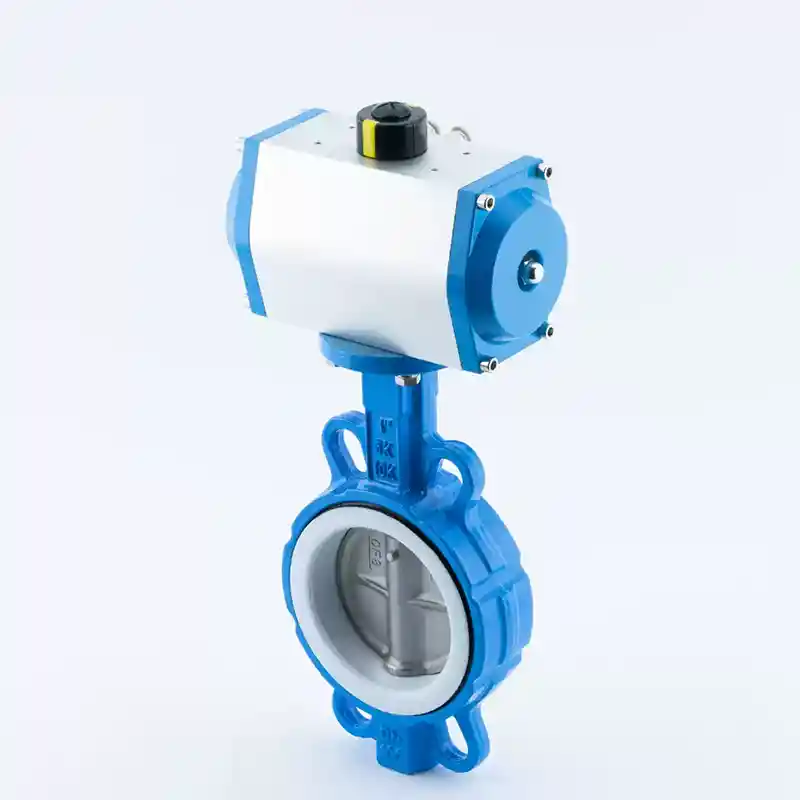

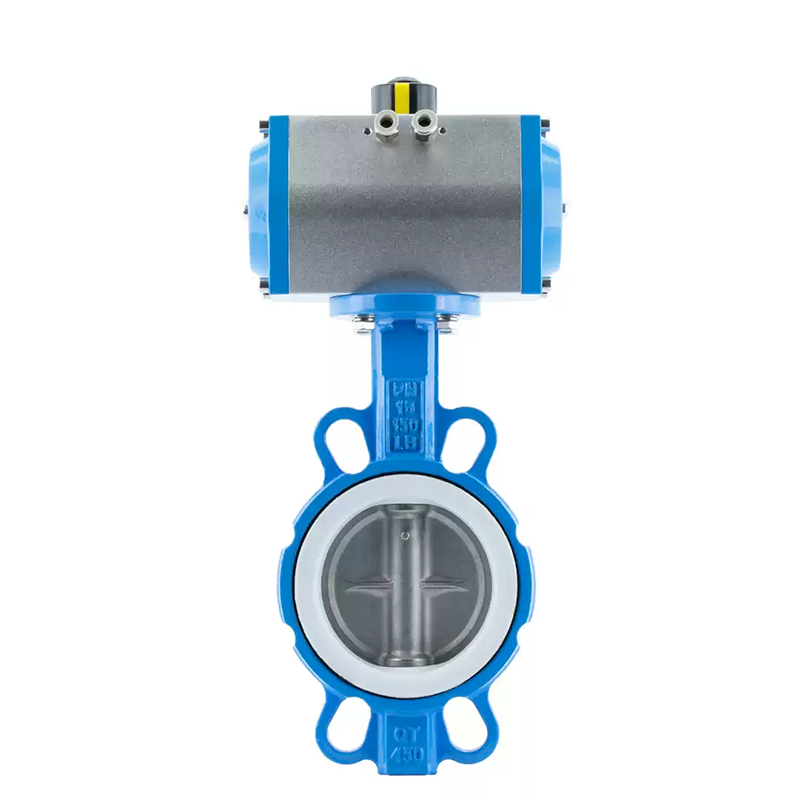

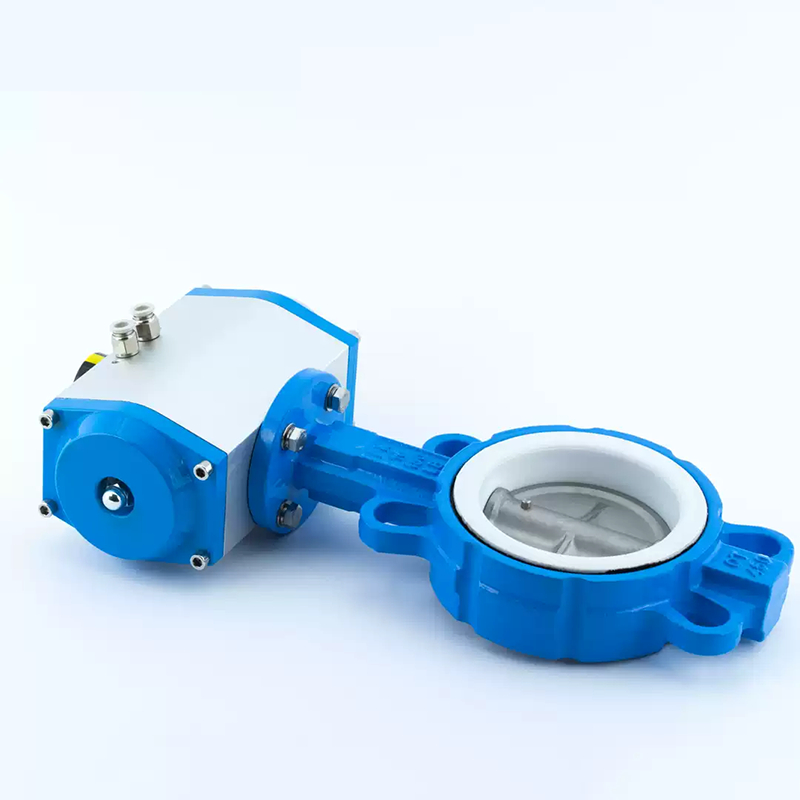

Pneumatic Carbon Steel WCB Butterfly Valve

Short Description:

Product Name:
Valve Category:
Brand:
Technical Data:
Made In:
Supplier:

Product Detail

Product Overview

The pneumatic carbon steel WCB butterfly valve is an industrial rotary valve constructed of ASTM A216 WCB carbon steel and equipped with a full-stroke pneumatic actuator. It realizes medium shut-off and flow regulation through 0°–90° rotation of the butterfly disc. Featuring compact structure, high strength, excellent temperature and pressure resistance, and strong compatibility with automatic control systems, it is widely used for medium and high-pressure pipeline systems in petrochemical, power, municipal and other industrial fields.

Technical Parameters

Valve Body Material	Carbon Steel WCB (ASTM A216 WCB)
Nominal Diameter	DN50–DN2000 (2"–80")
Nominal Pressure	PN1.0, PN1.6, PN2.5, PN4.0, PN6.4MPa; Class150, Class300, Class600
Connection Type	Wafer, Flange (GB/ASME/DIN standard), Lug Type
Sealing Type	Soft seal (EPDM/PTFE, ≤260℃); Hard seal (hardfaced metal seal, ≤425℃)
Applicable Temperature	WCB soft seal: -20℃～180℃; WCB hard seal: -29℃～425℃
Applicable Media	Water, steam, oil products, natural gas, air, weakly corrosive fluids and media with trace particles
Actuator Type	Pneumatic piston type (double-acting / single-acting spring return)
Air Supply Pressure	0.4–0.6MPa
