Pneumatic Center-Line Rubber Sealed Butterfly Valve

Pneumatic Center-Line Rubber Soft Sealed Butterfly Valve

Short Description:

Product Name:
Valve Category:
Brand:
Technical Data:
Made In:
Supplier:

Product Detail

1. Product Overview

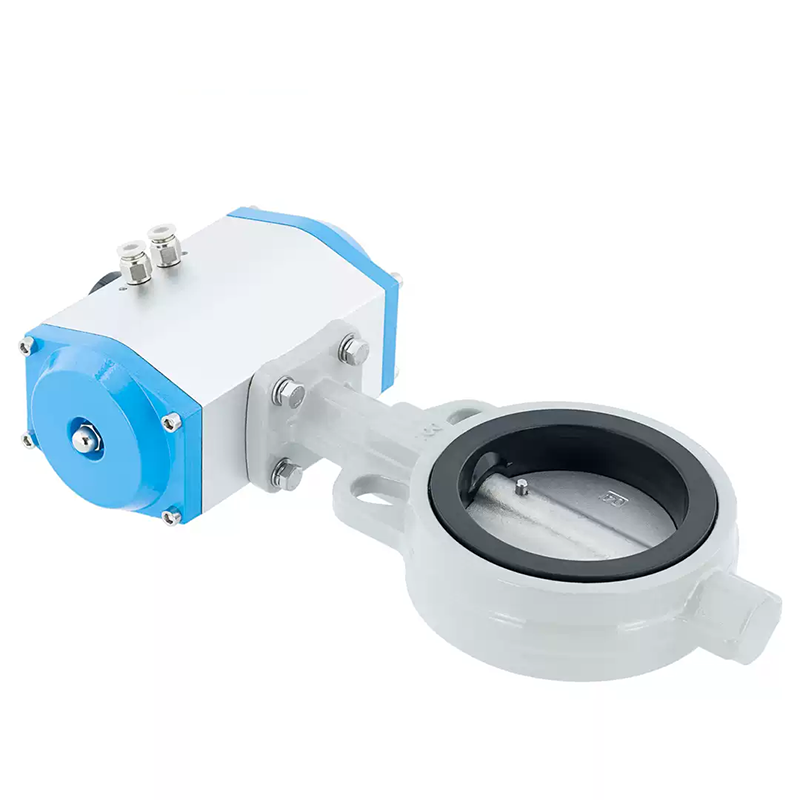

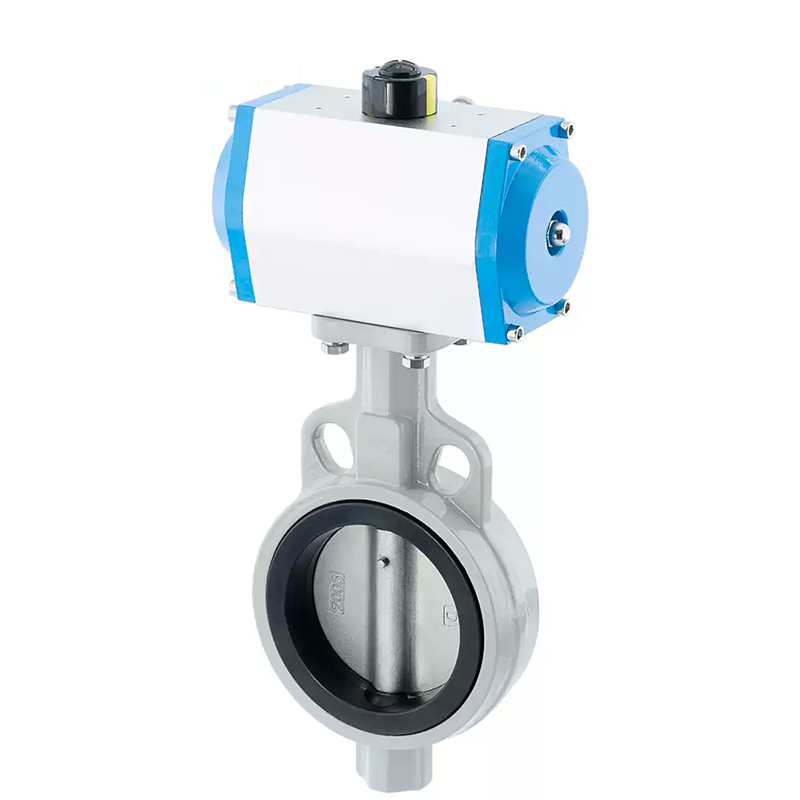

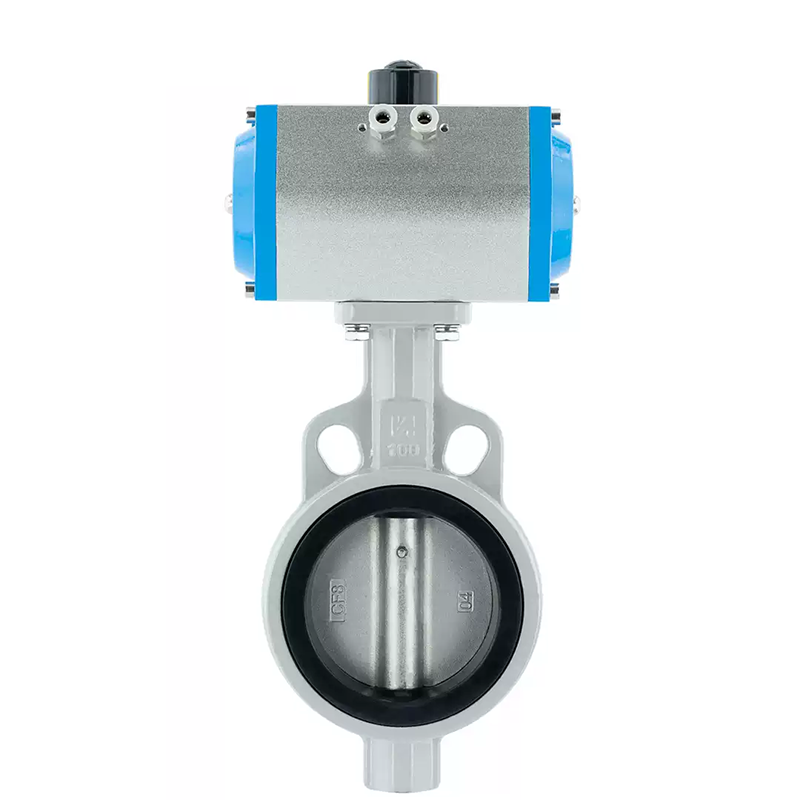

The pneumatic center-line rubber sealed butterfly valve features a coaxial design where the rotation center of the butterfly disc (valve shaft center) is aligned with the geometric center of the valve body. The valve is directly connected to the pneumatic actuator. According to different connection methods, it is divided into pneumatic wafer center-line butterfly valves and pneumatic flange center-line butterfly valves.

The butterfly disc adopts an automatic centering function in vertical and horizontal directions. It is generally designed as a soft sealing structure with common sealing materials including rubber and PTFE. Due to the continuous extrusion and friction between the disc and valve seat during opening and closing cycles, the sealing surface is prone to scraping and faster wear, which is the main structural limitation of center-line butterfly valves.

2. Performance Features

The upper and lower contact surfaces of the butterfly disc are wide, resulting in relatively large friction and operating torque during switching. Whether the valve is fully open or fully closed, the sealing surface between the disc and the valve seat remains in a compressed sealing state, providing excellent and stable sealing performance.

With a simple symmetrical I-type center-line structure, the valve supports bidirectional sealing with identical sealing effect in both flow directions. It features low flow resistance and flexible switching torque. Rated for medium and low pressure working conditions, it delivers stable comprehensive performance for conventional industrial pipelines.

3. Application Advantages & Scope

The pneumatic center-line butterfly valve has no flow direction limitation during installation, enabling free directional mounting on site. Its simple structure allows convenient on-site disassembly and maintenance. The sealing ring can be replaced without completely removing the valve from the pipeline, greatly reducing maintenance costs and downtime.

Widely applicable for working pressures below 1.6MPa, it is commonly used in water treatment, HVAC, municipal engineering, general industrial fluid pipelines and other medium & low-pressure systems.

4. Main Technical Parameters

Parameter Item	Specification
Nominal Diameter	DN50～DN1200mm
Nominal Pressure	PN0.6, PN1.0, PN1.6, PN2.5MPa
Connection Type	Wafer Type, Flange Type
Structure Type	Center-line Type
Flow Characteristic	Approximate Quick-opening Type
Action Range	0°～90°
Leakage Standard	Complies with GB/T4213-92, Kv value 10; Soft seal: Zero leakage
Basic Error (With Positioner)	Less than ±2% of full stroke
Hysteresis (With Positioner)	Less than 2% of full stroke
Matched Actuator	GT, AT, AW series single-acting / double-acting pneumatic actuators
Control Mode	On-off type (2-position control); Regulating type (4~20mA signal control)

5. Actuator & Accessory Parameters

Parameter Item	Specification
Actuator Model	GT, AT, AW series single / double acting pneumatic actuators
Air Supply Pressure	0.4～0.7MPa
Air Port Size	G1/4", G1/8", G3/8", G1/2"
Ambient Temperature	-30℃～+70℃
Action Type	Single-acting, Double-acting
Optional Accessories	Positioner, Solenoid Valve, Air Filter Regulator, Lock-up Valve, Limit Switch, Valve Position Transmitter, Handwheel Mechanism, etc.
