Pneumatic Actuated 3-Piece Ball Valve

Short Description:

Product Name: Pneumatic 3 PCS Ball Valve
Valve Category: 3-Piece Ball Valve
Brand: Yiluoke
Technical Data: DN6-DN100
Made In: China
Supplier: Xiamen Yiluoke Import and Export Trading Co., Ltd

Product Detail

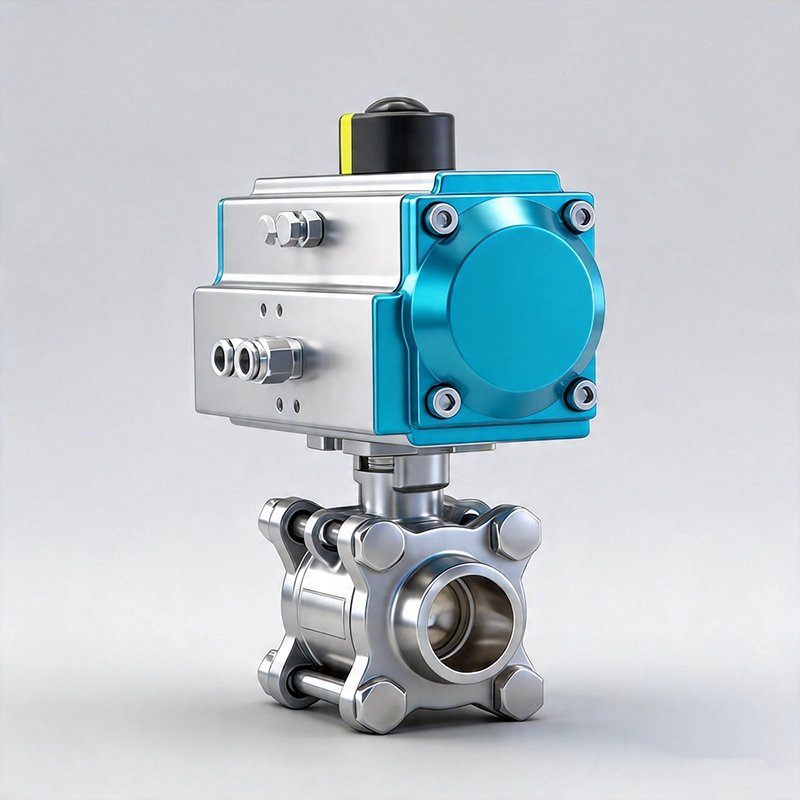

The pneumatic 3‑piece ball valve is available in integral type, 2‑piece type and 3‑piece type. Advanced casting technology is adopted for valve body casting with reasonable structure and elegant appearance. The valve seat applies elastic sealing structure to achieve reliable sealing and easy opening‑closing. The valve stem features bottom‑mounted construction with back‑seal design, preventing stem blow‑out under abnormal pressure rise inside valve cavity. A 90‑degree rotation stop mechanism can be equipped, and locking device is optional for anti‑misoperation. Internal‑thread and butt‑weld ball valves are applicable for various pipelines with PN1.0～4.0MPa, operating temperature ‑29～180℃ (reinforced PTFE seat) or ‑29～300℃ (PPL seat). It is used to cut off or connect pipeline media. With different material selections, it is suitable for water, steam, oil products, nitric acid, acetic acid, ammonia brine, neutralized water and other media.

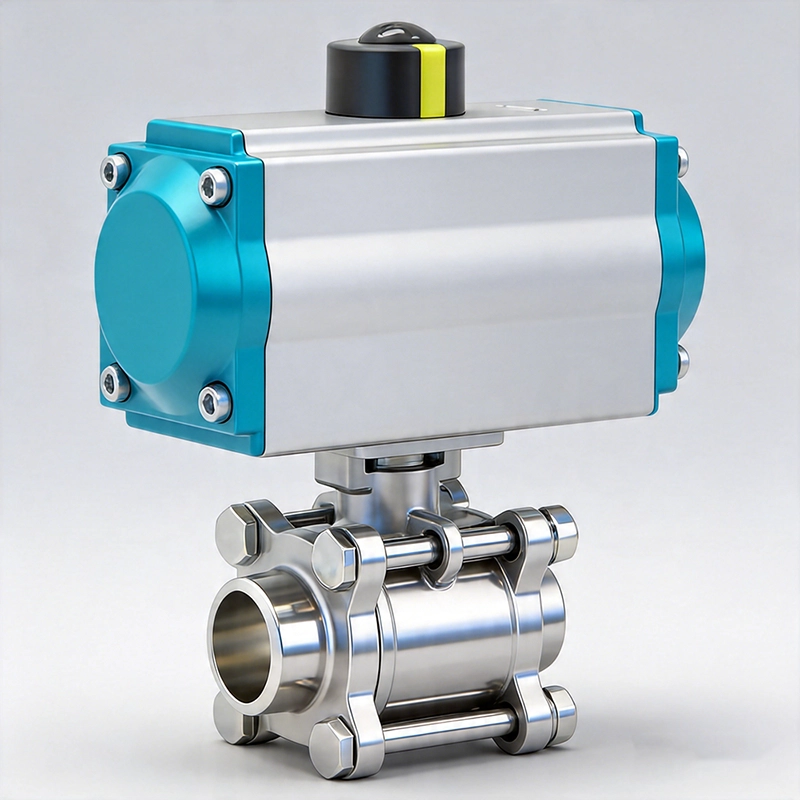

Stainless Steel Pneumatic 3-Piece Ball Valves

Product Features

1. Pneumatic 3‑piece ball valve consists of AT pneumatic actuator and Q11F ball valve.

2. Optional accessories include limit switch, air filter‑regulator, handwheel mechanism and solenoid valve.

3. Pneumatic actuator is manufactured by aluminum alloy extrusion with surface hardening treatment for nice appearance, convenient installation and transportation.

4. Precision die‑cast aluminum alloy piston ensures accurate symmetry of double pistons. Cooperated with high‑quality O‑rings and guide valve, it provides high torque‑to‑air‑pressure ratio. Double‑guide and piston design guarantees stable output torque.

5. Piston guide belt adopts high‑strength self‑lubricating material with large contact area for low friction. Normal service life can reach up to 1,000,000 cycles.

6. Advanced casting technology is applied for valve body, delivering bubble‑tight sealing, low operating torque and long service life.

7. Anti‑static device is installed between valve body and stem, together with anti‑blow‑out stem structure, suitable for various harsh working conditions. It features elegant appearance and reliable quality.

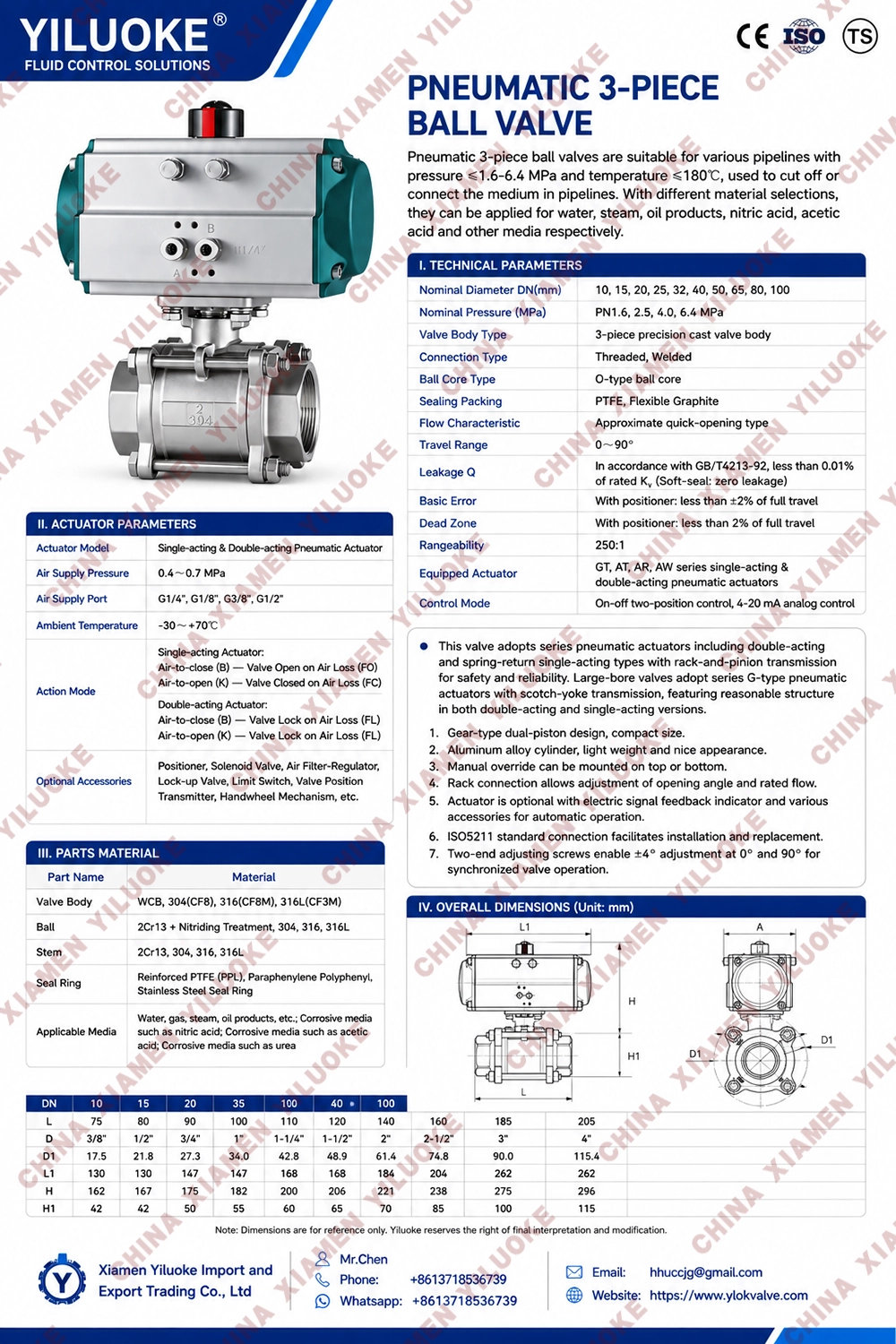

Main Technical Parameters

Valve Body Type	Investment cast internal‑thread body
Nominal Diameter	DN6～100mm
Nominal Pressure	PN1.6, 2.5, 4.0, 6.4 MPa; ANSI 150, 300, 600LB; JIS 10, 20, 30K

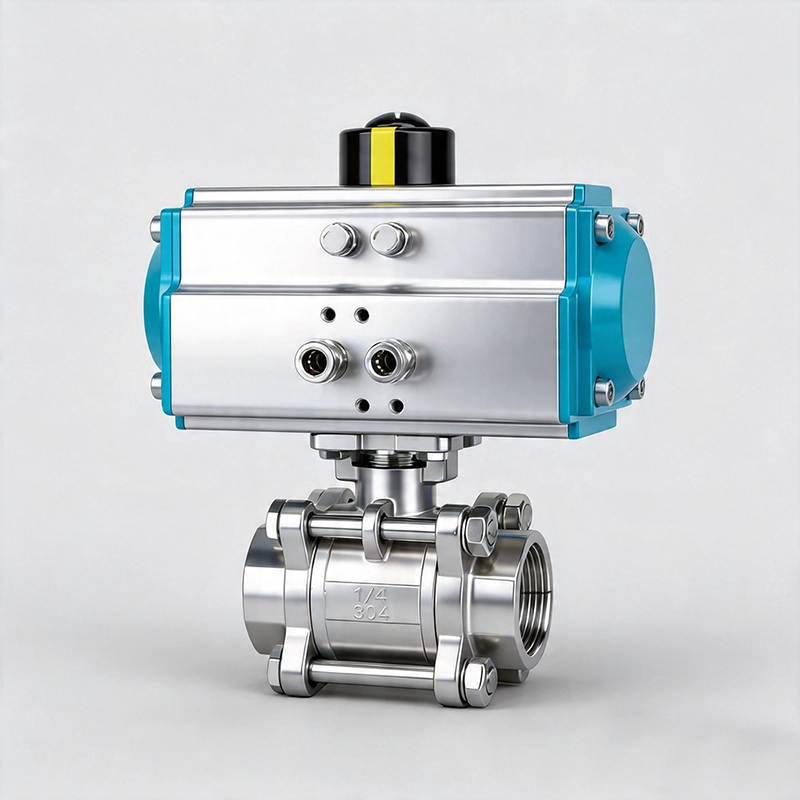

Connection Type	Pipe thread(G), Taper thread(NPT)
Bonnet Type	Integral bonnet
Gland Type	Nut‑tightened gland
Packing	V‑shaped PTFE packing, PTFE‑impregnated asbestos packing, asbestos textile packing, graphite packing

Internal Trim Parts

Ball Type	O‑type ball plug
Flow Characteristic	Quick‑opening

Actuator Specifications

Actuator Model	GT, SR, ST, AT, AW series single‑acting & double‑acting pneumatic actuators
Air Supply Pressure	0.4～0.7MPa
Air Port Size	G1/4", G1/8", G3/8", G1/2"
Ambient Temperature	-20～+90℃
Action Mode	Single‑acting: Air‑to‑close(B)‑FO (Fail Open); Air‑to‑open(K)‑FC (Fail Close) Double‑acting: Air‑to‑close(B)‑FL (Fail Locked); Air‑to‑open(K)‑FL (Fail Locked)
Optional Accessories	Positioner, solenoid valve, air filter‑regulator, lock‑up valve, limit switch, valve position transmitter, handwheel mechanism

Note: Please refer to the pneumatic actuator page for detailed actuator parameters.

Main Parts Material

No.	Part Name	Materials
1	Left Body	WCB, CF8, CF8M, CF3M
2	Seat	PEFE, PPL, 304, 316
3	Ball	WCB, CF8, CF8M, CF3M
4	Gasket	PTFE / Metal graphite spiral wound gasket
5	Right / Middle Body	WCB, CF8, CF8M, CF3M
6	Stem	2Cr13, 304, 316, 316L
7	Packing Gland	WCB, CF8, CF8M, CF3M

Main Performance Index

Nominal Diameter DN(mm)	6	8	10	15	20	25	32	40	50	65	80	100
Allowable Differential Pressure(MPa)	≤ Nominal Pressure
Stroke Range	0～90°
Leakage Q	Zero leakage for soft‑seat; Metal‑seat complies with ANSI B16.104 Class IV
Basic Error	With positioner: ±2% of full stroke max
Hysteresis	With positioner: ≤2% of full stroke

Main Performance Parameters

Test Pressure(MPa)	Nominal Pressure(MPa)					Pressure Class			JIS(K)
	1.6	2.5	4.0	6.4	10.0	150	300	600	10K	20K
Shell Test	2.4	3.8	6.0	9.6	15.0	3.1	7.8	15.3	2.4	3.8
Seat Test	1.8	2.8	4.4	7.0	11.0	2.2	5.6	11.2	1.5	2.8
Air‑Tight Test	0.5～0.7
