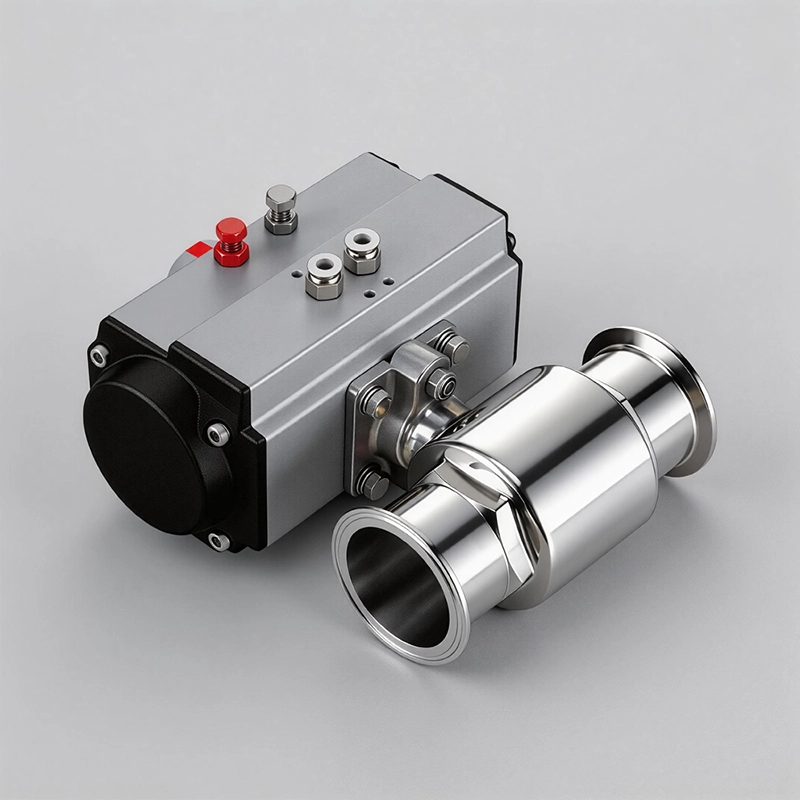

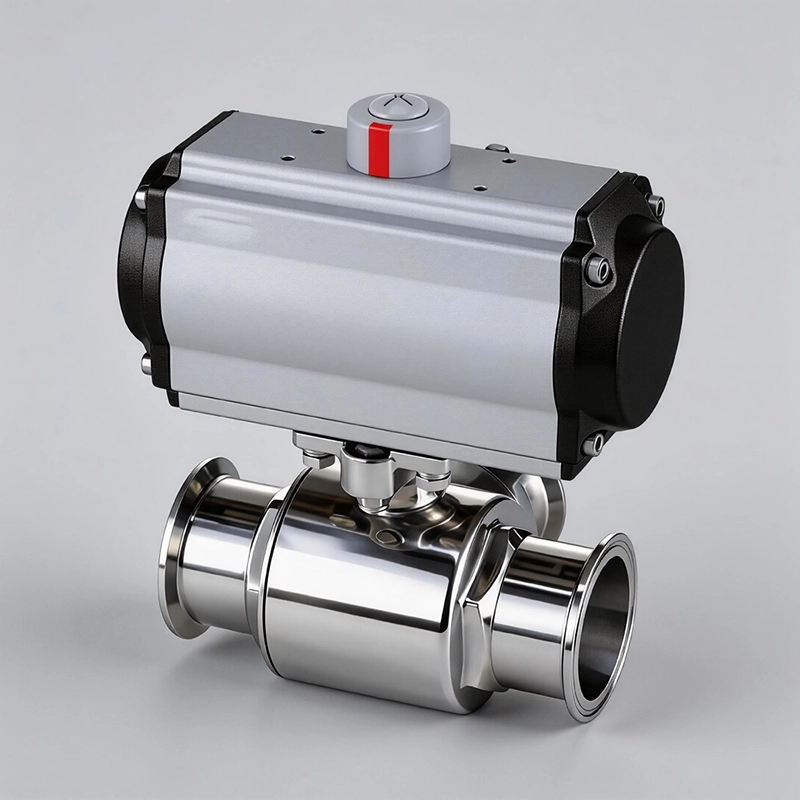

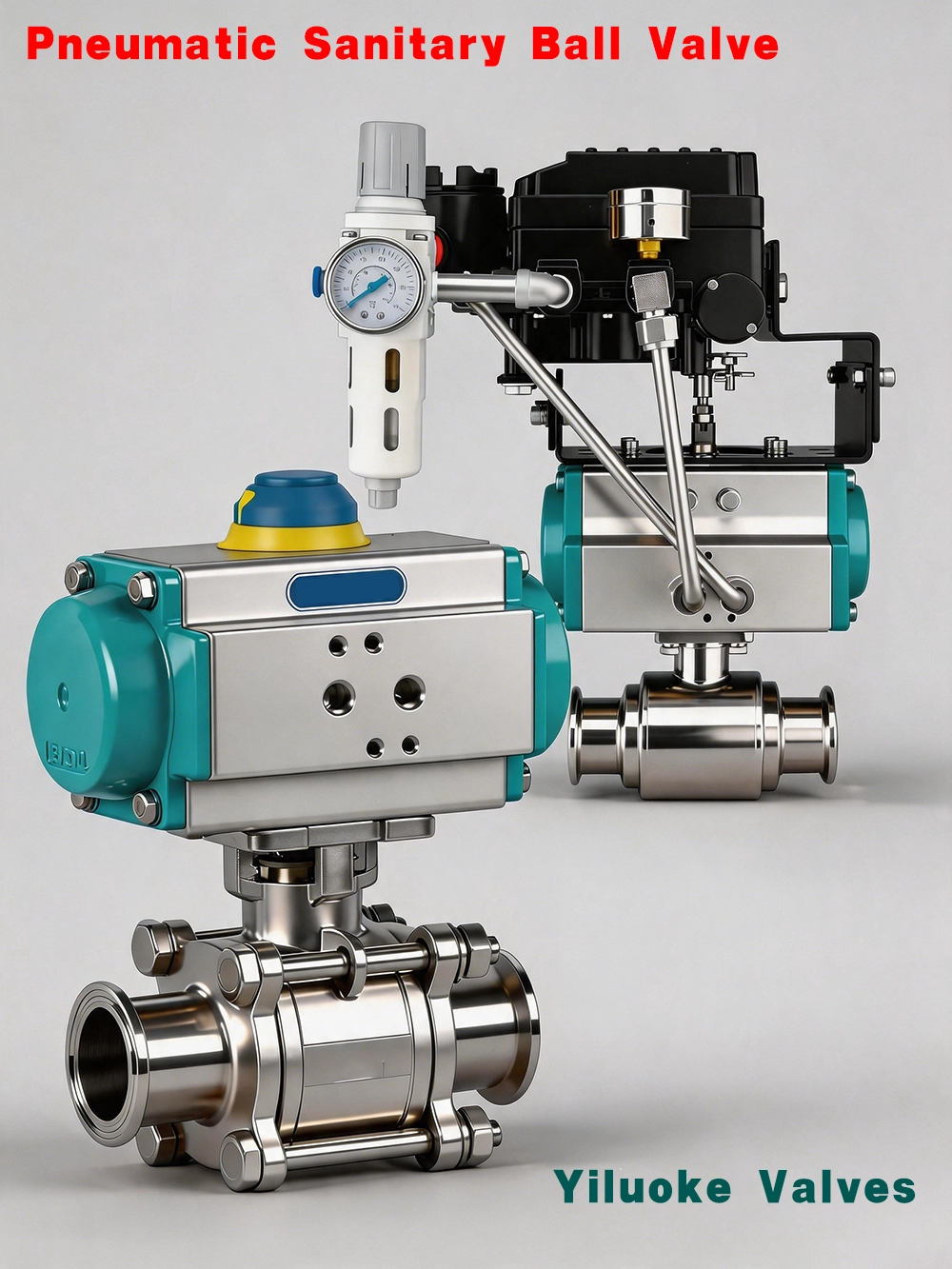

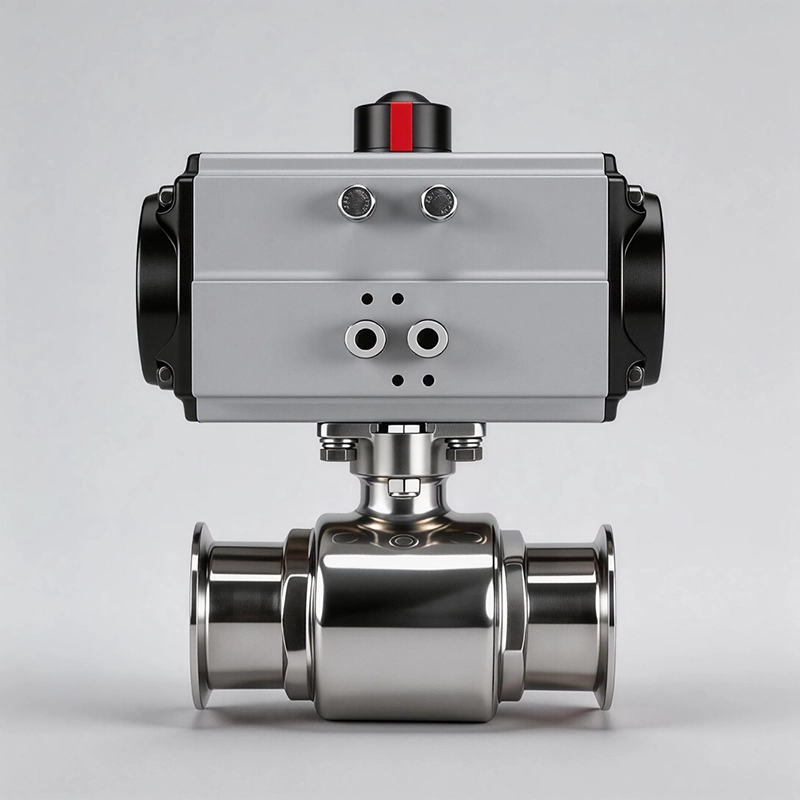

The Pneumatic Actuated Sanitary Ball Valve is assembled by pneumatic actuator and quick‑install ball valve, also known as pneumatic quick‑clamp ball valve. All products pass precise inspection procedures and strict quality control. The flow channel is precisely polished and sterilized. It adopts full‑enveloped F4 sealing with no dead corners and easy‑to‑clean features. The valve body is precisely manufactured from stainless steel. The inner wall of flow channel is 0.5μm (240Grit) electropolished to ensure smooth fluid flow. The full‑enveloped PTFE sealing surface has no dead corners for sanitary performance. Straight‑through sanitary pneumatic ball valves are widely applied in beer projects, food projects, chemical projects, pharmaceutical projects, bio‑engineering and water‑treatment projects.

Structural Features

1. The bore diameter of pneumatic quick‑clamp ball valve matches pipeline size, with smooth surface without dead corners to avoid sediment accumulation.

2. High‑precision polished inner flow channel with sterilization treatment, fully complying with sanitary‑grade standards.

3. Adopts full‑enveloped PTFE lining sealing structure, free of dead corners and easy for cleaning.

4. Made of high‑quality stainless steel. The inner wall of flow channel is 0.5μm electropolished to guarantee unobstructed fluid flow.

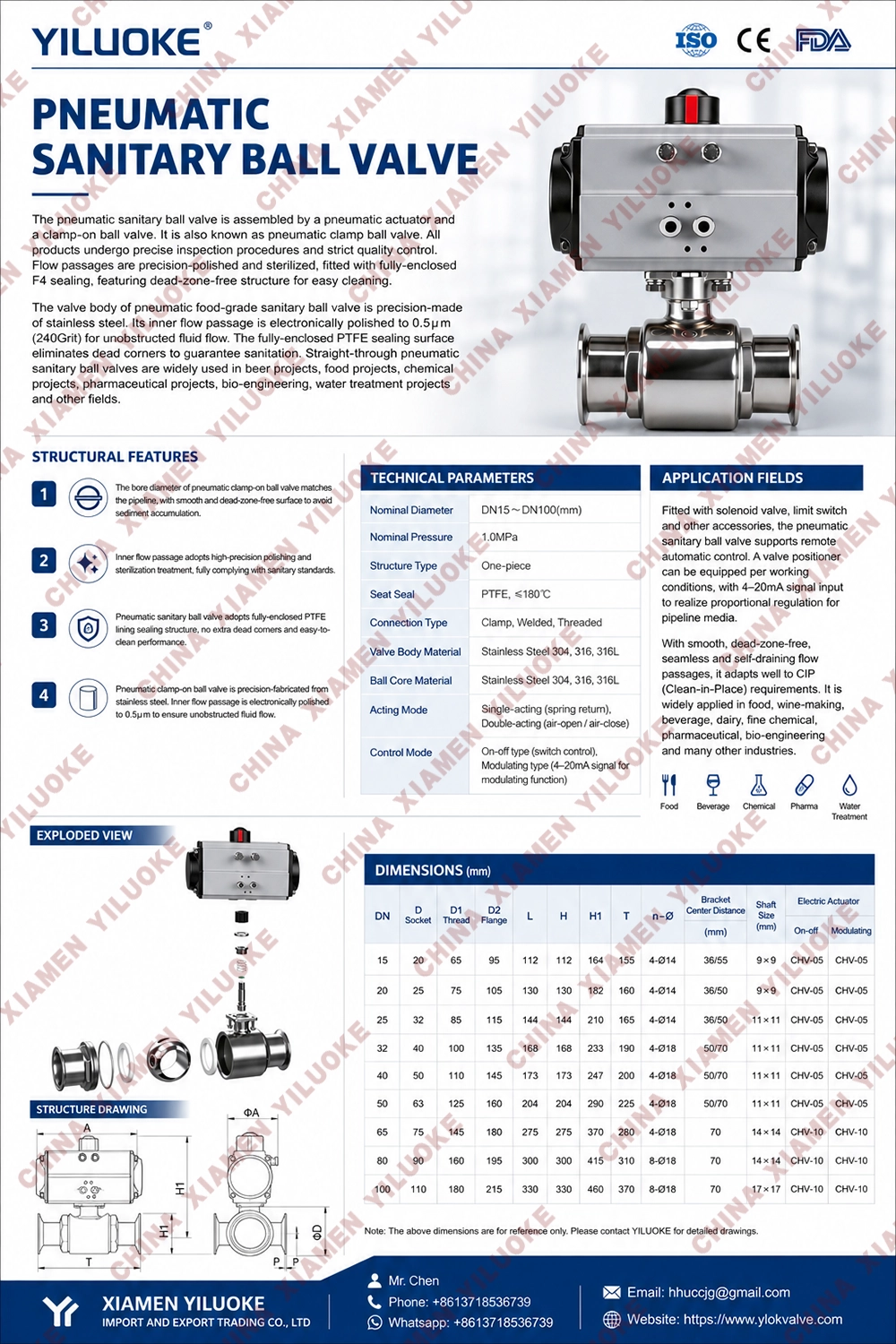

Technical Parameters

Actuator Parameters

Application Fields

Equipped with solenoid valve, limit switch and other accessories, the Pneumatic Actuated Sanitary Ball Valve supports remote automatic control. When fitted with valve positioner, it accepts 4‑20mA signal for proportional modulation of pipeline media. Featuring smooth inner wall, no dead corners, seamless passage and self‑draining performance, it meets CIP cleaning requirements. It is widely used in food, brewing, beverage, dairy, fine chemical, pharmaceutical and bio‑engineering industries.

Product Selection

1. Valve body parameters: nominal diameter, working pressure, process medium, application scenario, valve body material and other specifications.

2. Actuator parameters: actuator type, control mode, control signal (4‑20mA,1‑5V), action mode (air‑to‑open, air‑to‑close).
