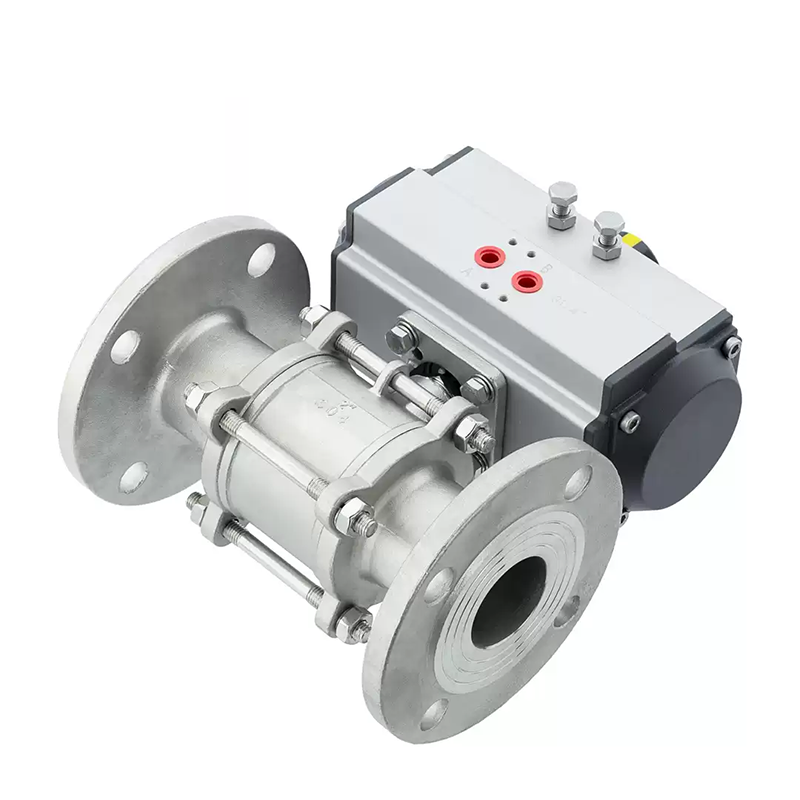

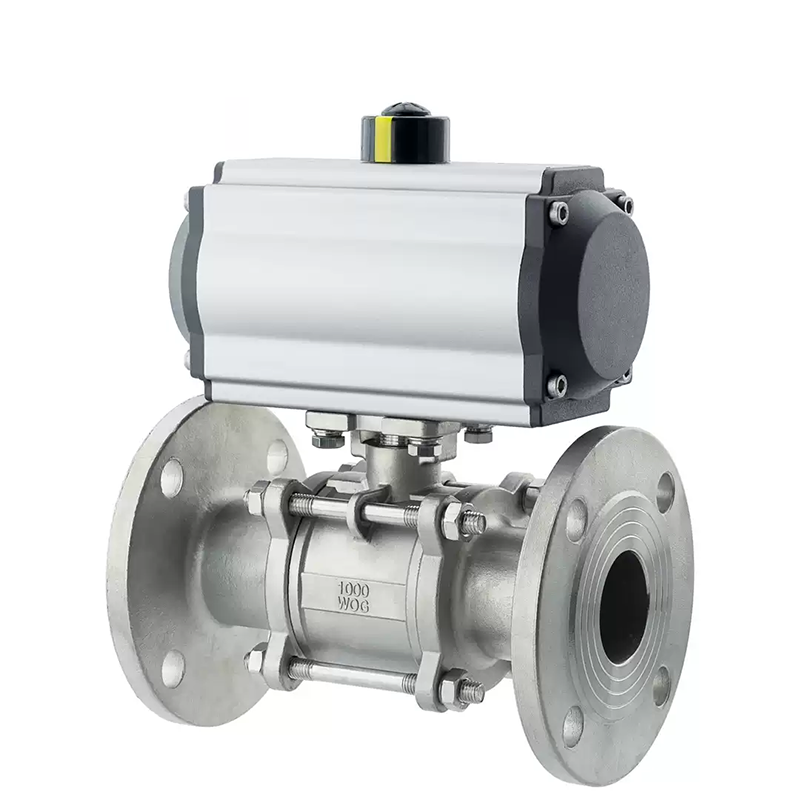

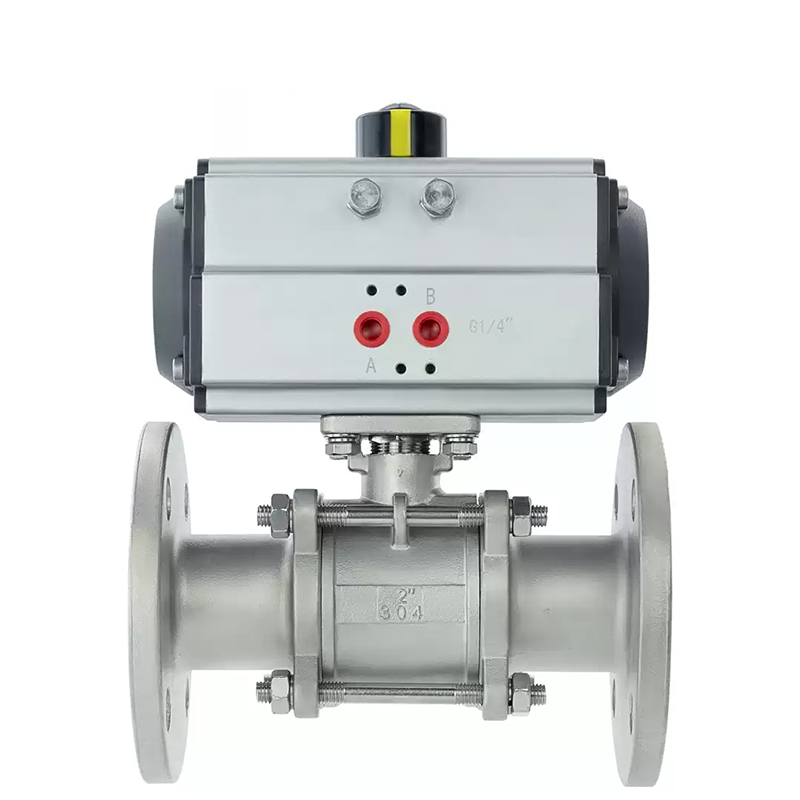

Pneumatic 3-piece Flanged Ball Valves
The pneumatic 3-piece flanged ball valve adopts a three-part split design, with a full-bore valve cavity. The ball valve is clamped by flanges with necks on both sides, featuring good pressure-bearing capacity, reliable sealing performance and convenient installation. It is widely used for cutting off in oil, chemical liquid and gas pipelines.
Technical Parameters
Item | Specification |
Product Name | Pneumatic 3-Piece Flanged Ball Valve |
Actuation Mode | Pneumatic |
Connection Type | Flanged |
Structure Type | 3-Piece Type |
Sealing Structure | Soft Seal, Hard Seal |
Pressure Range | 1.6MPa - 6.4MPa |
Nominal Diameter | DN15 - DN200 |
Common Material | WCB, Stainless Steel, etc. |
