Pneumatic Actuated 3-way Ball Valves

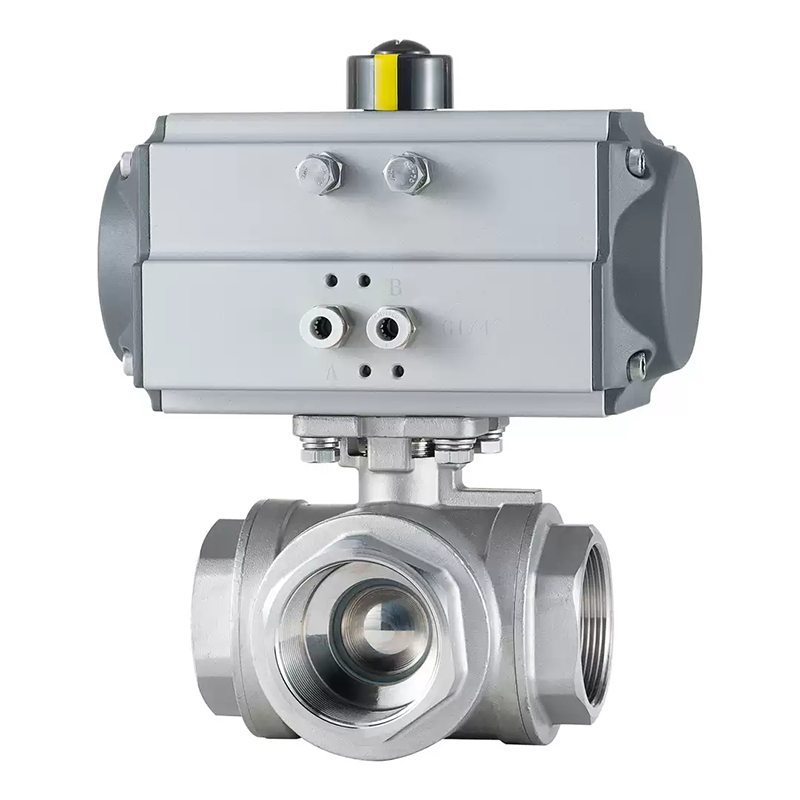

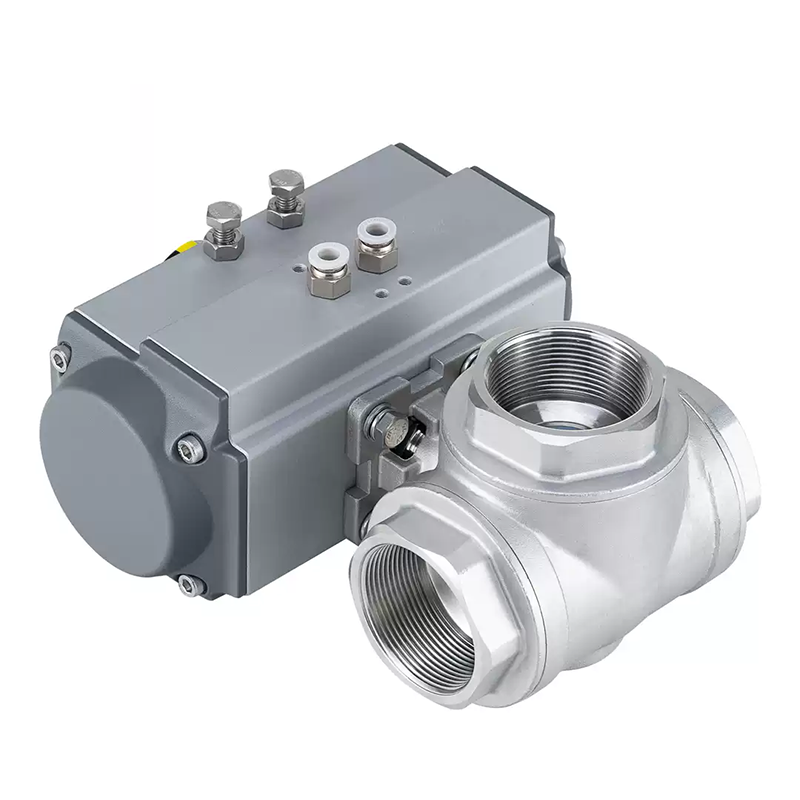

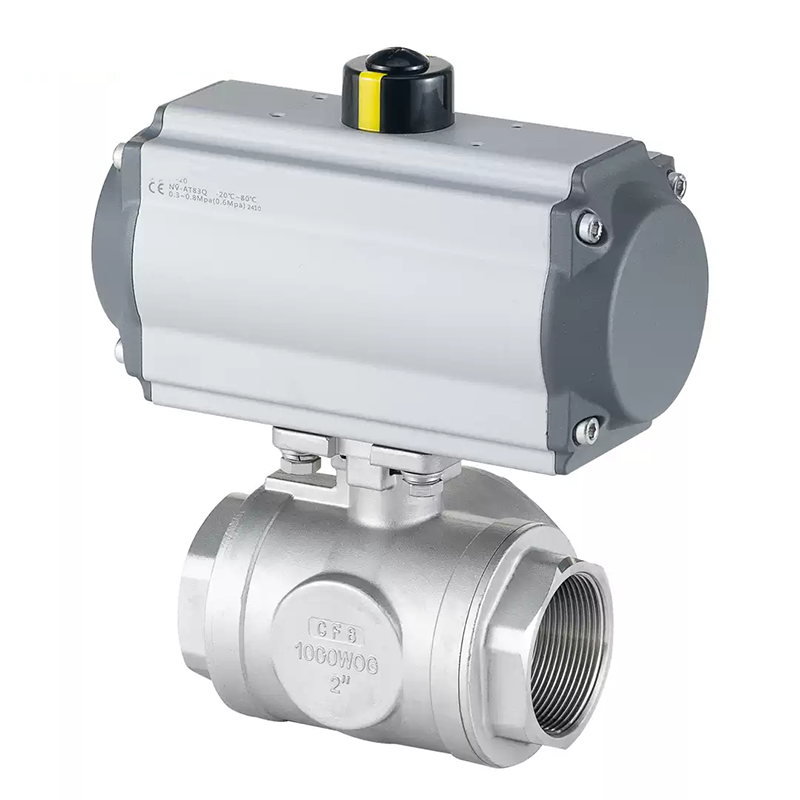

Stainless Steel Pneumatic 3-way Ball Valve

Short Description:

The pneumatic 3-way ball valve is composed of a pneumatic double-piston rack and pinion actuator and a three-way ball valve. This series of products has the advantages of strong functions, small volum...

Product Name: Pneumatic Threaded 3-way Ball Valves
Valve Category: Ball Valve
Brand: Yiluoke
Technical Data: DN15-DN600
Made In: China
Supplier: Xiamen Yiluoke Import and Export Trading Co., Ltd

Send email to us Download

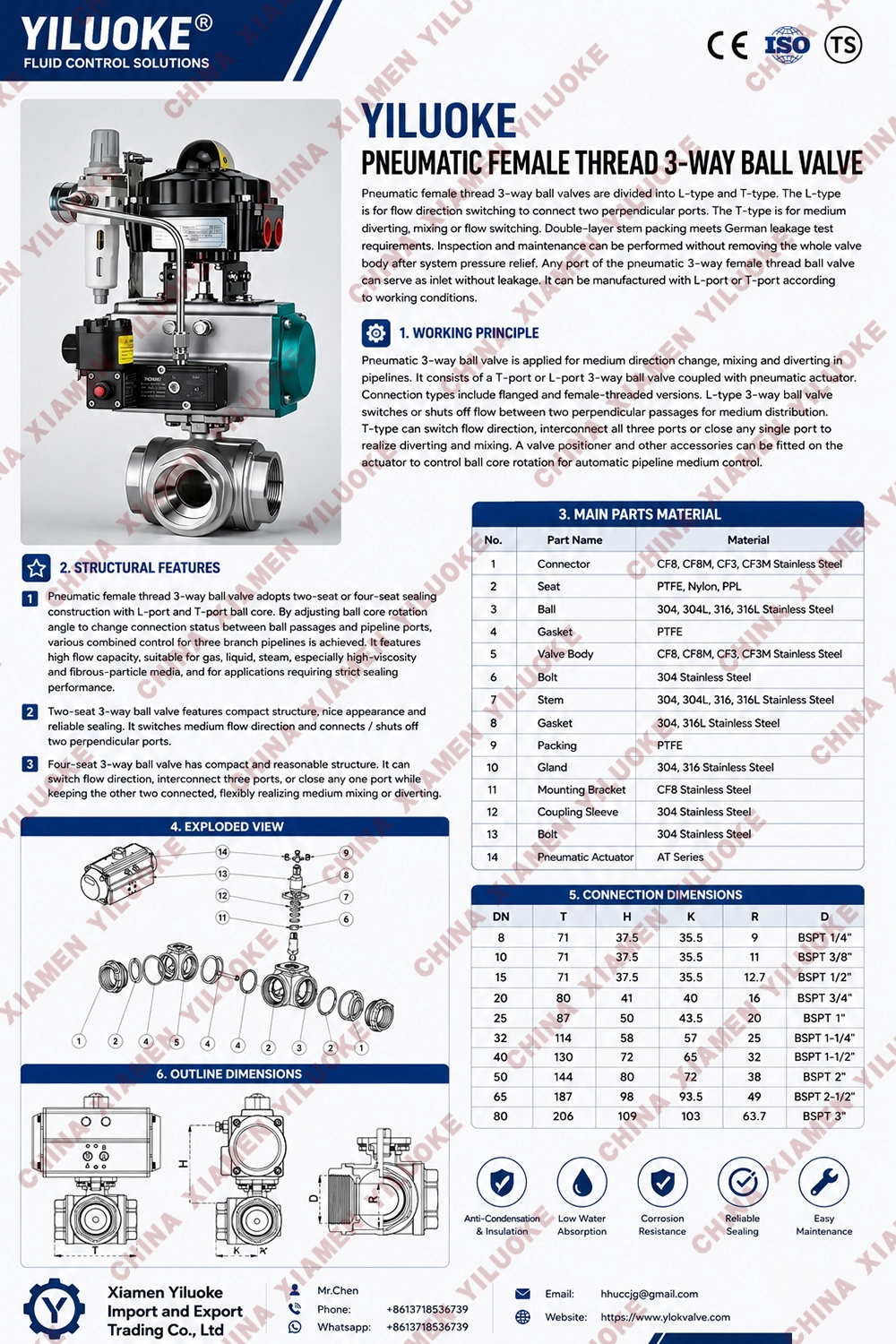

Product Detail

The pneumatic 3‑way ball valve consists of a rotary‑stroke pneumatic actuator and a 3‑way ball valve. It realizes medium flow direction switching, medium confluence and diversion inside pipelines. When matched with an electric valve positioner, the pneumatic 3‑way regulating ball valve can be operated with 4‑20mADC control signal and 0.4‑0.7MPa air supply to regulate process parameters such as pressure, flow rate, temperature and liquid level. Equipped with travel limit switches, solenoid valve, pressure reducing valve and 0.4‑0.7MPa air source, the pneumatic 3‑way diverting ball valve performs on‑off action and outputs two pairs of passive contact signals for valve position feedback.

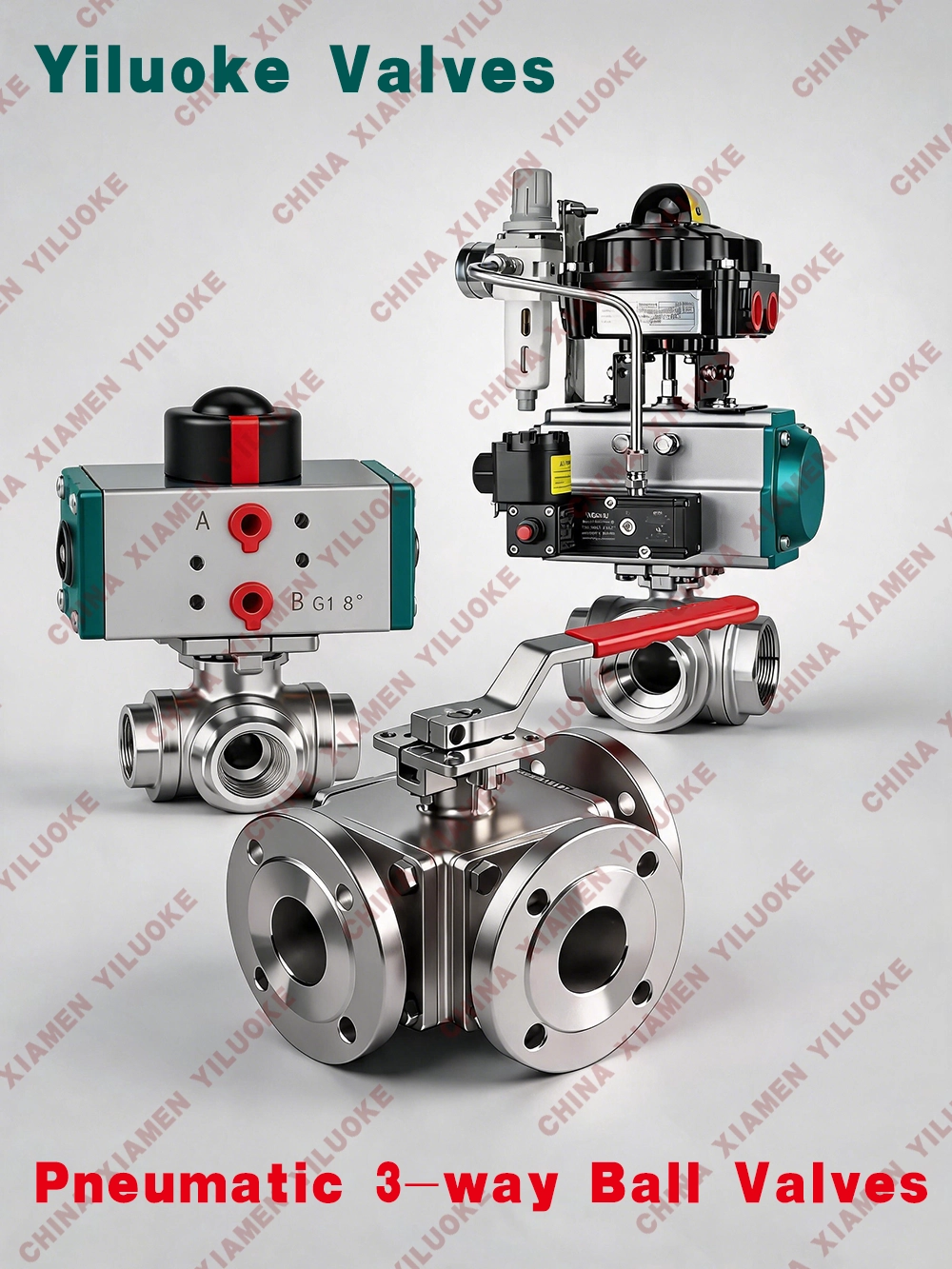

Pneumatic 3-way Ball Valves

Features

The pneumatic 3‑way ball valve features compact structure, light weight, reliable sealing performance and convenient maintenance.

Application Scenarios

For medium diversion and confluence in pipelines. Widely applied in pipelines for gas, liquid, steam, oil products and other media.

Component Material Parameters

Part Name	Material
Valve Body	WCB	304(CF8)	316(CF8M)	316L(CF3M)
Ball	2Cr13+Nitriding Treatment	304	316	316L
Valve Stem	2Cr13	304	316	316L
Sealing Ring	PTFE, Reinforced PTFE(PPL), Paraphenylene Polyphenyl, Flexible Graphite
Applicable Medium	Water, Gas, Steam, Oil Products	Nitric Acid Corrosive Media	Acetic Acid Corrosive Media	Urea Corrosive Media

Technical Parameters

Nominal Diameter DN(mm)	15,20,25,32,40,50,65,80,100,125,150,200
Allowable Differential Pressure(MPa)	≤ Nominal Pressure
Stroke Range	0～90°
Valve Body Type	Two‑piece Split Cast Body
Bonnet Type	Integral Bonnet
Gland Type	Bolt Compression Gland
Stuffing Packing	PTFE Packing, Impregnated PTFE‑Asbestos Packing, Asbestos Textile Packing, Graphite Packing
Connection Type	Flanged, Threaded(1/2"～2")
Trim Type	3‑Way Ball Trim
Flow Characteristic	Approximate Quick‑Opening
Leakage Q	Soft‑seal: Zero leakage; Metal‑seal: Less than 0.01% of rated KV, per GB/T4213‑92
Matched Actuator	GT, AT, AR, AW Series Single‑acting / Double‑acting Pneumatic Actuator
Control Mode	Two‑position On‑Off Control, 4‑20mA Analog Regulation

Actuator Parameters

Actuator Model	GT, AT, AR, AW Series Single‑acting / Double‑acting Pneumatic Actuator
Air Supply Pressure	0.4～0.7MPa
Air Port	G1/4", G1/8", G3/8", G1/2"
Ambient Temperature	-30～+70℃
Action Mode	Single‑acting: Air‑to‑Close(B)‑Fail‑Open(FO); Air‑to‑Open(K)‑Fail‑Close(FC) Double‑acting: Air‑to‑Close(B)‑Fail‑Locked(FL); Air‑to‑Open(K)‑Fail‑Locked(FL)
Optional Accessories	Positioner, Solenoid Valve, Air Filter Regulator, Lock‑up Valve, Limit Switch, Valve Position Transmitter, Handwheel Mechanism, etc.

Performance Specifications

Test Standard	Nominal Pressure(MPa)					Pressure Class(Class)			JIS(MPa)
	1.6	2.5	4.0	6.4	10.0	150	300	600	10K	20K
Body Strength Test Pressure(MPa)	2.4	3.8	6.0	9.6	15.0	3.1	7.8	15.3	2.4	3.8
Seat Seal Test Pressure(MPa)	1.8	2.8	4.4	7.0	11.0	2.2	5.6	11.2	1.5	2.8
Air‑Tight Test Pressure(MPa)	0.5～0.7

Main Dimensions (mm)

Size	DN	Φd	L	H	W	C	ISO5211
1/2"	DN15	12	70	38	115	9	F03/F04
3/4"	DN20	15	80	41	115	9	F03/F04
1"	DN25	18	87	47	145	11	F04/F05
1‑1/4"	DN32	25	110	57	160	11	F04/F05
1‑1/2"	DN40	32	131	69	180	14	F05/F07
2"	DN50	38	143	75	200	14	F05/F07
2‑1/2"	DN65	49	170	240	17	F07/F10
