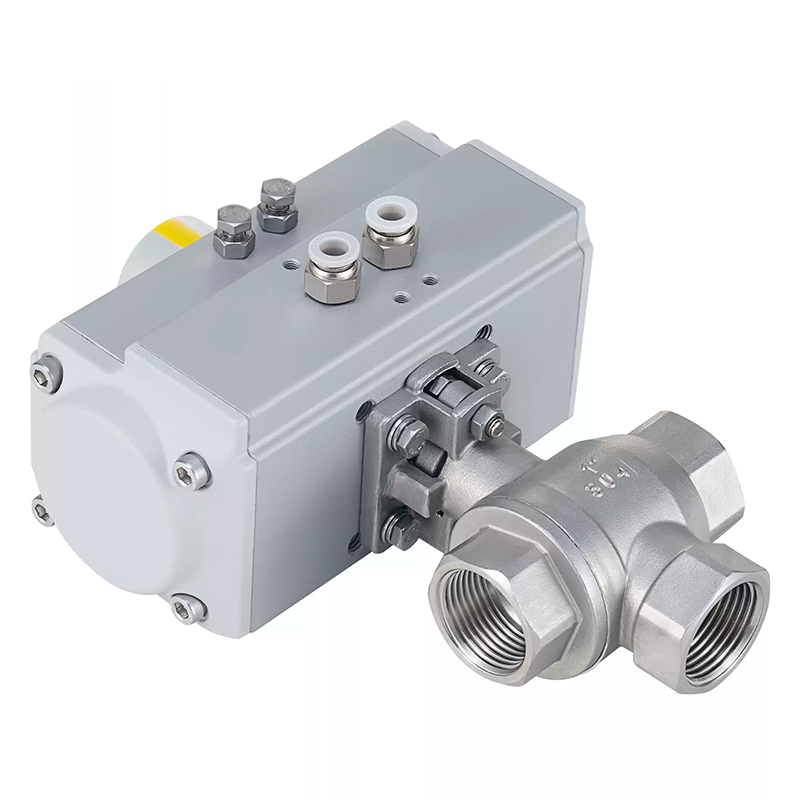

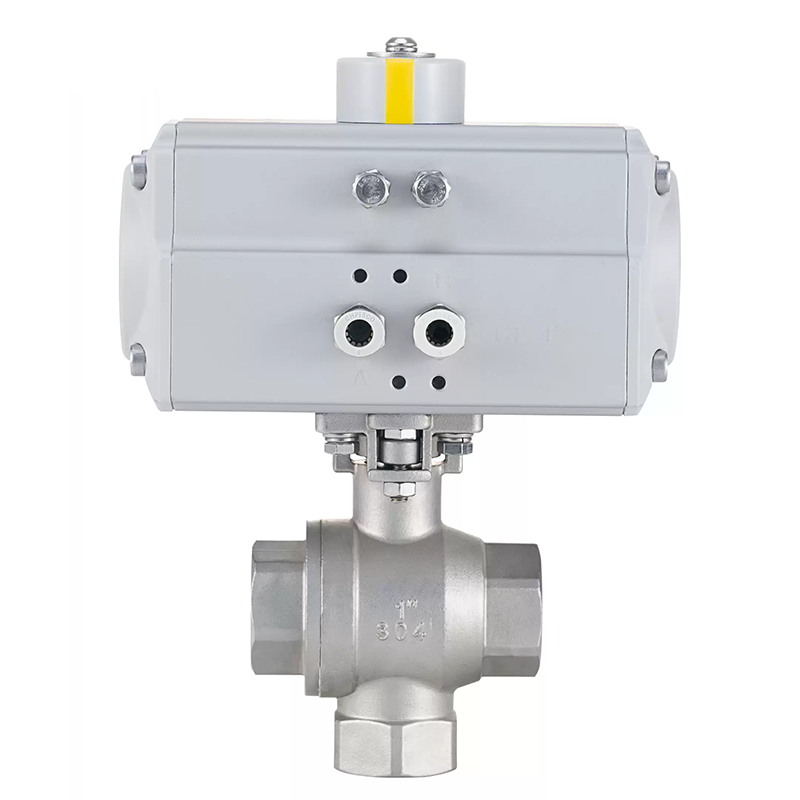

Pneumatic three-way vertical ball valve is a vertical ball valve with three flow passages, featuring a vertically mounted valve body. It is controlled by air supply and can realize automation.

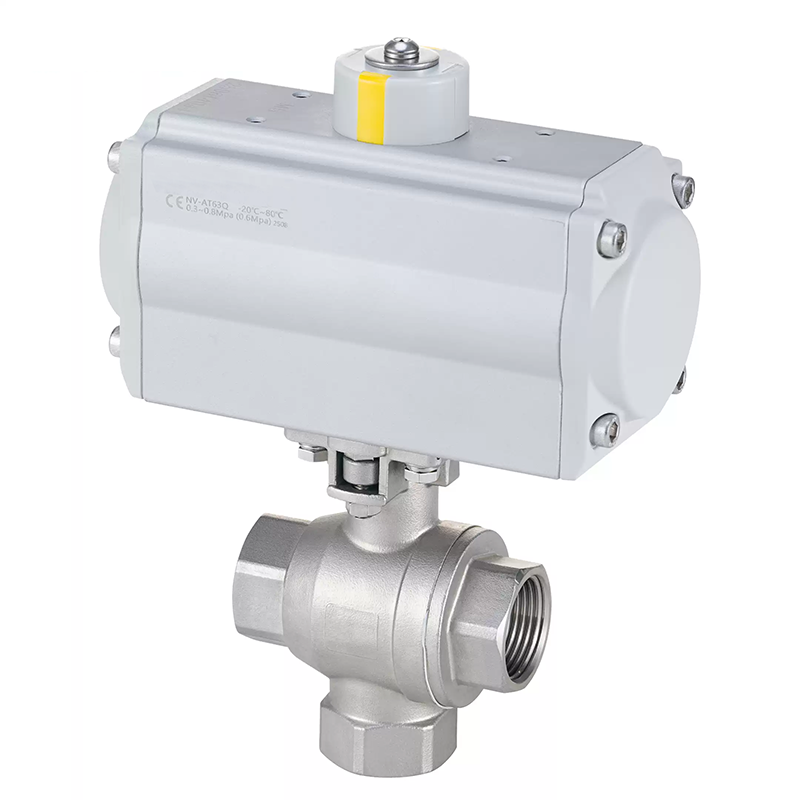

Vertical Design

The valve body is vertically installed, suitable for applications with limited space or requiring gravity-assisted drainage, such as the bottom of chemical reaction kettles, food filling lines, etc.

Three-Way Flow Passage

Available in L-type (switching between two perpendicular passages) and T-type (splitting/combining three passages), meeting the requirements of flow direction switching, diversion or confluence of media.

Actuation

Pneumatic actuator: Drives the valve core to rotate (90° rotation) via compressed air (0.4–0.7MPa), achieving fast opening and closing with short response time (usually ≤1 second), ideal for automatic control systems.

Technical Parameters
