Pneumatic Actuated 4-Way Ball Valves

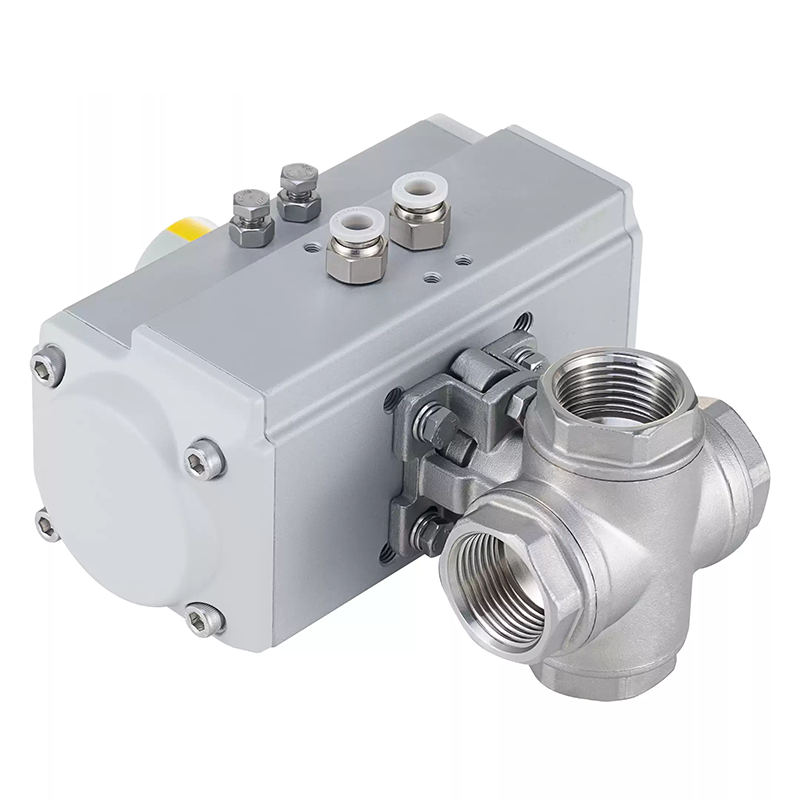

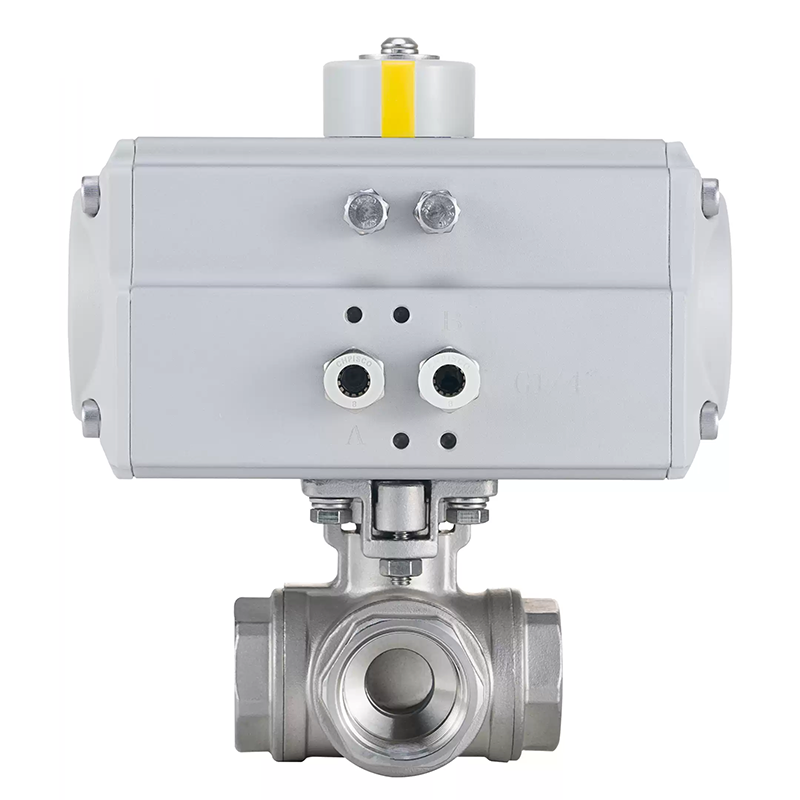

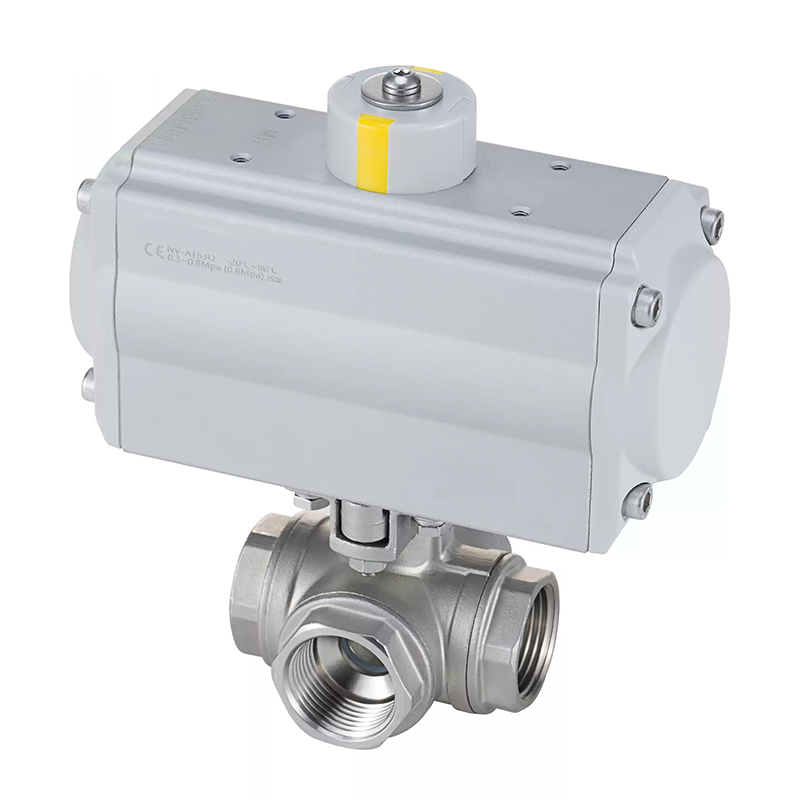

Female Threaded Pneumatic 4-Way Ball Valve

Short Description:

Product Name: Pneumatic 4-Way Ball Valve
Valve Category:
Brand: Yiluoke
Technical Data: DN15-DN600
Made In: China
Supplier: Xiamen Yiluoke Import and Export Trading Co., Ltd

Product Detail

The Pneumatic Actuated 4 Way Ball Valve consists of quarter‑turn pneumatic actuator and 4‑way ball valve. It can be equipped with valve positioner. With control signal (4‑20 mADC or 1‑5 VDC) and air supply, the valve can be controlled for operation. It can also be fitted with travel limit switches, solenoid valve, air filter regulator set, and 0.4‑0.7 MPa air source to realize on‑off operation, outputting two pairs of passive contact signals to indicate valve open/closed status.

Pneumatic Actuated 4 Way Ball Valves are widely applied in exploitation, refining‑processing and pipeline transmission systems of petroleum, natural gas, coal and ores; in chemical, pharmaceutical and food industries; in hydropower, thermal power and nuclear power systems; in urban & industrial water supply‑drainage, heating and gas supply systems; in farmland irrigation‑drainage systems; as well as in metallurgical systems. It is an important mechanical product closely related to industrial construction, national defense and people’s livelihood. Installed in various pipeline systems, the pneumatic 4‑way ball valve cuts off or connects medium flow, delivering media to each designated point in accordance with pre‑set procedures.

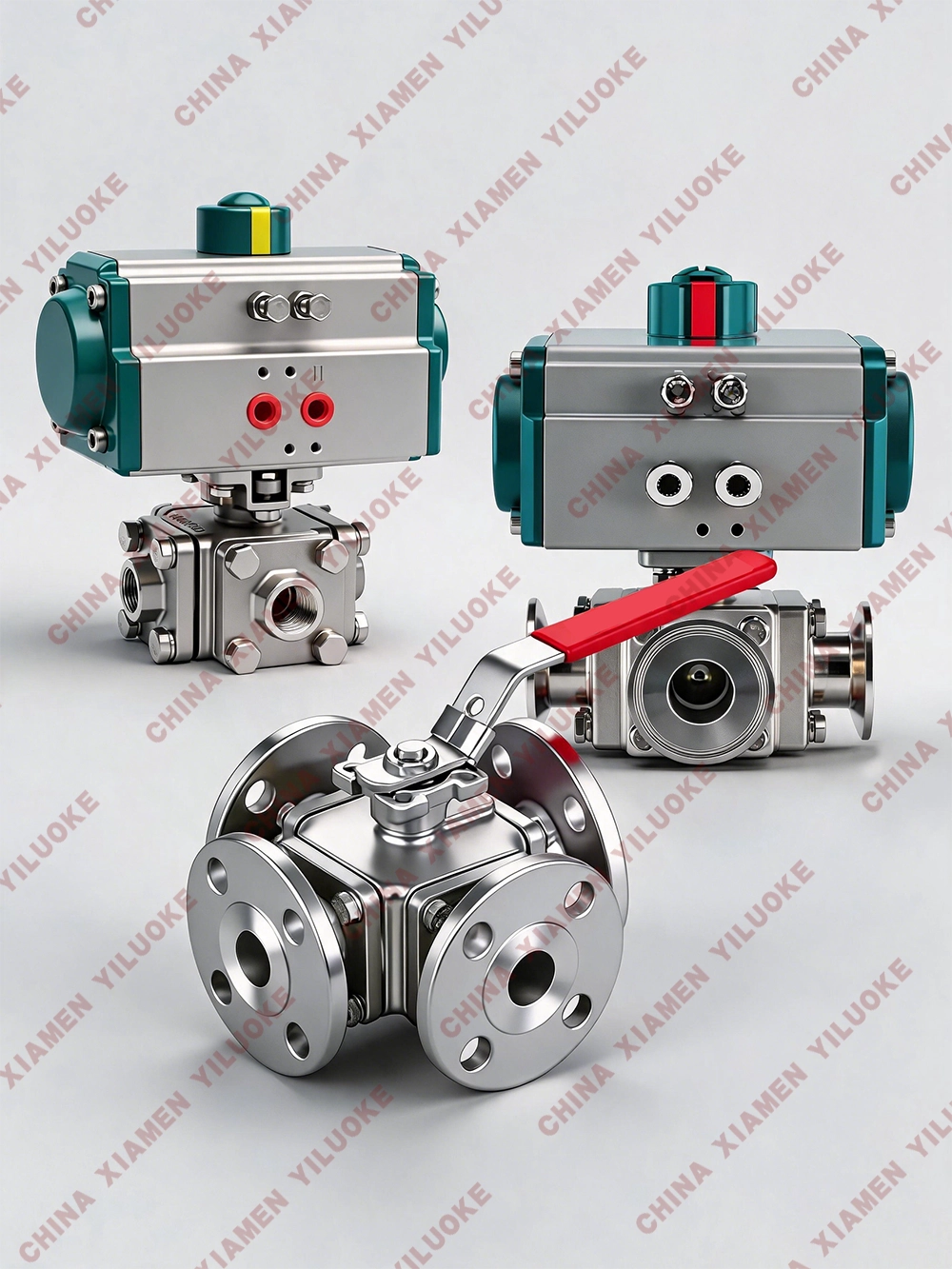

Actuated 4 Way Ball Valves

Main Features

The stem is integrally forged of A182F (1Cr13) and quenched‑tempered to reach hardness HB220‑250. The stem connects to handle via flat key / spline / square wedge for good universality and easy assembly & disassembly. Anti‑blow‑out stem structure is adopted.

Valve packing uses braided packing, flexible graphite sealing ring or PTFE sealing ring, achieving reliable stem sealing under proper lubrication condition.

Anti‑static structure is available upon request. Conductive springs are fitted between ball‑stem and stem‑body to avoid static spark igniting flammable media and guarantee system safety.

Diverse sealing pairs. Soft‑seat, hard‑seat, fire‑safe seat and other structures are selectable for different service conditions. Floating ball for size below DN150; trunnion‑mounted ball for size below DN200.

Auxiliary sealing structure can be arranged at valve seat. Grease injection valves are installed on seat and stem for temporary sealing under emergency. Extended stem is optional for buried installation.

Main Technical Parameters

Body & Trim

Item	Specification
Body Style	4‑way cast body
Nominal Size	DN50～600 mm
Nominal Pressure	PN1.6, 2.5, 4.0 MPa; ANSI Class150, 300LB; JIS 10, 20, 30K
Flange Standard	JB/T79.2‑1994, ASME/ANSI B16.5
End Connection	Flanged
Gland Type	Gland‑compression type
Sealing Packing	V‑type PTFE packing, flexible graphite packing, etc.
Design & Manufacture	GB/T12237‑1989; API 608
Inspection & Test	GB/T13927‑1992; API 598

Actuator

Item	Specification
Actuator Model	GT, SR, ST, AT, AW series single‑acting & double‑acting pneumatic actuators
Supply Air Pressure	0.4～0.7 MPa
Air Port	G1/4", G1/8", G3/8", G1/2"
Ambient Temperature	-20～+90℃
Action Type	Single‑acting: Air‑to‑Close(B) — FO (Fail Open on air loss); Air‑to‑Open(K) — FC (Fail Close on air loss) Double‑acting: Air‑to‑Close(B) — FL (Fail Last on air loss); Air‑to‑Open(K) — FL (Fail Last on air loss)
Available Accessories	Positioner, solenoid valve, air filter regulator, lock‑up valve, limit switch, valve position transmitter, handwheel mechanism, etc.

Main Parts Material

Part	GB Material	ASTM Material
Body / Bonnet	WCB, ZG1Cr18Ni9Ti, ZG0Cr18Ni12Mo2Ti	WCB, CF8, CF8M
Ball	2Cr13, 1Cr18Ni9Ti, 0Cr18Ni12Mo2Ti	420, 304, 316
Stem	2Cr13, 1Cr18Ni9Ti, 0Cr18Ni12Mo2Ti	420, 304, 316
Seat	PTFE, PPL	PTFE, PPL
Packing	PTFE, Flexible Graphite	PTFE, Flexible Graphite
Bolt	35, 0Cr18Ni9	A193‑B7, A320‑B8
Nut	45, 0Cr18Ni9	A194‑2H, A194‑8

Main Performance Index

Nominal Size DN(mm)	50	65	80	100	125	150	200	250	300	350	400	450	500	600
Allowable Pressure Differential(MPa)	≤ Nominal Pressure
Travel Range	0～90°
Leakage Rate Q	Soft‑seat: Class Ⅵ; Hard‑seat: Class Ⅳ, complying with ANSI B16.104
Basic Error (with positioner)	Less than ±2% of full travel
Hysteresis (with positioner)	Less than 2% of full travel

Main Performance Specification (Test Pressure MPa)

Test Item	1.6	2.5	4.0	6.4	10.0	150	300	600	10K	20K
Shell Strength Test	2.4	3.75	6.0	9.6	15.0	3.0	7.5	16.5	2.4	3.8
Seat Seal Test	1.76	2.75	4.4	7.04	11.0	2.2	5.5	12.1	1.5	2.8
Air‑tightness Test	0.4～0.7 MPa

Application Fields

Pneumatic Actuated 4 Way Ball Valve is widely used in exploitation, refining, processing and pipeline transmission systems for petroleum, natural gas, coal and ores; in the production of chemical products, pharmaceuticals and food; in power generation systems of hydropower, thermal power and nuclear power; in water supply‑drainage, heating and gas supply systems for cities and industrial enterprises; in farmland irrigation and drainage systems; as well as in metallurgical production systems.

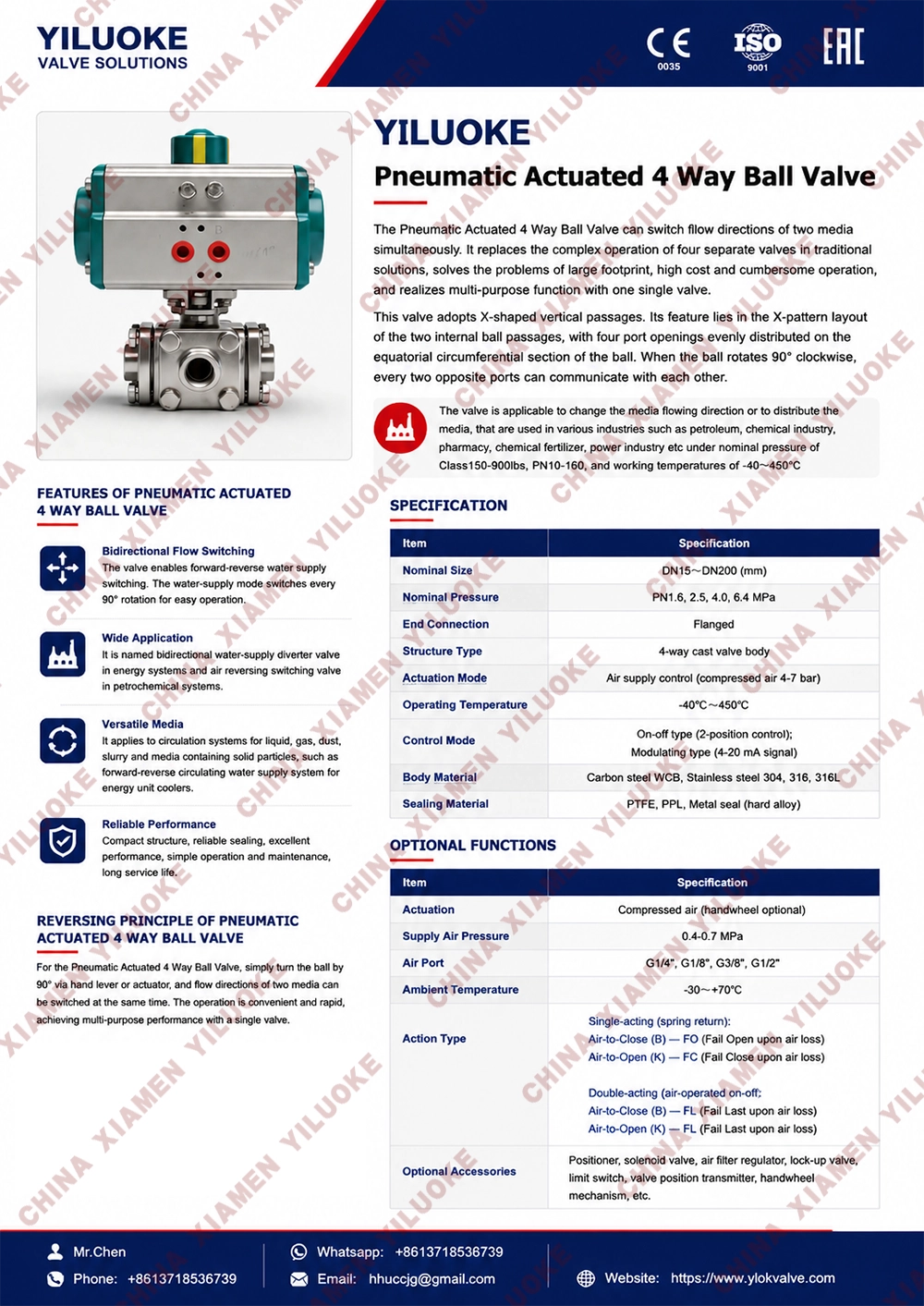

Data Sheet of Pneumatic Actuated 4 Way Ball Valves
