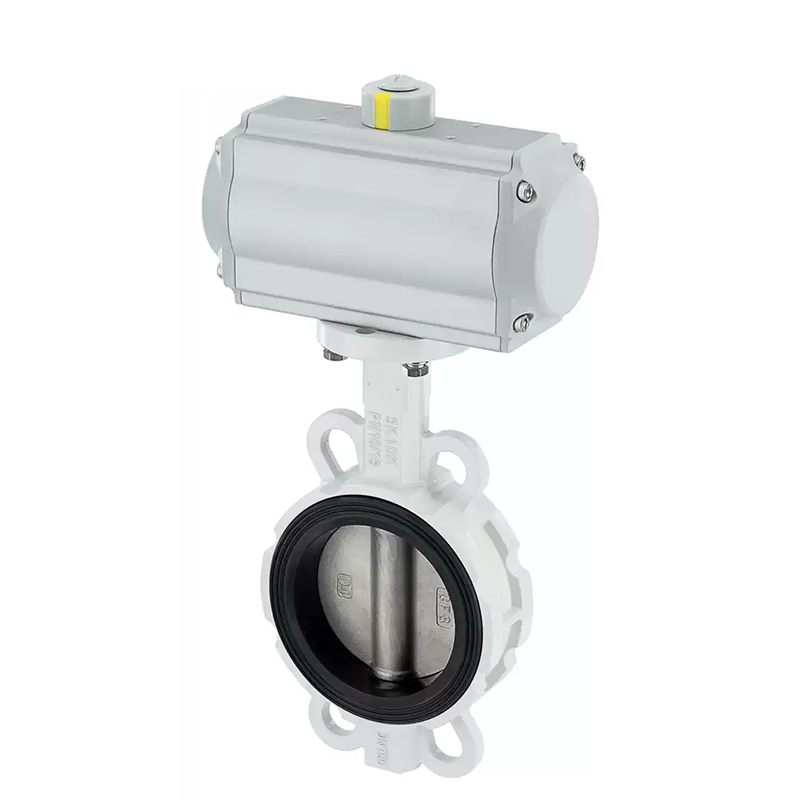

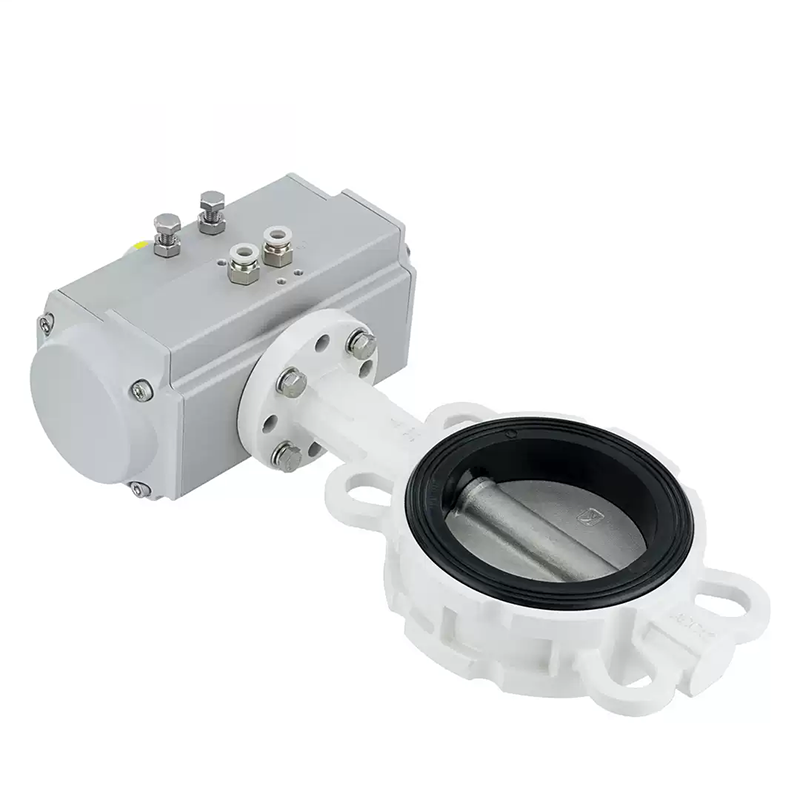

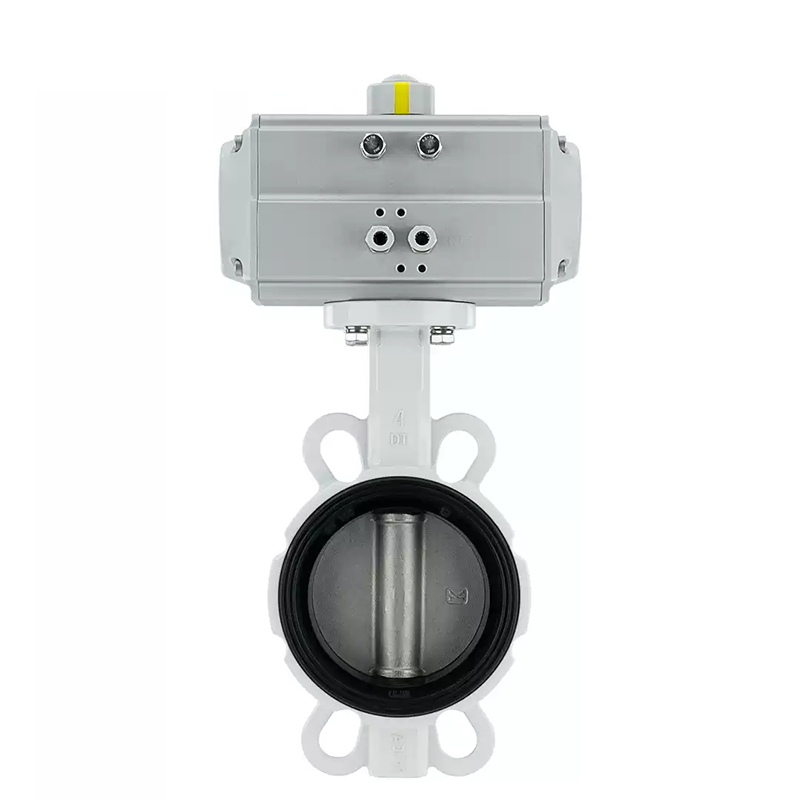

Pneumatic Aluminum Alloy Butterfly Valve (Pneumatic Dust Butterfly Valve)

Product Overview

The pneumatic aluminum alloy butterfly valve consists of two gravity-cast half valve bodies made of high-quality aluminum alloy material. The rotating disc is manufactured from polymer engineering materials, delivering excellent sealing performance. It adopts identical round flange structures at the top and bottom, equipped with a top flange and flanged components, which is compatible with flexible casing installation.

Also known as the pneumatic cement butterfly valve, it is specially designed for switching and controlling material tanks, hoppers and silos filled with powdery and granular materials. Widely used in processing all kinds of dry powder and granular materials, the valve relies on the gravity of materials to achieve medium shut-off and supports pneumatic conveying of dry materials. It can be installed under hoppers, material tanks, silos, screw conveyors and other conveying equipment, as well as connected to pneumatic conveying pipelines.

Benefiting from its special structural design and high-performance engineering materials, this valve is a highly cost-effective and efficient solution for dry powder conveying systems.

Technical Parameters

Product Features

1. Fast and labor-saving opening and closing operation with low fluid resistance, supporting frequent cyclic operation.

2. Simple structure, compact overall dimension, short structural length and light weight, ideal for large-diameter pipeline applications.

3. Suitable for slurry transportation with minimal liquid accumulation at pipeline outlets.

4. Achieves excellent tight sealing performance under low pressure working conditions.

5. Delivers reliable and stable fluid control performance.

6. Large effective flow area at full open position, greatly reducing fluid flow resistance.

7. Low opening and closing torque. The medium force acting on both sides of the disc is basically balanced with opposite torque directions, making operation labor-saving and flexible.

8. The sealing surface adopts rubber and plastic materials, ensuring superior low-pressure sealing performance.

9. Simple and convenient installation, suitable for various pipeline layouts.

10. Flexible and labor-saving operation, optional manual, electric, pneumatic and hydraulic driving modes.
