Pneumatic Flange Butterfly Valve

Short Description:

Product Name:
Valve Category:
Brand:
Technical Data:
Made In:
Supplier:

Product Detail

Product Overview

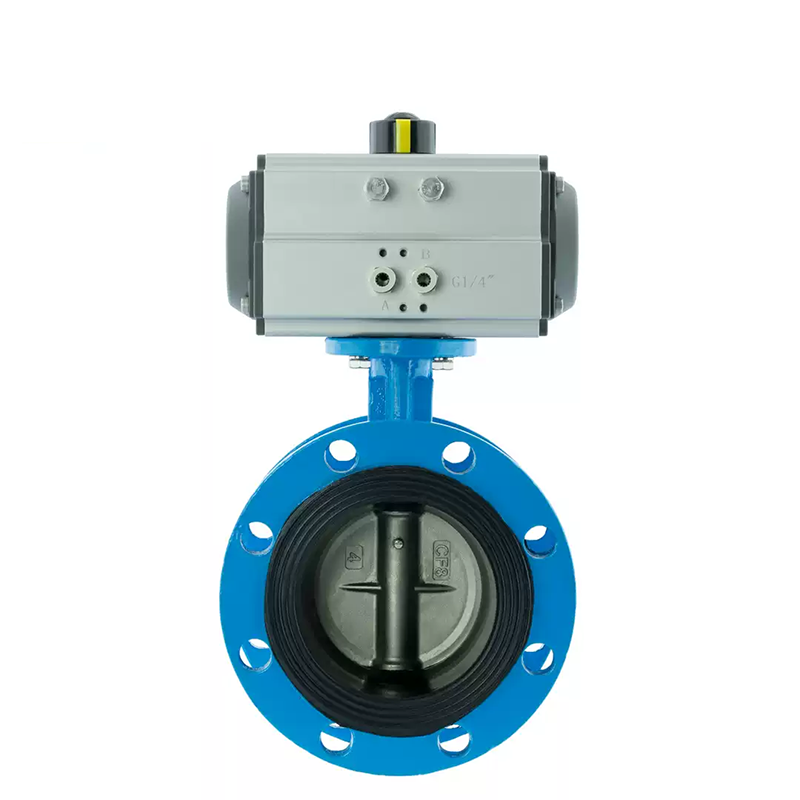

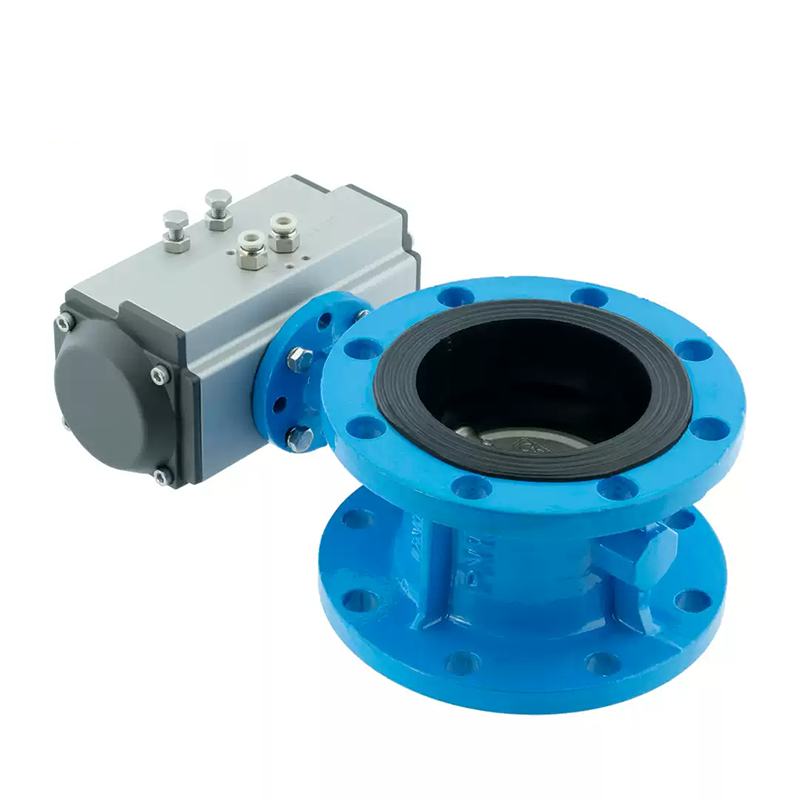

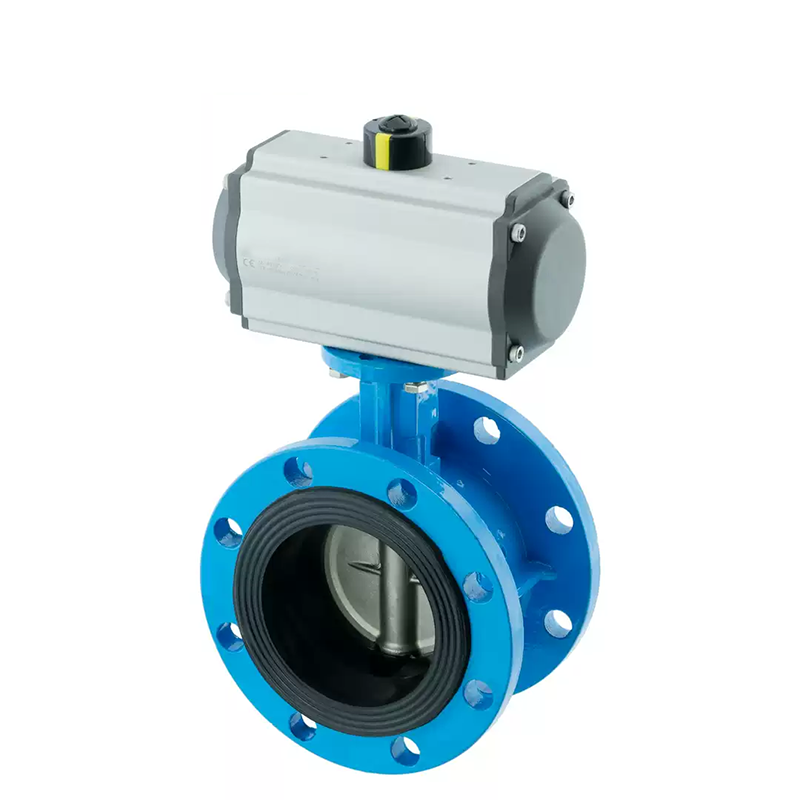

The pneumatic flange butterfly valve consists of a quarter-turn pneumatic actuator and a butterfly valve body. It features a simple structure, compact size, lightweight design and cost-effective price, especially suitable for installation in high-altitude and concealed pipeline passages. Controlled by a 5/2-way solenoid valve, the valve realizes fast and convenient on-off operation. Equipped with a valve positioner, it can precisely control and adjust medium flow, temperature, pressure and other pipeline parameters.

This butterfly valve delivers low fluid resistance and large effective flow area when fully open, especially for medium and large diameter sizes. It only requires a 90° rotation to complete opening and closing with small operating torque. Due to the balanced medium force on both sides of the disc, the valve achieves reliable tight sealing even under low pressure.

It is available in two sealing types: soft seal and hard seal. The soft seal version adopts NBR and fluororubber materials for zero-leakage performance. The multi-layer metal hard seal structure provides flexible and stable sealing performance, maintaining excellent tightness under both low and high temperature conditions. Widely applicable for corrosive media in metallurgy, electric power, petroleum, chemical, air, gas, combustible gas, water supply and drainage industries.

Product Features

1. Compact size, light weight, flexible operation, easy installation and maintenance.

2. Excellent and reliable sealing performance with zero leakage and long service life.

3. Approximate linear flow characteristics, achieving outstanding fluid control performance.

4. Simple structural design and fast 90° rotation opening/closing action.

5. Versatile replacement for gate valves, globe valves, plug valves, hose valves, diaphragm valves and other valve types.

Technical Parameters

Parameter Item	Specification
Nominal Diameter	DN50～DN1200
Nominal Pressure	PN1.0MPa, PN1.6MPa, PN2.5MPa
Flange Standard	JB/T79, GB/T9113, HG20594-97
Connection Type	Flange Type
Disc Type	Vertical Plate Type
Flow Characteristic	Approximate Quick Opening Type
Action Range	0～90°
Leakage Rate	10-4 of Kv value (According to GB/T4213-92)
Basic Error (With Positioner)	Less than ±2% of full stroke
Hysteresis (With Positioner)	Less than ±2% of full stroke
Adjustable Range	50:1
Actuator Type	GT, AT, AR, AW series single & double acting pneumatic actuators
Control Mode	On-off Type (Two-position control), Control Type (4～20mA analog control)

Actuator Technical Parameters

Parameter Item	Specification
Actuator Model	GT, AT, AR, AW series single / double acting pneumatic actuators
Air Supply Pressure	0.4～0.7MPa
Air Port Size	G1/4", G1/8", G3/8", G1/2"
Ambient Temperature	-30℃～+70℃
Action Mode	Single Acting: Air to Close (B) – Fail Open (FO); Air to Open (K) – Fail Close (FC)Double Acting: Air to Close (B) – Fail Locked (FL); Air to Open (K) – Fail Locked (FL)
Optional Accessories	Positioner, Solenoid Valve, Air Filter Regulator, Valve Positioner, Limit Switch, Valve Position Transmitter, Handwheel Mechanism, etc.
