Pneumatic High Pressure 3-Way Ball Valve

Short Description:

Product Name:
Valve Category:
Brand:
Technical Data:
Made In:
Supplier:

Product Detail

Overview

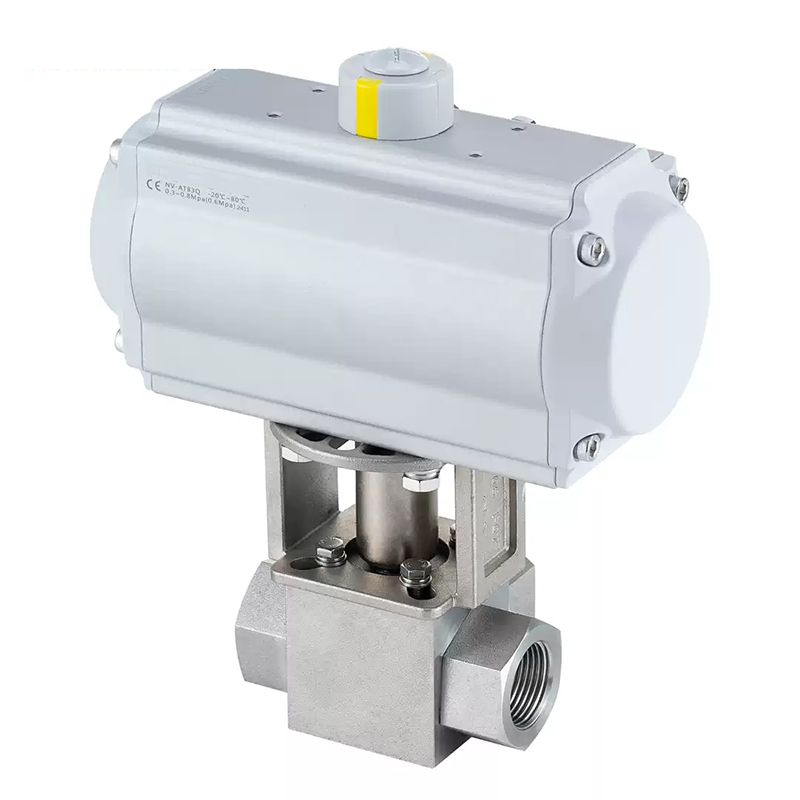

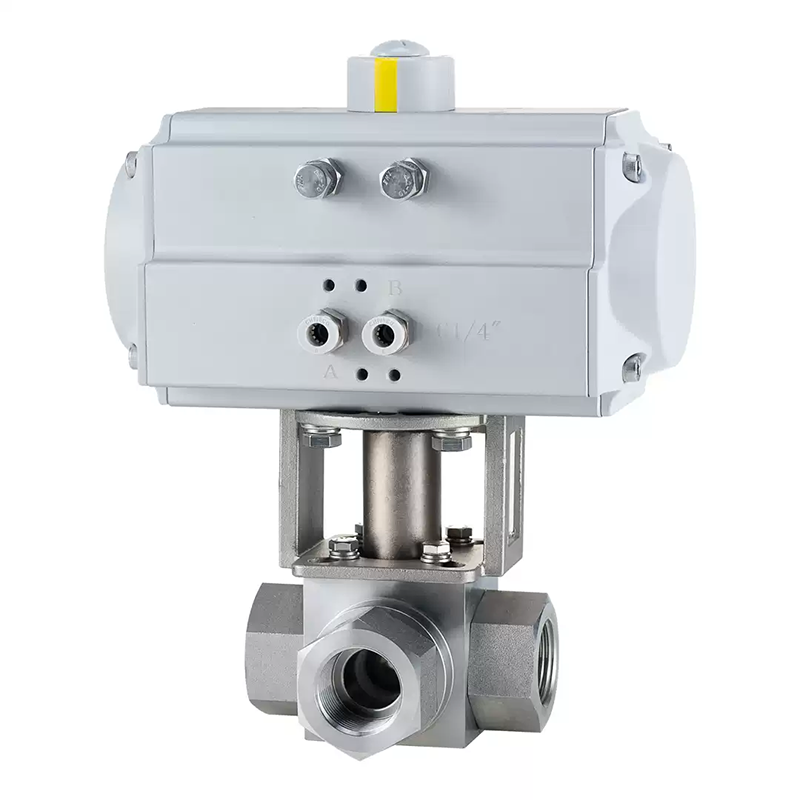

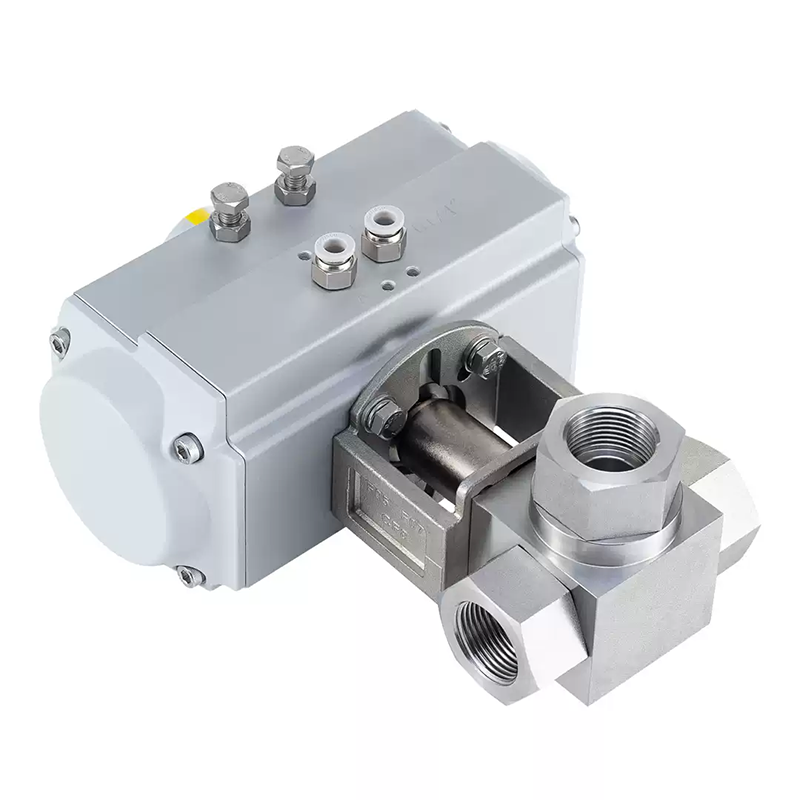

The Pneumatic High Pressure 3-Way Ball Valve consists of a piston pneumatic actuator and a high pressure ball valve. It can be controlled to open and close by inputting an air supply of 0.4~0.8MPa, enabling remote operation. It is used to shut off the working medium and divert its flow, allowing connection between two mutually perpendicular channels.

Product Features

High pressure resistance, low torque, and rapid switching.
Floating ball design, outlet side sealing, and full flow capacity.
Switch positions are limited by limit pins and pads.
Leak-proof design eliminates the need for manual seal adjustment.
Switch position can be observed via the indicator slot on the handle spindle.

Technical Parameters & Performance

Item	Specification
Nominal Diameter (DN)	10, 15, 20, 25, 32, 40, 50 mm
Body Type	Integral Forged Body (for DN ≤ 50), 3-Piece Forged Body (for DN > 50)
Nominal Pressure	PN16-42 MPa; ANSI 150, 300, 600, 900LB, 1500LB
Connection Type	Flanged, Welded, Threaded (for PN ≤ 45 MPa)
Sealing Packing	V-Type PTFE Packing, Flexible Graphite Packing, etc.
Core Type	O-Port Ball Core
Flow Characteristic	Approximate Quick-Opening
Action Range	090°, 0360°
Leakage Rate	Q < 0.01% of Rated Kv (per GB/T4213-92)
Basic Error	±2% of Full Stroke (with positioner)
Adjustable Range	250:1
Actuator Configuration	GT, AT, AR, AW Series Single/Double Acting Pneumatic Actuators
Control Mode	On-Off Two-Position Control, 4~20mA Analog Signal Control

Component Materials

Component Name	Material
Body, Bonnet	A105, 304 (CF8), 316 (CF8M), 316L (CF3M)
Ball	2Cr13 + Nitriding, 304, 316, 316L
Stem	2Cr13, 304, 316, 316L
Seat Seal	PTFE, Carbon Fiber + PTFE, Polyphenylene Oxide
Packing	V-Type PTFE, Flexible Graphite

Performance Specifications

Nominal Diameter (DN)	DN10-50
Nominal Pressure (PN, MPa)	10.0, 16.0, 25.0, 32.0, 42.0
Test Pressure (MPa)	<br>Strength Test: 15.0, 24.0, 37.5, 48.0, 63.0<br>Seal Test: 11.0, 17.6, 27.5, 35.2, 46.2<br>Low Pressure Air Tightness: 0.5~0.7
Suitable Media	Water, Oil, Steam, Nitric Acid (≤200°C), Acetic Acid (≤200°C)

Pneumatic Actuator Details

Item	Specification
Actuator Model	AT, AR, AW Series Single/Double Acting
Air Supply Pressure	0.4~0.7 MPa
Air Source Interface	G1/4", G1/8", G3/8", G1/2"
Ambient Temperature	-30~+70°C
Action Mode	Single Acting: Air-Close (B) = Fail-Open (FO); Air-Open (K) = Fail-Close (FC)<br>Double Acting: Air-Close (B) / Air-Open (K) = Fail-Lock (FL)
Optional Accessories	Positioner, Solenoid Valve, Air Filter Regulator, Fail-Lock Valve, Travel Switch, Positioner Transmitter, Handwheel Mechanism, etc.
