Pneumatic Plastic 3-Way Ball Valves
Pneumatic Plastic 3-Way Ball Valves

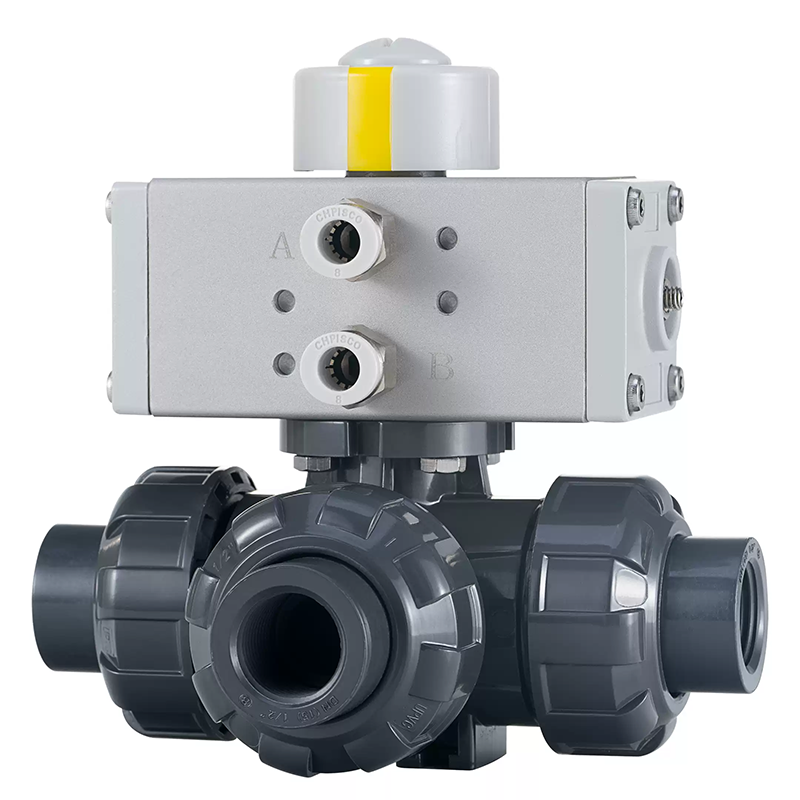

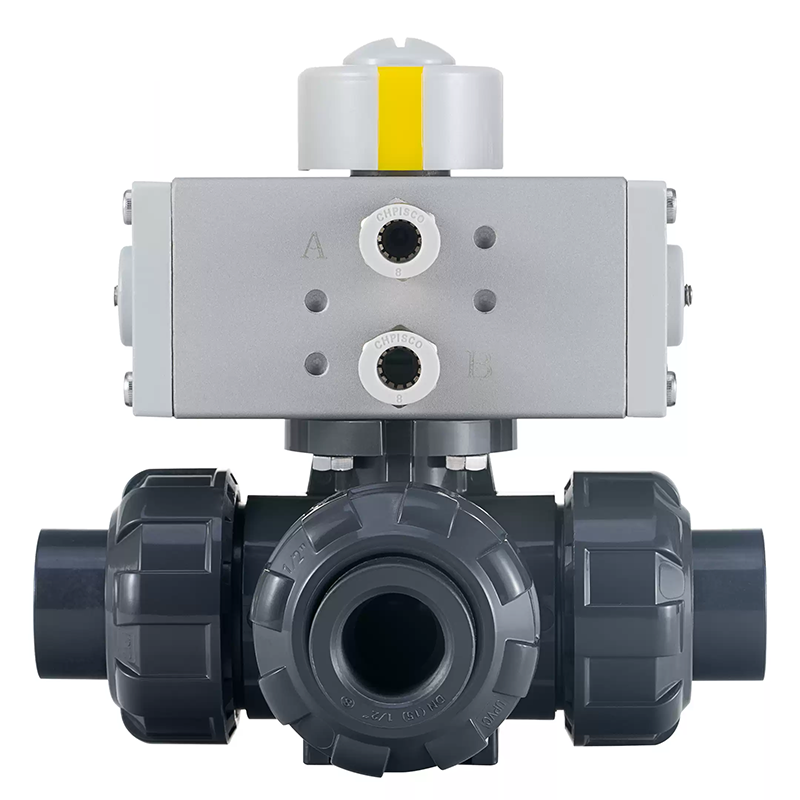

Pneumatic Plastic 3-Way Ball Valves consist of high-sensitivity pneumatic piston actuators and UPVC plastic ball valves. As a 3-way rotary ball valve, it is used for medium diversion, confluence and flow direction switching.
Technical Parameters
Parameter | Specifications |
|---|---|
Valve Body Material | PVC, UPVC, PPH, CPVC, PVDF, PP, etc. |
Valve Core Material | PVC, UPVC, PPH, CPVC, PVDF, PP, etc. |
Valve Seat Material | PTFE |
Connection Method | Double Union, Socket Weld, Flange, Thread, etc. |
Flange Standard | GB, ANSI, DIN, JIS |
Pressure Class | PN10, PN16 (1.0-1.6MPa) |
Structure Type | 3-Way L-Type, 3-Way T-Type; Integrated Valve Body |
Pneumatic Actuator | AT Series, GT Series, ST Series; Single-Acting/Double-Acting |
Nominal Diameter (DN) | DN15 - DN100mm |
Applicable Temperature | 0～+60℃ |
Applicable Medium | PVC-compatible food industry chemical solvents |
Control Mode | 2-Position On-Off Control, 4～20mA Analog Signal Control |
