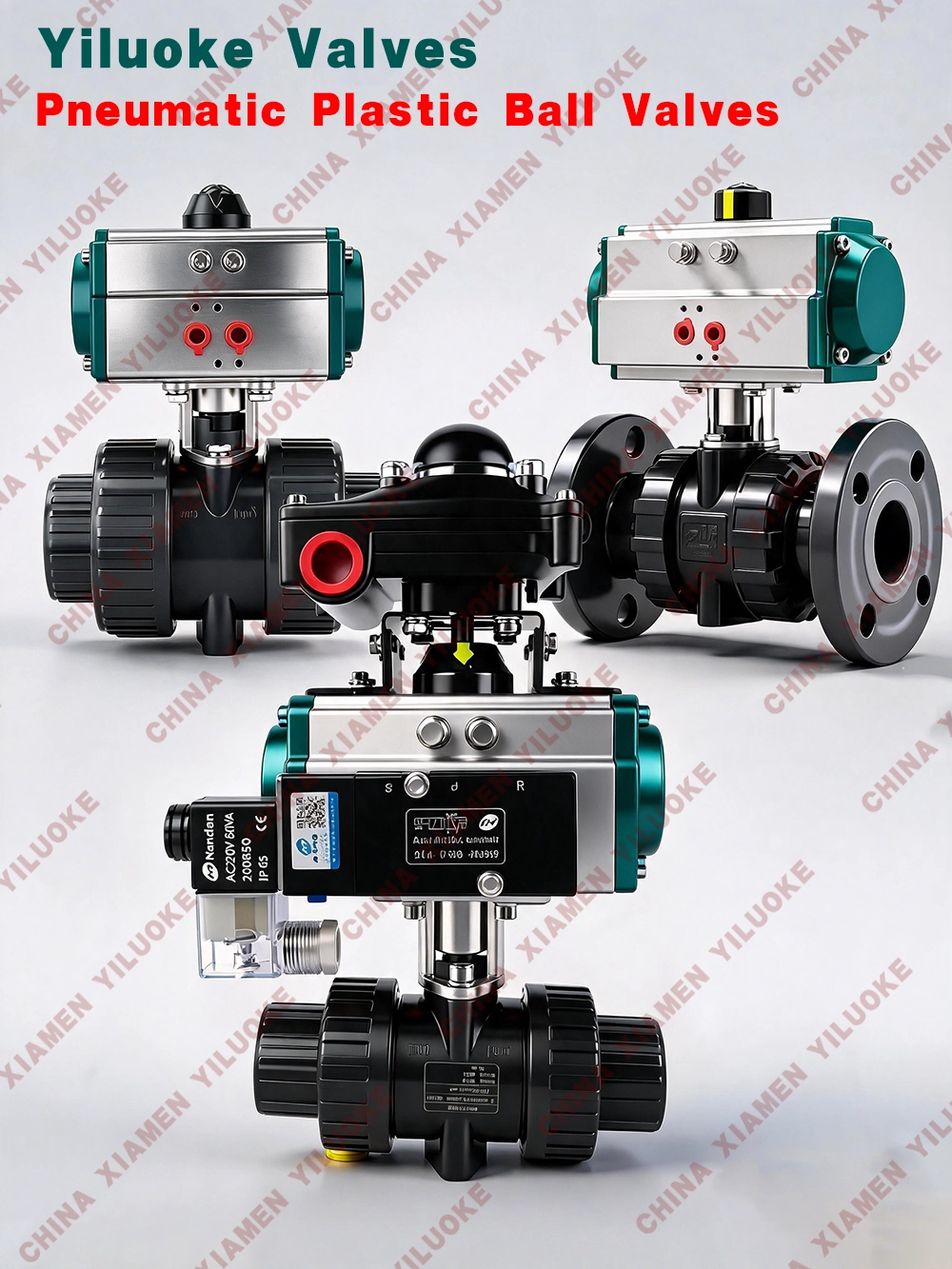

Pneumatic Actuated Plastic Ball Valves

Short Description:

Product Name: UVPC Pneumatic Ball Valve
Valve Category: Ball Valve
Brand: Yiluoke
Technical Data: DN15-DN100
Made In: China
Supplier: Xiamen Yiluoke Import and Export Trading Co., Ltd

Product Detail

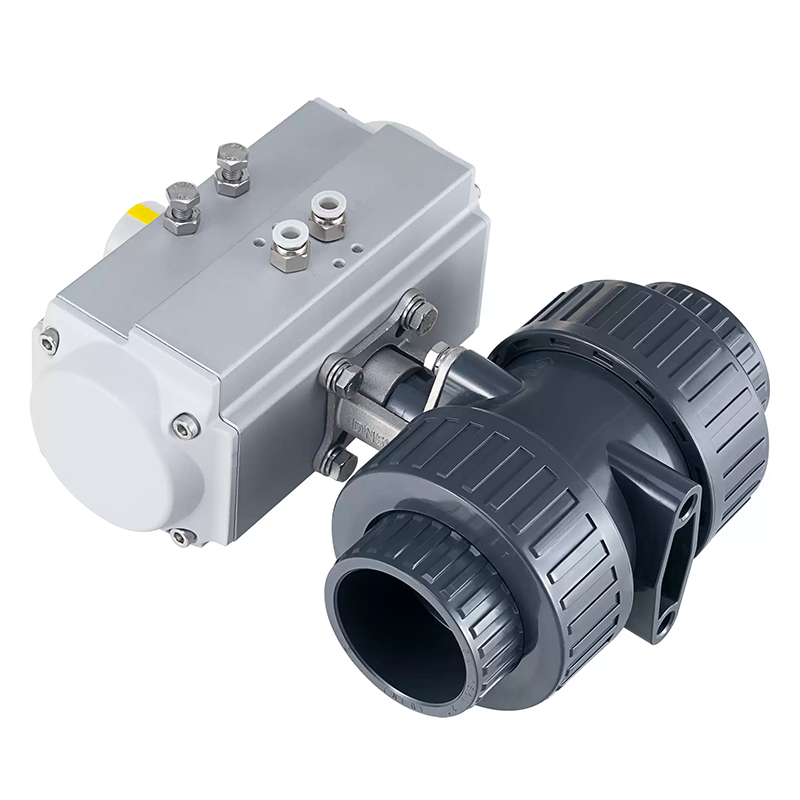

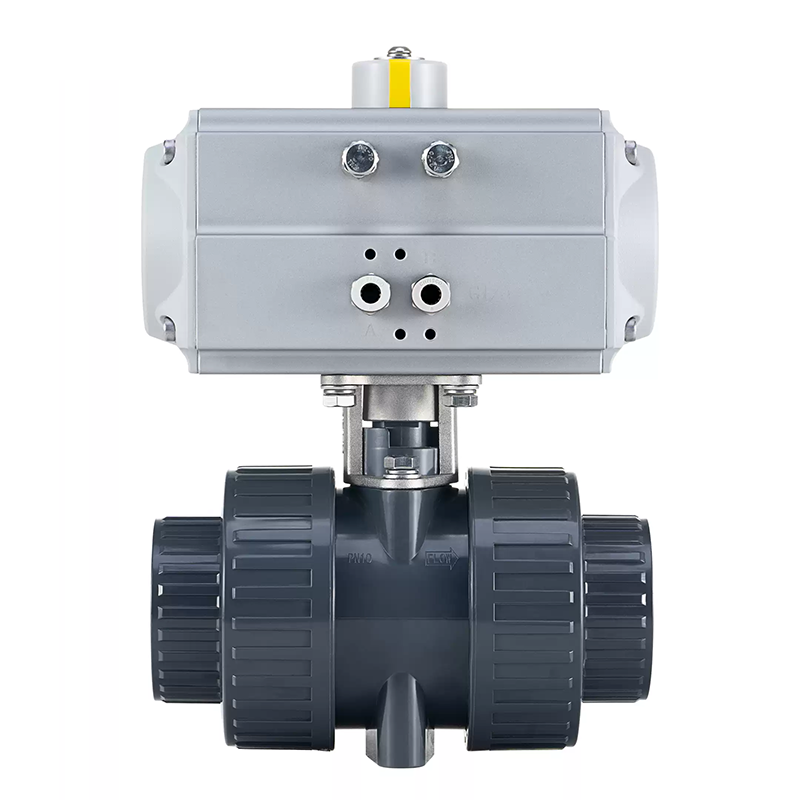

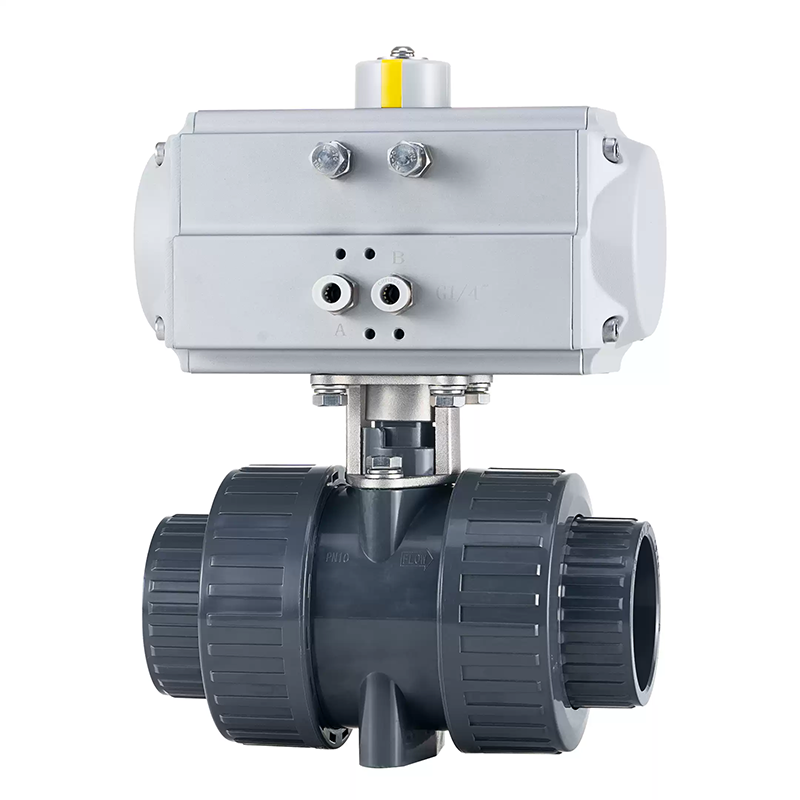

The pneumatic actuated plastic ball valve consists of high‑sensitivity pneumatic piston actuator and UPVC plastic ball valve. Pneumatic actuated plastic ball valve and UPVC pneumatic actuated ball valve are used for flow shut‑off in corrosive medium transmission. It features light weight and excellent corrosion resistance. Widely adopted in various industries, including pure and potable drinking water pipeline systems, drainage and sewage pipeline systems, saltwater and seawater pipeline systems, acid‑alkali and chemical solution systems. Its quality has been well‑recognized by global users.

Pneumatic Actuated Plastic Ball Valves

1. Compact and attractive appearance structure.

2. Light‑weight body for easy installation.

3. Hygienic and non‑toxic material.

4. Strong corrosion resistance for wide application scope.

5. Wear‑resistant, easy to disassemble, simple and convenient for maintenance.

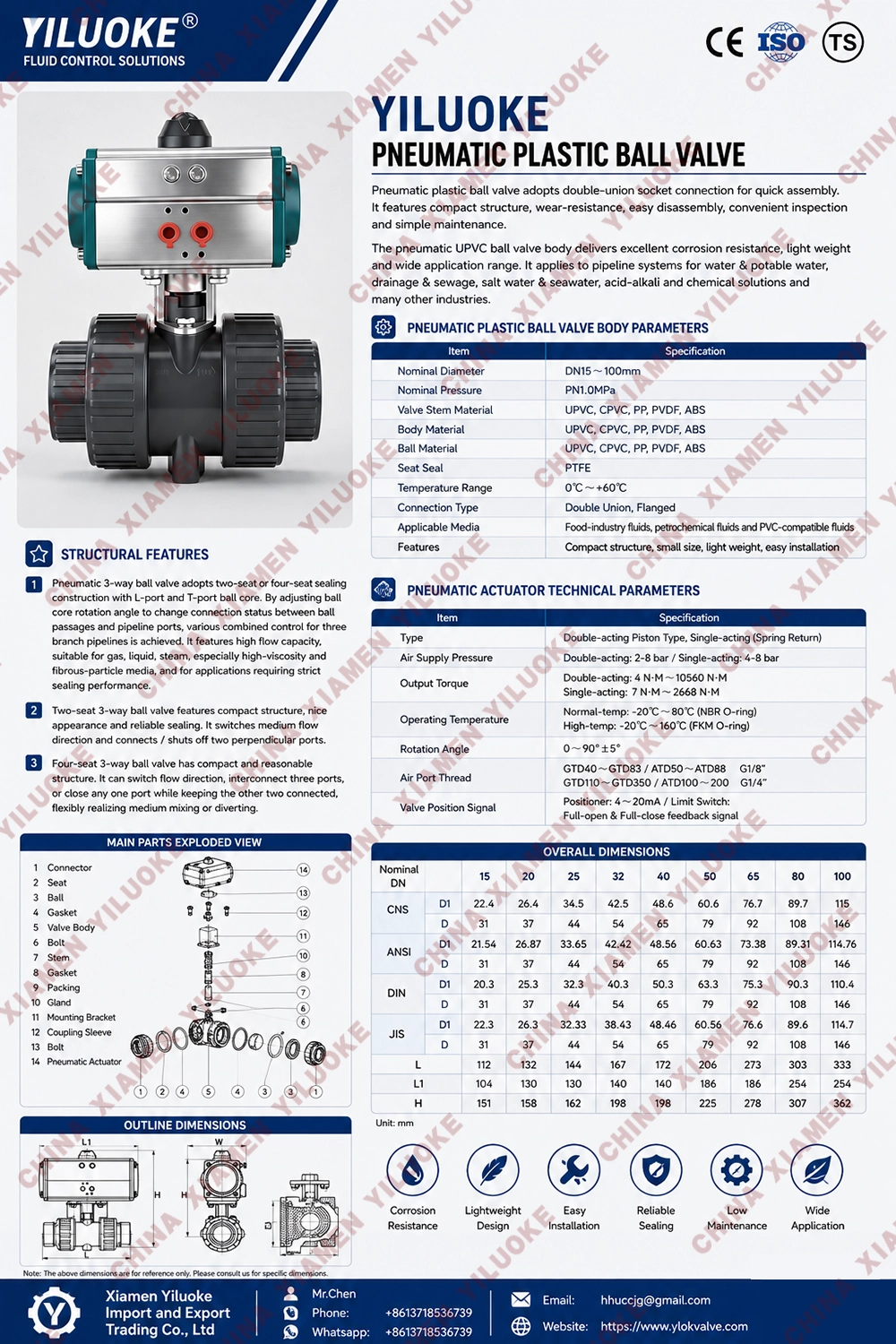

Technical Parameters

Nominal Diameter DN(mm)	15,20,25,32,40,50,65,80,100
Nominal Pressure(MPa)	PN1.0‑1.6MPa
Connection Type	Flange, Thread, Union
Valve Body Structure	One‑piece, 3‑Way L‑Port, 3‑Way T‑Port
Valve Body Material	UPVC, CPVC, PP
Ball Material	UPVC, CPVC, PP
Seal Material	PTFE
Operating Temperature	0～+60℃
Applicable Medium	Food‑grade industrial chemical solvents compatible with PVC
Matched Actuator	GT, AT, ST Series Single‑acting / Double‑acting Pneumatic Actuator
Control Mode	Two‑position On‑Off Control, 4‑20mA Analog Signal Control

Main Parts Material

Part Name	Material
Valve Body	UPVC, CPVC, PPR
Seat	PTFE
Ball	UPVC, CPVC, PPR
Valve Stem	UPVC, CPVC, PPR

Actuator Parameters

Actuator Model	GT, AT, AR, AW Series Single‑acting / Double‑acting Pneumatic Actuator
Air Supply Pressure	0.4～0.7MPa
Air Port	G1/4", G1/8", G3/8", G1/2"
Ambient Temperature	-30～+70℃
Action Mode	Single‑acting: Air‑to‑Close(B)‑Fail‑Open(FO); Air‑to‑Open(K)‑Fail‑Close(FC) Double‑acting: Air‑to‑Close(B)‑Fail‑Locked(FL); Air‑to‑Open(K)‑Fail‑Locked(FL)
Optional Accessories	Positioner, Solenoid Valve, Air Filter Regulator, Lock‑up Valve, Limit Switch, Valve Position Transmitter, Handwheel Mechanism, etc.
