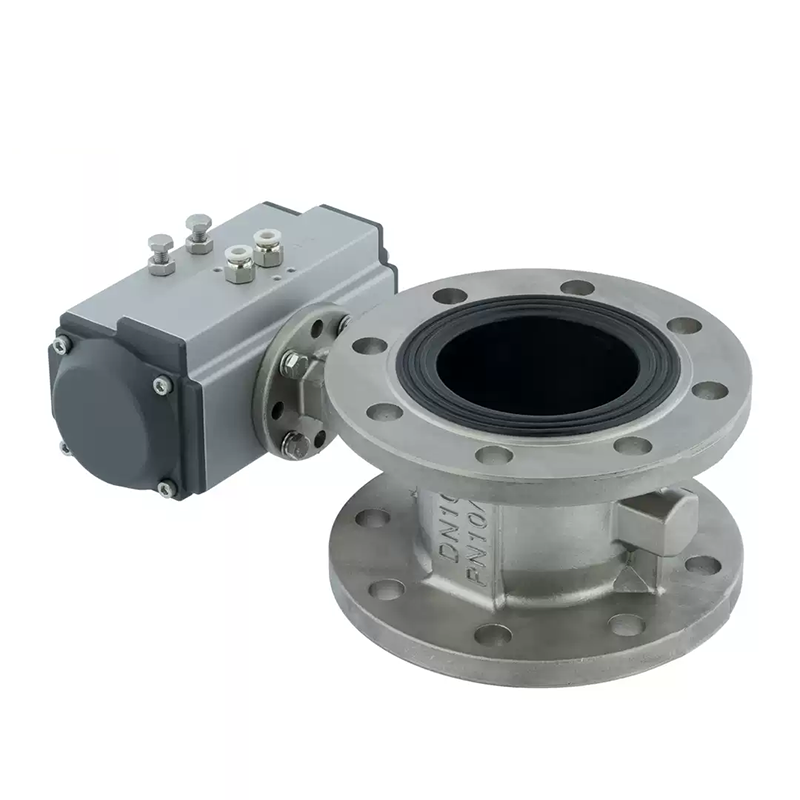

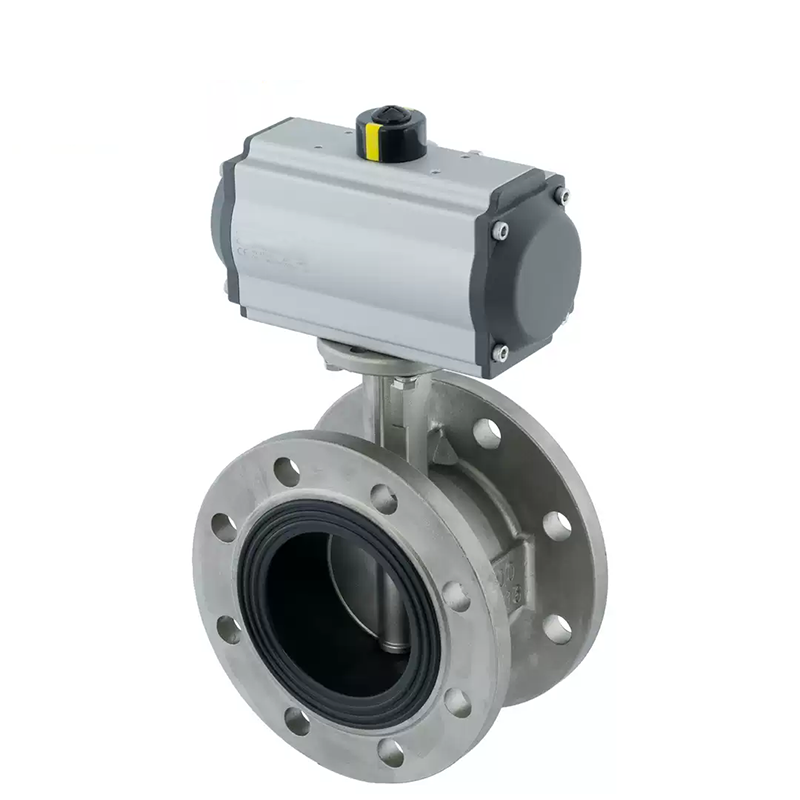

Pneumatic Stainless Steel Flange Butterfly Valve

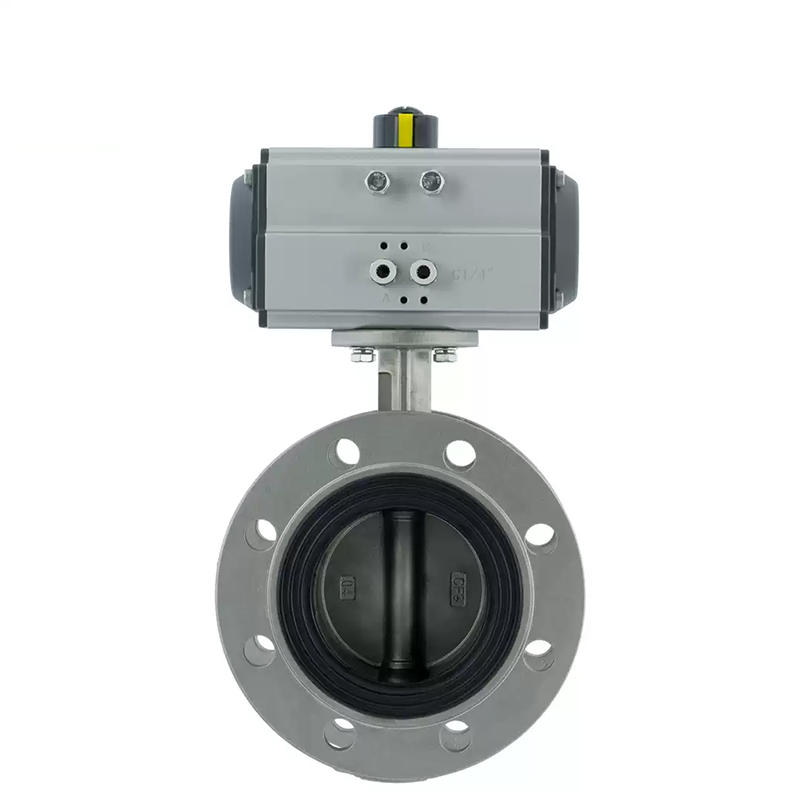

Pneumatic Stainless Steel Butterfly Valve with Flanged Ends

Short Description:

Product Name:
Valve Category:
Brand:
Technical Data:
Made In:
Supplier:

Product Detail

Product Overview

The pneumatic stainless steel flange butterfly valve is one of the most commonly used valves in industrial pipeline systems. The pneumatic wafer soft-seal butterfly valve features compact size, less material consumption and light weight. It is more cost-effective than other valve types, especially for large-diameter specifications. Driven by a pneumatic actuator, the valve can be fully opened and closed with a 90° rotation for fast and simple operation. It delivers excellent fluid control performance. When fully open, the thickness of the butterfly disc becomes the only flow resistance, ensuring minimum pressure loss and smooth fluid transportation.

Technical Parameters

Parameter Item	Specification
Product Name	Pneumatic Stainless Steel Flange Butterfly Valve
Connection Type	Wafer Connection
Applicable Pressure	PN10, PN16
Nominal Diameter	DN50~DN1200
Drive Mode	Pneumatic
Applicable Media	Air, Water, Sewage, Steam, Gas, Oil Products, etc.
Applicable Temperature	0℃~120℃
Design Standard	GB/T12238-1989
Flange Standard	GB/T9113.1-2000, GB/T9115.1-2000, JB78
Structure Length Standard	GB/T12221-1989
Pressure Test Standard	GB/T13927-2000, JB/T9092-1999
Actuator Type	AT Pneumatic Actuator / AW Pneumatic Actuator
Action Mode	Double-acting (Air-open & Air-close), Single-acting (Spring Return)
Control Mode	On-off Type, Intelligent Control Type
Air Supply Pressure	Double-acting: 3-8bar; Single-acting: 4-8bar
Operating Medium	Air
Connection Dimension	ISO5211
Air Supply Interface	Complies with NAMUR Standard
Manufacturing Standard	GB, JB, HG, ANSI, API, JIS, DIN and other customized standards
