Overview

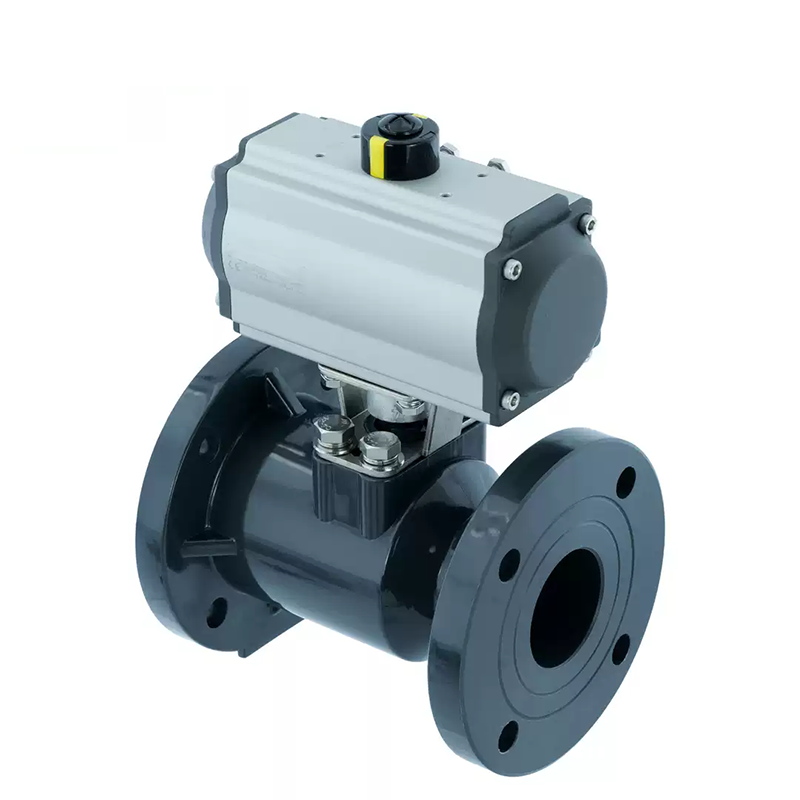

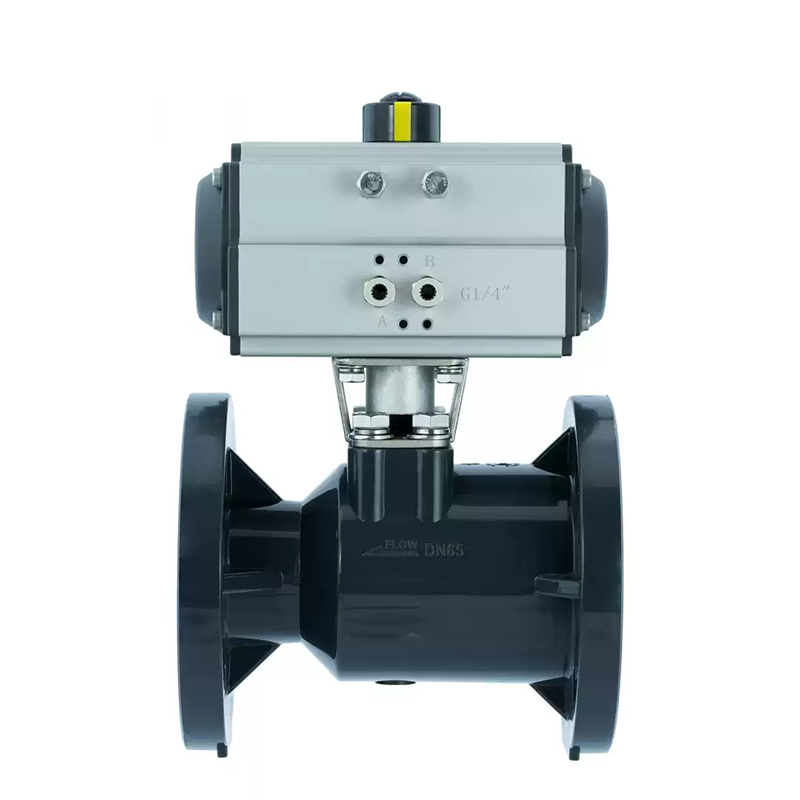

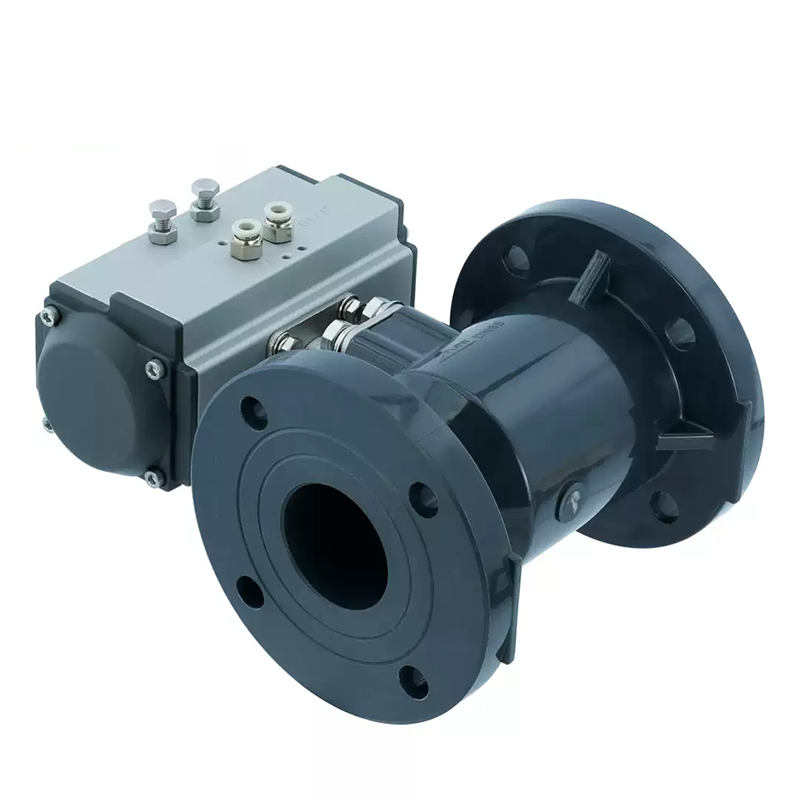

The pneumatic UPVC ball valve (double union type) is an anti-corrosion plastic ball valve used in various corrosive pipeline fluid media. The valve body is assembled and formed by UPVC (CPVC) injection-molded parts, which has strong corrosion resistance. The opening and closing of the valve is controlled by air source pressure, which reduces the required manpower and time in terms of work efficiency and greatly increases the workload. The medium temperature used by the pneumatic plastic ball valve should generally not be too high. According to the material temperature, it can be between -40℃ and 180℃, and the working pressure does not exceed 1.6mpa. Pneumatic plastic ball valves are not suitable for pipelines containing hard particle liquids to prevent scratching the ball surface or sealing surface, resulting in leakage, etc.

Application Fields

The pneumatic plastic ball valve adopts double union and flange connection, which can be quickly assembled without using special tools. It has the advantages of compact structure, wear resistance, easy disassembly, convenient maintenance and simple maintenance. The valve body material is hygienic and non-toxic, with strong corrosion resistance, light weight and wide application range. For example: pure water and drinking water pipeline systems, drainage and sewage pipeline systems, brine and seawater pipeline systems, acid-base and chemical solvent systems and many other industries.

Structural Features

1. The unique connection method of the pneumatic double union ball valve is particularly convenient for installation and disassembly, and maintenance is simple and easy.

2. Using the air source pressure of the pneumatic actuator to control the valve not only saves time and effort, but also improves the safety of the ball valve in use.

The pneumatic plastic ball valve has a light body weight, flexible rotation, convenient use, simple matching and large flow capacity.

4. The material of the pneumatic double union ball valve is hygienic and non-toxic, meets hygiene standards, is wear-resistant and has strong corrosion resistance, making its use more extensive.

Technical Parameters
