Pneumatic Actuated V‑Port Ball Valve

Pneumatic V-Type Ball Valve with Flanged Ends

Short Description:

The pneumatic V-type ball valve is a high-precision control valve with a right-angle rotation structure, which can be divided into pneumatic V-type regulating ball valve and pneumatic V-type cut-off b...

Product Name: Pneumatic V‑Port Control Ball Valve
Valve Category: Ball Valve
Brand: Yiluoke
Technical Data: DN15-DN600
Made In: China
Supplier: Xiamen Yiluoke Import and Export Trading Co., Ltd

Send email to us Download

Product Detail

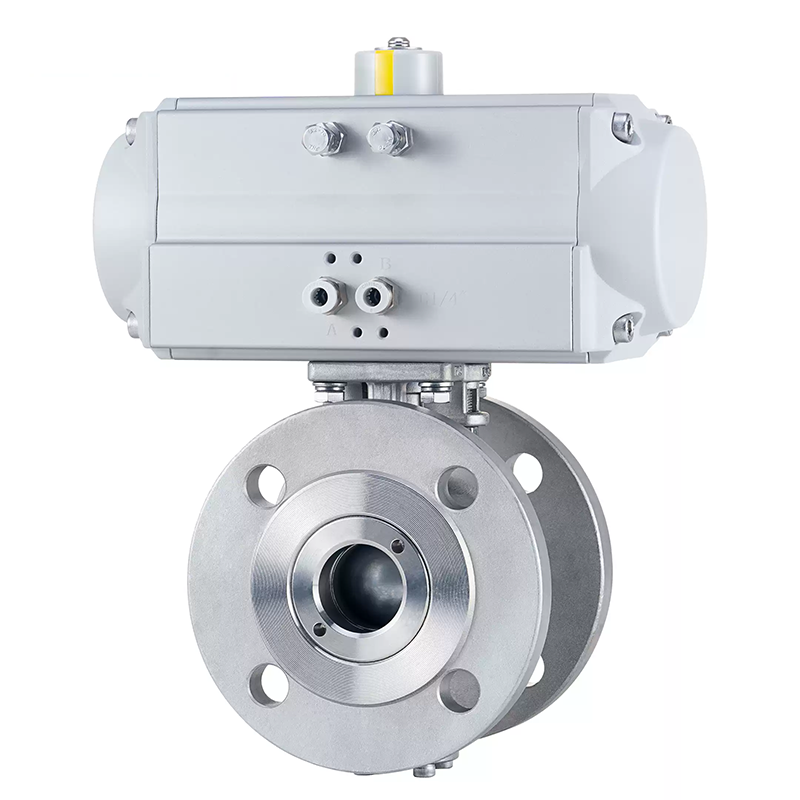

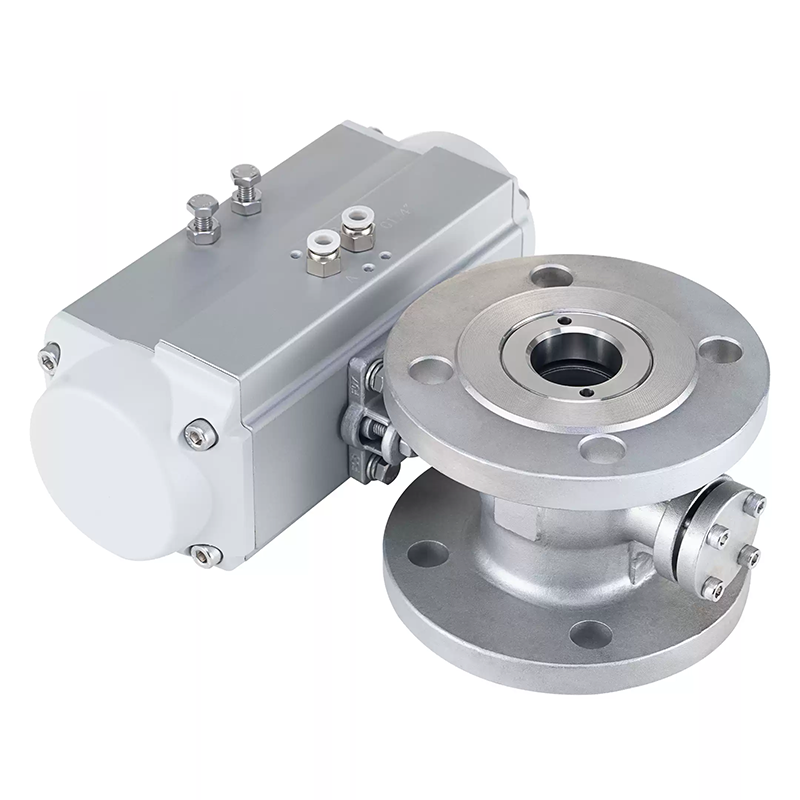

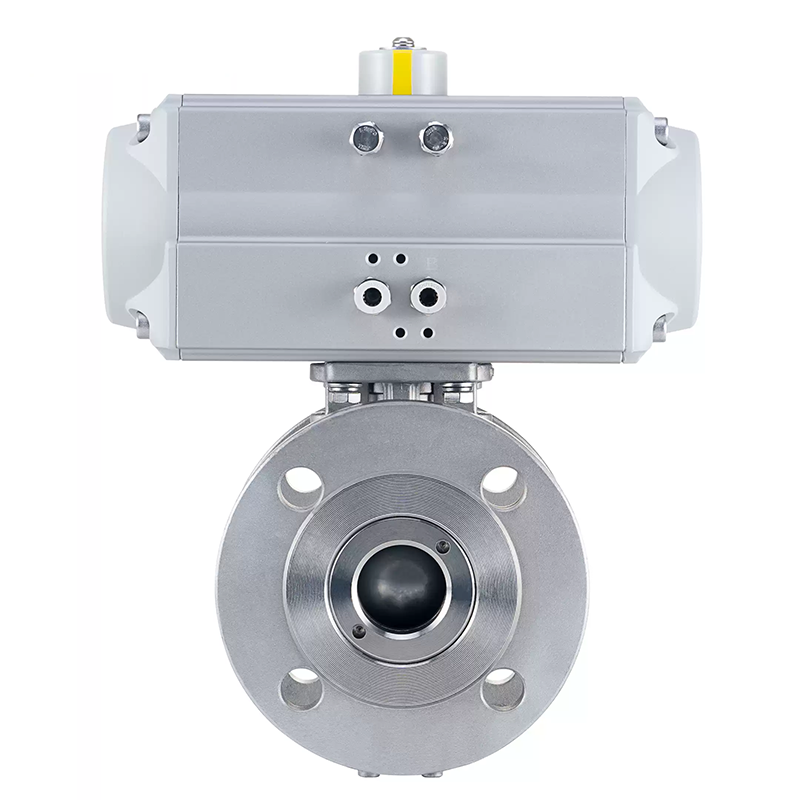

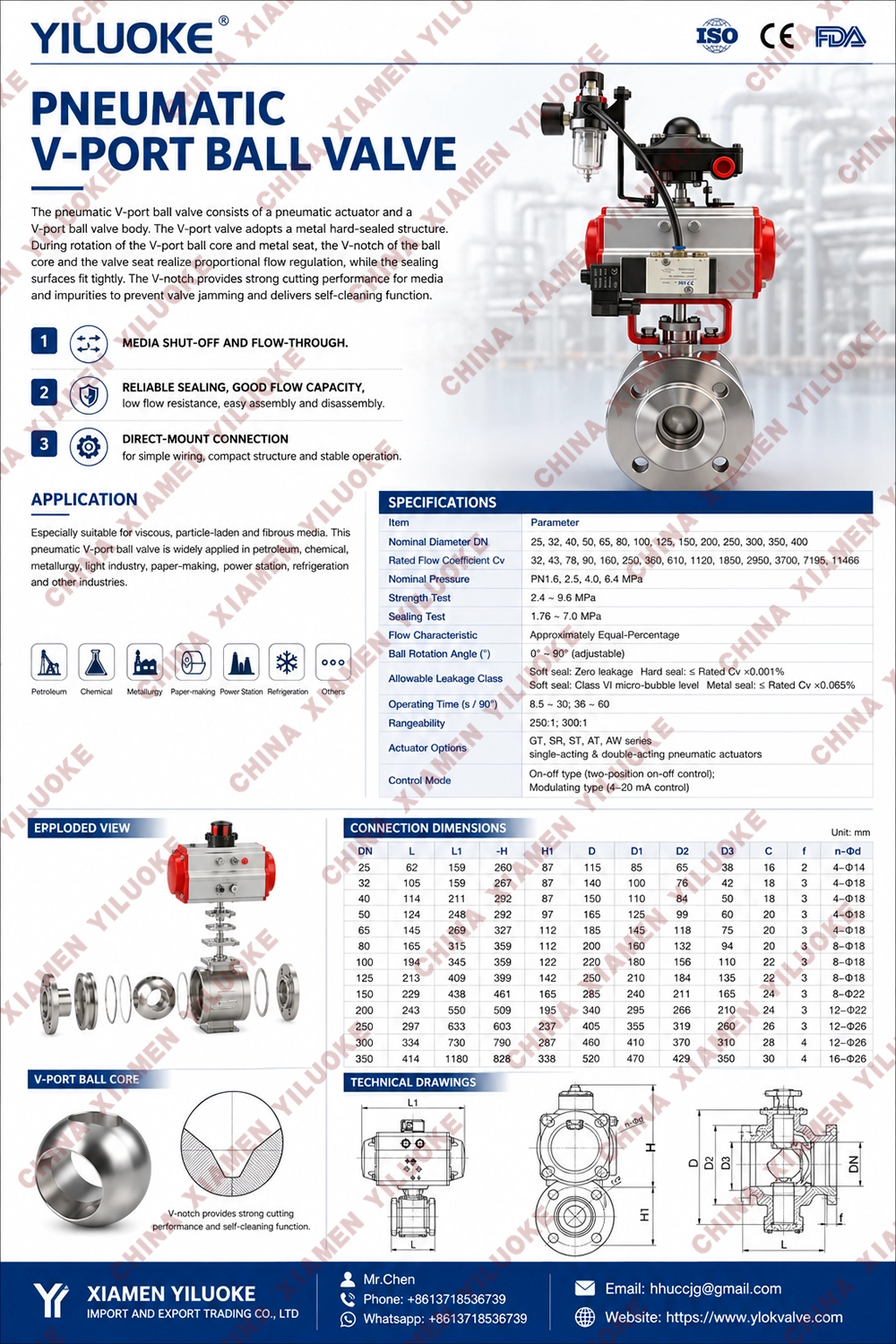

The ball core of the Pneumatic Actuated V‑Port Ball Valve is machined with a V‑notch, delivering accurate flow control curve and modulating performance. Featuring compact structure, small dimension and flush‑mount installation capability, it is suitable for various control applications. It controls gas, liquid and solid‑particle media. Zero‑clearance rotation between ball core and seat provides strong shearing force and self‑cleaning property. It is especially suitable for suspensions containing fiber or fine solid particles and solid‑particle medium control.

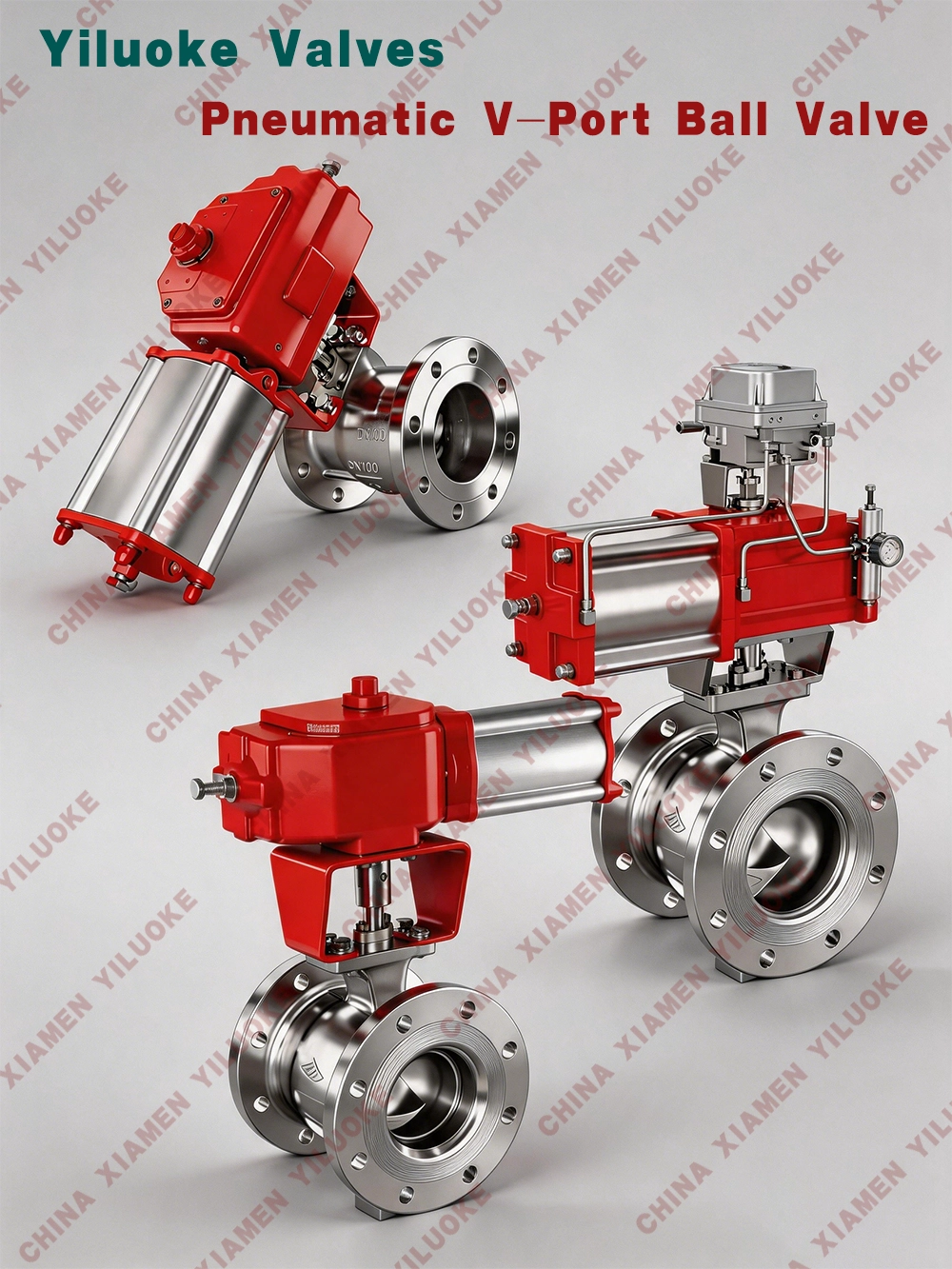

Pneumatic Actuated V‑Port Stainless Steel Ball Valves

Structural Features

1. The Pneumatic Actuated V‑Port Ball Valve consists of V‑port ball valve body, pneumatic actuator and other accessories. It is a high‑grade quarter‑turn control valve. The V‑port ball valve requires minimal maintenance and offers long service life for highly‑efficient process control.

2. Excellent modulating performance: The Pneumatic Actuated V‑Port Ball Valve delivers near equal‑percentage inherent flow characteristic with rangeability up to 300:1. Precise control can be achieved within a wide operating range.

3. Maximum flow capacity: Streamlined profile and full quarter‑turn operation provide high flow coefficient, large throughput and low flow resistance, enabling selection of smaller and more economical valve sizes.

4. Adopting double‑bearing structure, it features high mechanical stability and low break‑away torque, ensuring excellent sensitivity and fast response.

5. Maximum reliability and safety: One‑piece robust valve body is immune to pipeline pressure impact and eliminates body leakage risk.

6. Superior sealing performance of metal seat: Movable metal seat with self‑compensation function provides outstanding sealing performance and extended service life. Leakage is 10 times of rated flow coefficient under flow direction.

Component Materials

Component Name	Material
Valve Body	WCB, 304(CF8), 316(CF8M), 316L(CF3M)
Ball	2Cr13+nitriding treatment, 304, 316, 316L
Valve Stem	2Cr13, 304, 316, 316L
Sealing Ring	PTFE, Reinforced PTFE(PPL), Para‑polyphenylene, Flexible Graphite
Applicable Media	Water, gas, steam, oil products; Corrosive media such as nitric acid, acetic acid, urea

Technical Parameters

Nominal Diameter DN	25	32	40	50	65	80	100	125	150	200	250	300	350	400
Rated Flow Coefficient Cv	32	43	78	90	160	250	360	610	1120	1850	2950	3700	7195	11466

Nominal Pressure	PN1.6, 2.5, 4.0, 6.4MPa
Body Strength Test	2.4～9.6MPa
Seat Seal Test	1.76～7.0MPa
Flow Characteristic	Near equal‑percentage, Linear
Disc Rotation Angle	0°～90°(adjustable)
Allowable Leakage Class	Soft‑seal: Zero leakage, Class VI bubble‑tight; Hard‑seal: ≤Rated Cv ×0.001%, ≤Rated Cv ×0.065%
Acting Time(S/90°)	8.5～30, 36～60
Rangeability	250:1, 300:1
Matching Actuator	GT, AT, AR, AW series single‑acting / double‑acting pneumatic actuators
Control Mode	On‑off two‑position control, 4‑20mA analog modulating control

Actuator Parameters

Actuator Model	GT, AT, AR, AW series single‑acting / double‑acting pneumatic actuators
Air Supply Pressure	0.4～0.7MPa
Air Port	G1/4", G1/8", G3/8", G1/2"
Ambient Temperature	-30～+70℃
Action Type	Single‑acting: Air‑to‑close(B)‑FO(fail open); Air‑to‑open(K)‑FC(fail closed). Double‑acting: Air‑to‑close(B)‑FL(fail locked); Air‑to‑open(K)‑FL(fail locked)

Performance Specification

Test Standard	Nominal Pressure(MPa)					Pressure Class(Class)			JIS(MPa)
Test Standard	1.6	2.5	4.0	6.4	10.0	150	300	600	10K	20K
Body Strength Test Pressure(MPa)	2.4	3.8	6.0	9.6	15.0	3.1	7.8	15.3	2.4	3.8
Seal Test Pressure(MPa)	1.8	2.8	4.4	7.0	11.0	2.2	5.6	11.2	1.5	2.8
Air‑Tight Test Pressure(MPa)	0.5～0.7
