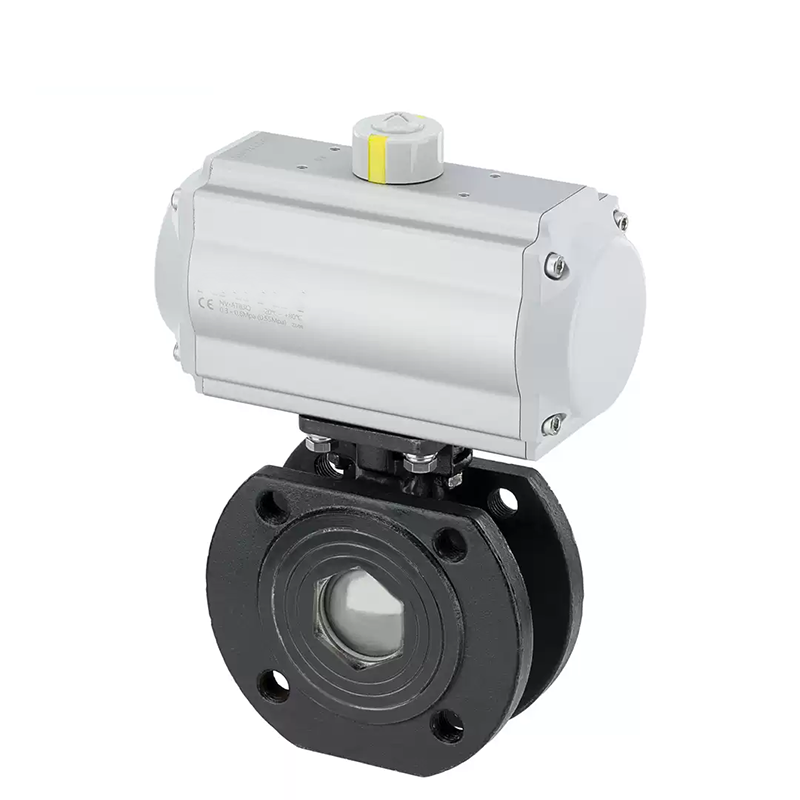

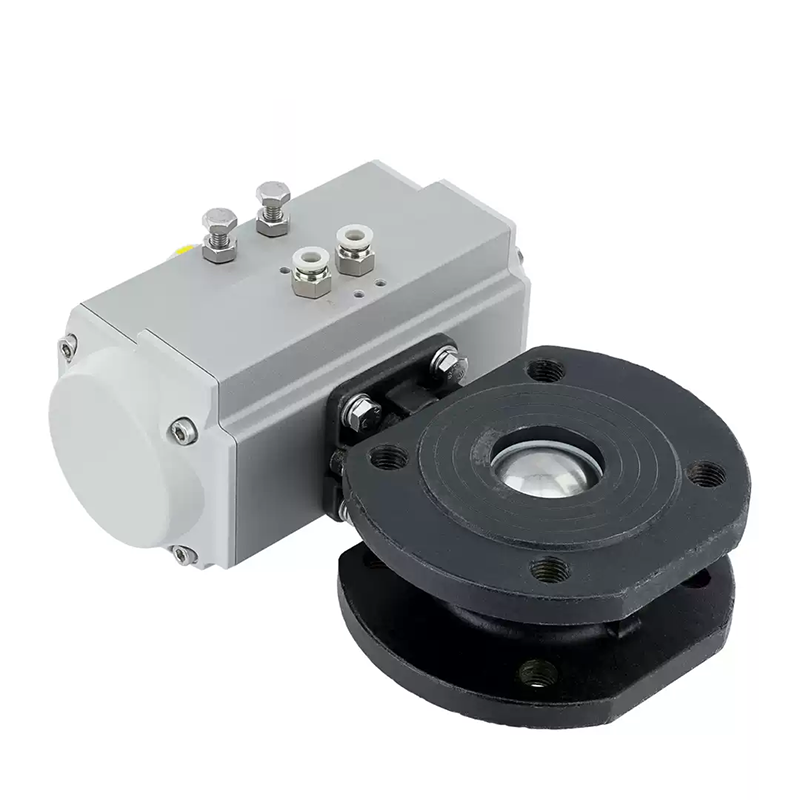

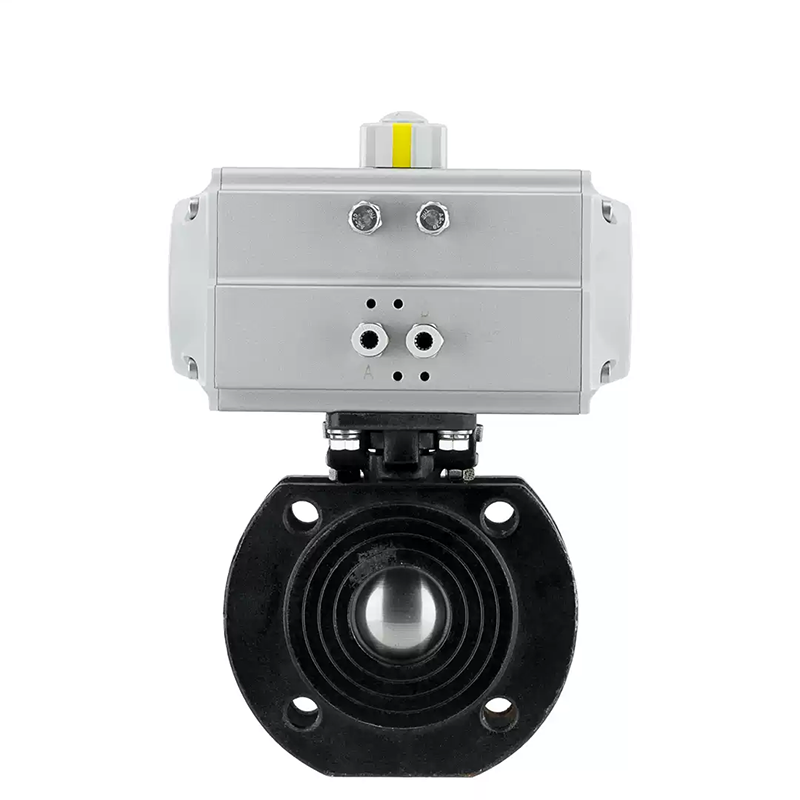

Pneumatic Wafer Carbon Steel Ball Valve

Short Description:

The pneumatic wafer carbon steel ball valve consists of a wafer ball valve and a pneumatic actuator. It features a compact structure, small installation dimension and easy replacement. It is especial...

Product Name:
Valve Category:
Brand:
Technical Data:
Made In:
Supplier:

Send email to us Download

Product Detail

Based on different medium conditions, this pneumatic wafer ball valve is available with PTFE seal and PPL seal, applicable for working temperature below 250℃. When equipped with a valve positioner, it becomes a pneumatic regulating wafer ball valve to adjust the flow rate of pipeline medium. Matched with a solenoid valve, it can realize on-off control of pipeline medium.

Accessory Selection

Standard configuration: AT-type double-acting pneumatic actuator (single-acting type for optional selection). Optional accessories: Solenoid directional valve (AC220V, DC24V, explosion-proof type), limit switch (valve position feedback, explosion-proof type), air filter pressure reducing valve (air source three-piece unit).

Technical Parameters

Parameter Item	Specification
Nominal Diameter	DN10～150mm
Nominal Pressure	PN1.6, 2.5, 4.0, 6.4, 31.5MPa (Customizable)
Leakage Rate	Soft seal: Zero leakage; Hard seal: ≤ 10⁻⁵ of rated flow
Flow Characteristic	Quick-opening characteristic
Adjustable Range Ratio	DN10-80: 250:1; DN100-150: 350:1
Valve Body Type	Integral forging type, integral casting type
Connection Type	Ultra-thin flange type, wafer type
Ball Core Type	O-type spherical ball core
Sealing Packing	V-type PTFE packing, flexible graphite packing, etc.
Applicable Temperature (by Seal Face)	PTFE≤180℃, PPL≤300℃, Hard Seal≤450℃
Matched Actuator	GT, AT, AR, AW series single-acting and double-acting pneumatic actuators (optional)
Control Mode	Two-position on-off control, 4-20mA analog quantity control
