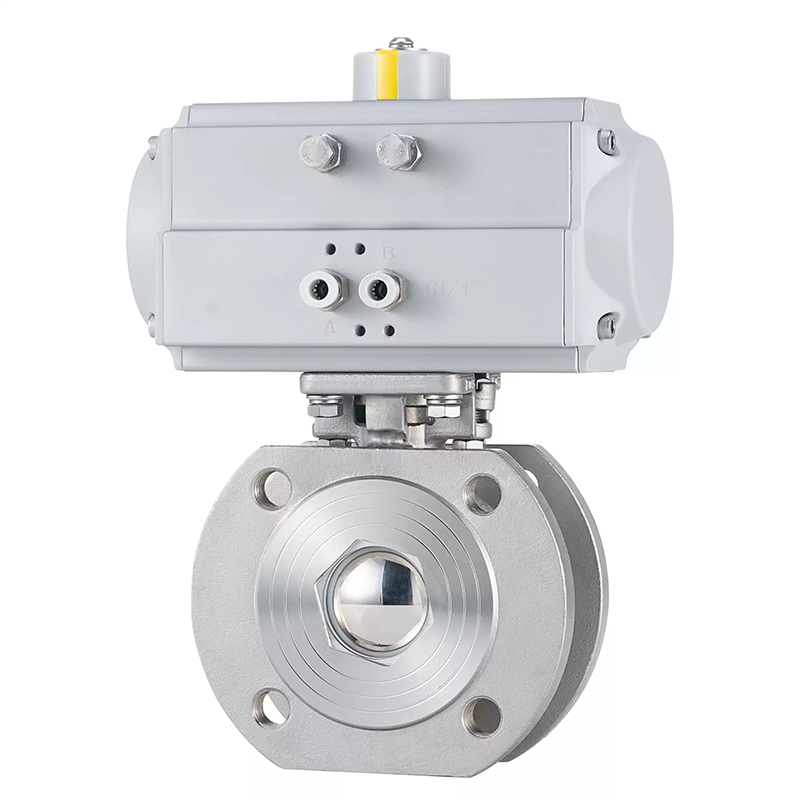

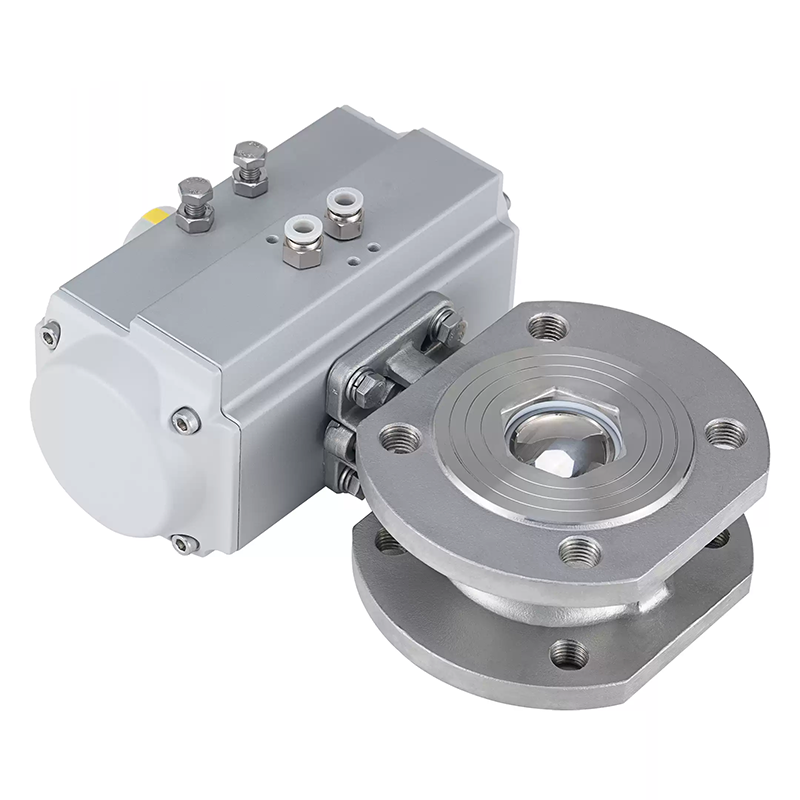

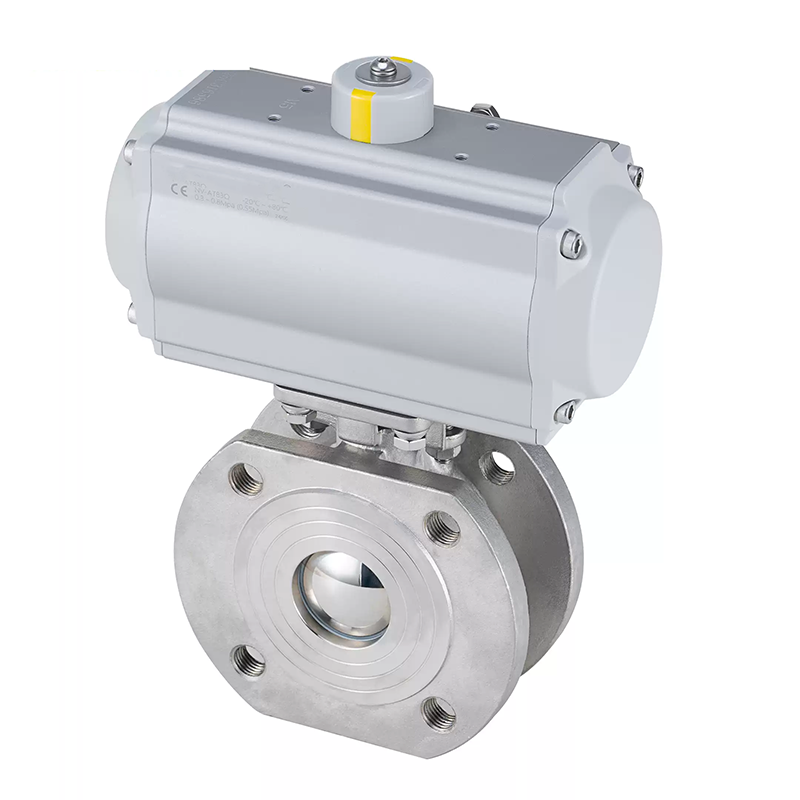

Pneumatic Wafer Stainless Steel Ball Valve

Short Description:

Product Name:
Valve Category:
Brand:
Technical Data:
Made In:
Supplier:

Product Detail

The pneumatic wafer stainless steel ball valve features a compact structure, small volume, light weight and easy installation. As a new type of ultra-short flange distance ball valve, it absorbs Italian technology and is developed through localized design. Adopting a direct connection method to connect with the actuator, the pneumatic wafer ball valve has the advantages of compact structure, small size, light weight, small friction resistance, small hysteresis, and stable and reliable operation.

The pneumatic wafer ball valve can be widely used in petroleum, chemical, metallurgy, power station, light industry and other fields, for automatic regulation or on-off control of oil, water, gas, pulp or fibrous fluids.

Technical Parameters

Parameter Item	Specification
Product Name	Pneumatic Ultra-thin Ball Valve
Valve Body Material	Carbon Steel WCB, Stainless Steel CF8, Stainless Steel CF8M
Connection Type	Wafer Type
Applicable Pressure	1.6Mpa-4.0Mpa
Nominal Diameter	DN15~DN100
Drive Mode	Pneumatic
Applicable Medium	Water, Oil, Gas, etc.
Applicable Temperature	-20°C ~ +150°C / -20°C ~ +240°C
Actuator Type	AT Pneumatic Actuator / RT Pneumatic Actuator
Action Mode	Double-acting (Air-open & Air-close), Single-acting (Spring Return)
Control Mode	Two-position on-off control, 4-20mA analog quantity control
Air Supply Pressure	Double-acting: 3-8bar; Single-acting: 4-8bar
Operating Medium	Air
Connection Size	ISO5211
Air Supply Interface	Complies with NAMUR Standard
Manufacturing Standard	GB, JB, HG, ANSI, API, JIS, DIN, Other Custom Standards
