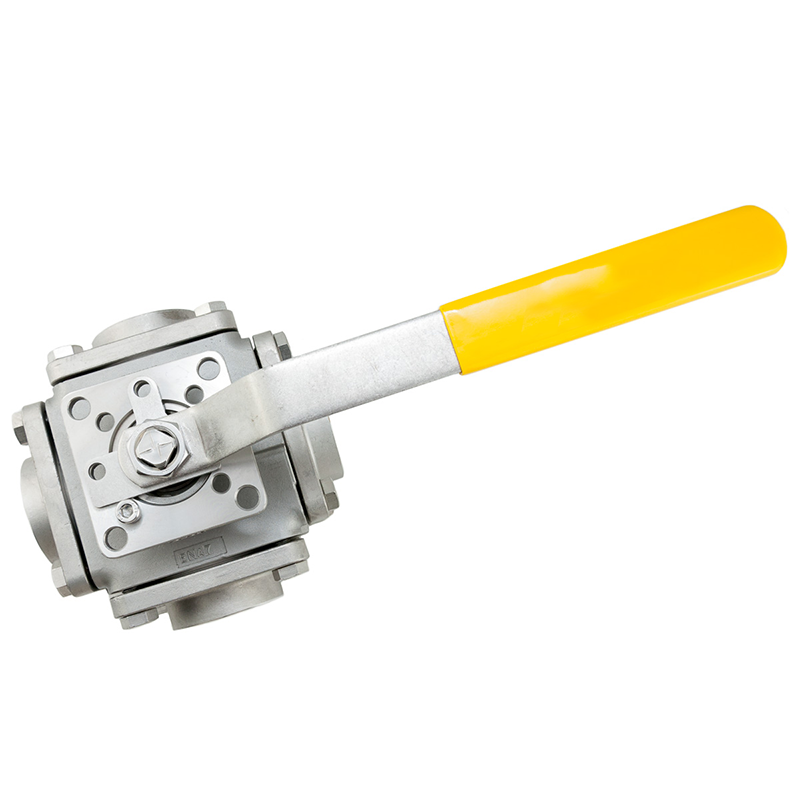

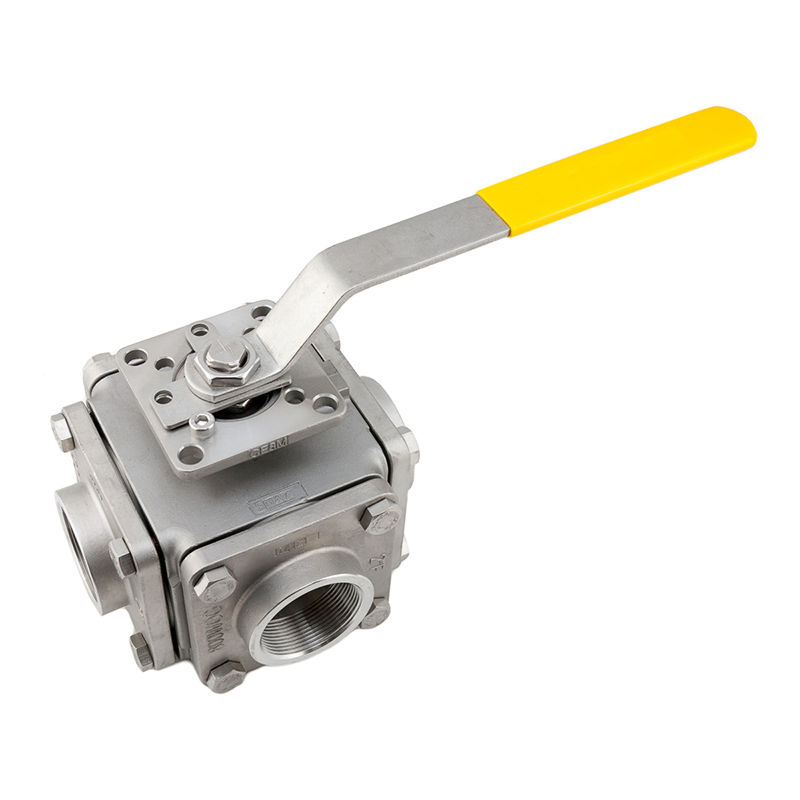

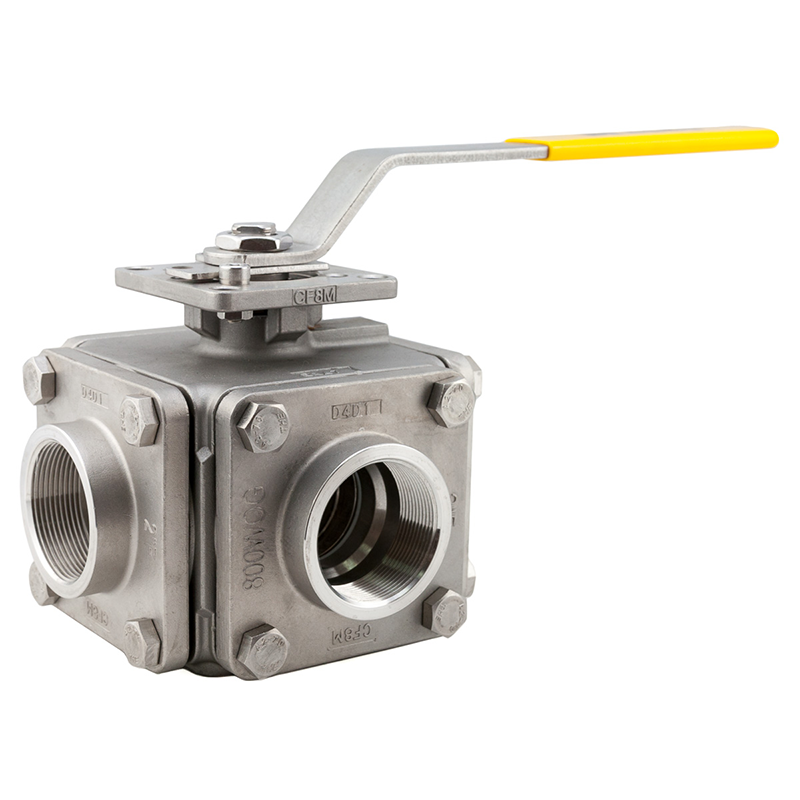

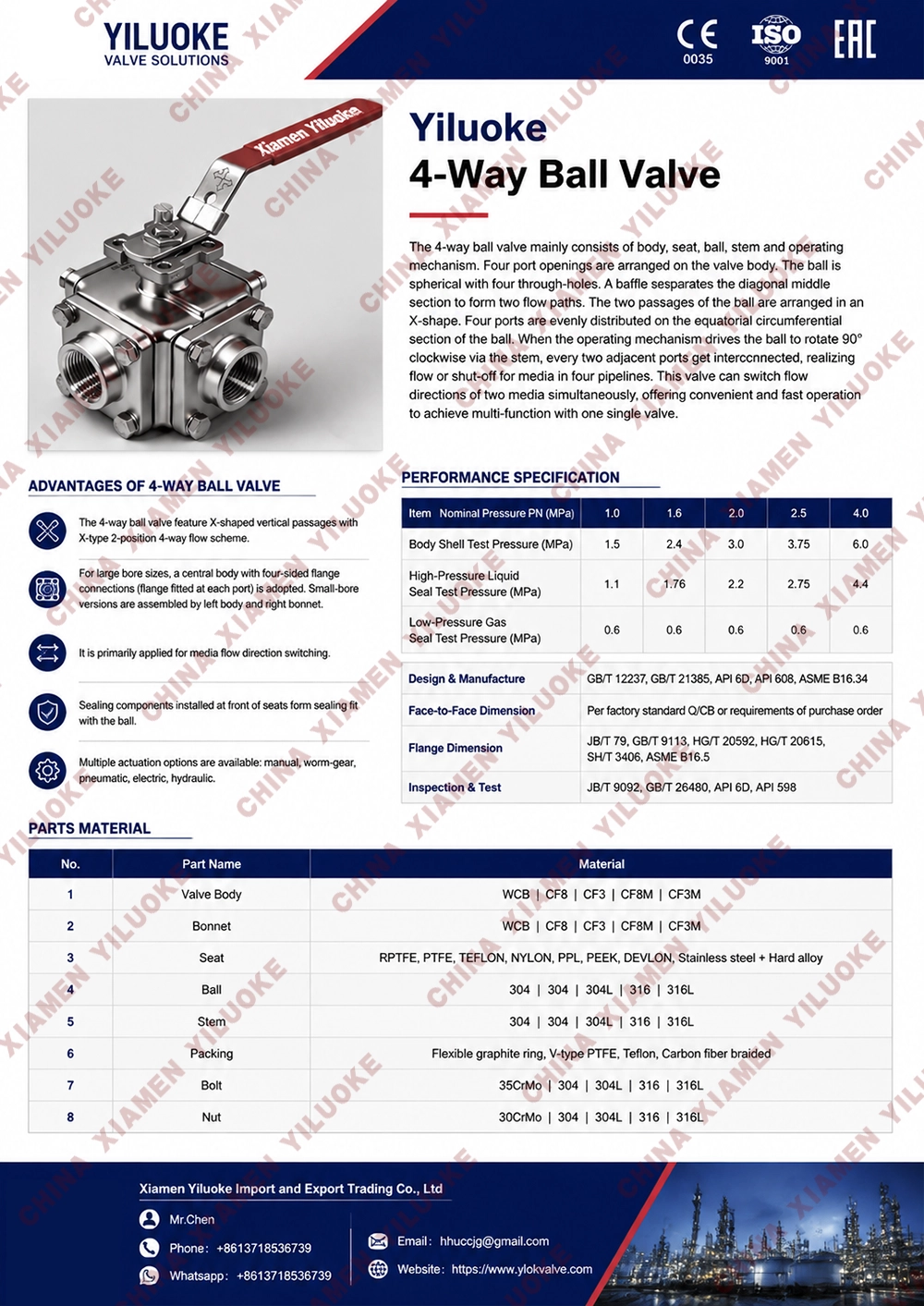

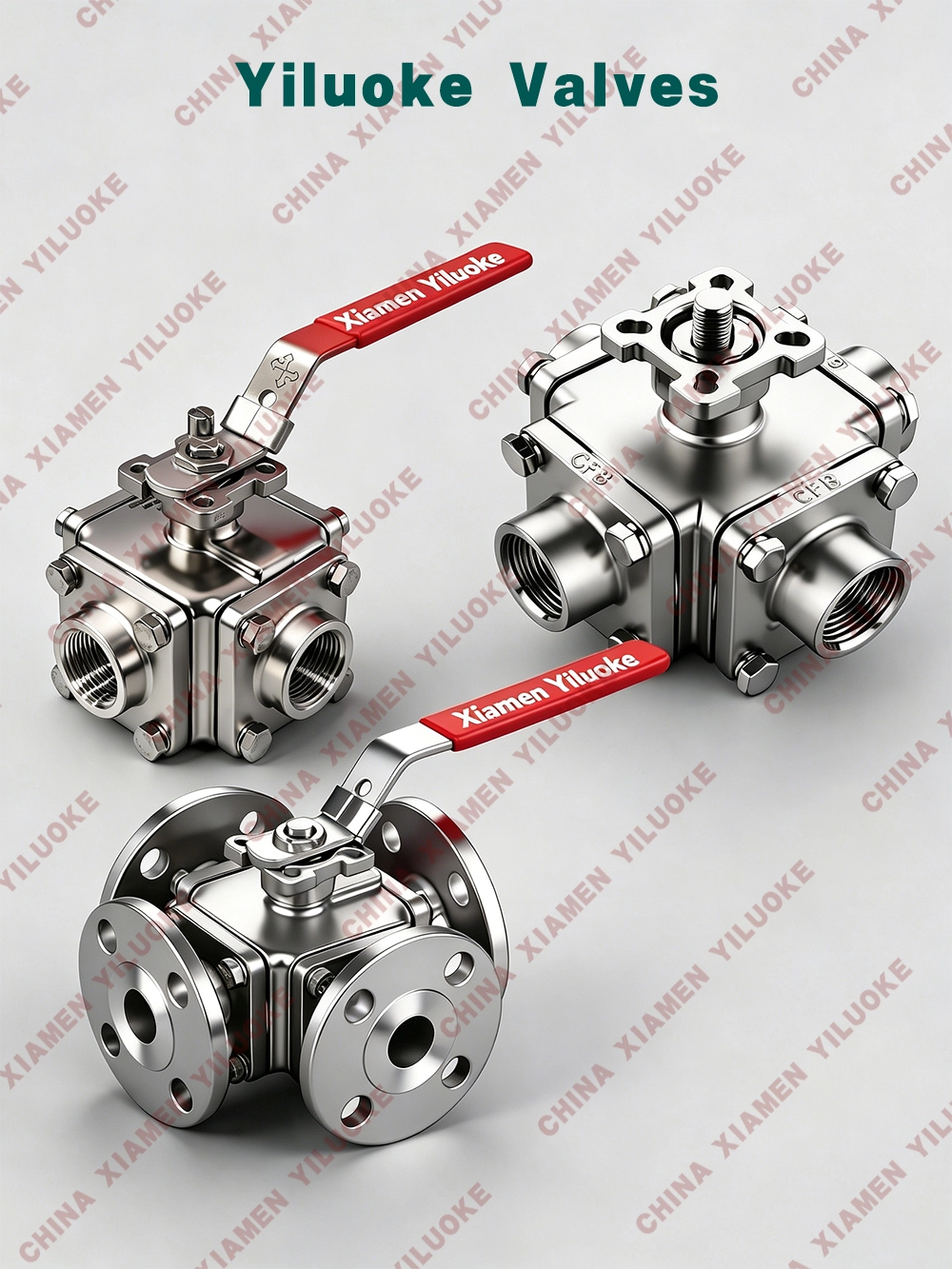

4-Way Ball Valves

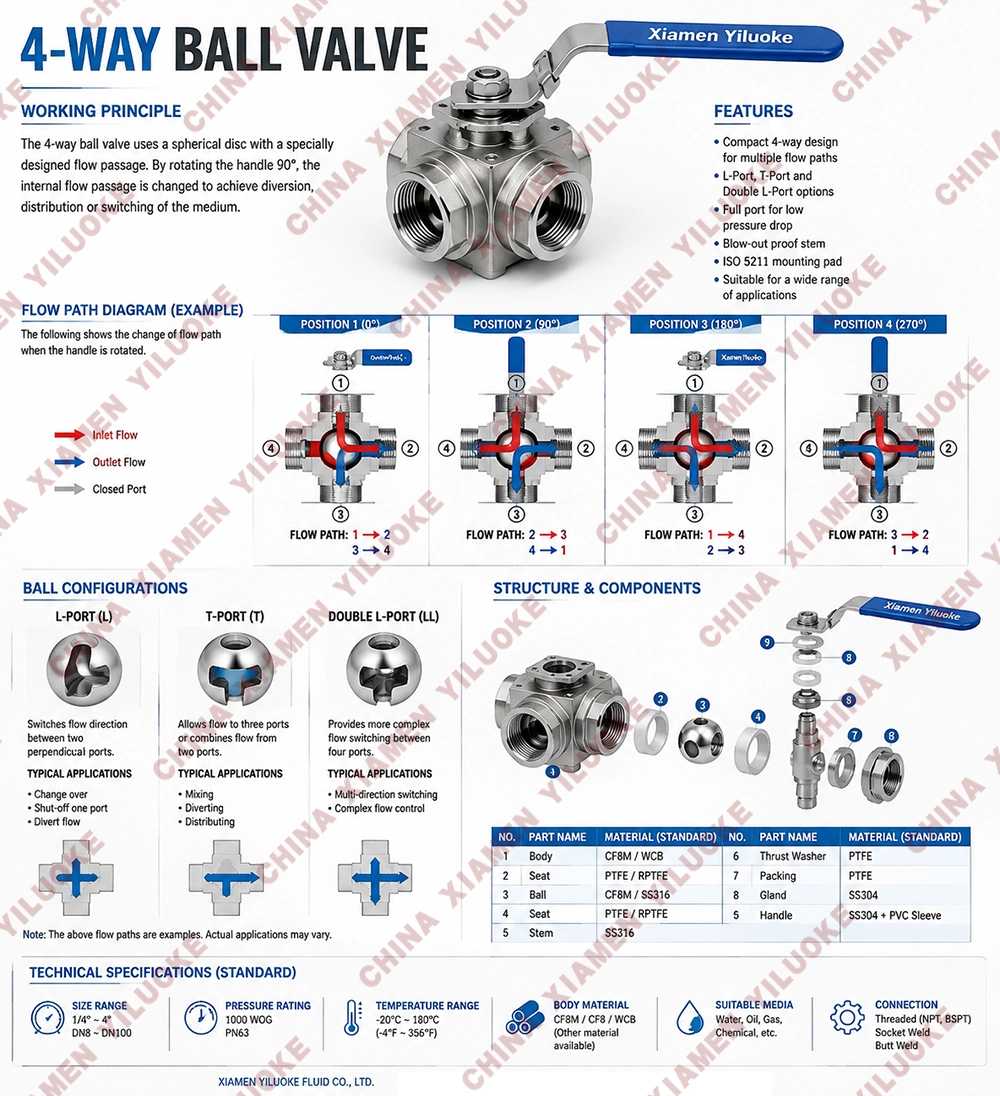

The 4‑way ball valve only needs to operate a wrench or actuator to rotate the ball 90 degrees, which can switch the flow direction of two media at the same time. It is both convenient and rapid, achieving the effect of one valve with multiple uses. The valve core and valve neck materials of the valve are austenitic stainless steel, and the valve seat material is PTFE, which can achieve good corrosion resistance and extend the service life of the valve.
Design Features
1. Fire‑safe structural design
2. ISO 5211 standard mounting platform for direct actuator installation
3. Anti‑static device installed between valve body and ball
4. Anti‑blowout stem structure
5. Double‑layer stem packing
6. Double disc springs for automatic packing compression
Reference Standards
| Category | Standards |
| Design | EN12516‑1, GB/T12224, ISO5211 |
| Material | ASTM A351, EN10213‑4, ASTM A216 |
| Test & Inspection | EN1226‑1, API 598, GB13927 |
| End Connection | BSPT, BSP, NPT, DIN2999 |
Operating Conditions
| Item | Parameter |
| Working Temperature | -40℃ ~ +180℃ |
| Pressure Class | PN63 |
| Vacuum Degree | 10⁻¹ Torr |

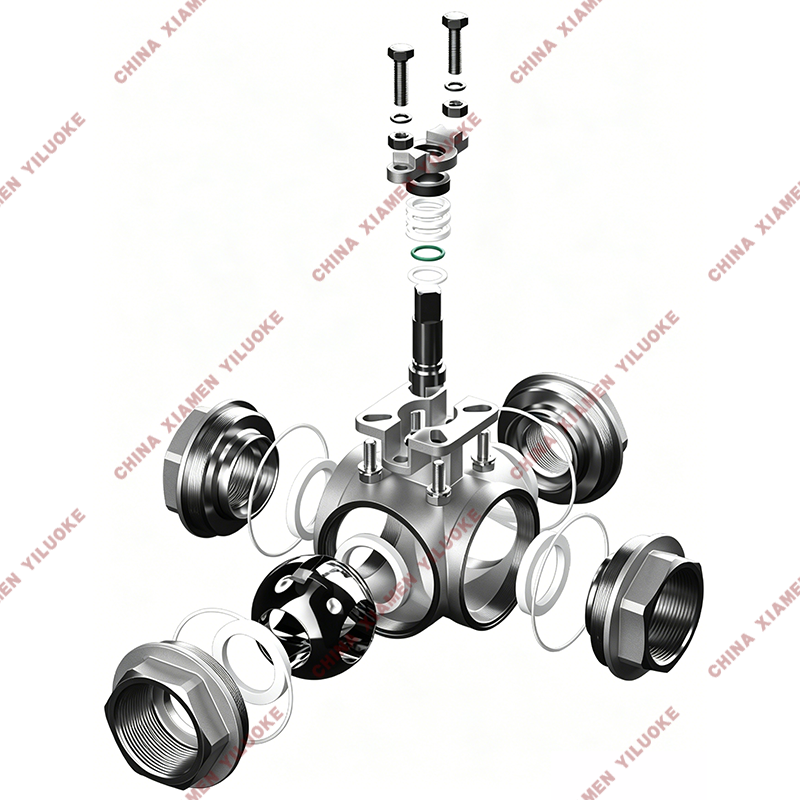

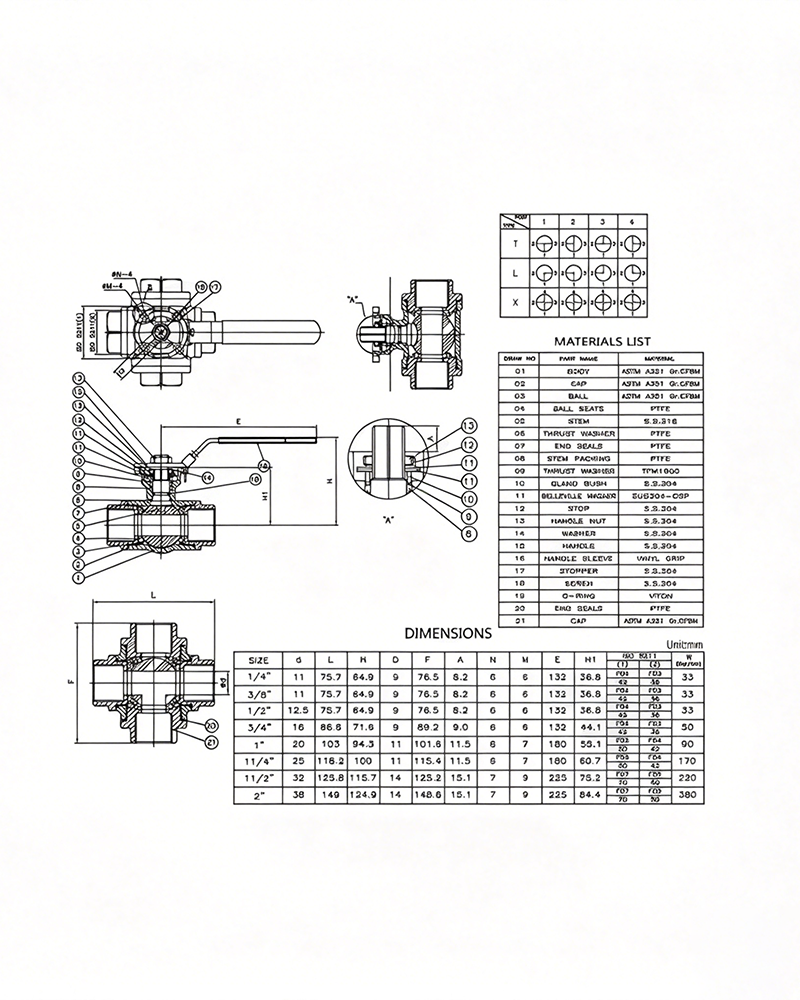

Main Component Materials
| Parts Name | Material Grade |
| Valve Body | CF8M, CF8, WCB |
| Bonnet | CF8M, CF8, WCB |
| Ball | 316, 304 |
| Seat | PTFE, PPL |
| Stem | 316, 304 |
| Anti‑static Device | 316, 304 |
| Thrust Washer | PTFE, Flexible Graphite |
| Packing | PTFE, Flexible Graphite |
| Intermediate Gasket | Reinforced PTFE, Flexible Graphite |
| Gland Flange | 304 |
| Disc Spring | 301 |
| Sealing Gasket | PTFE, Flexible Graphite with Stainless Steel Wire Insertion |
Structural Features
1. Precision‑cast valve body
2. Blowout‑proof valve stem

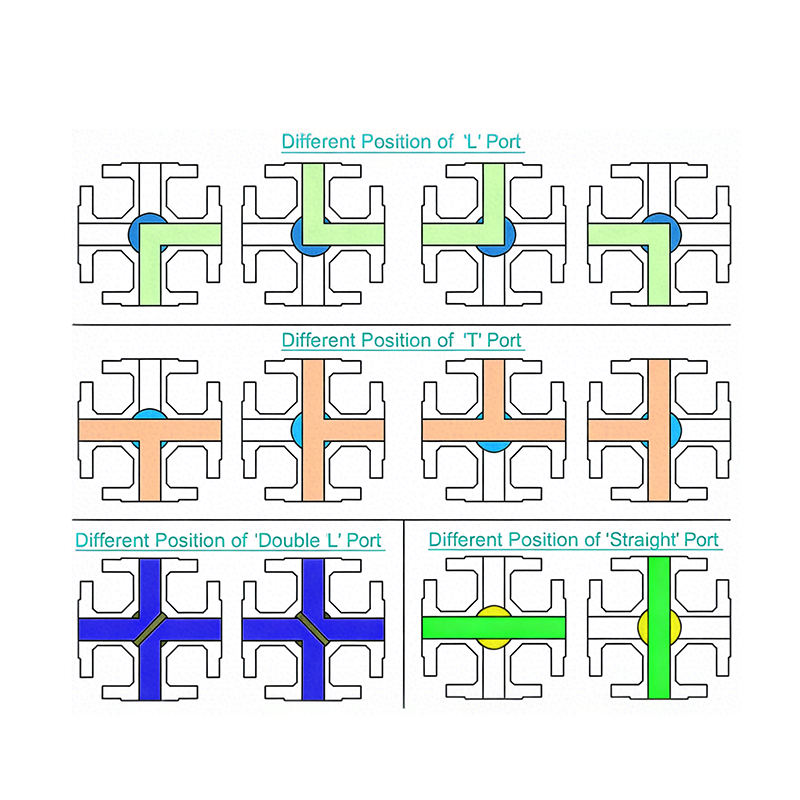

3. L/L channel, optional T‑type ball
4. Can be derived and developed into vertical three‑way (four‑way three‑position) or five‑way ball valves
5. Soft seal / bidirectional hard seal with shared valve body
6. Optional floating ball / fixed ball structure
7. Fireproof structure
8. Anti‑static device
9. Optional lockable handle
10. ISO 5211 high mounting platform
FAQ
1：Connection Types of 4‑Way Ball Valves
1. Flanged Type: Suitable for medium and large calibers, easy to disassemble, widely used in industrial pipelines.
2. Threaded Type: For small calibers, simple installation, fit small pipelines.
3. Butt Weld / Socket Weld: Superior sealing, suitable for high temperature & high pressure service.
4. Clamp Quick‑install: Sanitary design, quick assembly for food and pharmaceutical pipelines.
Related Products：4‑way Flanged Ball Valve
2：How to Operated a 4‑way Ball Valve?
Manual: Handle, worm gear, for simple working conditions.
Pneumatic: Single/double acting with solenoid valves, widely used in industrial pipelines.
Electric: On‑off/regulating type for remote automatic control and automation systems.
Related Products：Pneumatic Actuated 4‑way Ball Valve
