Electric Insulation Jacket Control Valve

Short Description:

Product Name:
Valve Category:
Brand:
Technical Data:
Made In:
Supplier:

Product Detail

1. Product Overview

Electric insulation jacket control valve manufactured by Shanghai Chuanhu Valve Co., Ltd. adopts top-guided plug structure with compact overall layout and S-shaped streamlined flow channel. It features low pressure drop loss, large flow capacity, wide adjustable range and high-precision flow characteristics, complying with IEC534-2-1976 standard.

This valve is assembled with 3810 series (PSL series) integrated electronic electric actuator and low flow resistance valve body. The electric actuator is an all-in-one unit built with servo amplifier. It can adjust valve opening by receiving control signal (4-20mADC or 1-5VDC) and power supply, realizing precise regulation of pressure, flow, liquid level, temperature and other process parameters.

Product Features

Compact volume, light weight, simple wiring, large flow rate and high regulation accuracy.
Leakage performance meets ANSI B16.104 standard.

Application Scope

Model ZD(R)SBW-P(M) is designed for working conditions requiring medium heat preservation. If the crystallization temperature of process medium is lower than ambient temperature, or the medium viscosity rises/solidifies with temperature drop, a steam insulation jacket is installed on valve body and upper bonnet to maintain medium fluidity and satisfy process control requirements.

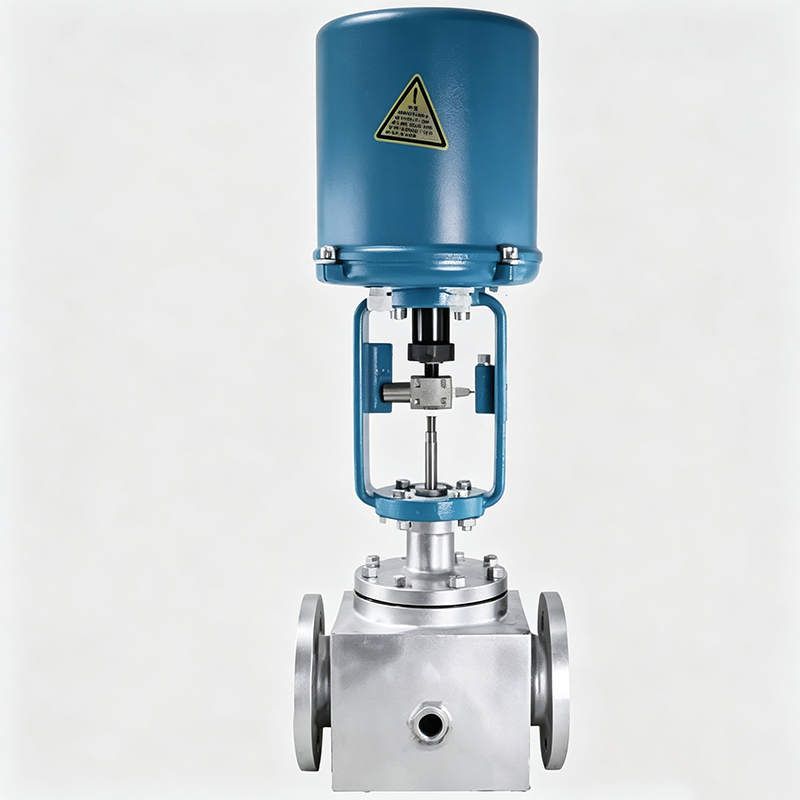

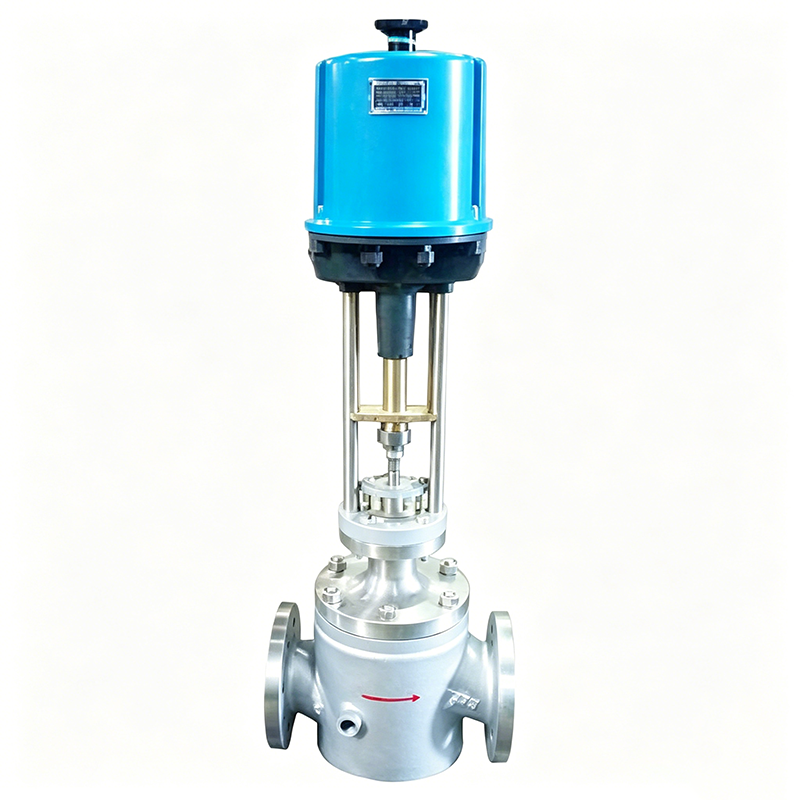

2. Product Image

Electric Insulation Jacket Control Valve

3. Main Component Materials

Parts Name	Material Option 1	Material Option 2	Material Option 3	Material Option 4
Valve Body	WCB(ZG25)	CF8(304)	CF8M(316)	CF3M(316L)
Seat / Cage	304	304	316	316L
Plug	304	304	316	316L
Guide Sleeve	304	304	316	316L
Bonnet	WCB(ZG25)	CF8(304)	CF8M(316)	CF3M(316L)
Packing	PTFE, Flexible Graphite, Polyphenylene	PTFE, Flexible Graphite, Polyphenylene	PTFE, Flexible Graphite, Polyphenylene	PTFE, Flexible Graphite, Polyphenylene
Packing Gland	304	304	316	316L

4. Technical Parameters

Nominal Diameter DN(mm)	20	25	32	40	50	65	80	100	150
Seat Diameter dn(mm)	20	25	32	40	50	65	80	100	150
Rated Flow Coefficient Kv (Single-seat)	6.9	11	17.6	27.5	44	69	110	176	440
Rated Flow Coefficient Kv (Cage)	6.3	10	16	25	40	63	100	160	360
Max Allowable Differential Pressure (MPa) Single-seat	3.8	3.2	3.0	2.0	1.8	1.5	1.4	1.0	0.6
Max Allowable Differential Pressure (MPa) Cage	6.4	6.4	5.2	5.2	4.6	4.6	3.7	3.7	3.1

Nominal Pressure: 1.6, 2.5, 4.0, 6.4 MPa Rated Stroke (mm): 16, 25, 40, 60 Bonnet Type: Standard (-17℃ ~ +250℃), High Temperature (+250℃ ~ +450℃), Low Temperature (-40℃ ~ -196℃), Bellows Sealed (-40℃ ~ +350℃) Gland Type: Bolt Compression Type Plug Type: Single-seat, Cage Type Flow Characteristic: Equal Percentage, Quick Opening Matching Actuator: 3810 series, PSL series or customer-specified brands

Actuator Technical Data

Power Supply: 220V AC
Input Signal: 4-20mA DC / 1-5V DC
Feedback Output Signal: 4-20mA DC
Protection Grade: Equivalent to IP65
Explosion-proof Mark: ExdⅡBT4; ExdⅡBT6 for customized version
Manual Override: Equipped with handwheel
Ambient Temperature: -25℃ ~ +70℃
Ambient Humidity: ≤95%

5. Performance Indicators

Test Item	Index Value
Basic Error (%)	±2.5 (with 3810L); ±1.0 (with PSL)
Hysteresis (%)	±2.0 (with 3810L); ±1.0 (with PSL)
Dead Zone (%)	≤1.0
Onset & Terminal Deviation (%)
Electric-to-open Valve: Start Deviation	±2.5
Electric-to-open Valve: End Deviation	±2.5
Electric-to-close Valve: Start Deviation	±2.5
Electric-to-close Valve: End Deviation	±2.5
Rated Stroke Deviation (%)	≤±2.5
Leakage Rate (L/h)	0.01% of valve rated capacity
Rangeability R	30:1

6. Structural Drawing

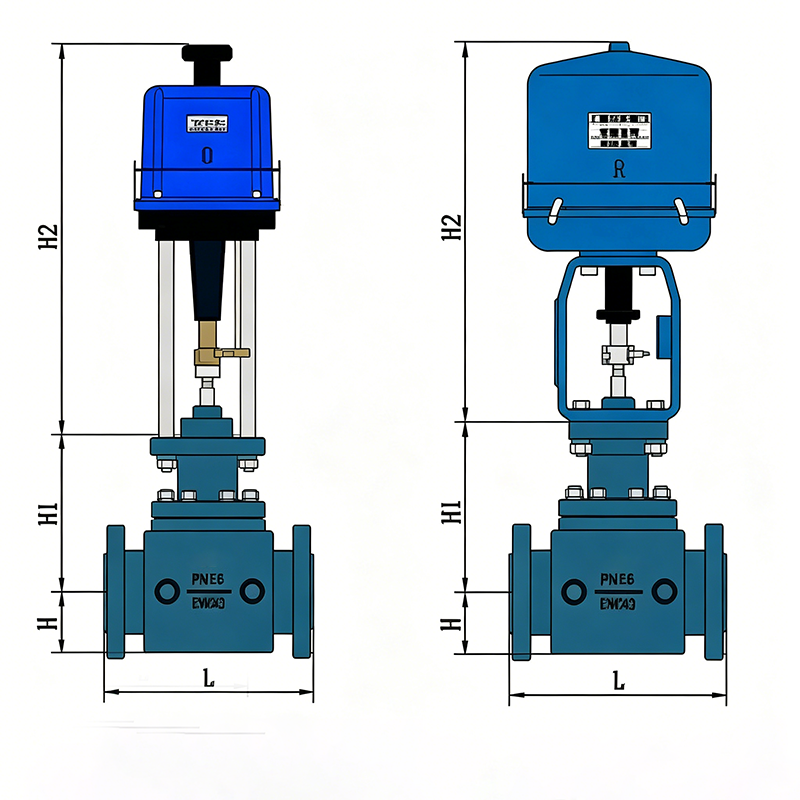

Structural Drawing of Electric Insulation Jacket Control Valve

Electric Insulation Jacket Control Valve Structure Diagram

7. Main Connection Dimensions (Unit: mm)

DN	20	25	32	40	50	65	80	100	125	150
L PN16/25	181	184	200	222	254	276	298	352	410	451
L PN40	194	197	200	235	267	292	317	368	425	473
L PN64	206	200	210	251	286	311	337	394	440	508
H PN16/25	52.5	57.5	75	75	85.5	92.5	100	110	142.5	158
H PN40	52.5	57.5	75	75	82.5	92.5	100	117.5	150	167.5
H PN64	65	40	85	85	90	102.5	107.5	125	172.5	195
H1	182	182	218	225	230	264	271	285	320	344
H2 (3810L)	373	373	495	495	495	700	700	700	725	725
H2 (PSL)	465	465	465	465	465	560	560	560	560	560
D (3810L)	225	225	225	225	225	257	257	257	310	310
D (PSL)	177	177	177	177	177	182	182	182	182	182
