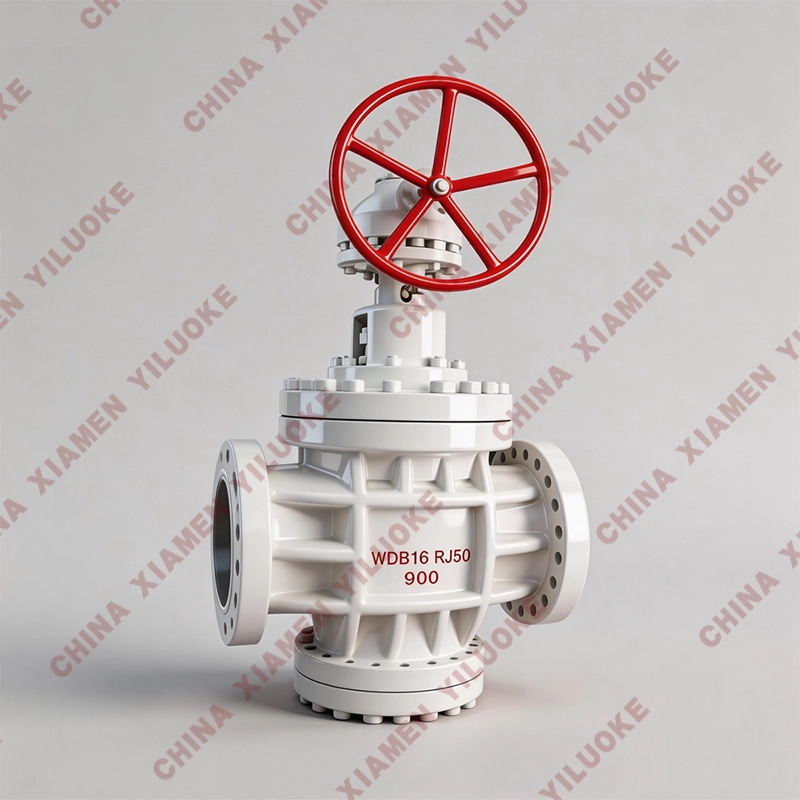

Lift Hard Seal Plug Valve

Short Description:

The Lift Hard Seal Plug Valve is suitable for pipelines in petroleum, chemical, pharmaceutical, fertilizer, power and other industries with nominal pressure CLASS150-1500LB and working temperature -29...

Product Name:
Valve Category:
Brand:
Technical Data:
Made In:
Supplier:

Send email to us Download

Product Detail

Structural Features

1. Reasonable product structure, reliable sealing, excellent performance and attractive appearance.

2. The valve opens and closes when the sealing surfaces are separated without abrasion to sealing surfaces.

3. Bidirectional flow, convenient installation and operation.

4. Material of parts and flange dimensions can be reasonably selected according to actual working conditions or user requirements to meet various engineering demands.

Technical Specifications

Structure Type	BB-BG-OS&Y
Design Standard	API599、API6D
Face to Face	ASME B16.10
Flange Connection	ASME B16.5
Test & Inspection	API598、API 6D

Performance Specification

Nominal Pressure	Body Test Pressure	Seat Test Pressure	Operating Temperature(℃)	Suitable Media
150	3	2.2	≤550℃	Water, steam, oil and other media
300	7.5	5.5	≤550℃	Water, steam, oil and other media
600	15	11	≤550℃	Water, steam, oil and other media
900	22.5	16.5	≤550℃	Water, steam, oil and other media
1500	37.5	27.5	≤550℃	Water, steam, oil and other media

Product Dimensions

X43-150LB (Class 150LB)

Parameter	Unit	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Bore	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	1¼	1½	2	2½	3	4	5	6	8	10	12	14
L	mm	108	117	127	140	165	178	190	203	229	254	267	292	330	356	381
H	mm	190	195	225	260	280	310	340	395	435	470	535	590	630	680	720
W	mm	120	140	140	180	200	220	260	280	300	340	400	450	450	500	500
Weight	Kg	9	10	11	17	19	23	25	32	55	82	98	130	178	250	380

X43-300LB (Class 300LB)

Parameter	Unit	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Bore	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	1¼	1½	2	2½	3	4	5	6	8	10	12	14
L	mm	140	152	165	178	190	216	241	283	305	381	403	419	457	502	762
H	mm	190	195	225	260	280	310	340	395	435	470	535	590	630	680	720
W	mm	120	140	140	180	200	220	260	280	300	340	400	450	450	500	500
Weight	Kg	10	12	14	19	21	28	34	39	75	95	135	200	255	415	650

X43-600LB (Class 600LB)

Parameter	Unit	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Bore	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	1¼	1½	2	2½	3	4	5	6	8	10	12	14
L	mm	165	190	216	229	241	292	330	356	432	508	559	660	787	838	889
H	mm	190	195	225	260	280	310	340	395	435	470	535	590	630	680	720
W	mm	120	140	140	180	200	220	260	280	300	340	400	450	450	500	500
Weight	Kg	13	14	19	23	25	32	40	55	105	139	300	440	730	1150	1570

X43-900LB (Class 900LB)

Parameter	Unit	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Bore	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	1¼	1½	2	2½	3	4	5	6	8	10	12	14
L	mm	229	229	254	279	305	368	419	381	457	559	610	737	838	965	1029
H	mm	190	195	225	260	280	310	340	395	435	470	535	590	630	680	720
W	mm	120	140	140	180	200	220	260	280	300	340	400	450	450	500	500
Weight	Kg	16	17	26	30	33	39	50	70	137	181	397	590	860	1470	1880
