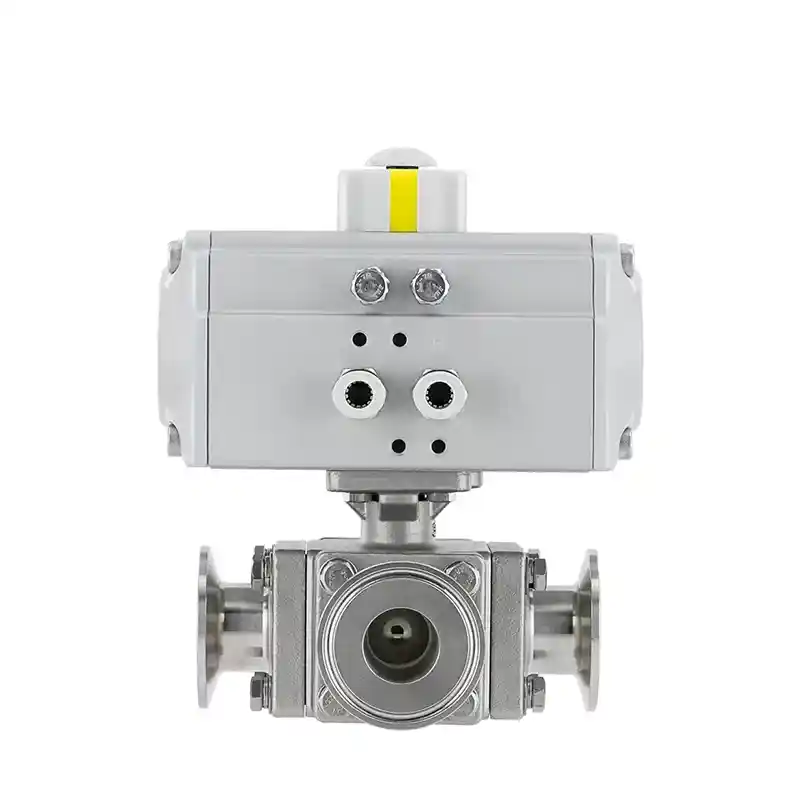

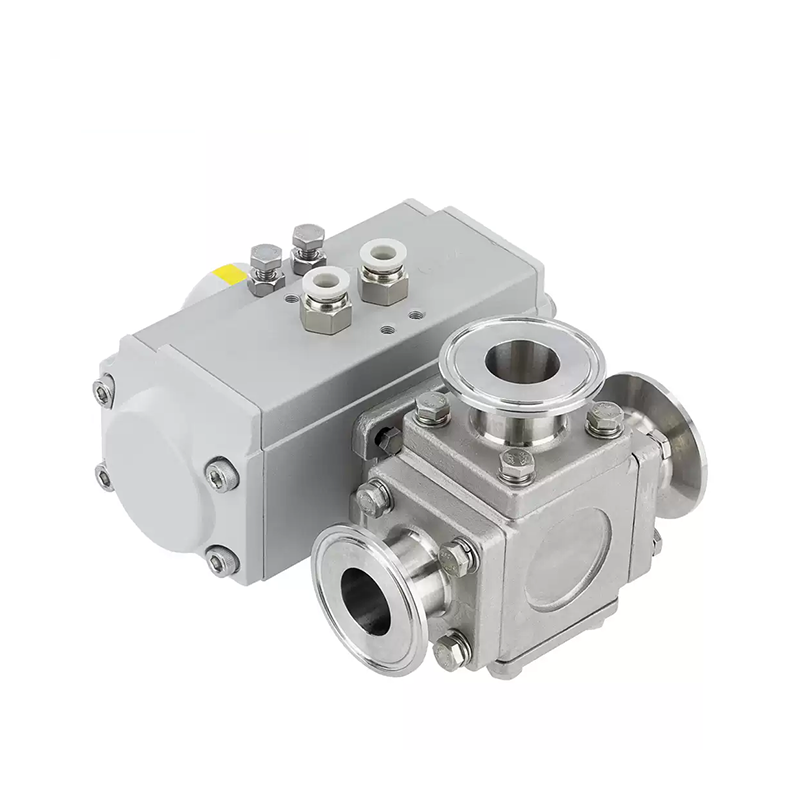

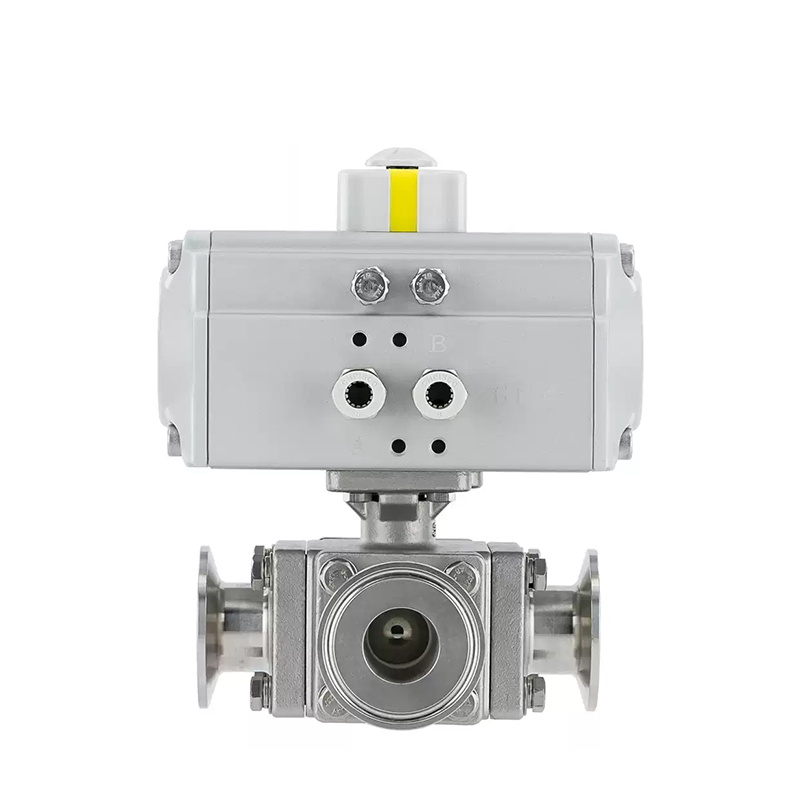

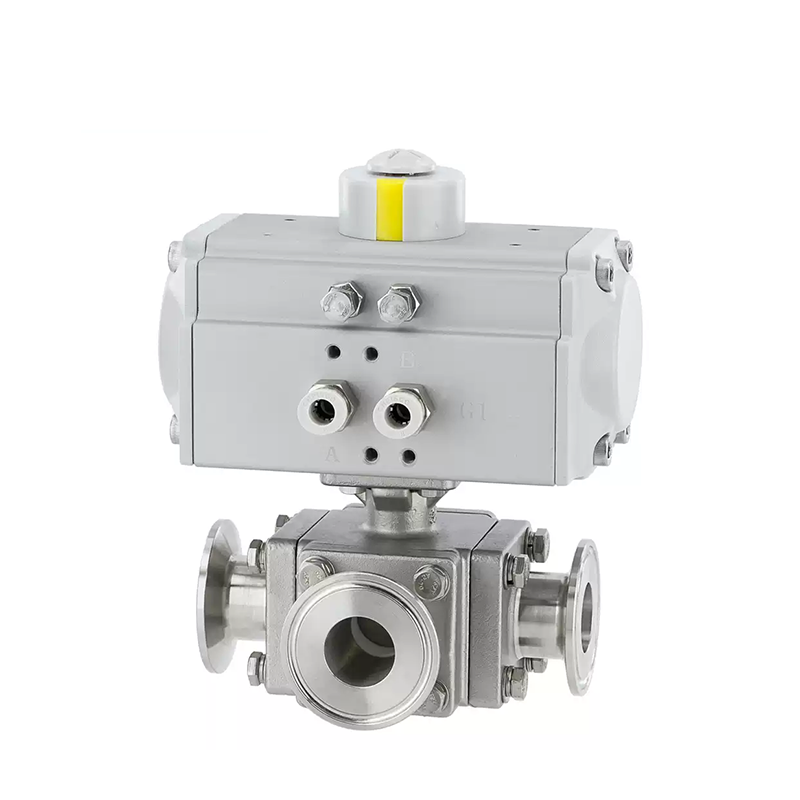

Sanitary Pneumatic 4-Way Ball Valves - Overview & Technical Parameters

The sanitary pneumatic 4-way ball valve is a type of sanitary valve used for pipeline commutation of four channels. It is widely applied in food, beverage processing, pharmaceutical and chemical industry areas.

Technical Parameters

• Valve Body Type: 4-Way Cast Valve Body or Forged Valve Body

• Nominal Diameter: 1"-6" (DN25-DN150)

• Nominal Pressure: PN1.6, 2.5, 4.0 MPa; ANSI 150, 300LB; JIS 10, 20, 30K

• Flange Standard: JB/T79.2-1994, ASME/ANSI B165

• Connection Type: Flanged Type

• Gland Type: Gland Compression Type

• Sealing Packing: V-type PTFE Packing, Flexible Graphite Packing, etc.

• Design & Manufacturing: GB/T12237-1989; API 608

• Inspection & Testing: GB/T13927-1992; API 598

• Sterilization Temperature: 150℃ (Max 20min)

• Internal Surface Finish: Ra≥0.4-0.8 μm

• Surface Finish: Ra≥0.4-1.6 μm

• Welding Connection Standard: DIN11850-2 & 11850-1-3A, ISO, etc.

• Connection Modes: Welded, Clamp, Threaded, Flanged, etc.

• Material: Stainless Steel SS304, 316

This series of ball valves is a type of sanitary valve used for controlling sanitary transfer. It is widely applied in food, beverage processing, pharmaceutical and chemical industry areas.
