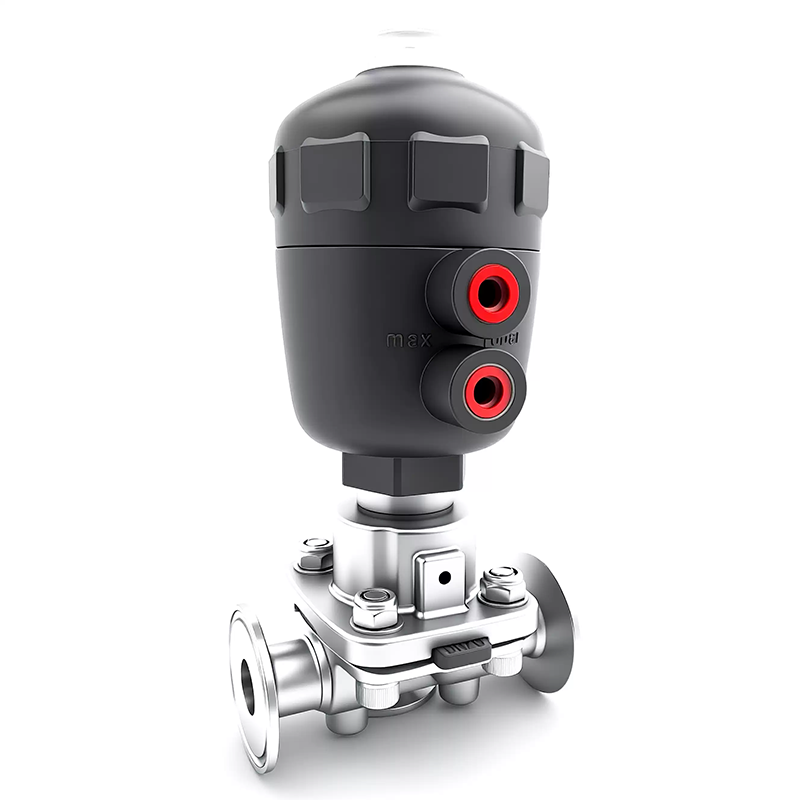

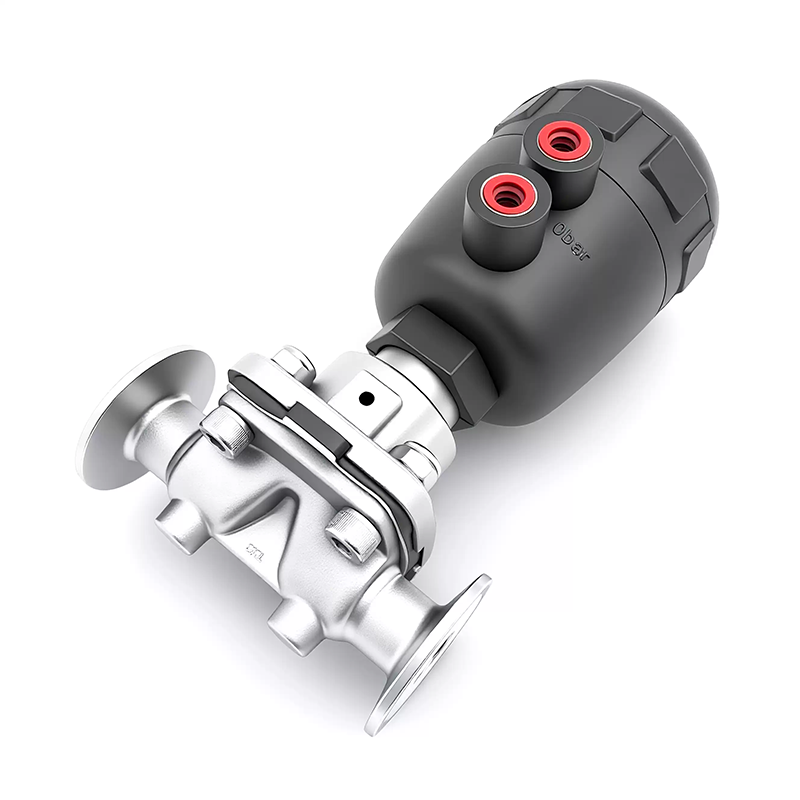

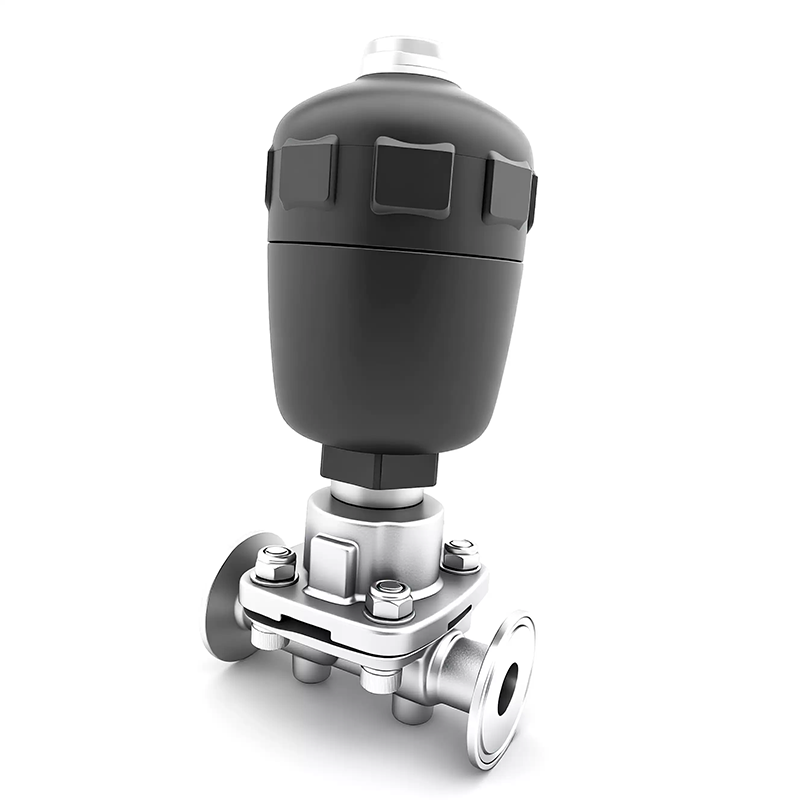

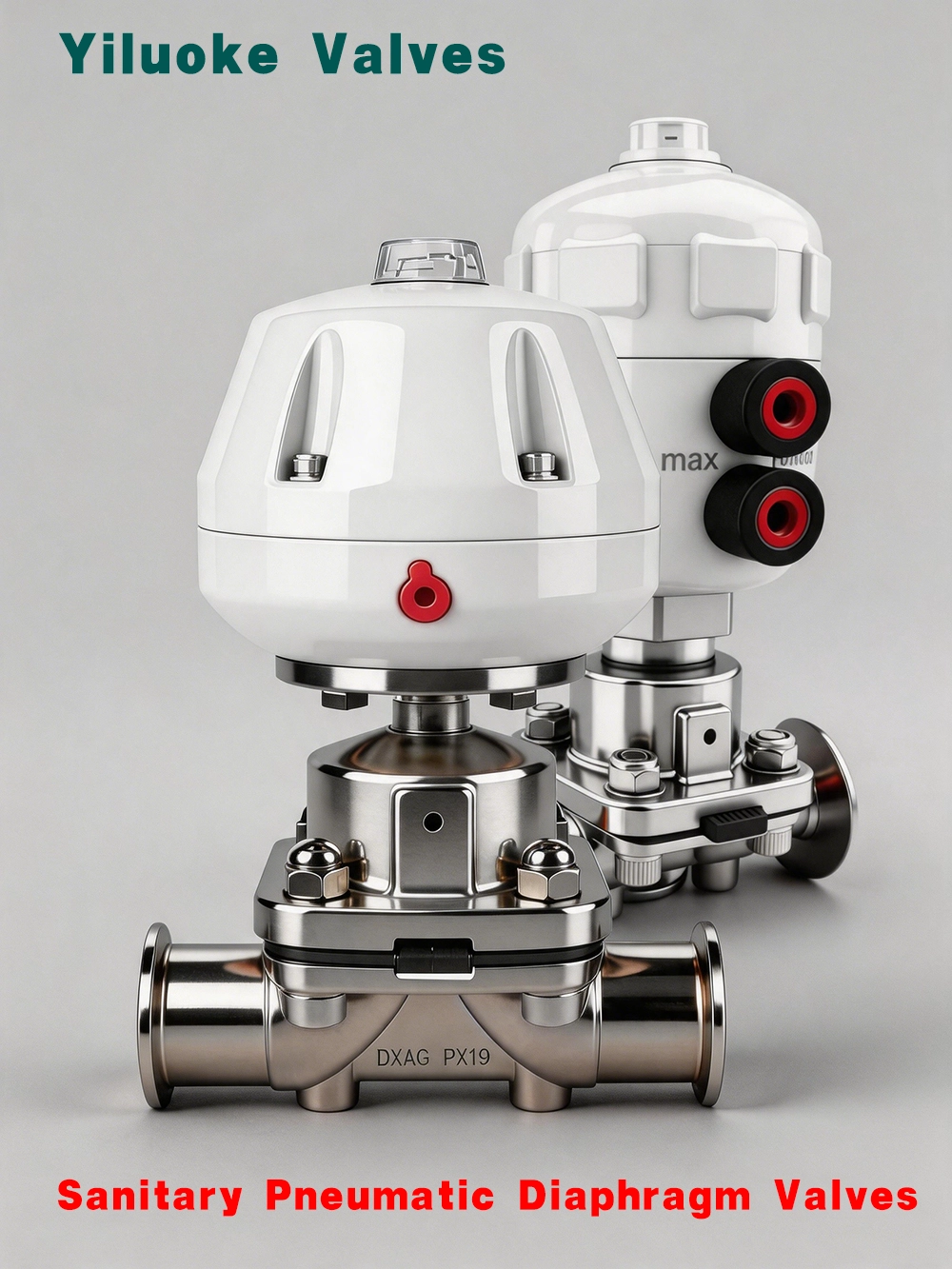

Sanitary Pneumatic Diaphragm Valves
The sanitary pneumatic diaphragm valve consists of a sanitary‑grade diaphragm valve and a pneumatic actuator. Driven by compressed air, it regulates the flow of fluid media in process pipelines.
Featuring a corrosion‑resistant lined valve body, corrosion‑resistant diaphragm, no packing box structure, elastic diaphragm as throttling element and smooth flow passage, the pneumatic diaphragm valve delivers low resistance, large flow capacity, no external leakage, reliable operation, fire and explosion protection. It is widely applied for flow regulation of strong acid, strong alkali, highly corrosive, high‑viscosity, particle‑containing, fiber‑containing, toxic and pollution‑sensitive media in industrial automation systems.
Structural Features
1. Manufactured with full stainless steel material, clean and corrosion‑free.
2. Self‑draining angled body design with no dead corners or pits, smooth flow passage, easy to clean, no liquid or scale accumulation.
3. Compatible with CIP cleaning and SIP sterilization systems.
4. Compatible with Water for Injection (WFI) systems.
5. Single‑seat sealing structure for tight shut‑off.

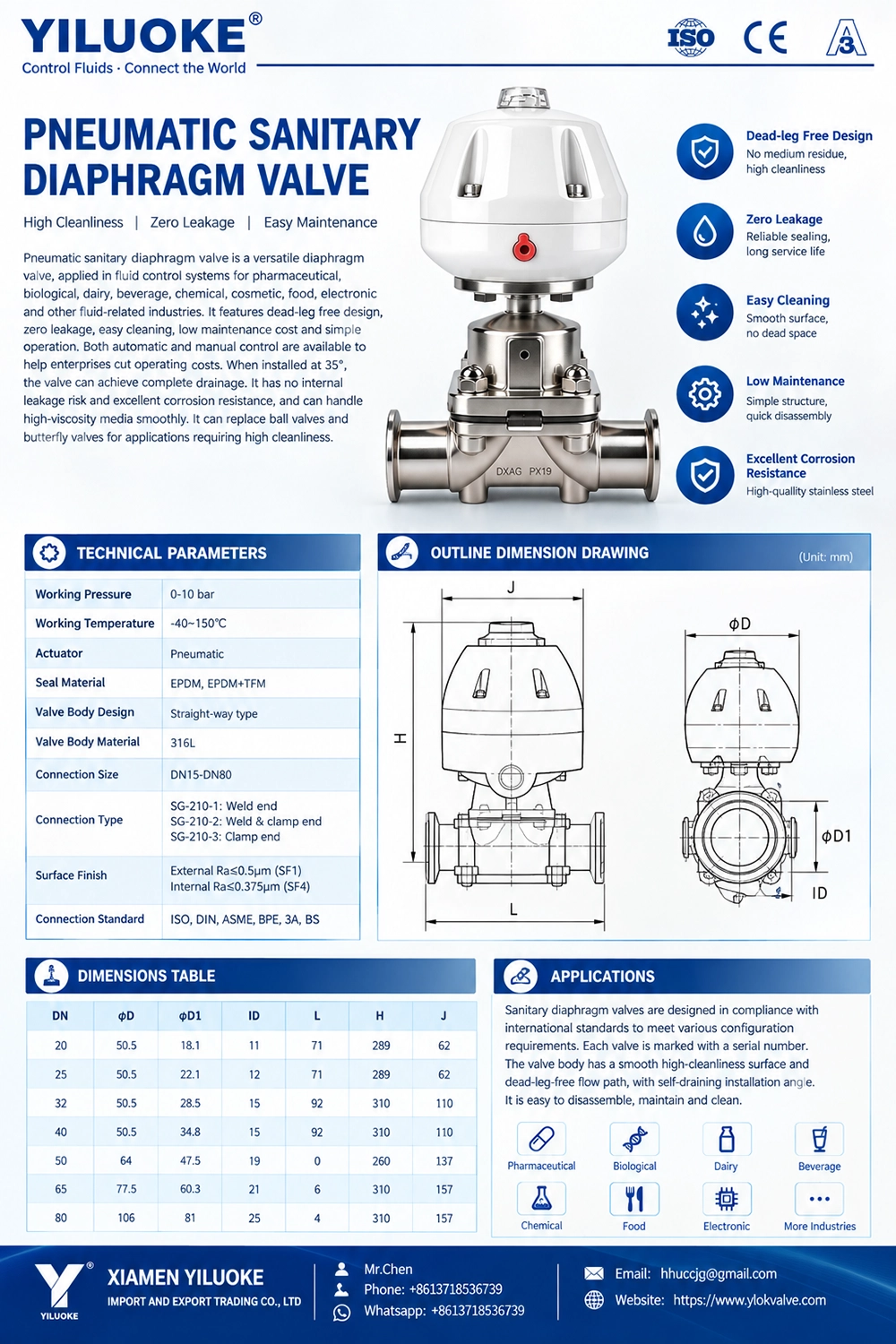

Technical Parameters
| Air Supply | Compressed air 4‑6bar |
| Nominal Diameter | 15～50mm |
| Nominal Pressure | 1.0Mpa |
| Operating Temperature | 60℃ |
| Connection Type | Clamp (Tri‑clamp) |
| Valve Body Material | Stainless steel 316L |
| Diaphragm Material | PTFE, EPDM, NBR |
| Applicable Media | Various food, beverage and water treatment media |
| Actuator | Aluminum alloy |
| Mounting Direction | Any angle |
| Optional Accessories | Limit switch, Positioner, Solenoid valve, Pressure regulator |
Materials
| Component | Material |
| Valve Body | Stainless steel 316L |
| Bonnet | Stainless steel 316L |
| Diaphragm | PTFE+EPDM |
| Valve Disc | Stainless steel 316L |
| Cylinder | Aluminum alloy |
| Piston | Aluminum alloy |
| Valve Stem | Stainless steel 304 |
| Connection Mode | Clamp, Welding |
Diaphragm Dimensions
| Diaphragm Size (A×B) | 25×25 | 37×33 | 54×45 | 70×65 / 83×78 |
| Valve Body Size (DN) | DN8‑10 | DN15 | DN20‑32 | DN40 / DN50 |
| Working Pressure (EPDM) | Max. 6bar | Max. 6bar | Max. 6bar | Max. 6bar |
| Working Pressure (PTFE) | Max. 6bar | Max. 6bar | Max. 6bar | Max. 6bar |
| Working Temperature (EPDM) | Max. 130℃ | Max. 130℃ | Max. 130℃ | Max. 130℃ |
| Working Temperature (PTFE) | Max. 150℃ | Max. 150℃ | Max. 150℃ | Max. 150℃ |
Control Accessory Selection
| Solenoid Valve | 5/2 way for double‑acting, 3/2 way for single‑acting. Specify single coil or double coil when ordering. |
| Limit Switch | Remote feedback switch signal |
| Positioner | Input analog signal (4‑20mA or 0‑10V) to regulate valve opening |
| Remarks | The above accessories are not standard parts. Please specify when ordering. Solenoid valves and limit switches are available in explosion‑proof and non‑explosion‑proof versions. Specify explosion‑proof grade if required. |
