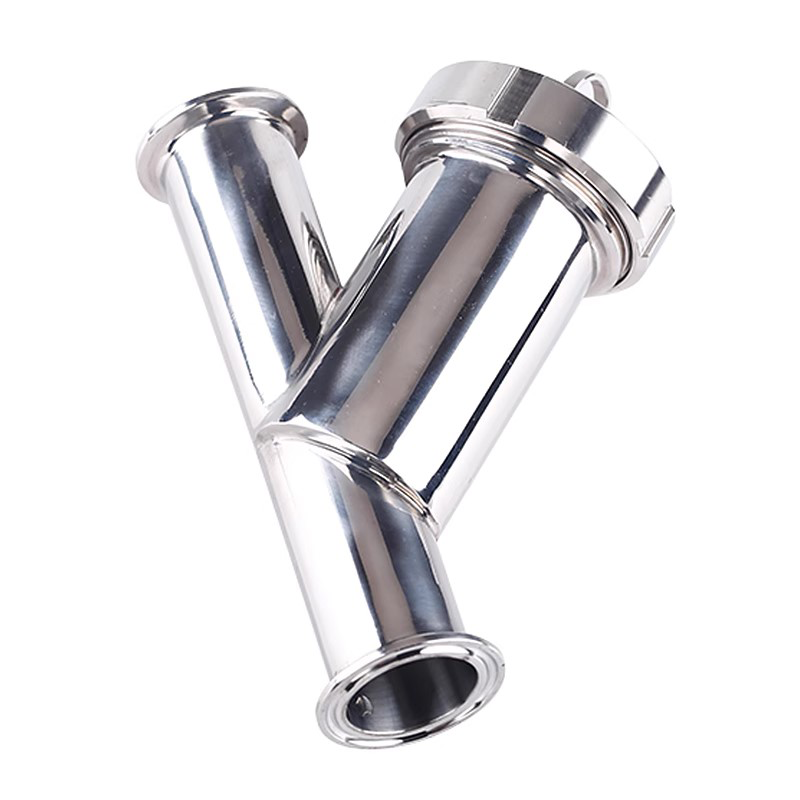

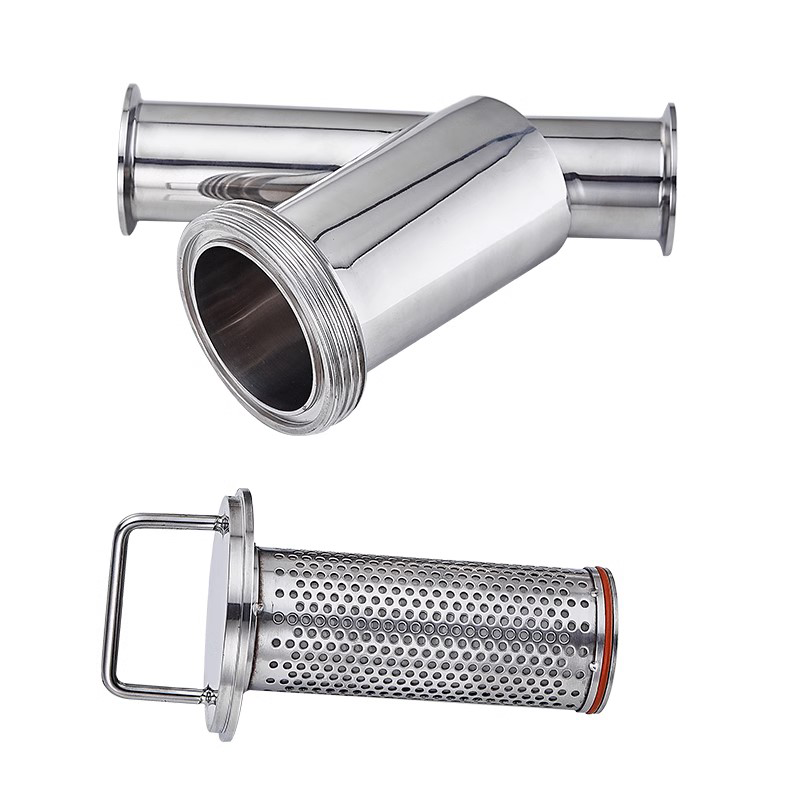

Sanitary Y-Strainers - Overview & Technical Parameters

In food processing, cosmetics, some chemical industries, and auxiliary services of the pharmaceutical industry, the sanitary Y-Strainer is mainly used to filter particles that may damage pumps, instruments, meters and other equipment. Due to its characteristics of compact structure, strong filtering capacity and convenient maintenance, it is widely used in beverages, pharmaceuticals, dairy products and other fields.

Technical Parameters of Sanitary Y-Strainer

• Seals: Rubber/PTFE/Silicone

• Size: From 1/2 inch to 6 inches

• Standards: DIN, 3A, SMS, ISO

• Material: AISI304, AISI316L

• Surface Treatment: Mirror polishing, Semi-bright polishing

• Connection Mode: Welded, Clamped

• Packaging: Shrink packaging – Carton – Plywood box

• Material: SS304/SS316

• Application Fields: Extracted product components, pharmaceuticals, beer, food, dairy products, brewing, beverages, water treatment and chemical industries

• Working Temperature: -10℃ to 120℃

• Mesh Size: 0.5mm to 2.0mm

• Screen: 30 mesh to 300 mesh
